Preface: This article describes only the procedure for replacing an RF tube. It does not include calibration.
3 mm Allen Wrench
Phillips Head Screw Driver (P2)
Multi-Meter
Towel or Clot

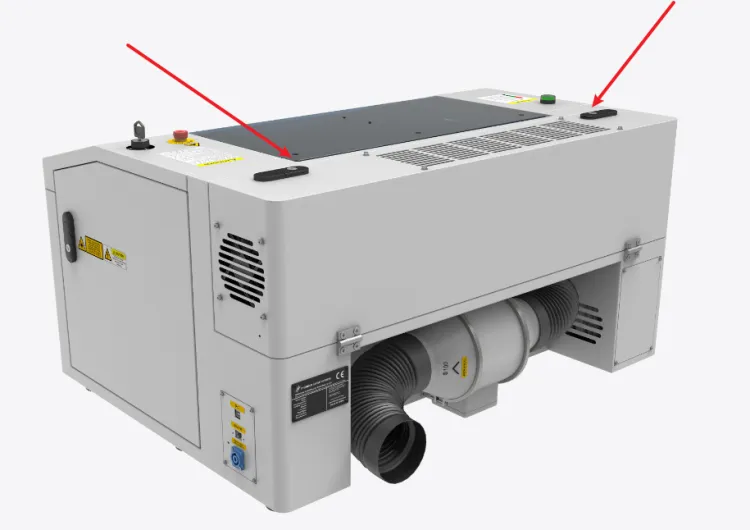

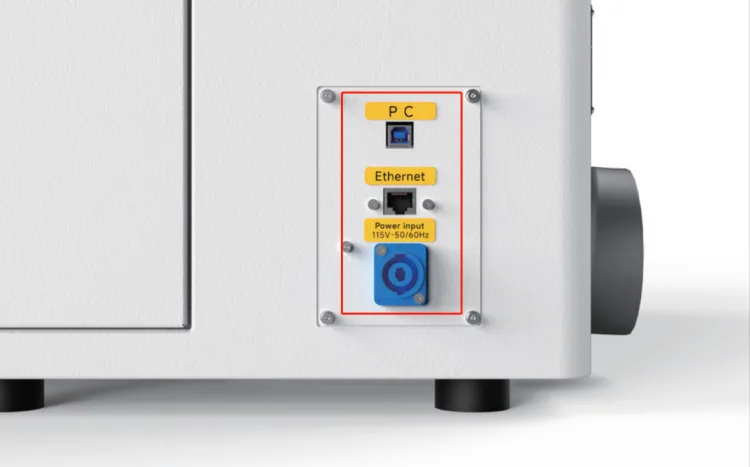

The RF tube is located in the rear of the machine. Please unlock both door locks and open the rear area.

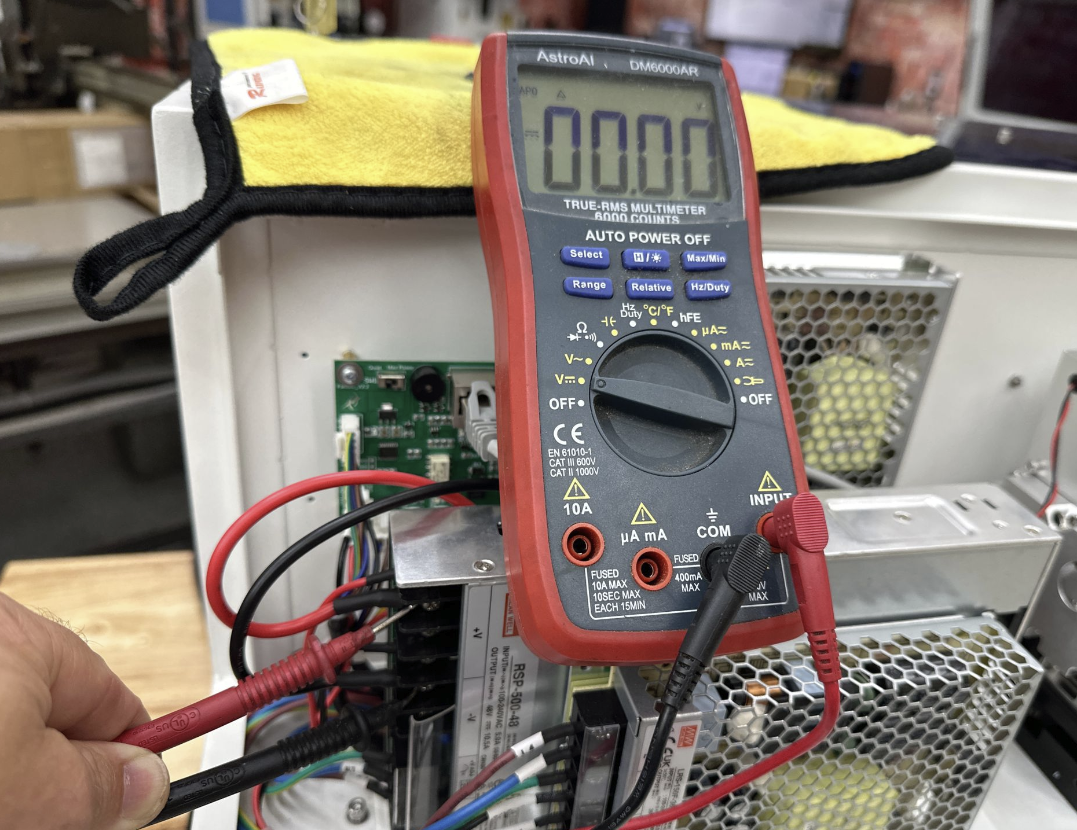

1. Check for 0V on the 48V power supply output (Make sure the meter is set to Volts DC not Volts AC~).
Make sure the power is turned off completely.

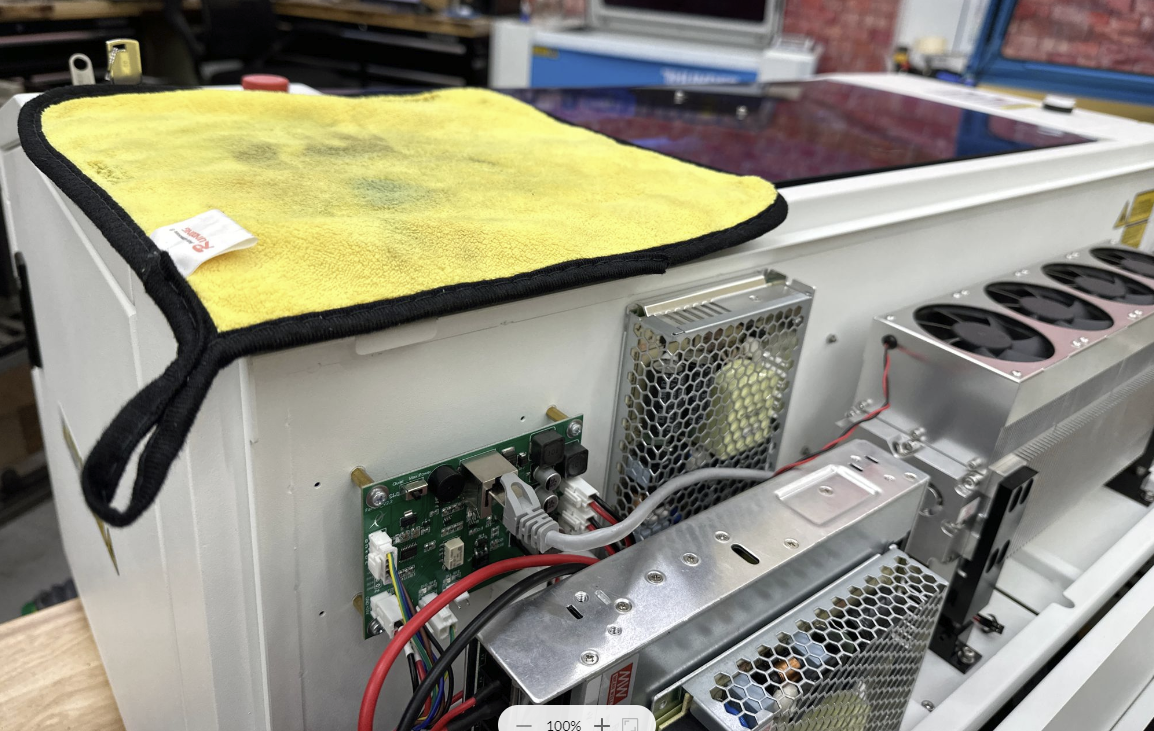

2. Place a towel on this part of the machine. This is where we will place the RF Tube during the unloading process. Not only facilitates disassembly, but also helps protect the case and RF tube.

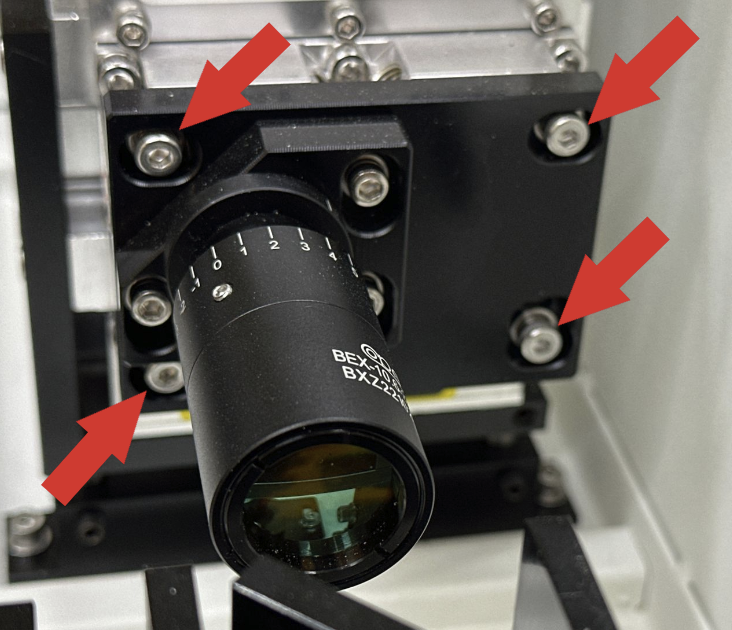

3. Remove the four screws from the beam expander, take them off and set the beam expander aside.

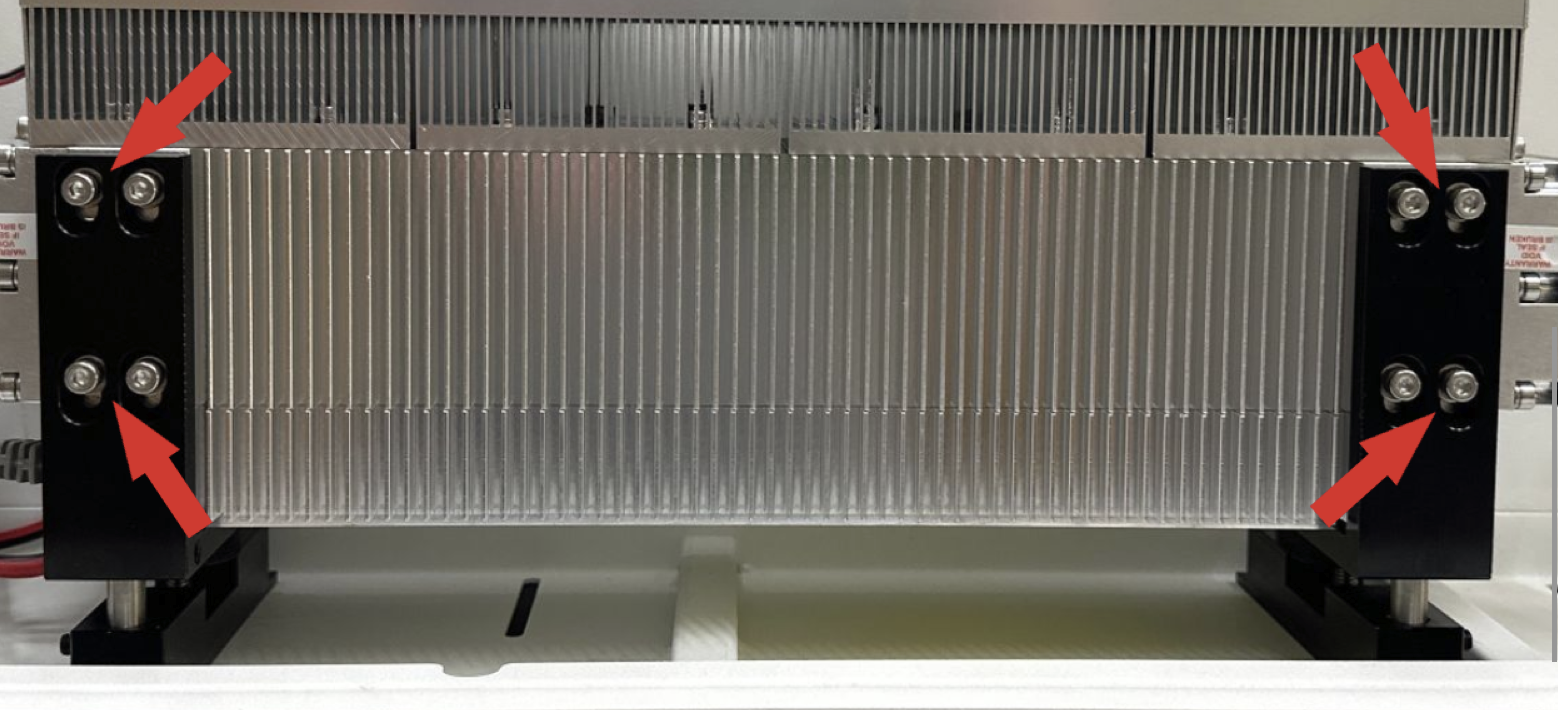

4. Remove the eight screws from the RF Tube bracket.
5. Place the RF Tube on the towel on top of the machine.

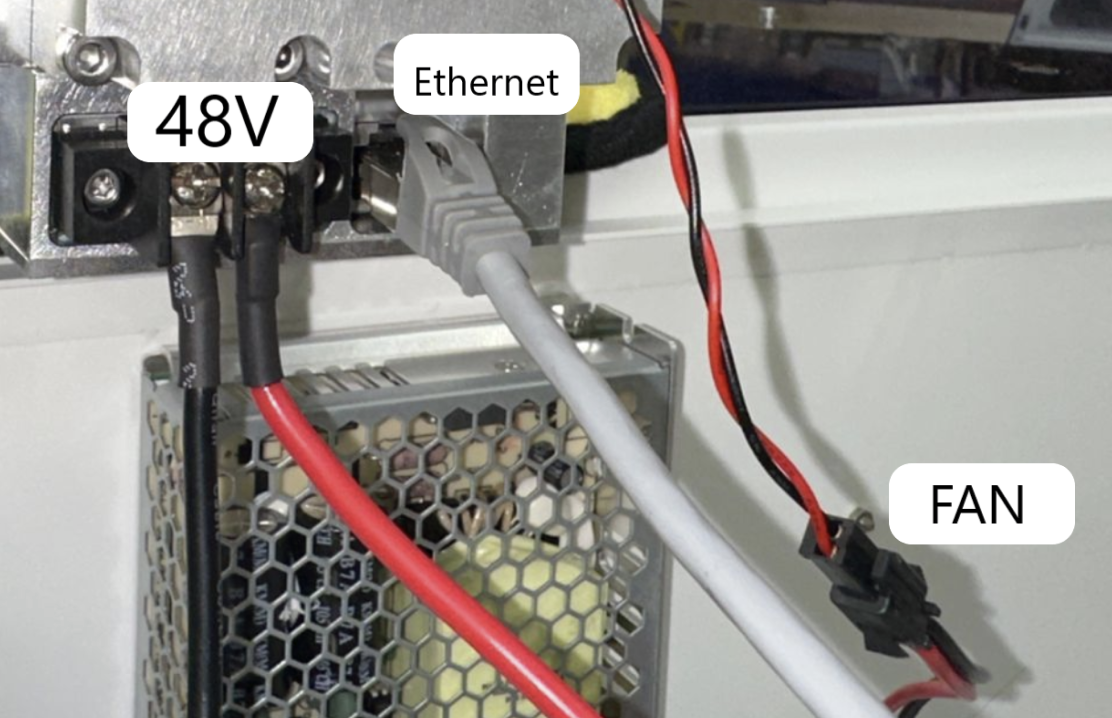

Identify the Electrical Connections. To avoid connecting the wrong wires, especially the neutral and live wires of 48V.

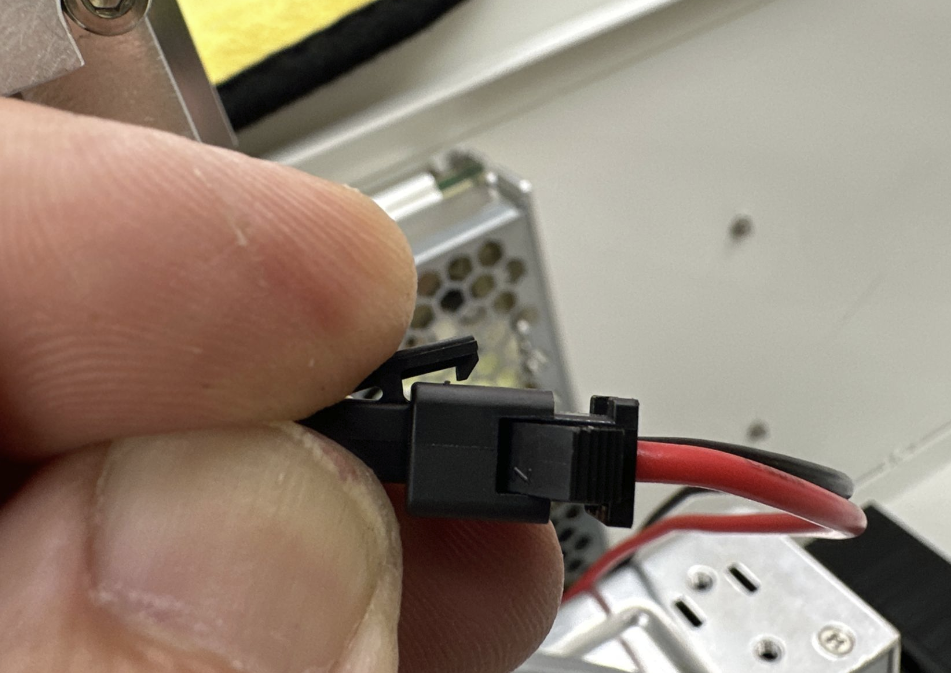

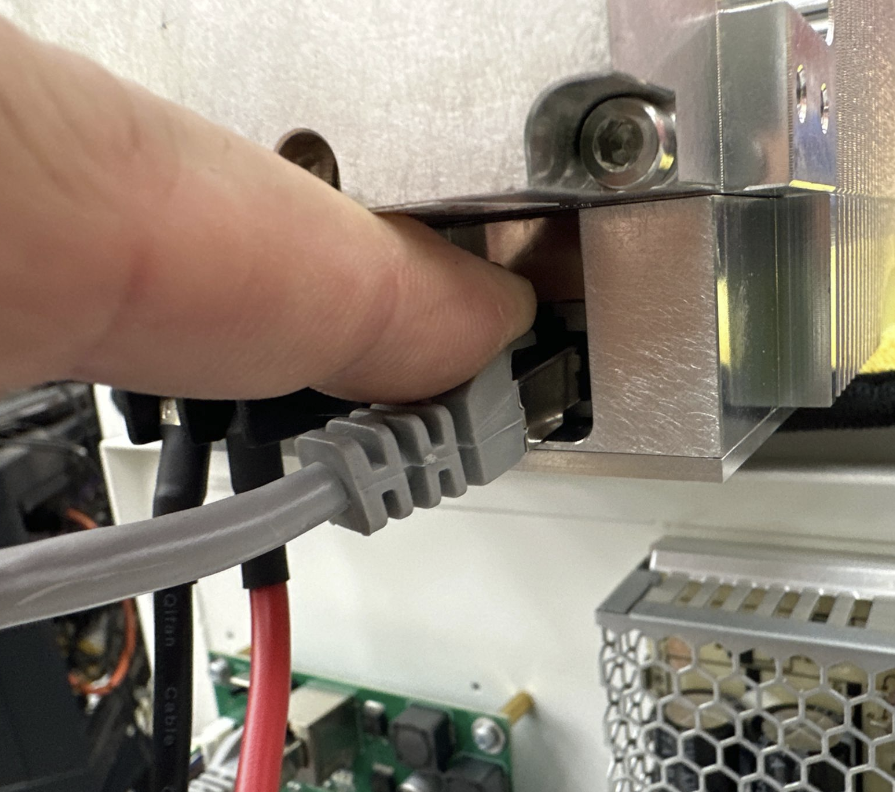

6. Unplug the fan and Ethernet Connections
FAN | Ethernet |

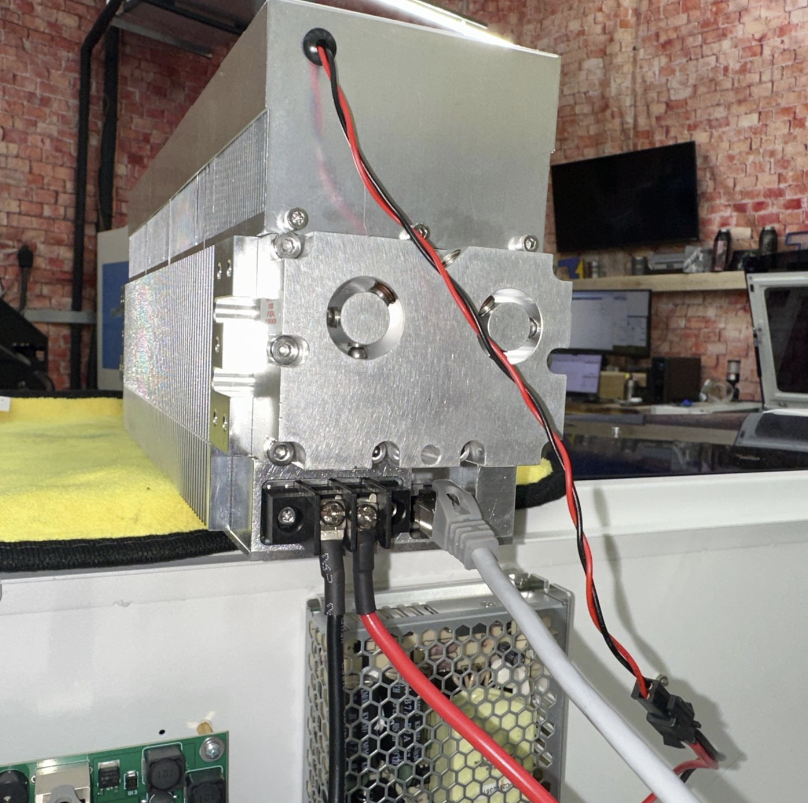

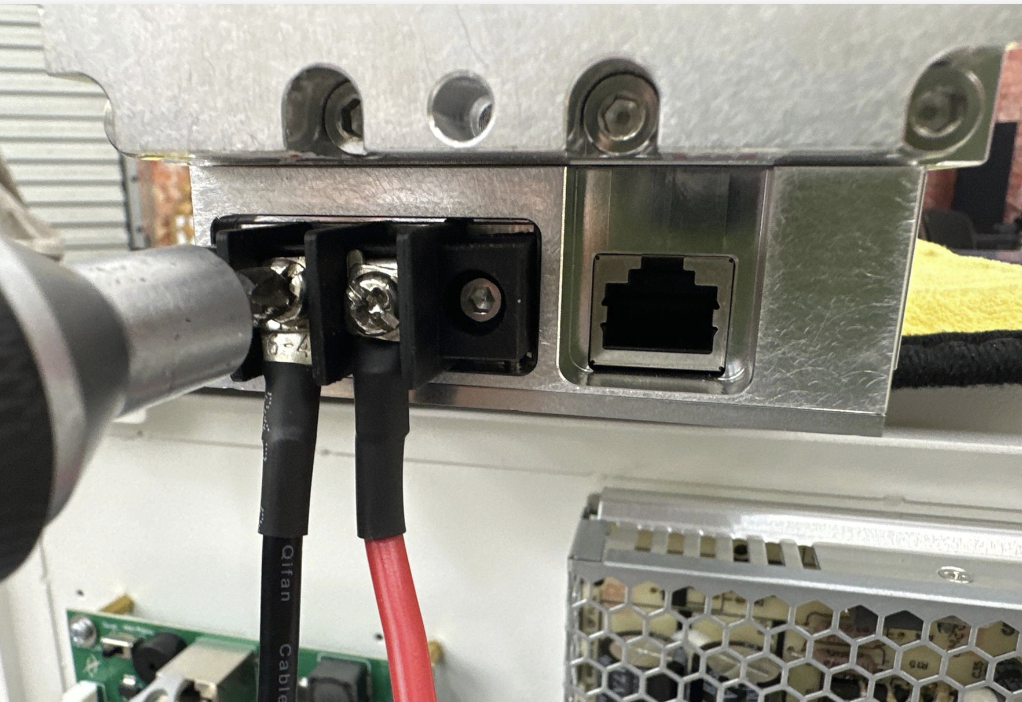

7. Unscrew the 48V Power wires just enough to let the spade connectors be removed.
1. Place the old tube aside and then place the new tube on the towel.
2. Re-install the 48V neutral and live(red and black)wires, fan wire connection and the Ethernet Cable.

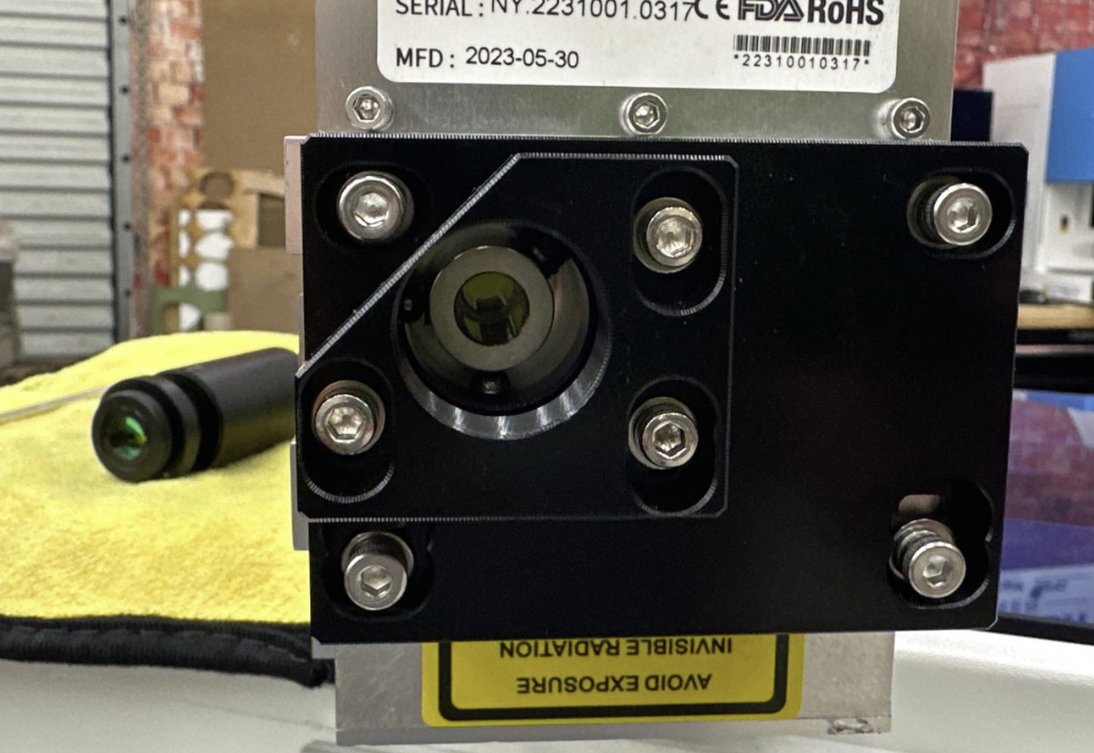

3. Bolt on the beam expander. Unscrew the lens piece (Counter-clockwise).
Adjust the mounting bracket left and right to center the lens opening of the tube and the mount.
Reinstall Beam Expander Lens (Tighten Clockwise).
4. Attach the tube to the bracket and lock it in place with the 8 screws.
For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.
For the information provided in the ticket, please refer to this link:
Help Tech Support Troubleshoot Faster
End.
