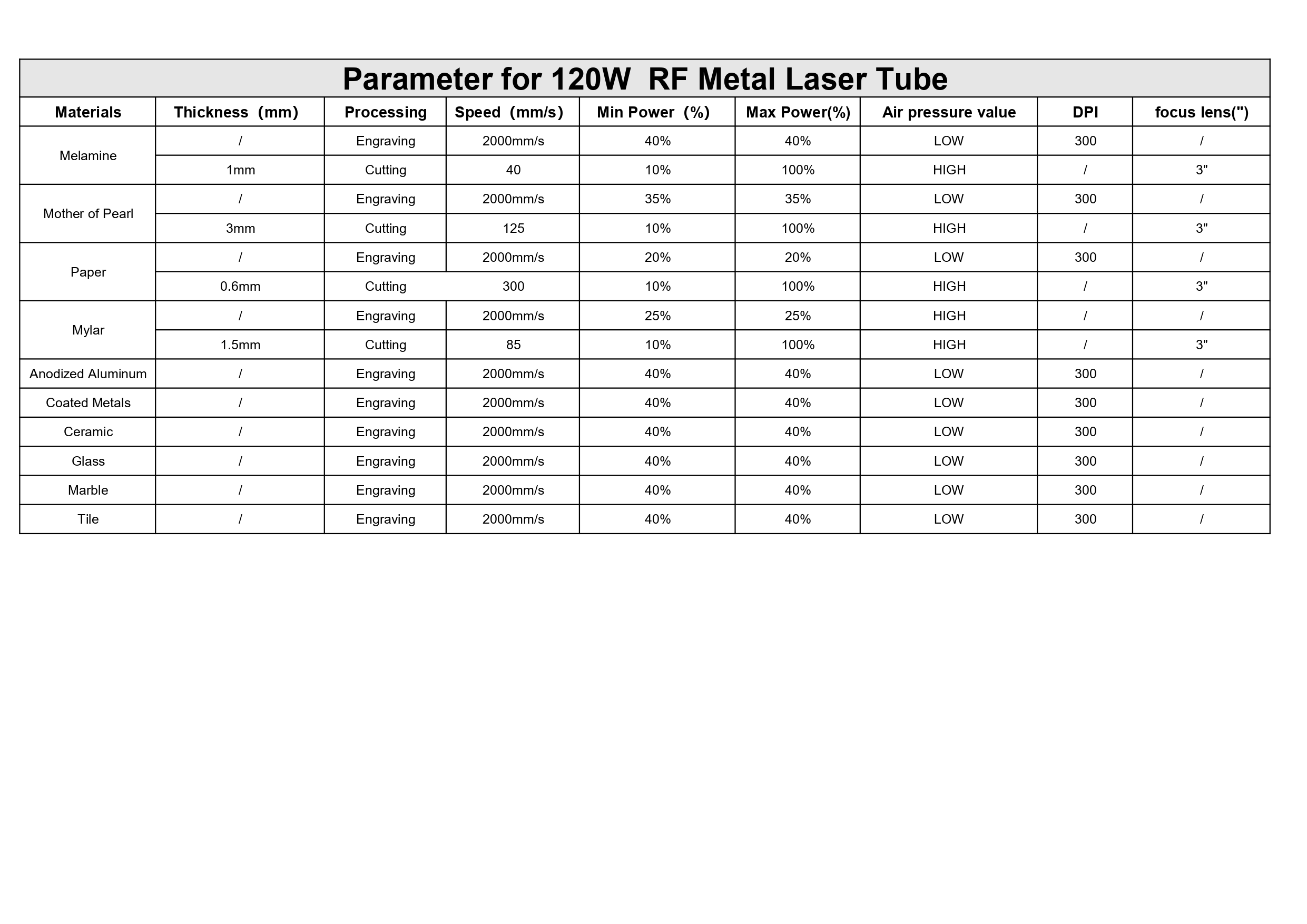

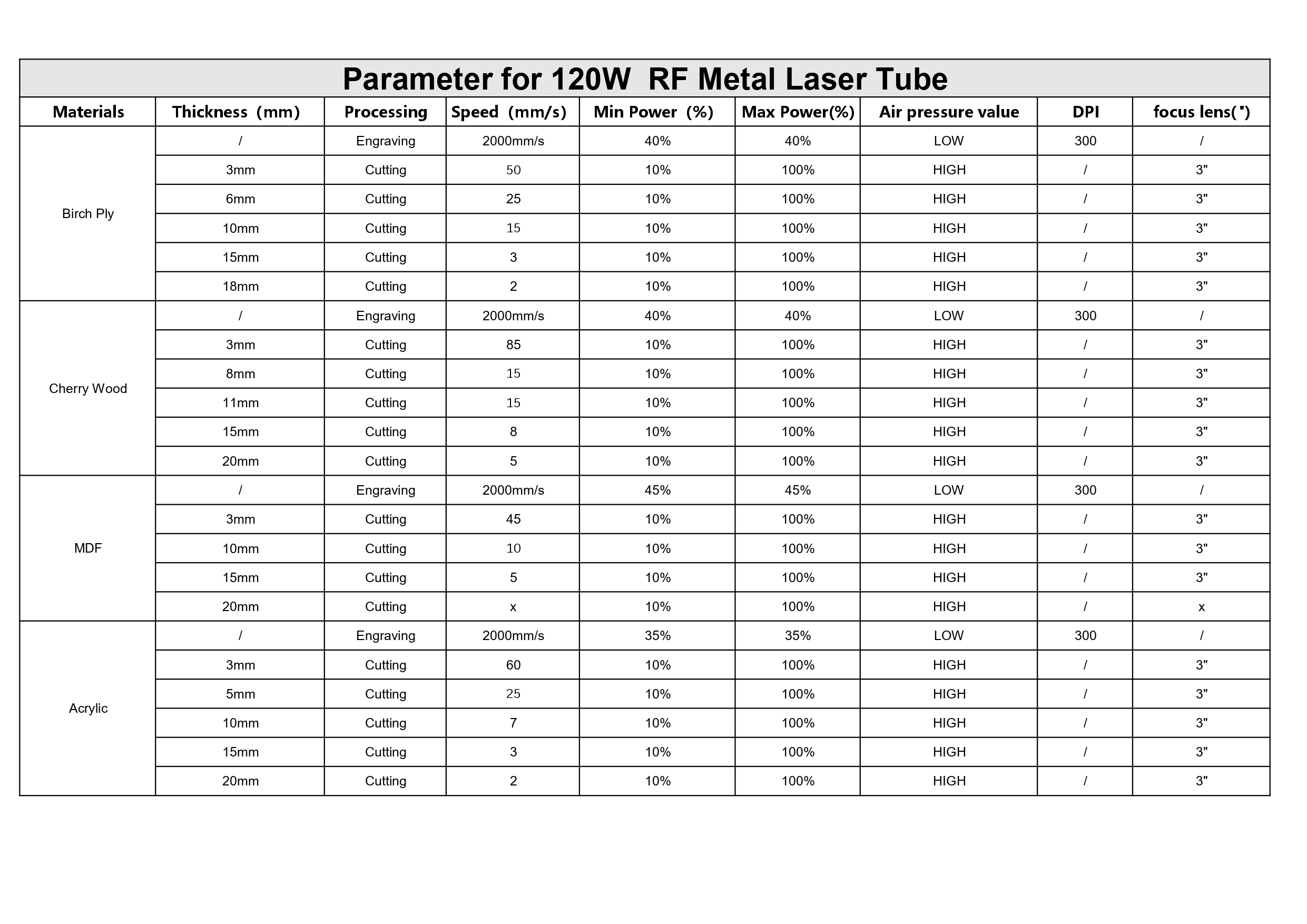

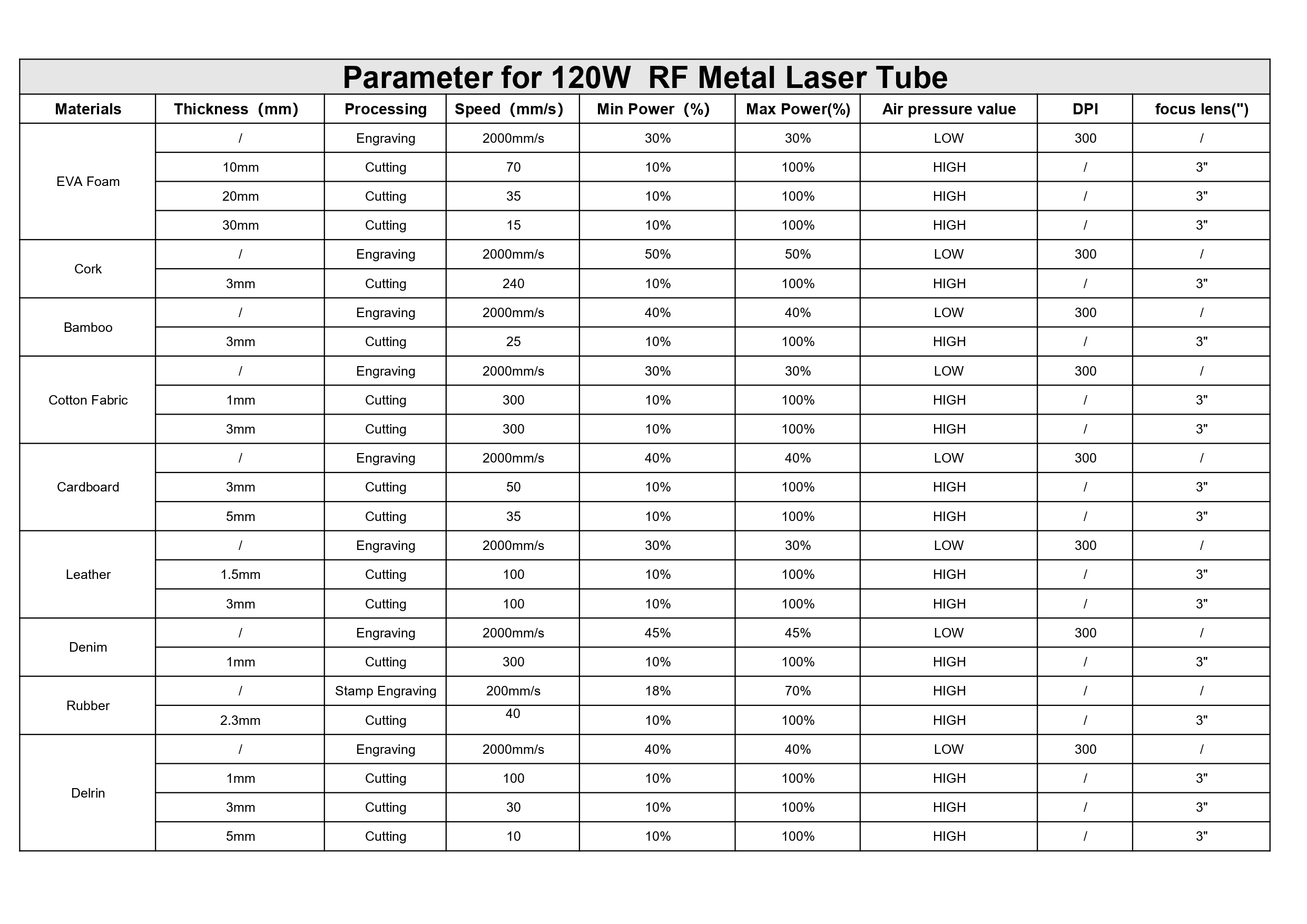

Parameter for 120W RF Metal Laser Tube

Parameter for 120W RF Metal Laser Tube

You can also check and download this PDF file in the attachment.
