How to calibrate when the touch panel is unresponsive

Problem describe:

1.The position of the click in the touch panel is not the same as the position of the panel response.
2.Touch panel does not respond.

How to enter the calibration interface:

Machine before July 12th,2023:

There is a 'Screen Calibration' function in the function interface of the panel, we can calibrate the touch panel
by clicking this button to enter the screen calibration function.

1. Turn on the machine > Click 'Confirm and move' to reset and wait for the reset to complete.

2.Click Menu > Screen Calibration ,then the touch panel will directly enter screen calibration interface.

Machine after July 12th,2023 :

We removed the 'Screen Calibration' function from the touch panel. But we added a function—quickly tap the 'stop button' to enter the screen calibration.

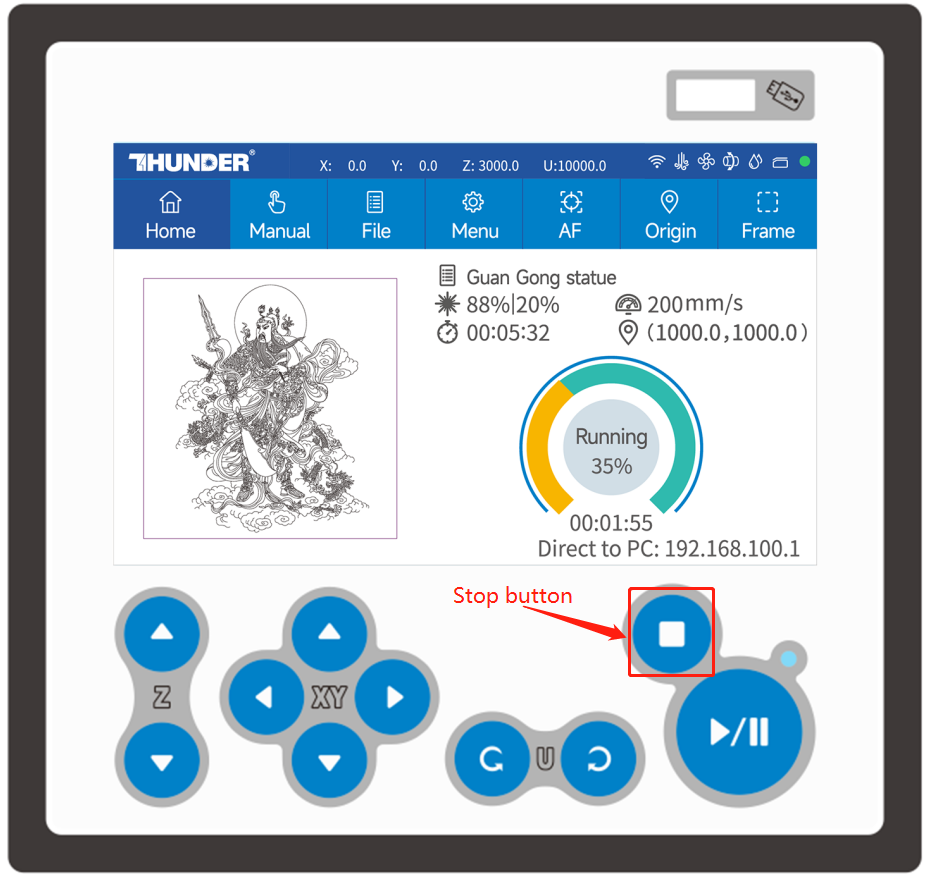

Turn on the machine > quickly tap the 'Stop' button on the panel until you enter the screen calibration interface, and you will hear a beep at the same time.

Calibration steps:

1.This is the screen calibration interface.

2. Click the corresponding cross according to the correction prompts.

NOTE:

①　The center of the cross must be clicked for correct calibration.

②　Each cross only needs to be clicked once, otherwise the screen calibration will fail.
If you click twice in the upper left corner, the cross arrow will go to the lower right corner (normally it should be in the upper right corner)

③　After entering the screen calibration, we cannot exit and the calibration must be completed.If the calibration page does not click,
the screen is broken.Please email to tech@thunderlaser.com.

Schematic diagram of each location, please refer.

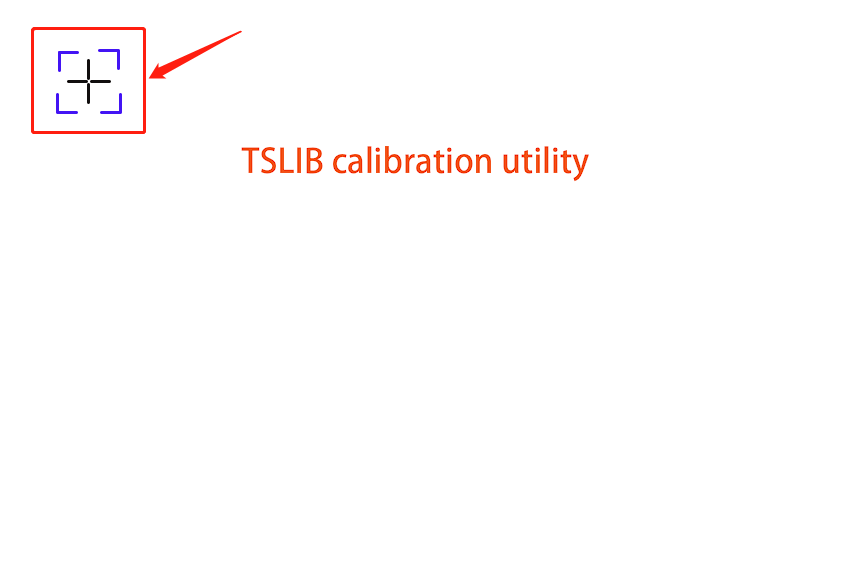

Upper left corner:

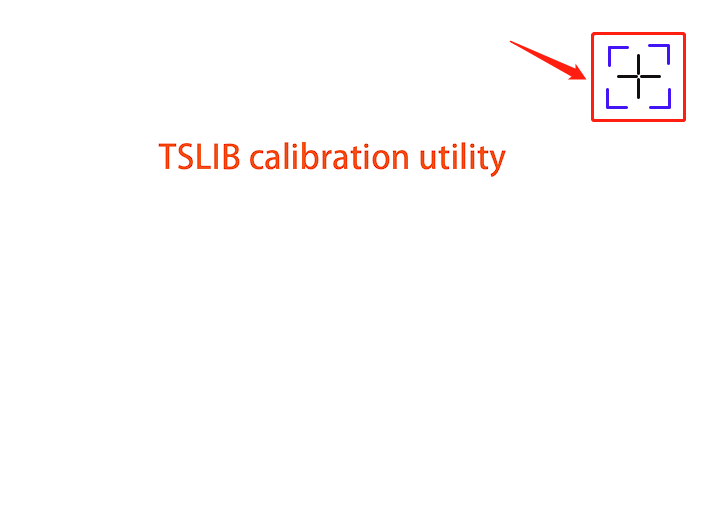

Upper right corner:

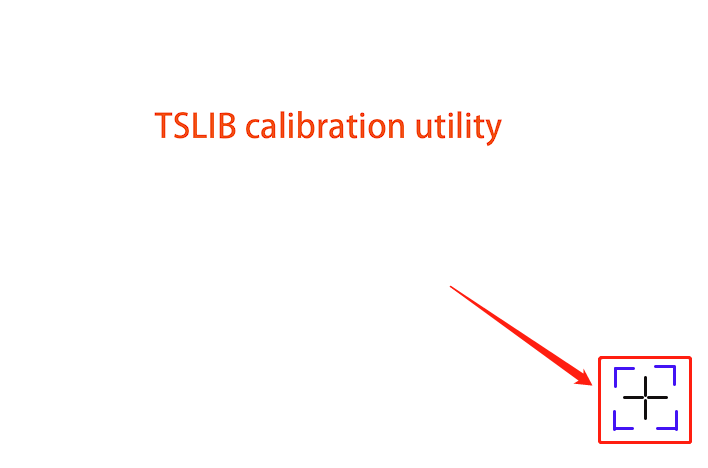

Bottom right corner:

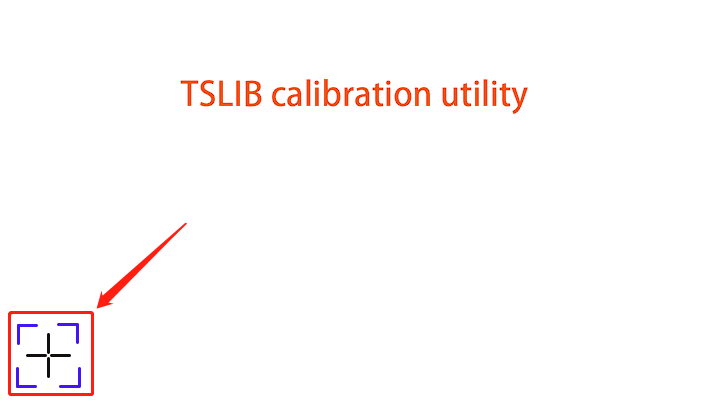

Lower left corner:

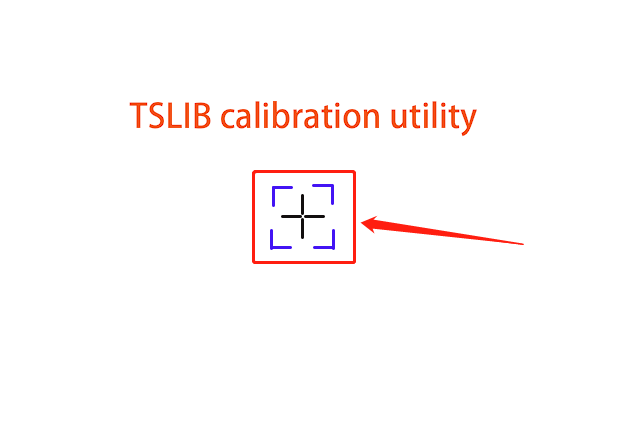

Main center：

3. Then the touch panel will jump to the main interface.

4. If the touch panel does not return to the main interface,please restart the machine.

END
