NOTE: its a good idea to tape it up first and view it before you stick it down. The mounts are 3d printed and the adhesive is strong. Removal would likely break it. If you happen to get it upside down  (many do) that's no big deal, just take out the screws and flip the camera housing around. And, along those lines, leave the cable ties loose enough to feed the cable back through in case you need to. You can snug everything up once you are satisfied with the installation. Also, as this is a living document, the static PDF version has been archived. Please always refer to this article.

And here is everything you need to know about the cameras:ThunderCAMs vs.LightBurn&Other USB Webcams (thunderlaser.com)

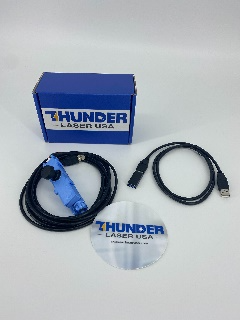

Kit Contents

LightBurn Camera

LightBurn Cam Mount

Camera USB Cable

USB Adapter

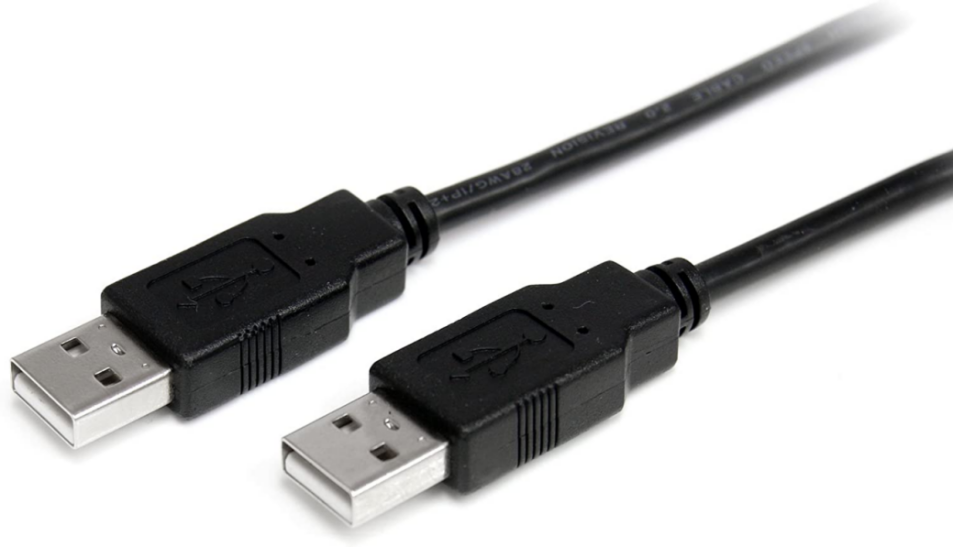

USB Cable

Mounting Accessories



Camera Mounting & Cable Routing

The camera should be mounted to the lid, centrally located above the bed. The camera USB cable can be routed through the glass retaining clips across and down the right side of the lid then through the existing grommet that accesses the main electronics bay. Some wire ties and adhesive mounting pads are included to help secure the cabling.

Interfacing The U-Disk Port

This will allow the camera to utilize the U-Disk port on the side of the machine to neatly get the camera connected to your computer without drilling holes or finding an existing exit point. If you use the U-Disk port under normal conditions you may need to modify this approach. The end goal is to connect the USB camera directly to the PC.

CLARIFICATION ON THE USB CONNECTIONS:

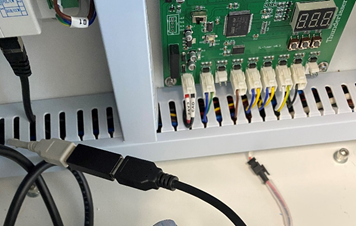

          Remove the U-Disk USB cable from the DSP controller U-Disk Port

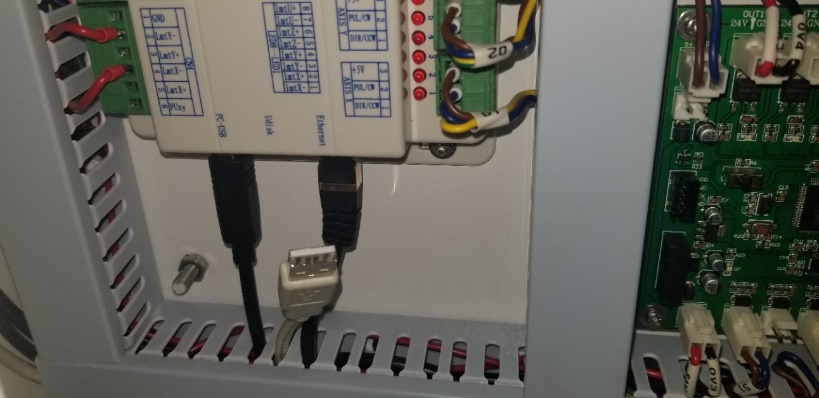

 Connect the adapter to the DSP U-Disk Cable

 Connect the LightBurn camera to the U-Disk cable via the USB adapter

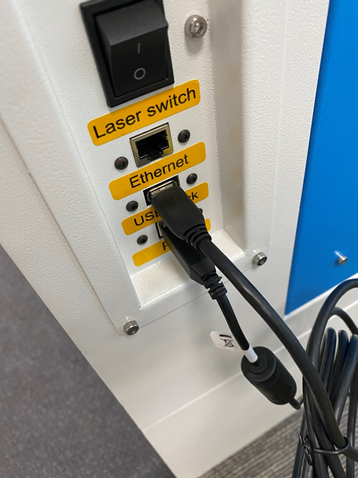

          Connect the USB cable from the U-Disk port on the outside panel of the laser to your PC

Calibration and alignment procedures are a function of LightBurn.

Here are some handy resources:

YOU CAN PICK THE CORRECT PRESET FOR YOUR THUNDERCAM AND SKIP THE MANUAL LENS CALIBRATION:

IF YOU DO NOT SEE THE PRESETS FOR THE LENS CALIBRATION, PLEASE SEE THIS:

85-and-120-fov-lb-cam-lens-correction-values

https://github.com/LightBurnSoftware/Documentation/blob/master/Using_a_Camera.md

https://forum.lightburnsoftware.com/t/lightburn-camera-setup-and-calibration/701/1

And some tips and tricks on the calibration:

https://forum.lightburnsoftware.com/t/the-camera-doesnt-find-the-lens-calibration-pattern-no-pattern-found/8667

The 4K-W95 and the 4K-W110 are both standard lenses and not fisheye.

Here is the actual workflow on a Nova 24 (sorry about the audio):

And a redo on the same machine to dial it in even more:
