How to install CCD camera driver manually
Problem:
If the SV300 model has been selected during the installation of RDWorks and the installation of the driver has been completed, it is still not possible to connect to the CCD camera.

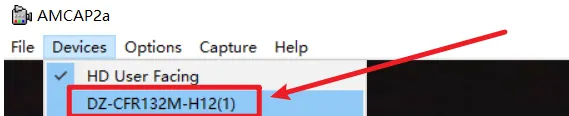

①The machine's camera can be recognised:

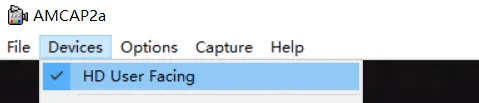

②The machine's camera can't be recognised:
Solution:
Manual installation of CCD camera drivers.
Before installing the driver, make sure to close the RDWorks first .
- You can find the manual installer here:
https://drive.google.com/drive/folders/125FsWP47MaznyBXIqPHq7JWgFo2YCc5z

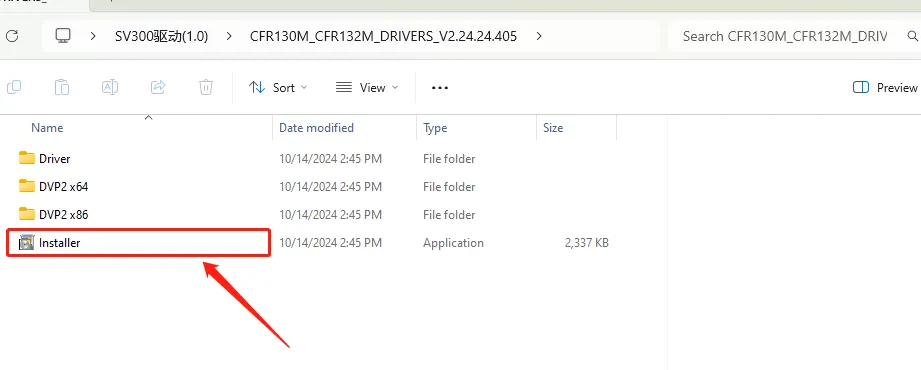

- Initiate the driver process.

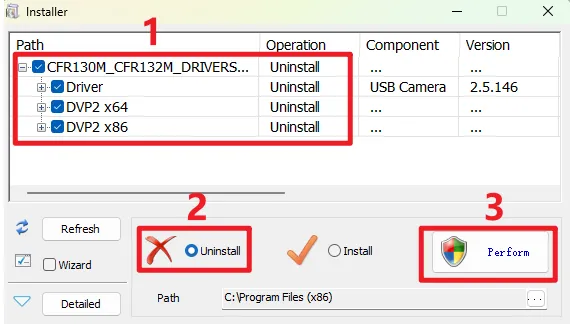

- Be sure to tick all drivers to be removed before uninstalling.

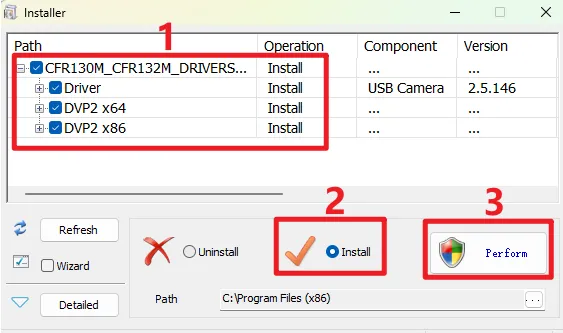

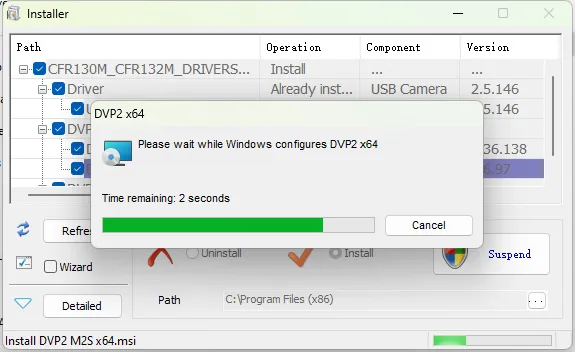

4. Be sure to tick all drivers to be installed before installing them.

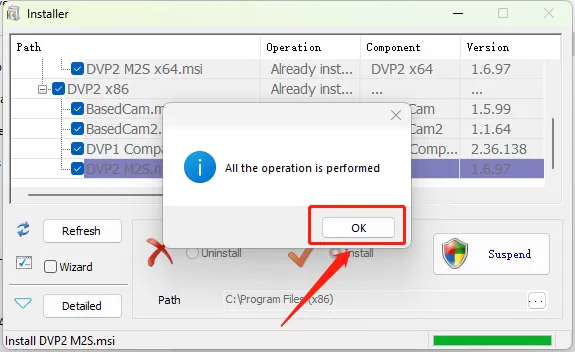

5. Conclude by finishing the driver installation.
6. Finally open RDWorks again, use the camera and check for a successful connection.
Still need help?
For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.
For the information provided in the ticket, please refer to this link：
End.
