How to Adjust the Sharpness of the TITAN Movable Camera
Preface
The machine's camera was calibrated for clarity before leaving the factory. Recalibration is only necessary when the image is very blurry.
Tools Required

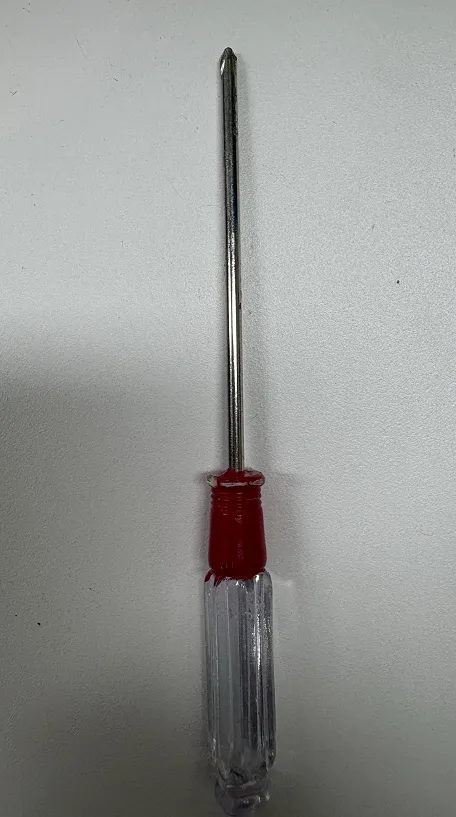

Cross-head screwdriver
Specific steps

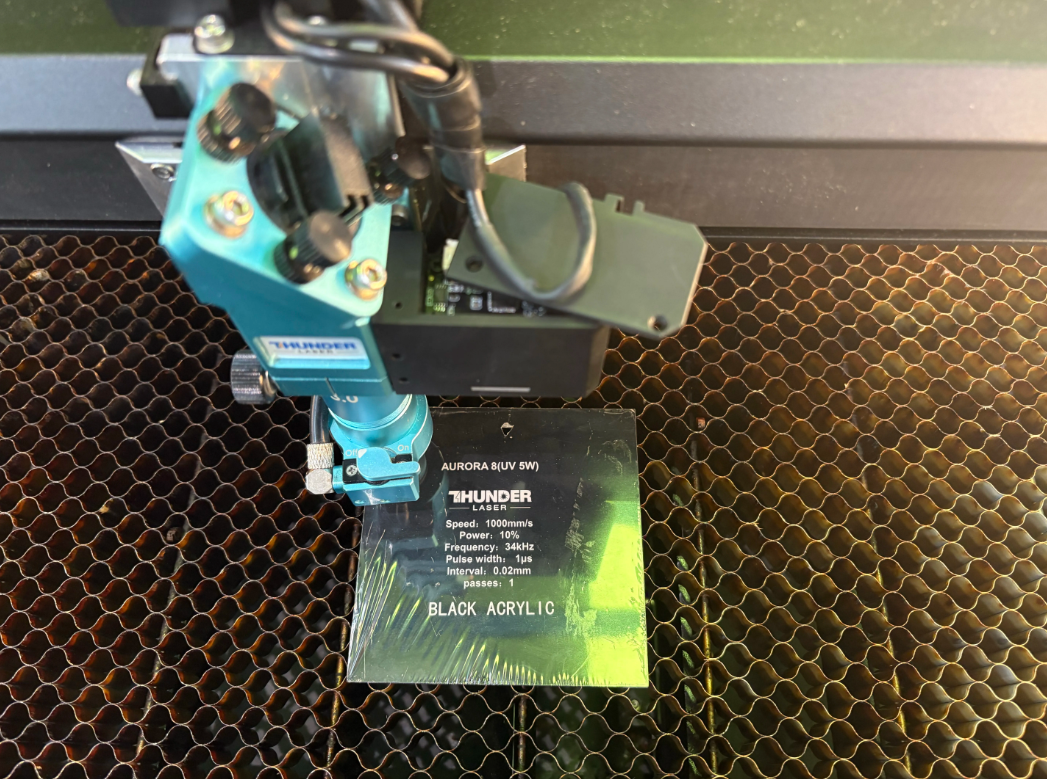

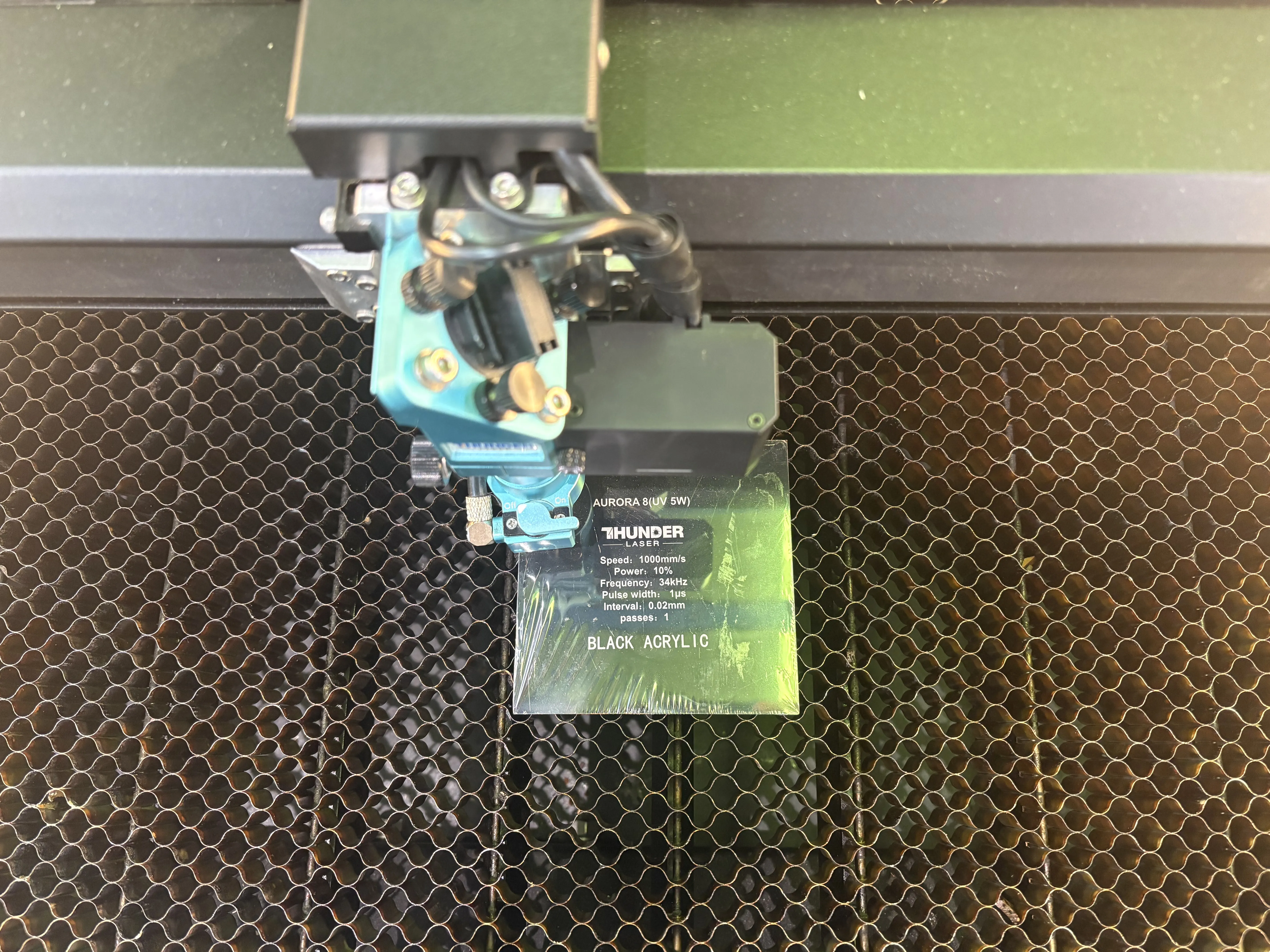

- First, place a piece of paper or board with text on the honeycomb bed and perform autofocus. This will act as a reference for sharpness adjustment in subsequent steps.

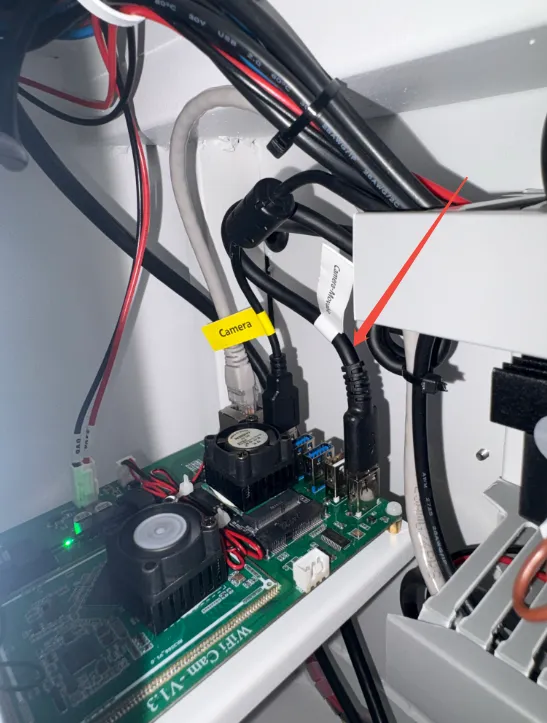

- Next, open the right-side door of the machine, locate the movable camera cable connected to the Wi-Fi board, unplug it, and connect the cable directly to your computer.

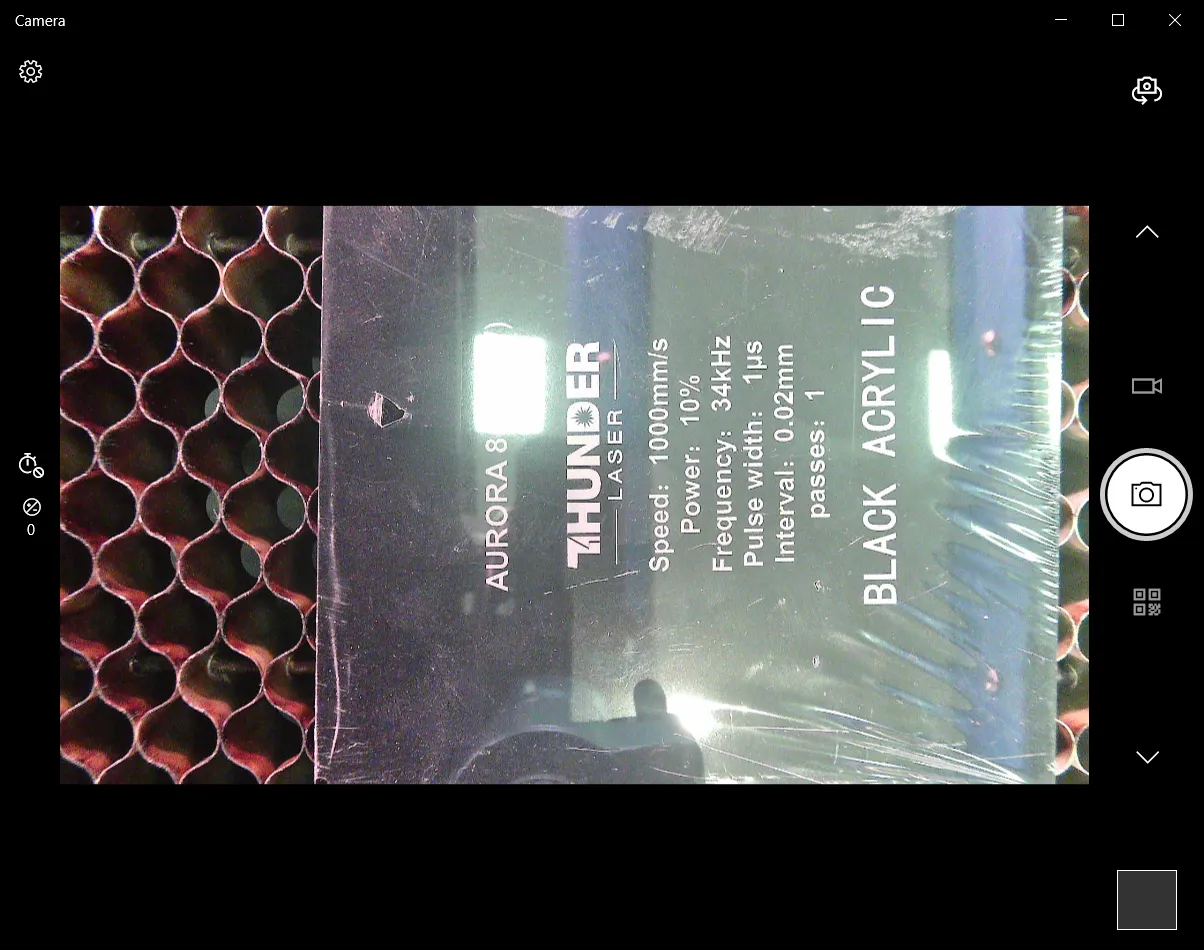

- Launch the built-in camera software on your computer. All subsequent adjustments will be based on the camera's live feed.
If your computer does not have built-in camera software, you can find the amcap2a software in the path Titan Series >> Calibration file for camera >> amcap2a on the U disk shipped with the machine.- Detach the movable camera from its mounting position on the side of the laser head.

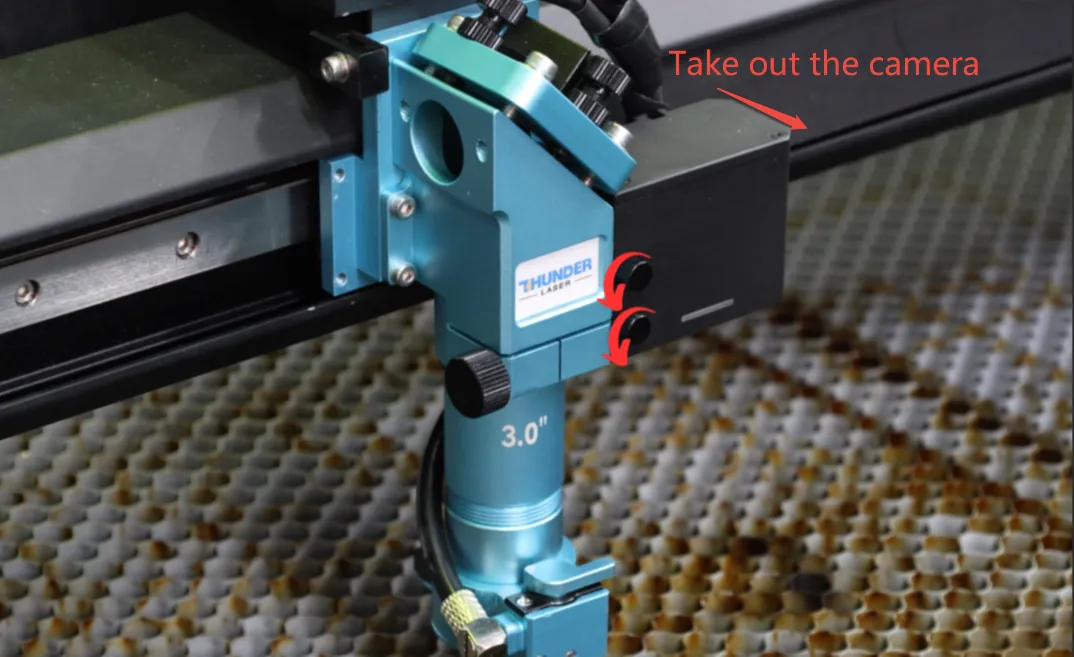

Loosen the screws on the movable camera by turning them counterclockwise, then remove the camera from its mounting bracket.

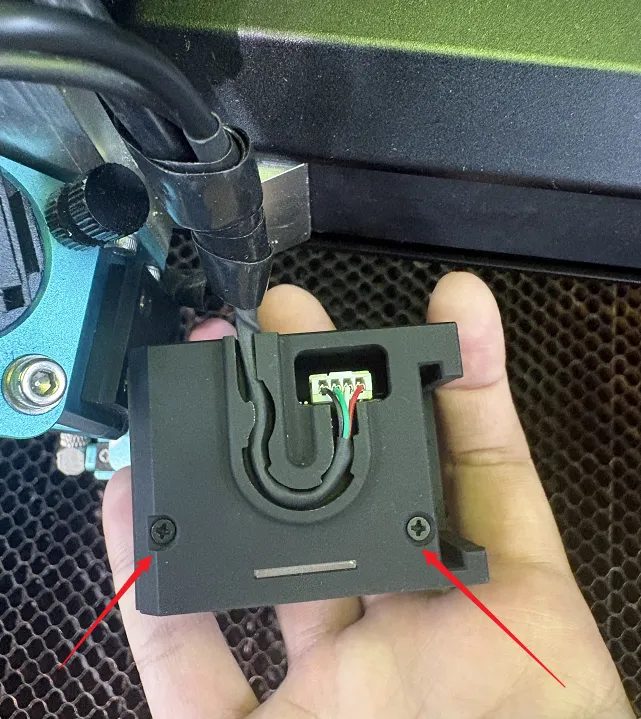

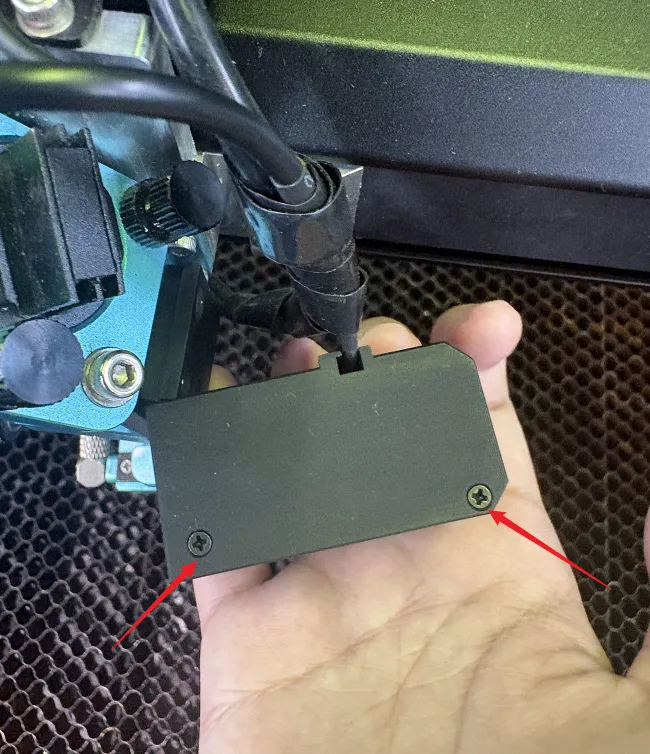

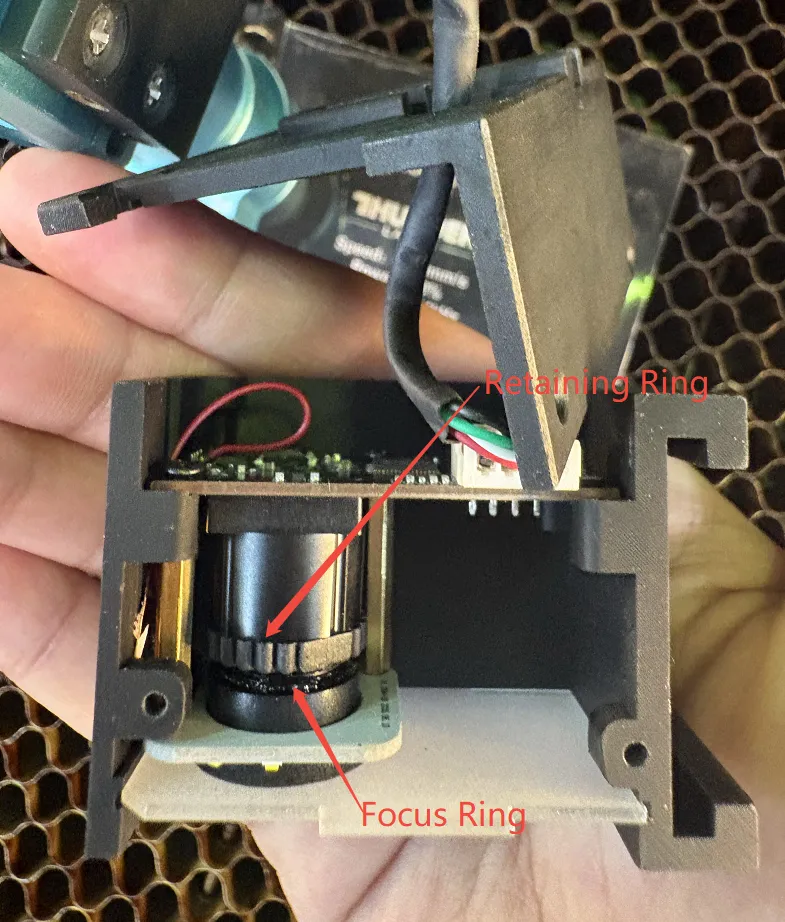

Next, take a cross-head screwdriver and loosen all the screws shown in the diagram before opening the camera cover.

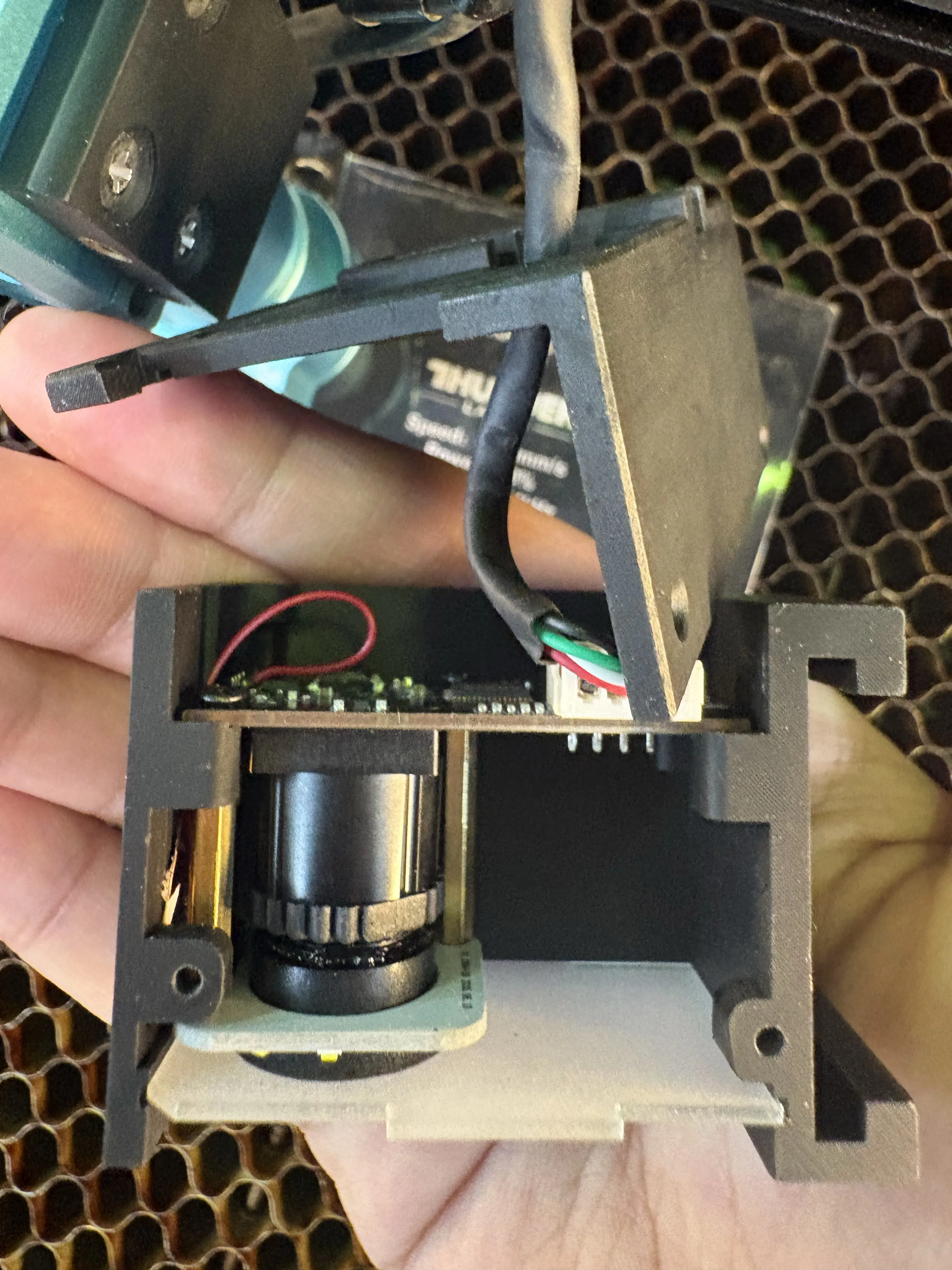

- Loosen the camera's retaining ring, rotate the focus ring while monitoring the real-time image on your computer screen, and tighten the retaining ring firmly once the image is clear.
- Put the camera cover back on, then reattach the movable camera to its original position on the laser head side.
- Finally, reconnect the movable camera cable to its corresponding port on the Wi-Fi board.
Still need help?
For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.
For the information provided in the ticket, please refer to this link：
Help Tech Support Troubleshoot Faster
End.
