Connecting the AURORA to EzCad/Lightburn

Read this first

The Thunder Galvo Series includes the AURORA Series and the Thunder CO₂ Galvo.
Driver is very important. Incorrect or uninstalled drivers can prevent the laser software from connecting to the machine.
LightBurn and EZCAD_LITE (EZCAD 2) drivers cannot be installed on the same computer at the same time, only one of them can be used.
The EZCAD3 driver can be installed on the same computer as the EZCAD_LITE (EZCAD2) or LightBurn driver.
EzCad software only supports Windows OS.

Items We Need

We will need these items to install and set up successfully.

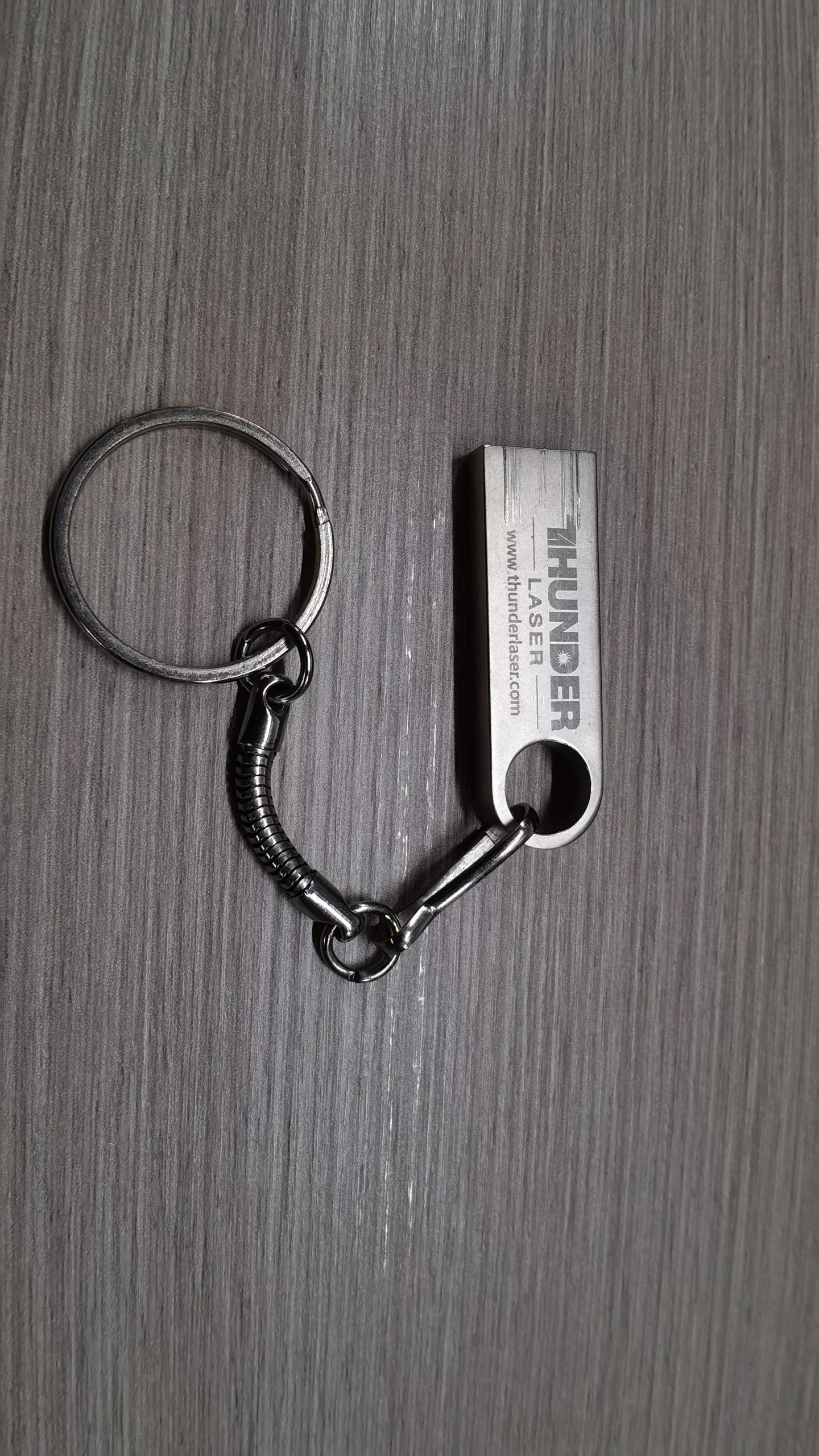

U-disk that came with the machine.

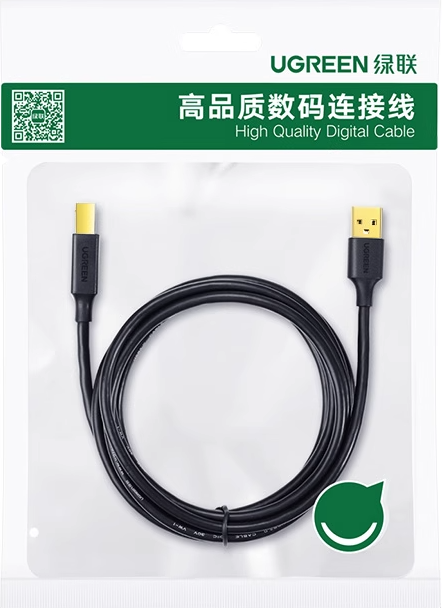

The USB cable that came with the machine.
Laser software: EZCAD_LITE(EZCAD 2) Ezcad3 LightBurn According to your requirements, select one of the software options referenced listed above and follow the instructions to complete the setup.

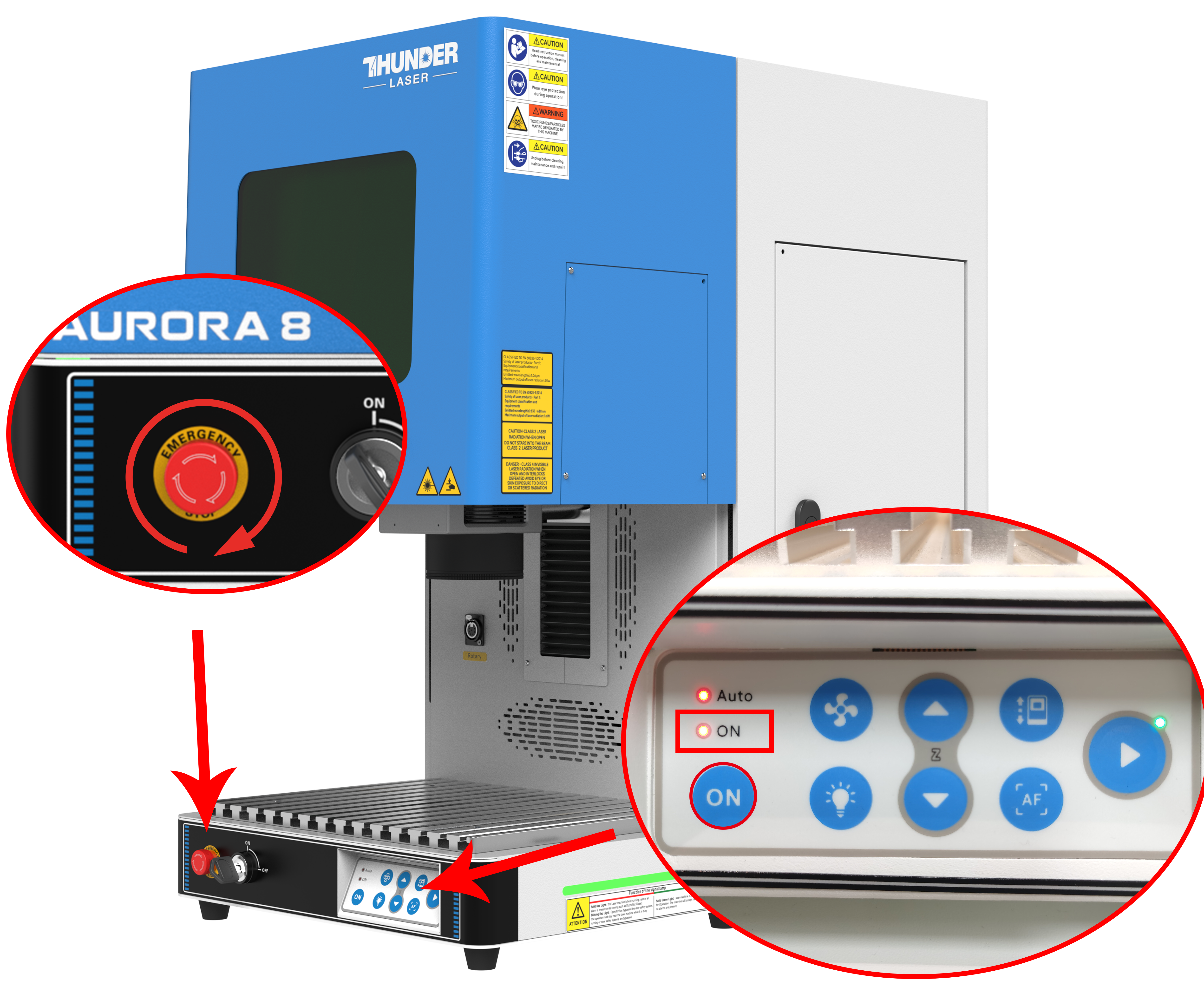

AURORA Series: Make sure the machine is powered on. Ensure that the Emergency Stop Button (E-Stop) is released. Press the ON button and confirm that the ON indicator light remains illuminated.

Connection Steps

Example 1. EzCad_LITE(EzCad2)

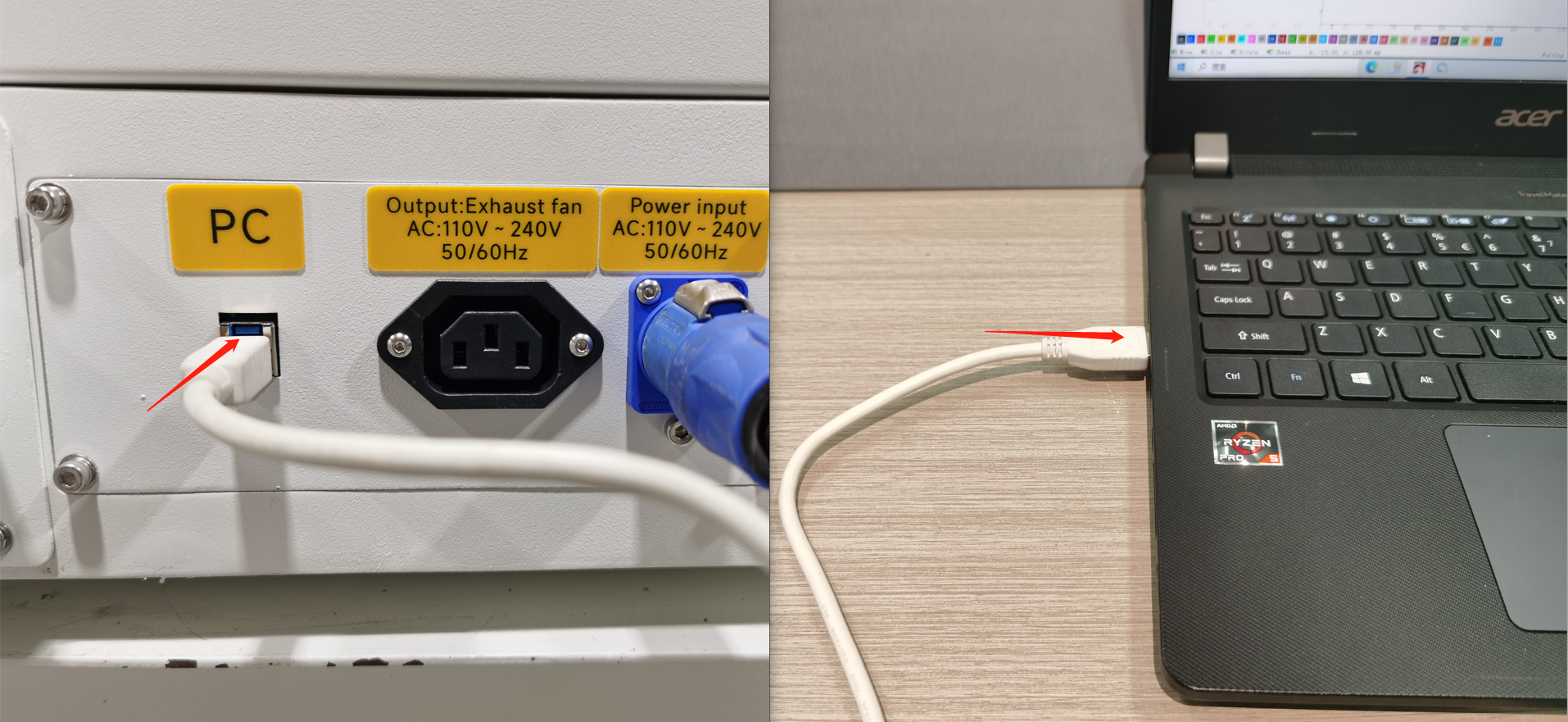

Connect the Machine to the PC via the USB cable.

AURORA Series.

Install the driver.

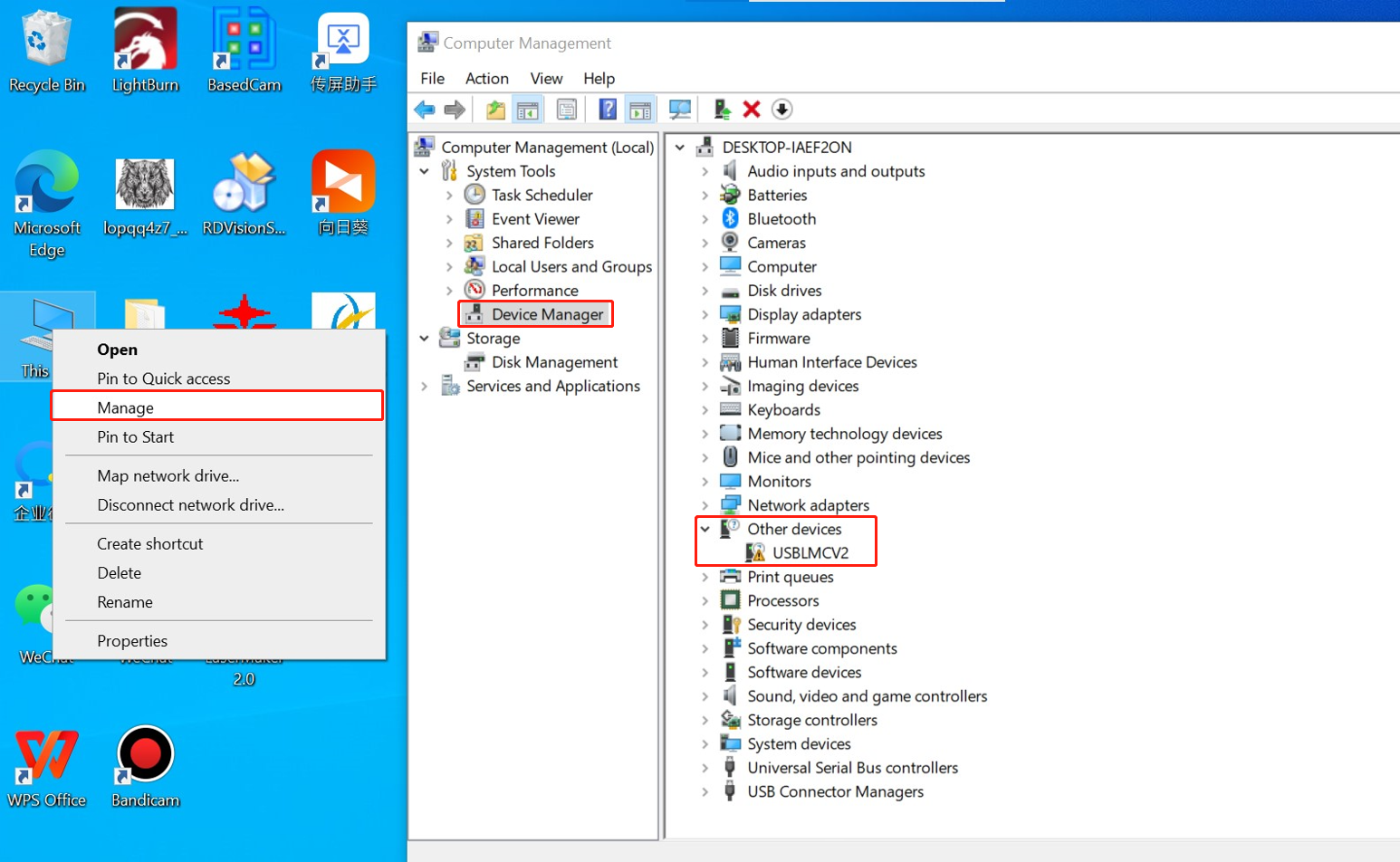

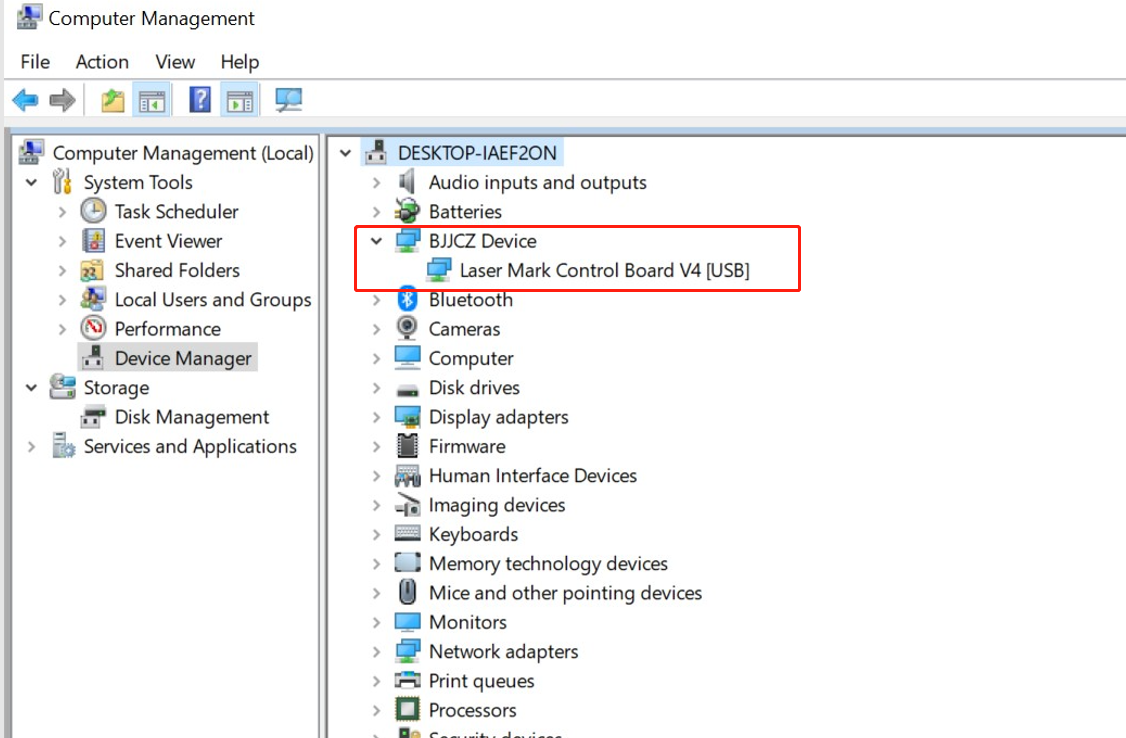

Open your computer's device manager and locate the new device.

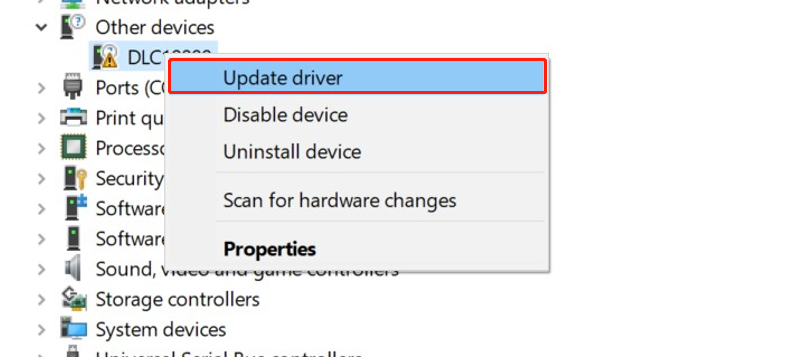

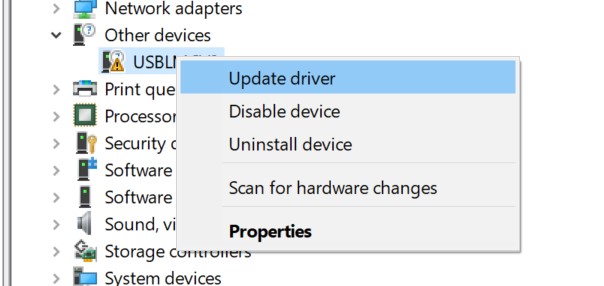

Right-click and select the Update driver.
Select the driver file according to your computer's operating system. If your machine belong to the AURORA Series. We can find the driver file on the U-disk that came with the machine. File path: U-disk that came with the machine > AURORA Series- Fiber & UV Laser>AURORA/AURORA Lite/AURORA PRO >Fiber/UV software >Driver >LMCV4

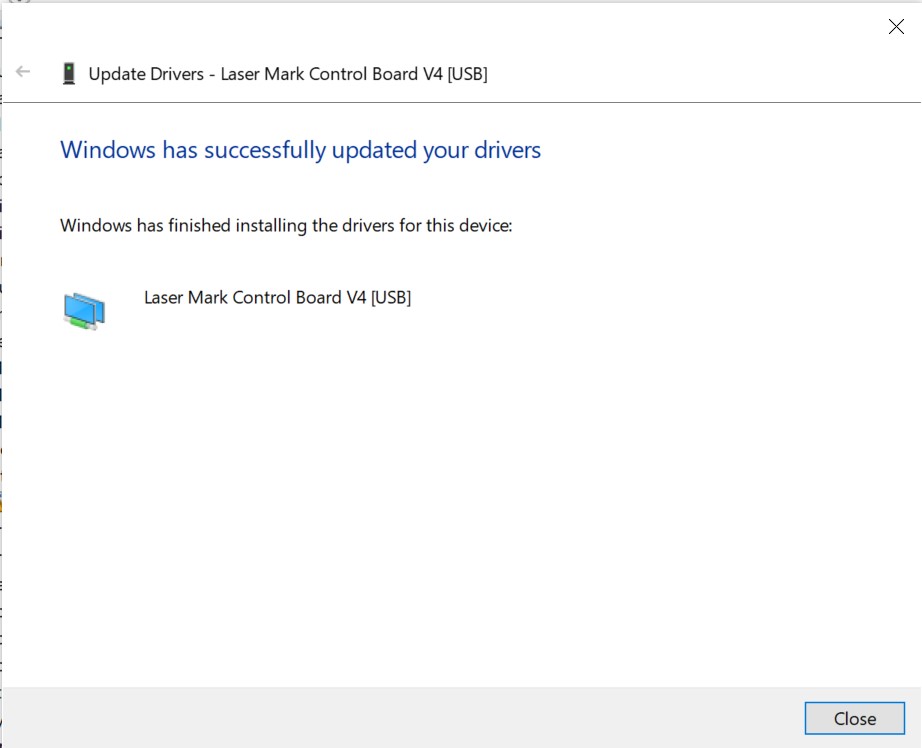

Completed USB driver installation
Completed USB driver installation

Now we can use the EZCAD_LITE for marking.

For the AURORA Series.

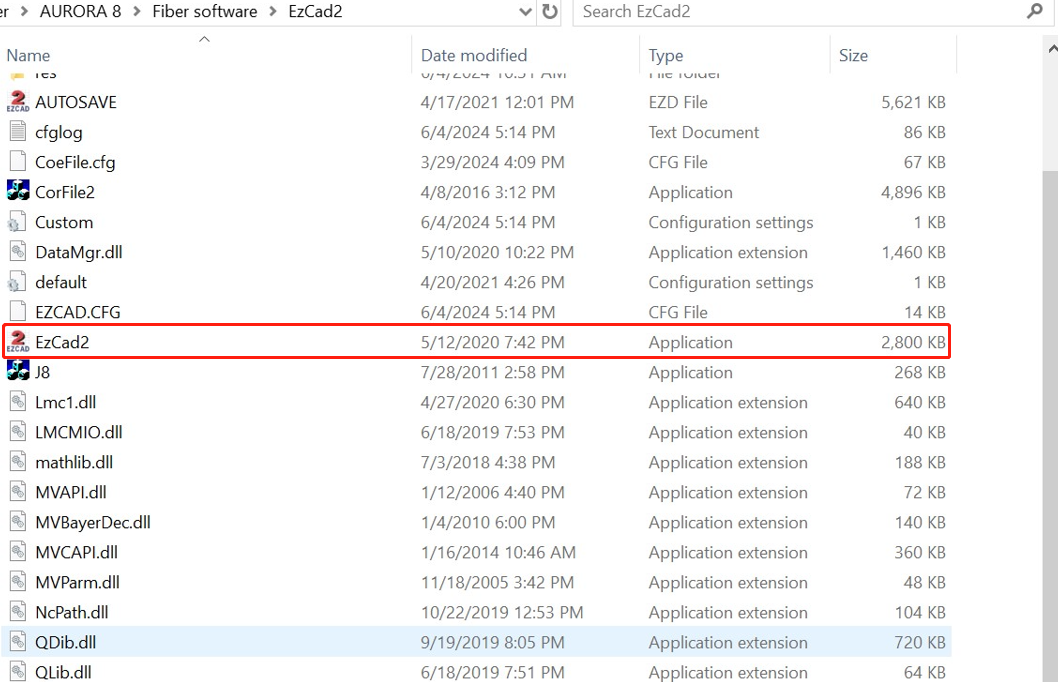

Open the EZCAD_LITE software on the U-disk that came with the machine.
Software path: U-disk that came with the machine >AURORA Series- Fiber & UV Laser>AURORA/AURORA Lite/AURORA PRO>Fiber/UV software > EZCAD_LITE

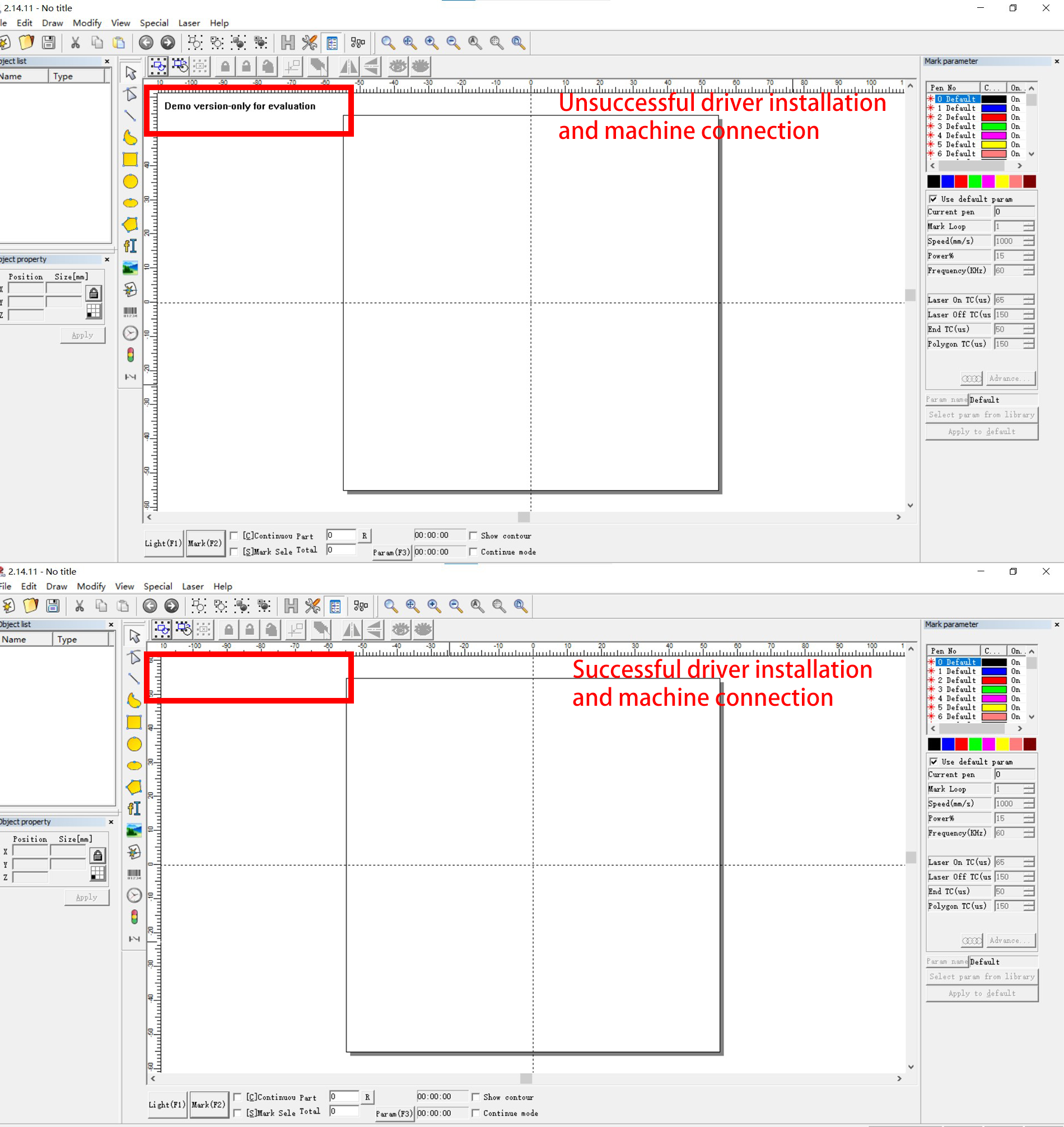

When the software does not display "Demo version-only for evaluation", the connection is successful.

Note: If it still shows up in demo mode, please follow the above steps to reinstall it again, if it still doesn't work after reinstallation, please contact us.

Example 2. LightBurn

1. Connect the Machine to the PC via the USB cable.

AURORA Series.

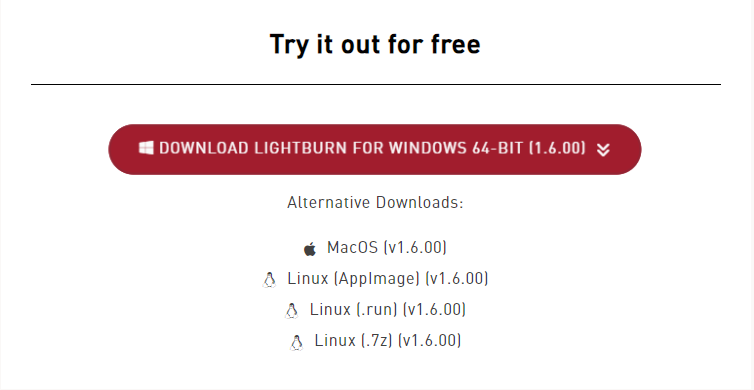

2. Download the LightBurn software.

Before downloading the LightBurn software, check out this article on choosing the right software version for your computer.
Downloading & Installing LightBurn

Download Link: Download

3. Running the LightBurn installer.

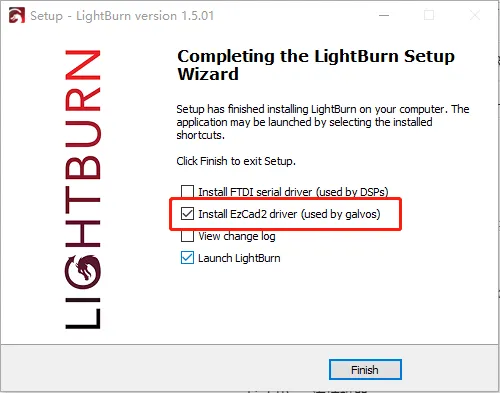

At the last screen, check "Install EzCad2 driver"

Note: Please note that EzCad2 and LightBurn drivers may conflict, causing LightBurn driver installation to fail; be sure to uninstall the EzCad2 driver before installing the LightBurn driver.

If this box is not checked during the first installation, you can simply run the installer again, and select this box to ensure the driver is installed for use.
Windows will prompt you for permissions escalation to install it, and quickly replace the driver provided by default with one LightBurn can use to communicate with your Galvo-based laser.

Alternately, the installer for the driver is in the LightBurn files at "C:\Program Files\LightBurn\EzCad2Driver\" and can be run again via the "dpinst-x64.exe" file directly.

4. Activate the software.

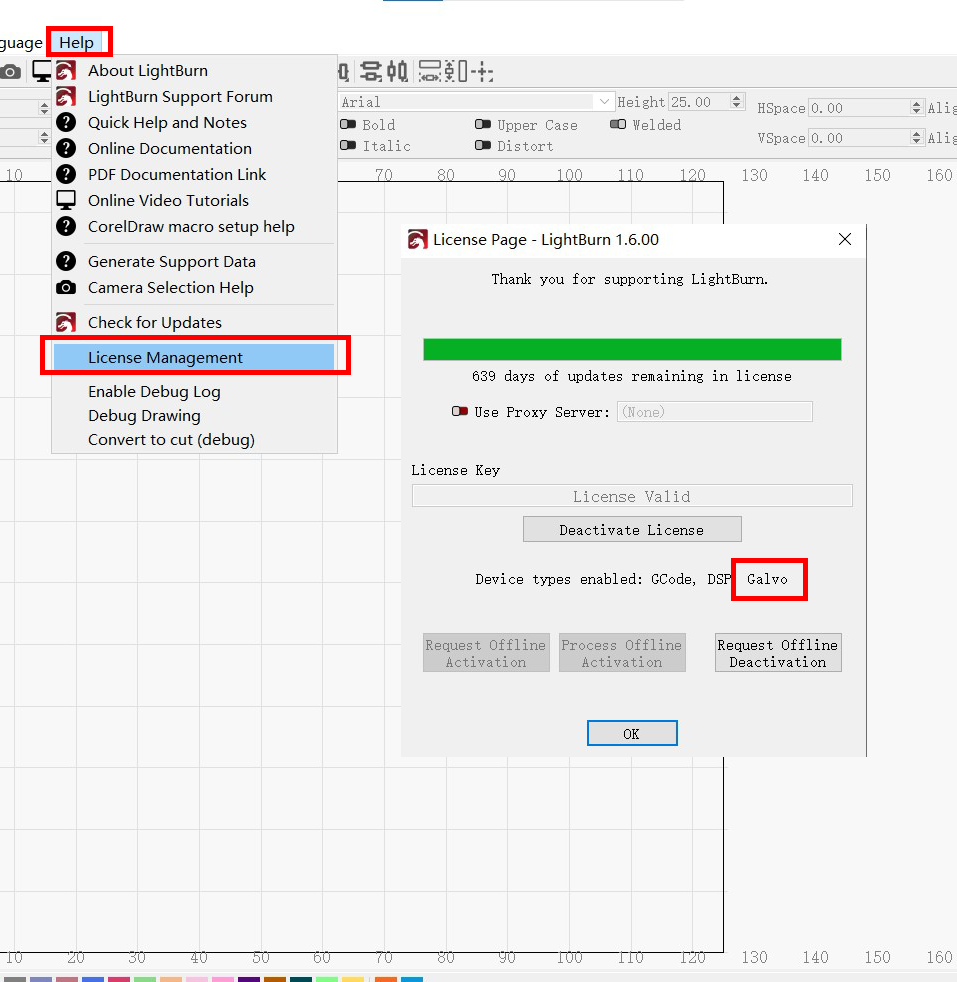

Make sure your license key supports Galvo.

5. Add the New Device

5.1. Import the Device in LightBurn

For this part of the installation, you will need to plug the U-disk that came with the machine into the computer.

The .lbdev file allows customers to quickly add the machine to LightBurn. All required machine parameters are pre-configured and saved in the file before the machine leaves the factory.

We can find the .lbdev file in this path: U-disk that came with machine >AURORA Series- Fiber & UV Laser>AURORA/AURORA Lite/AURORA PRO >Communication Setting for Lightburn

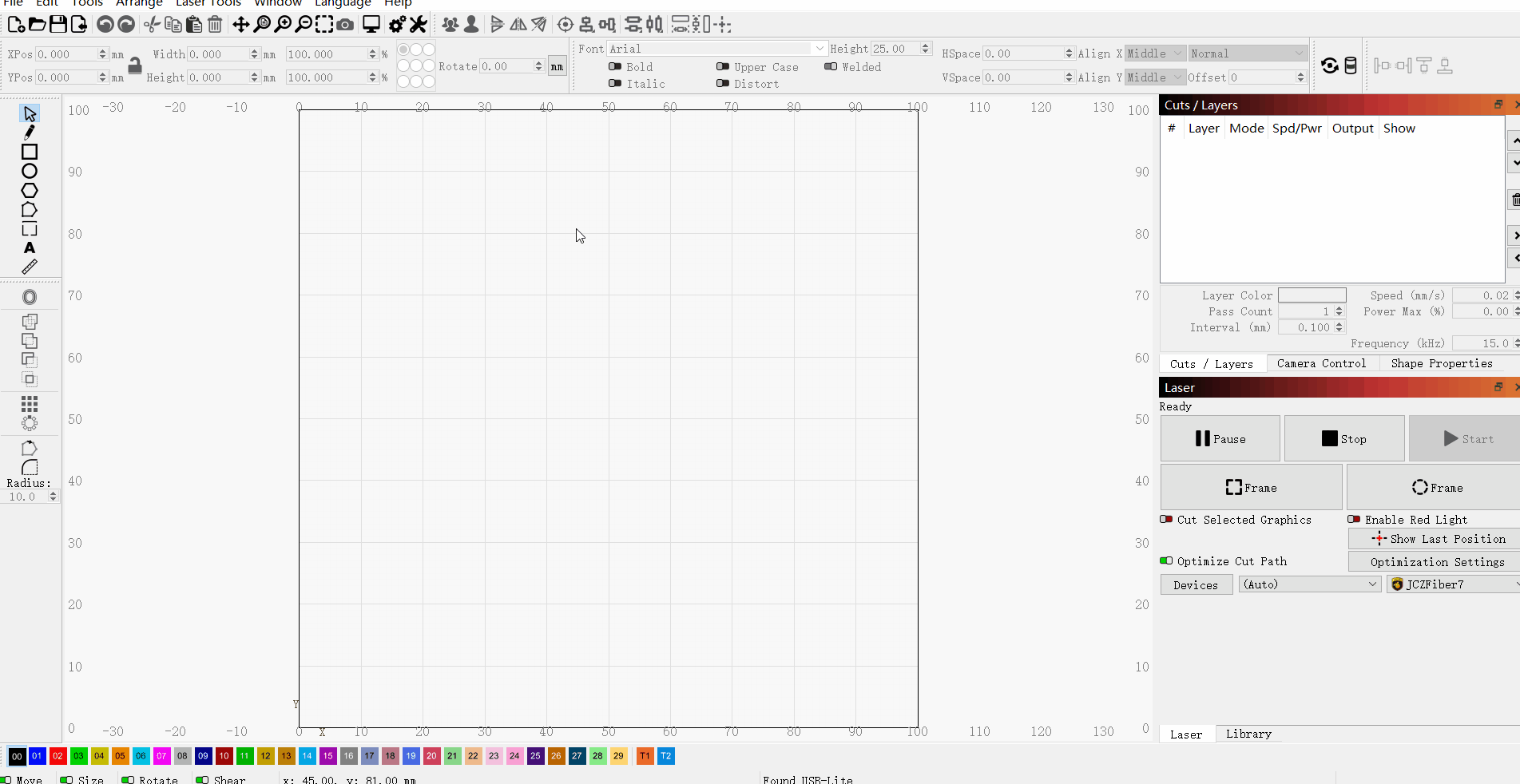

Import the Device.

5.2. Create a new device in Lightburn.

For this part of the installation, you will need to plug the U-disk that came with the machine into the computer.

The EzCad Config file is machine-specific and required for the machine to work properly.

We can find the EzCad Config file in this path: U-disk that came with machine >AURORA Series- Fiber & UV Laser>AURORA/AURORA Lite/AURORA PRO>Fiber/UV software>EzCad2_LITE>plug

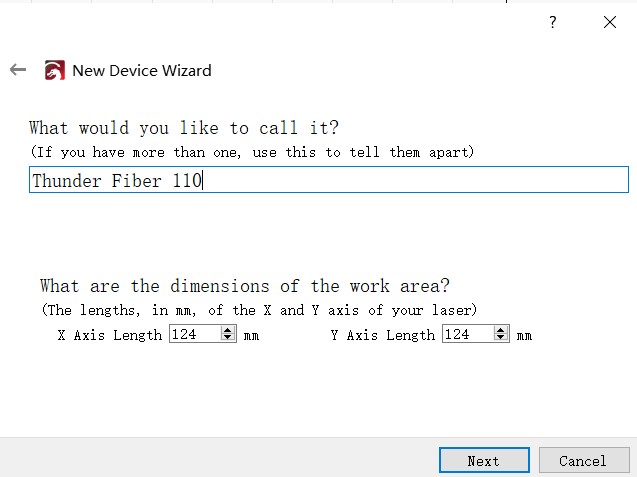

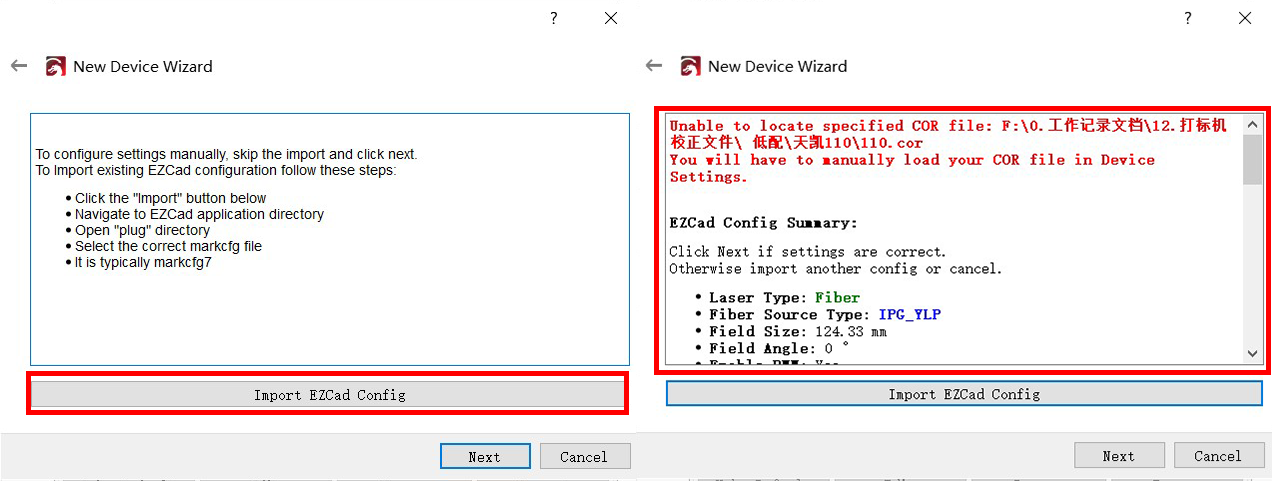

Cleate the Device.
When you import the correct configuration file, it will display the correct configuration summary for the machine, such as the Path to the calibration file, Laser Type, Field Size, etc.
TIP: Using multiple lenses will be a good idea to name that Device in conjunction with the associated lens. You must create a new device for each lens because the lens correction files and calibrations differ for each optic.

6. Now we can use LightBurn for marking.

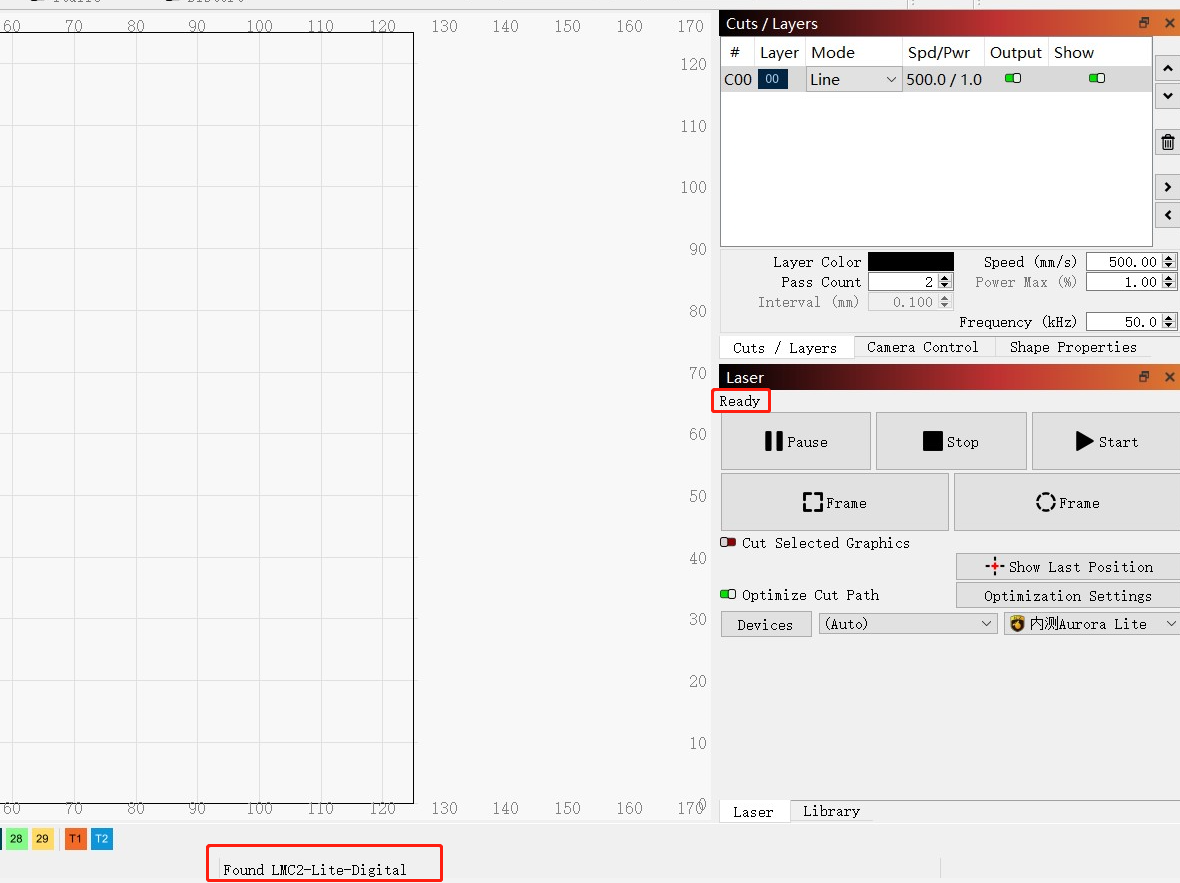

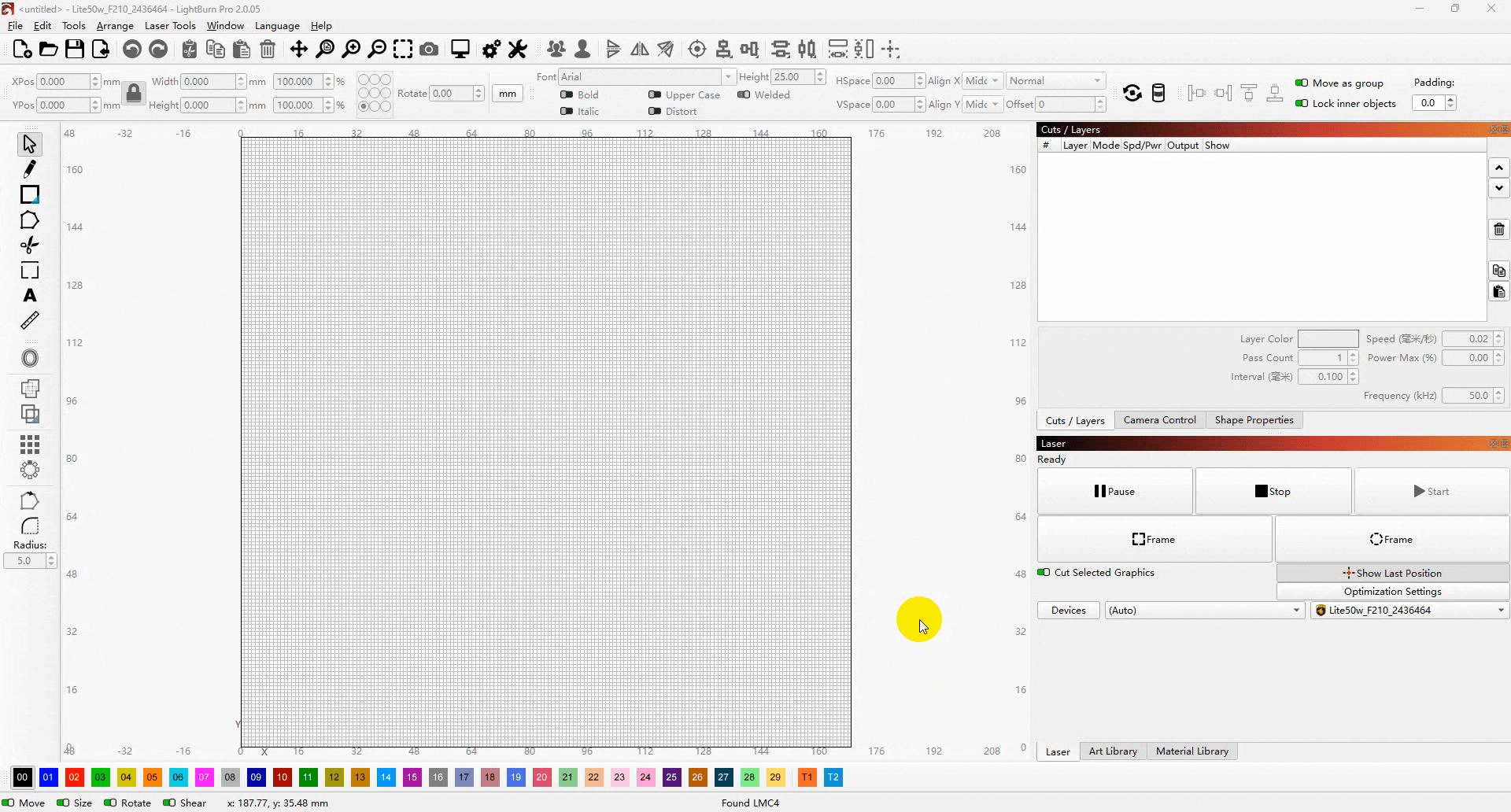

A successful connection will show Ready.

Note: If it still shows as disconnected, please follow the above steps to reinstall it, if it still doesn't work after reinstallation, please contact us.

Example 3. EzCad3 (For AURORA Pro)

Connect the AURORA Pro marking machine to the PC via the USB cable.
Install the driver.

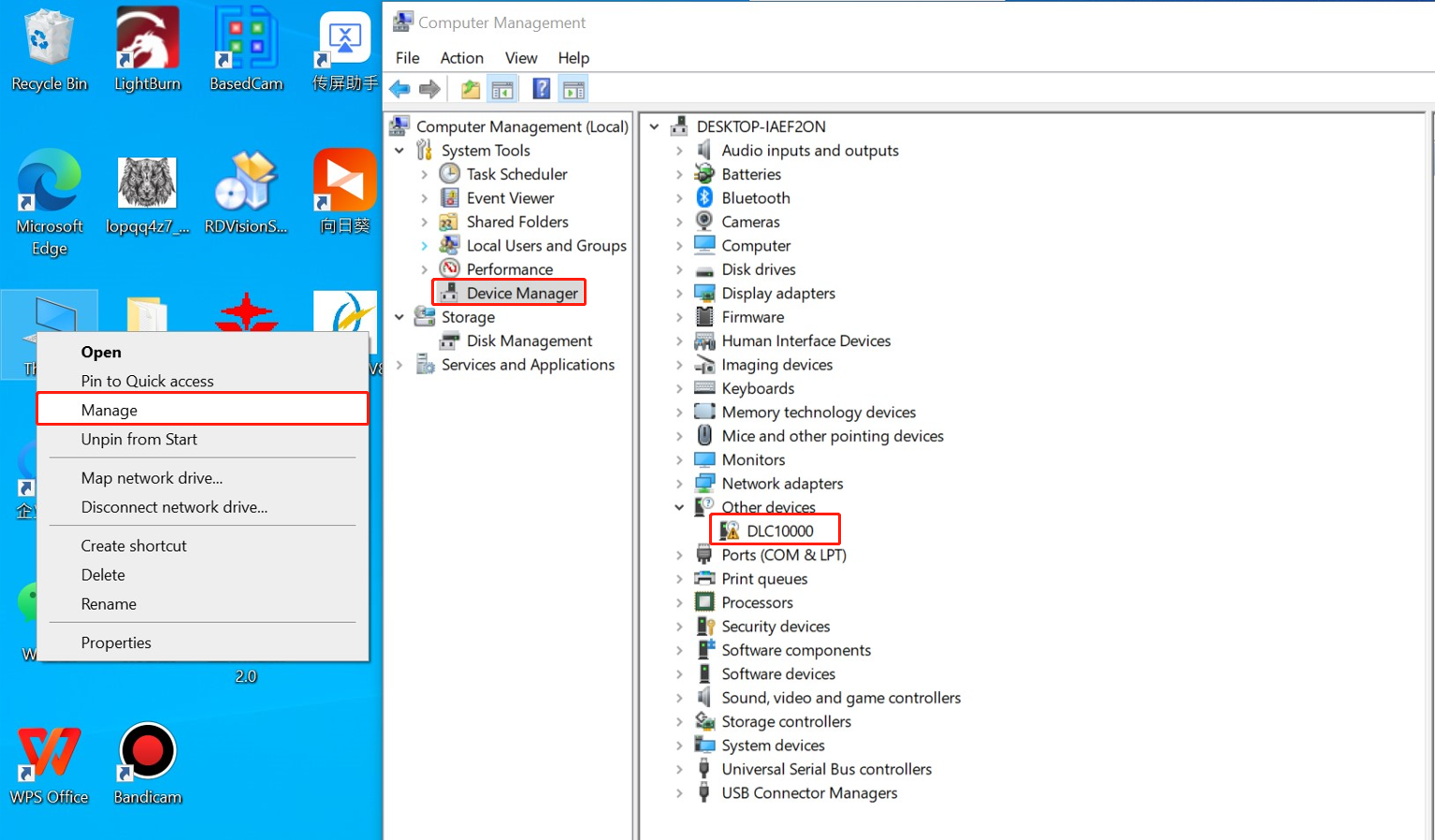

Open your computer's device manager and locate the new device.

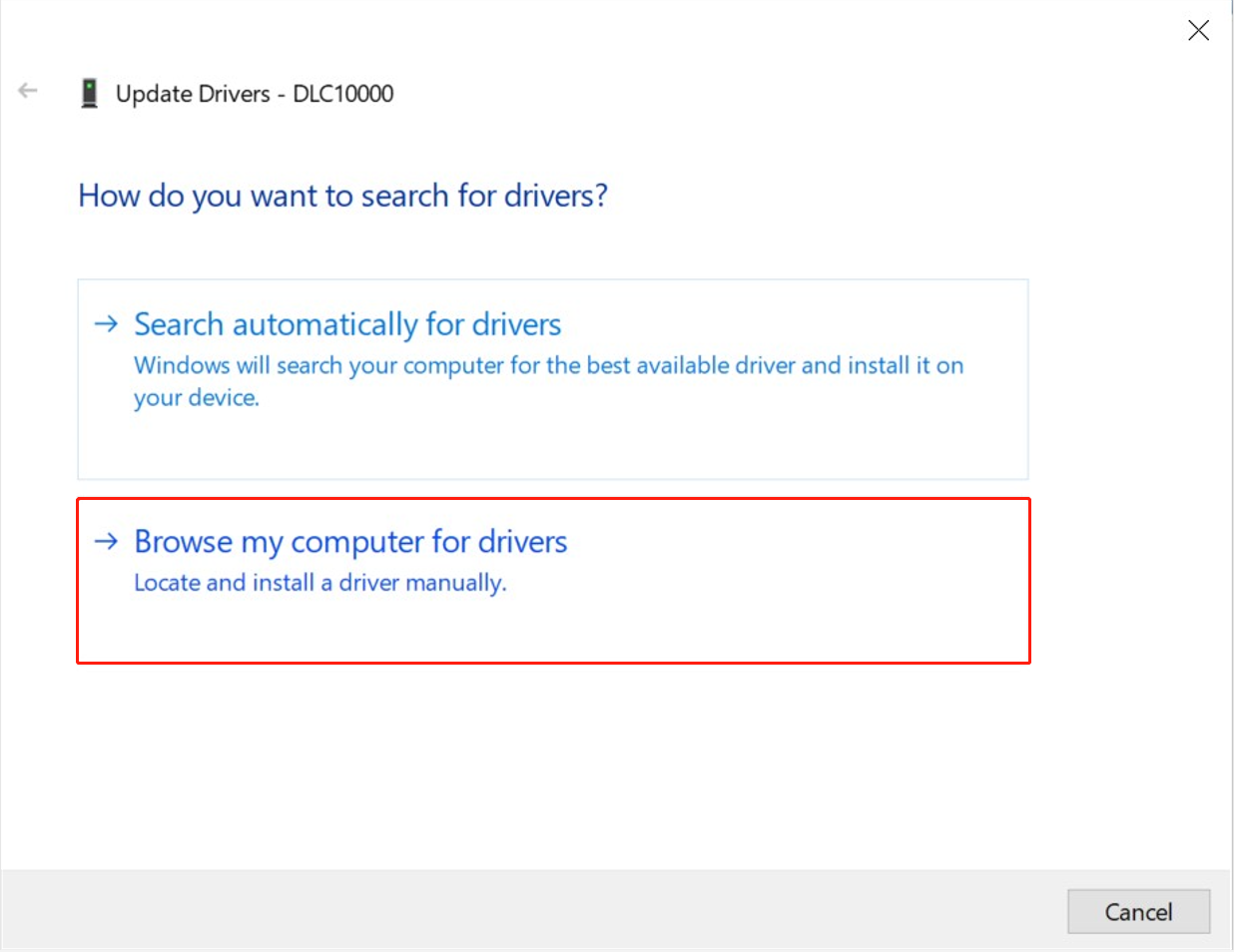

Right-click and select Update driver.

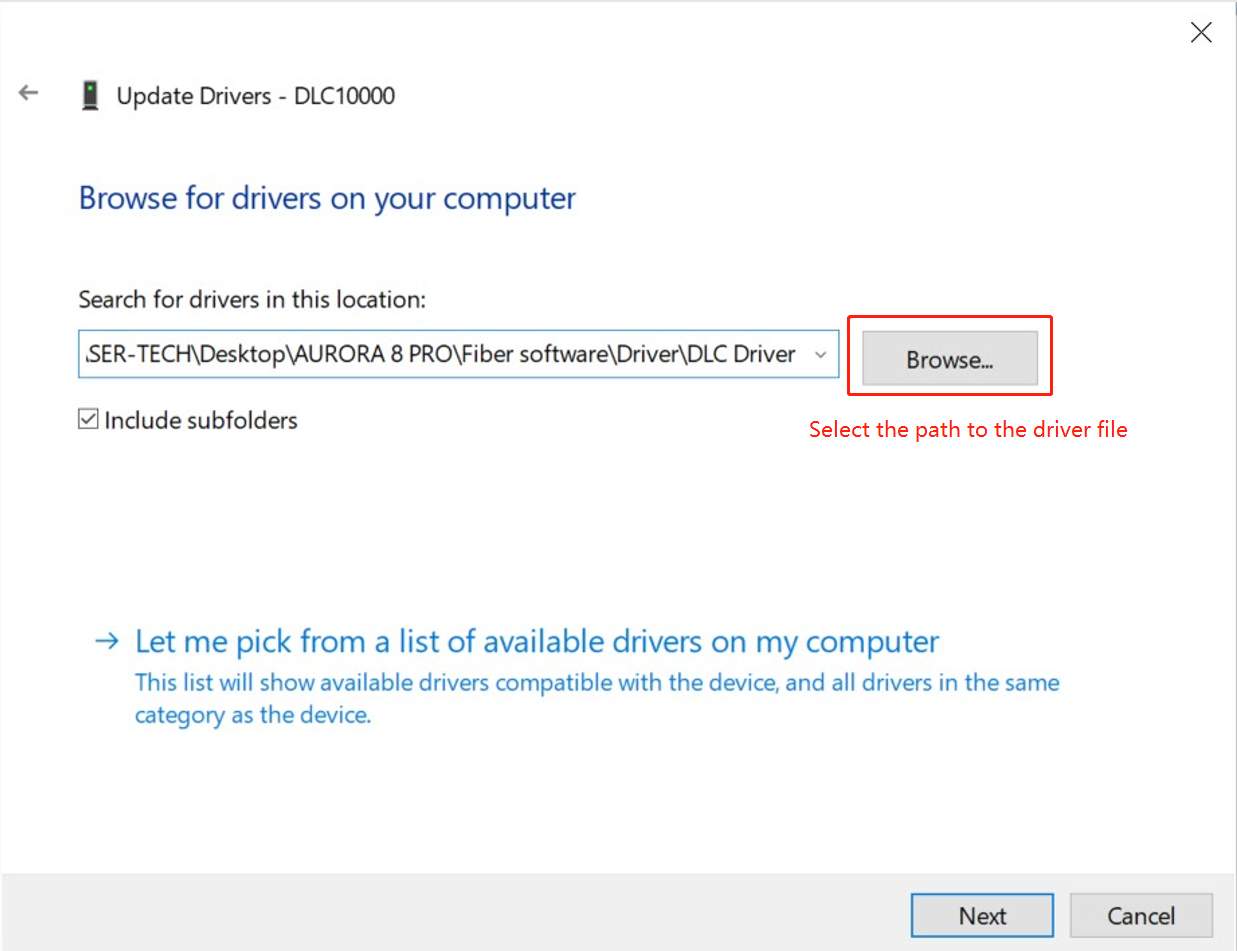

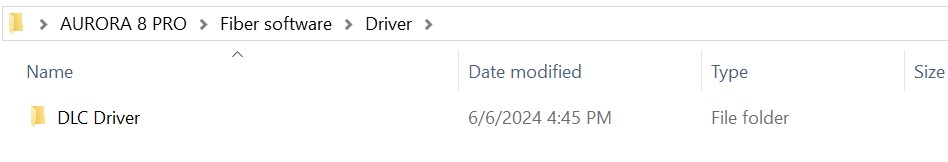

Select the driver file. You can find the driver file on the U-disk that came with the machine. File path: U-disk that came with the machine >> AURORA Series- Fiber & UV Laser>AURORA/AURORA Lite/AURORA PRO>AURORA 8 PRO >Fiber software > Driver >DLC Driver

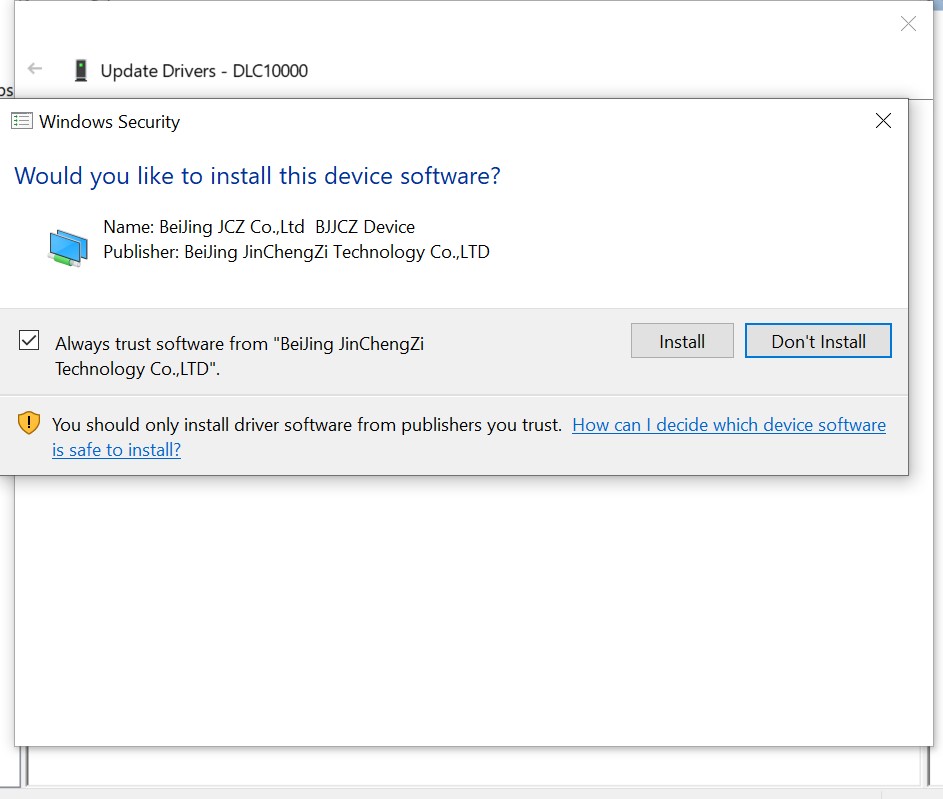

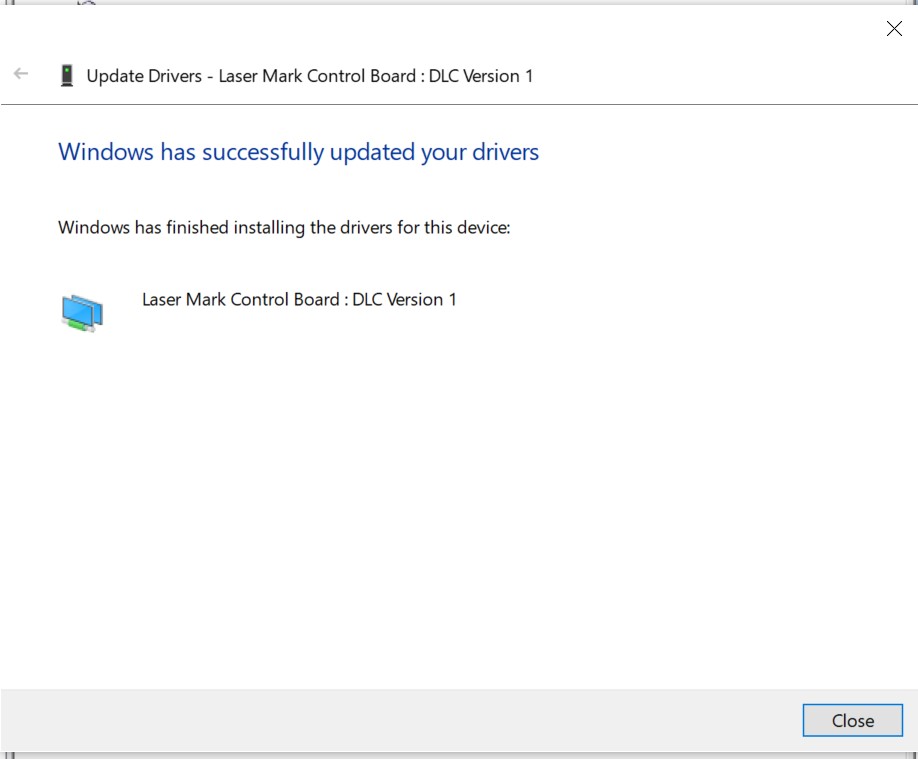

Completed USB driver installation.

Activate the software with the dongle.
A dongle can be activated on up to five computers; beyond this limit, further activations will not be possible. Reinstalling the computer system will deactivate the previously activated EzCad3, and the same dongle cannot be reactivated.

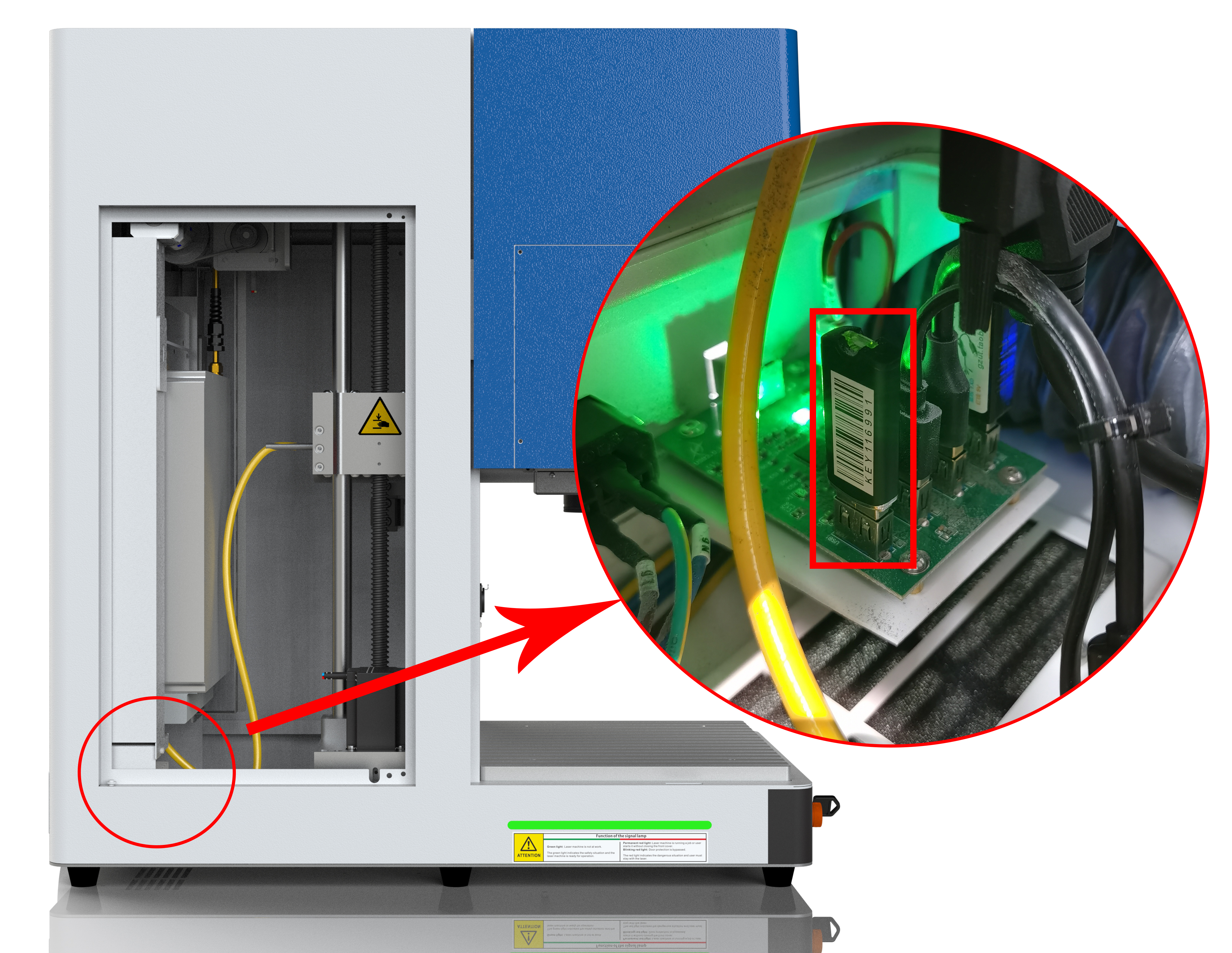

Make sure the dongle is plugged into the machine or is connected to your computer.

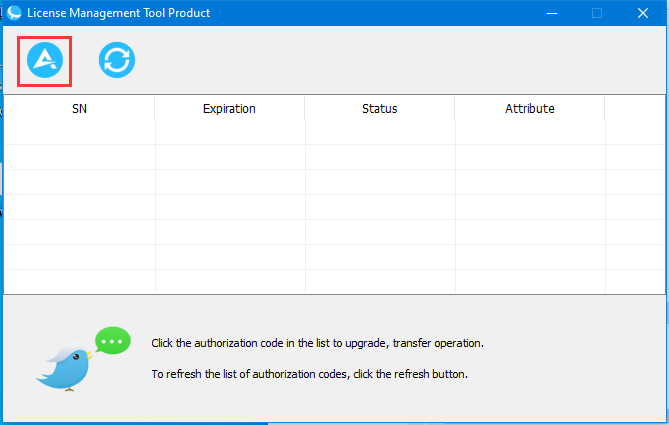

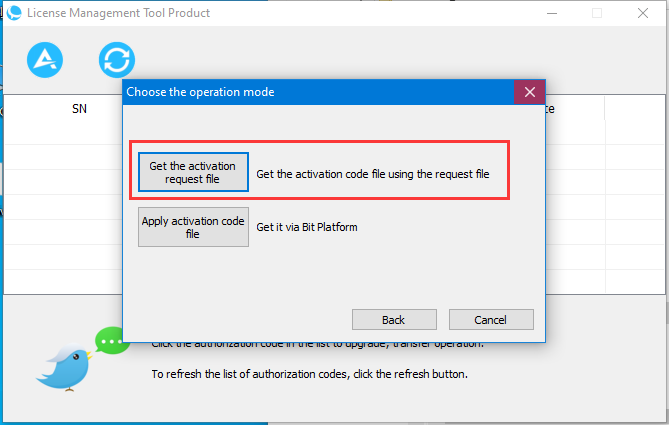

Open the license software.
Click on the Activate button.

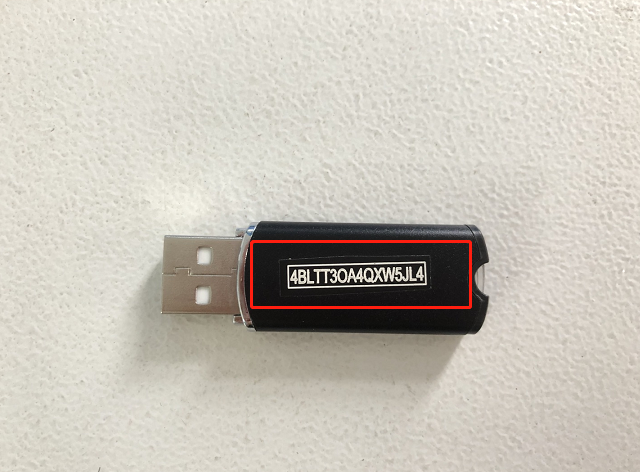

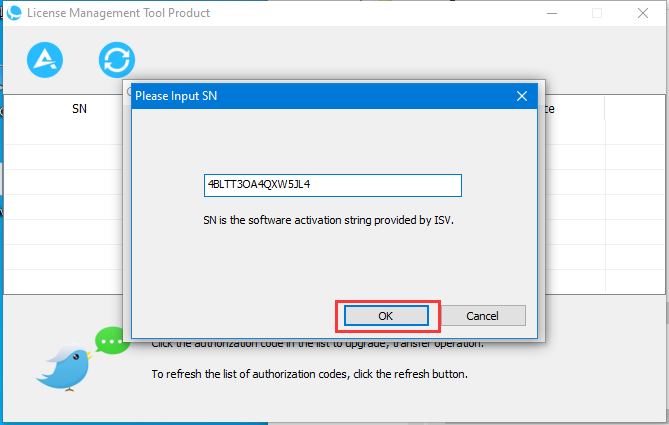

Fill in the activation code. NOTE: Each dongle has its own activation code

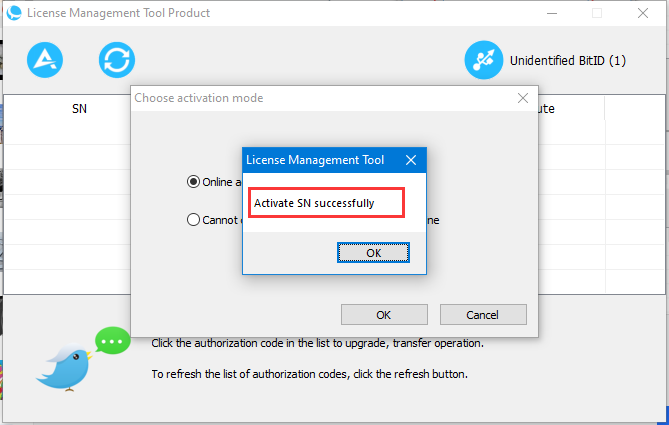

Complete activation.

Now you can use EzCad3 for marking.

Open the EzCad3 software on the U-disk that came with the machine.

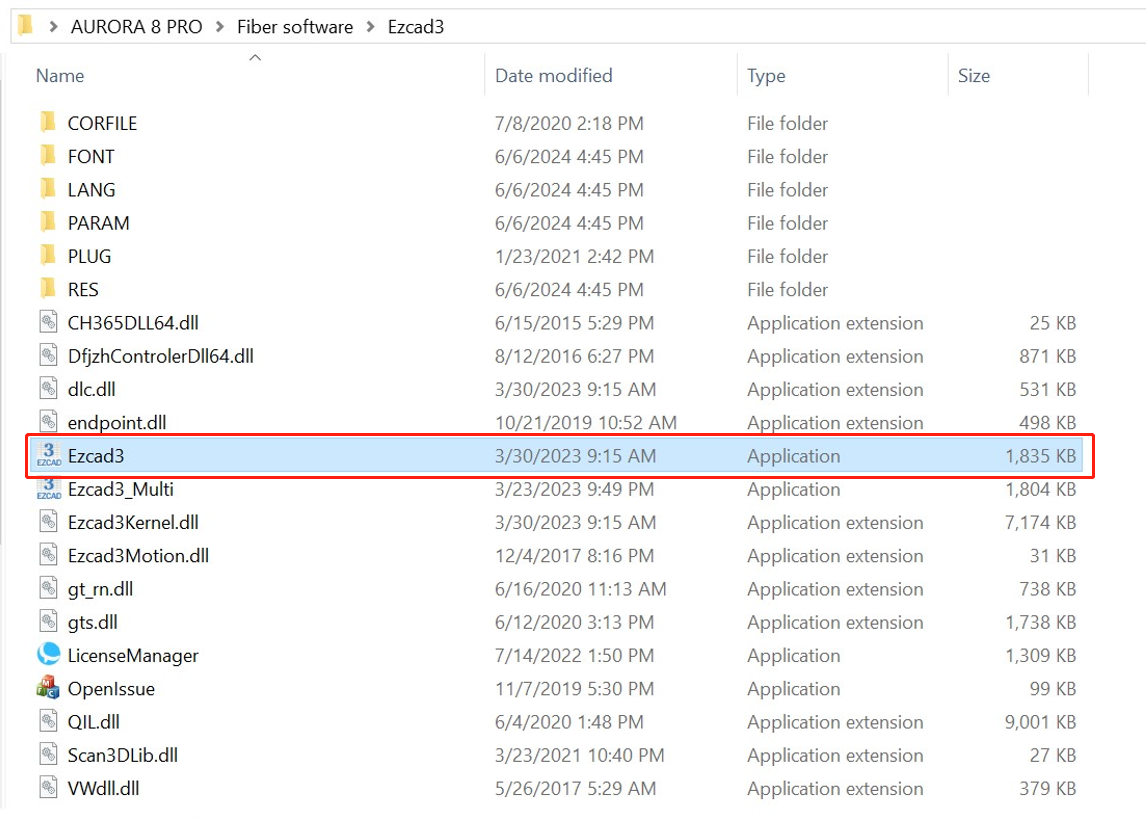

Software path: U-disk that came with the machine >AURORA/AURORA Lite/AURORA PRO>AURORA 8 PRO > Fiber software> EzCad3

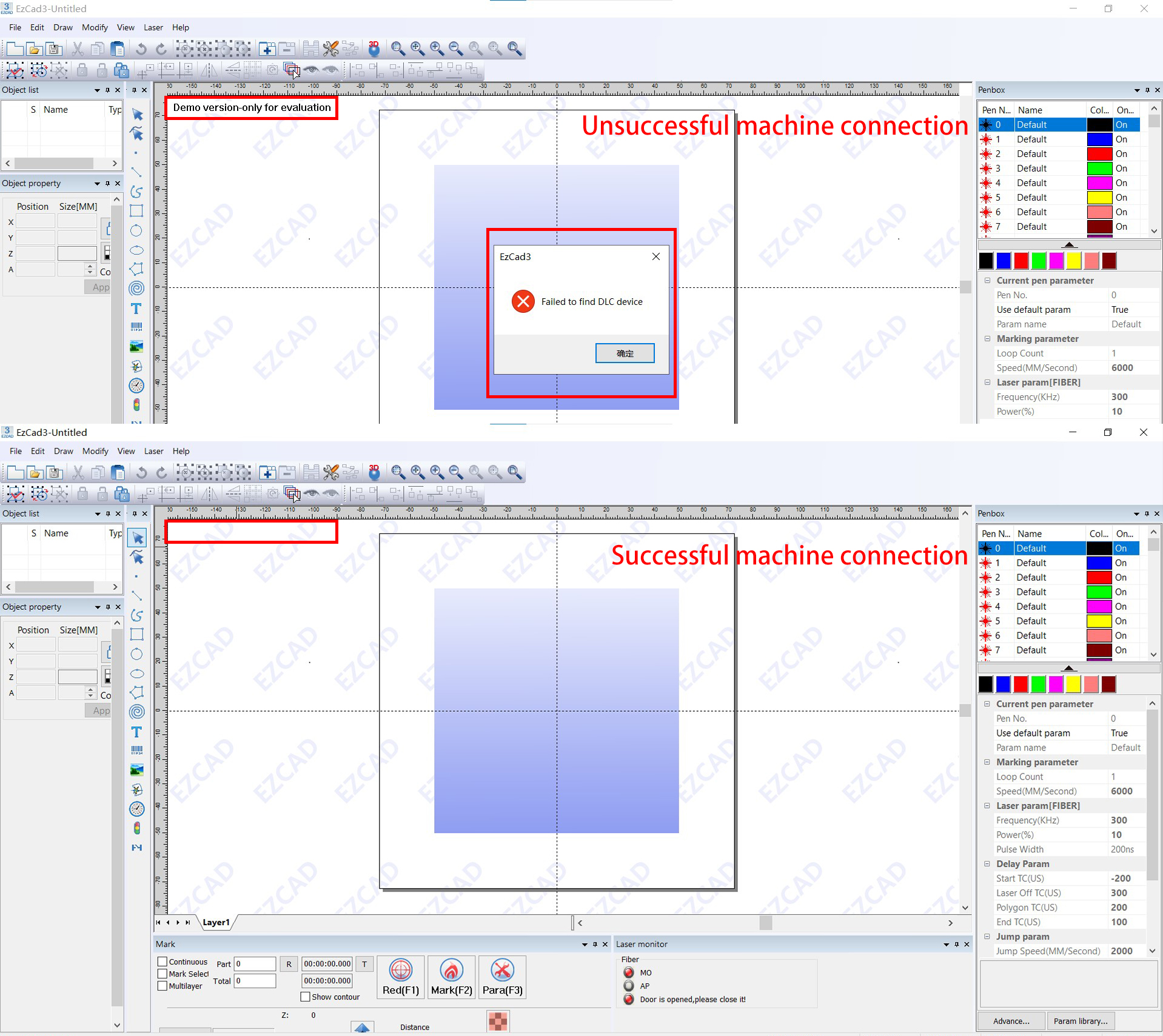

When the software does not display "Demo version-only for evaluation", the connection is successful.

Note: If it still shows up in demo mode, please follow the above steps to reinstall it again, if it still doesn't work after reinstallation, please contact us.

Loading the COR file after above the Software setup completes

It is recommended to load the COR file again, as its path in the configuration file may not match the path on your computer, causing the field lens correction file to not be enabled.

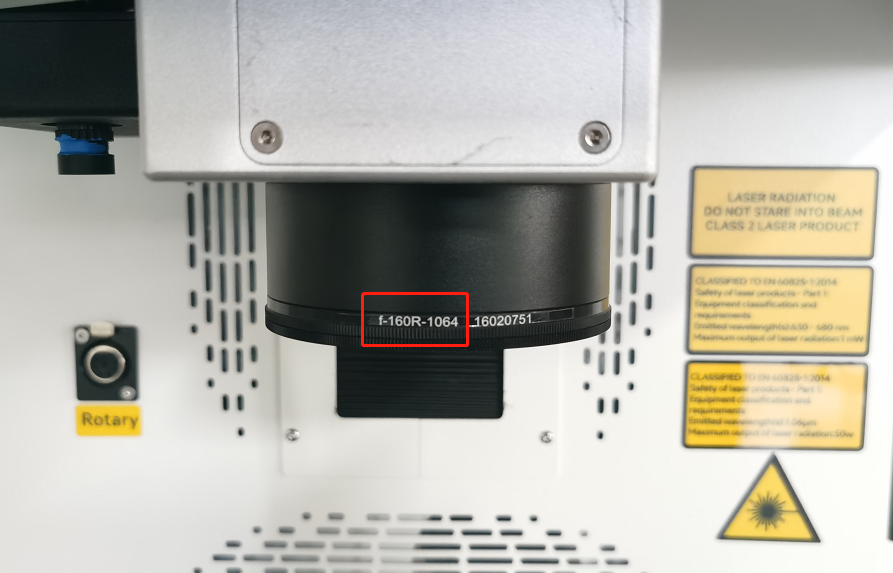

Load the corresponding COR file according to your field lens.
COR file path: U-disk that came with the machine>AURORA/AURORA Lite/AURORA PRO>AURORA /AURORA Lite/AURORA Pro>Fiber software/UV software>Correction file.

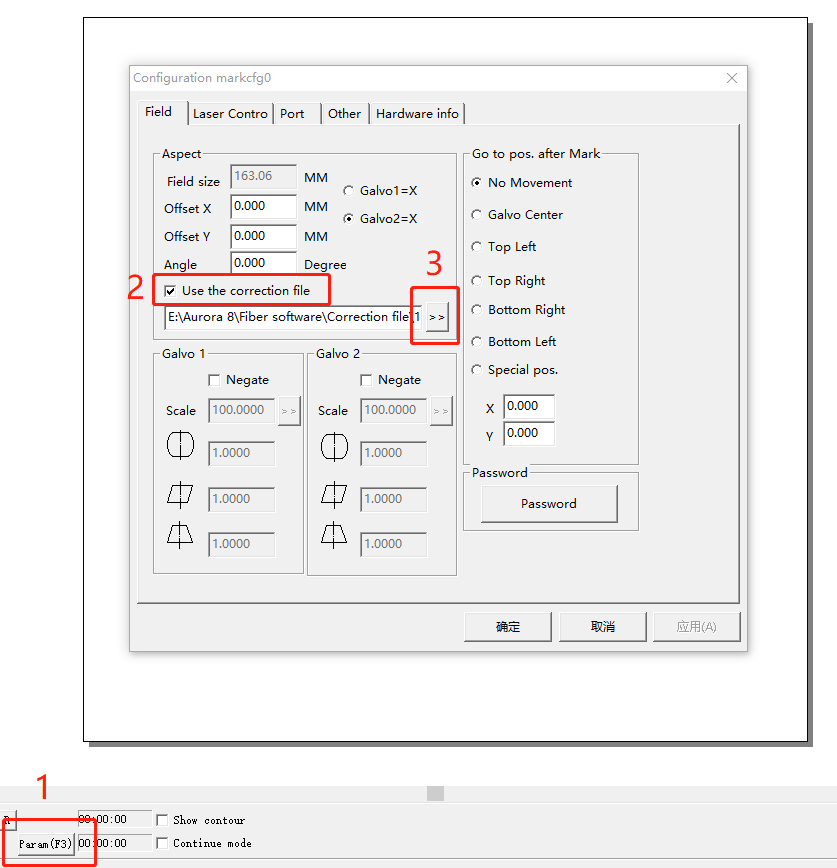

In EzCad_LITE and EzCad3 Please refer to the following troubleshooting article to load the COR file. An error "cannot open correct file" when running EzCad2 or 3
In LightBurn Open the Device Setting according to the following schematic, click Load COR file, and select the corresponding COR file.
