Preface

This guide will walk you through how to connect the top cover camera of the TITAN series equipment directly to your computer via an extension cable in LightBurn software—serving as a temporary solution to bypass the WiFi board, since LightBurn currently does not support transmitting USB camera images through the WiFi board.

Tools Required

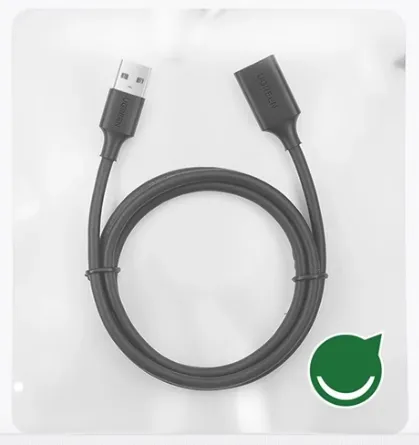

USB adapter extension cable

Notes
If you need to use this connection method, you can purchase the cable locally or online (e.g., via Amazon) by searching for the relevant keywords.

Specific steps

  1. First, locate the top cover camera cable and the open-lid camera cable (for TITAN51/63 models only), then shield the door protection.

Open the right side door of the machine, and you will find the camera cables.

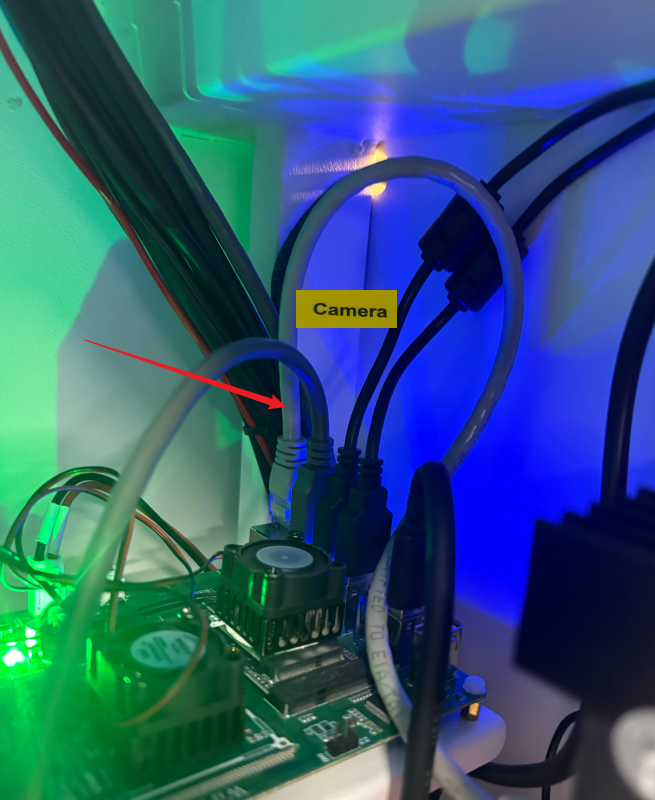

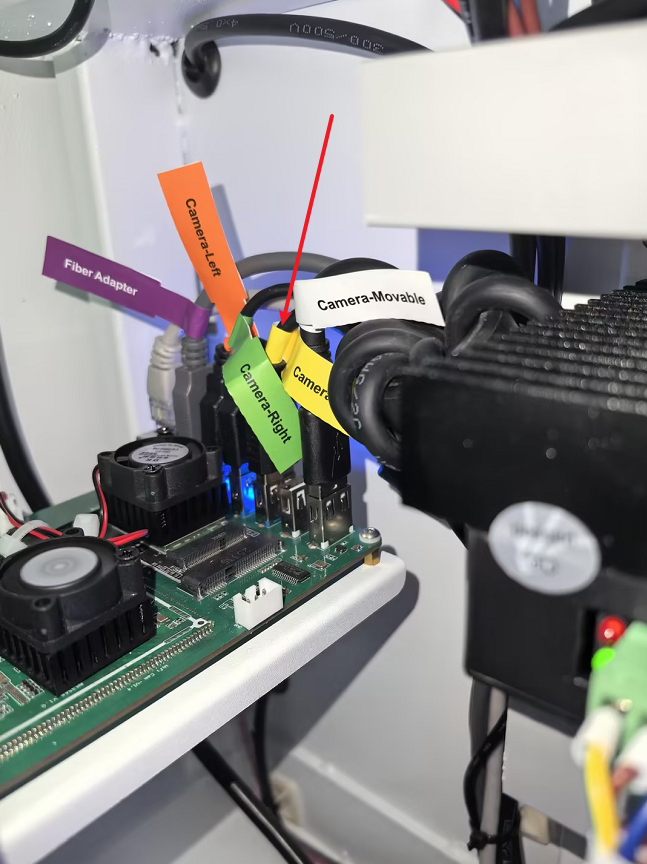

Top cover camera cable

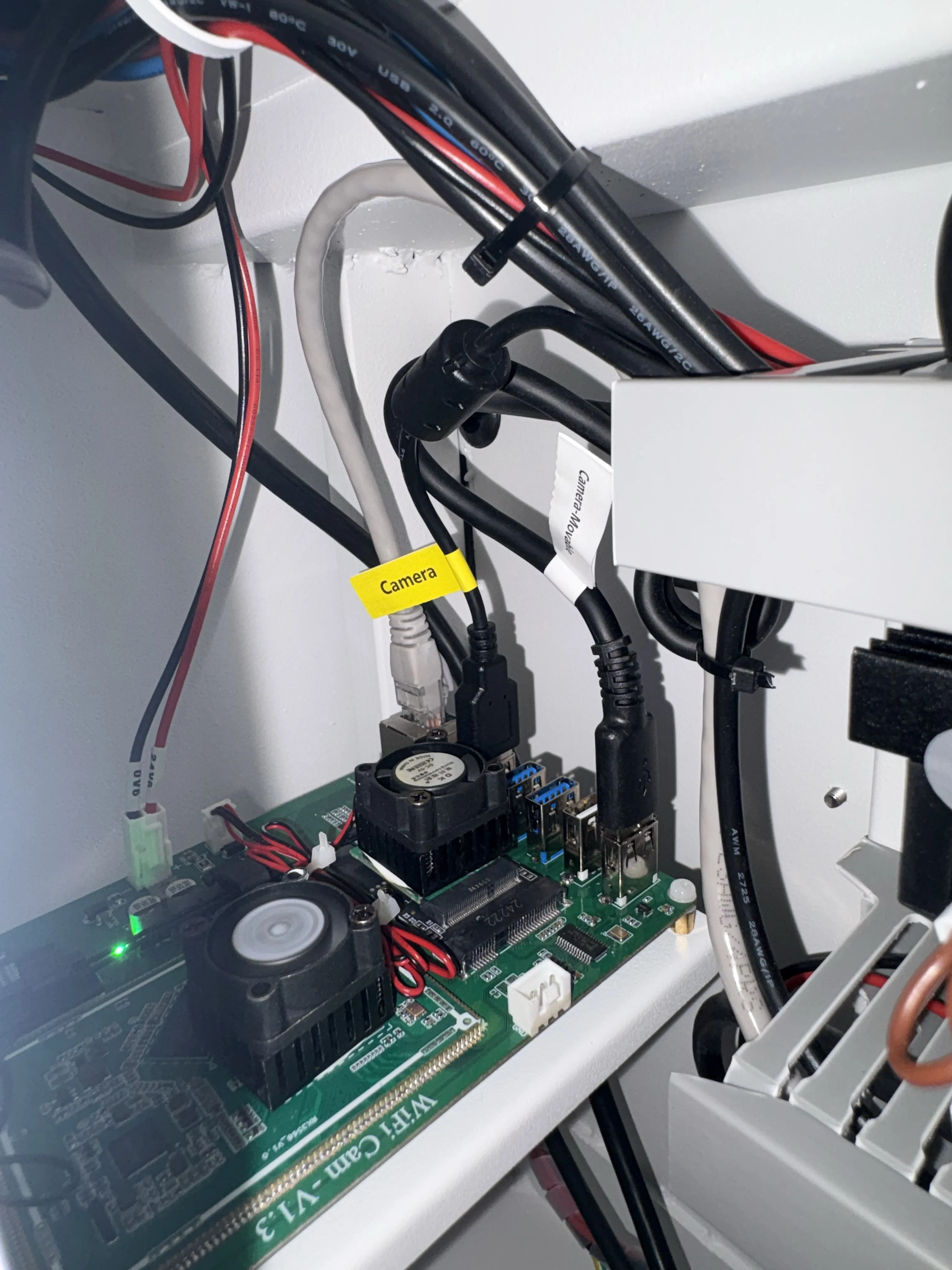

TITAN27/35

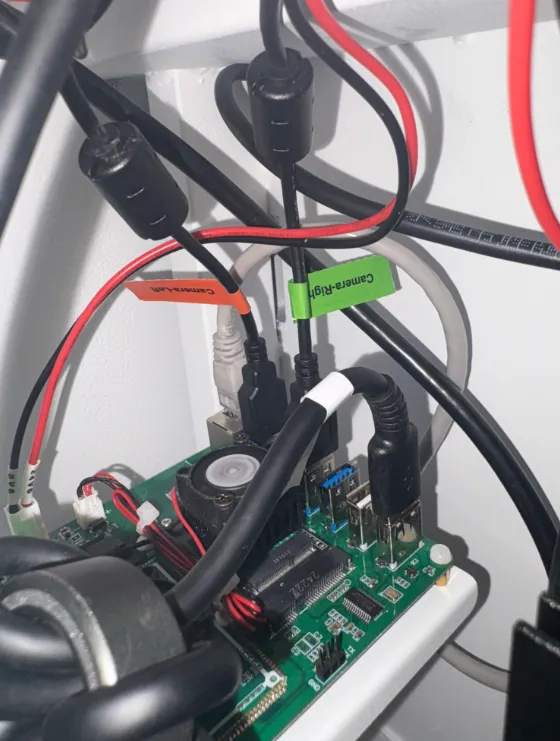

TITAN51/63

Open-lid camera

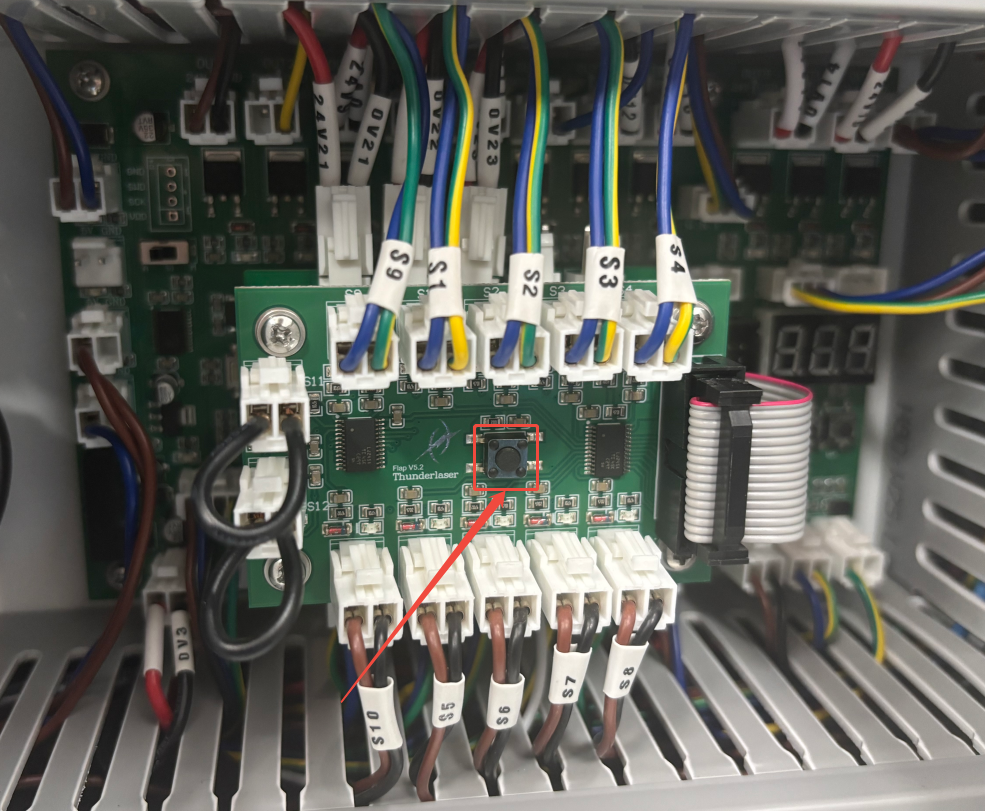

Locate the door sensor checking board and press this button to complete the shield the door protection.

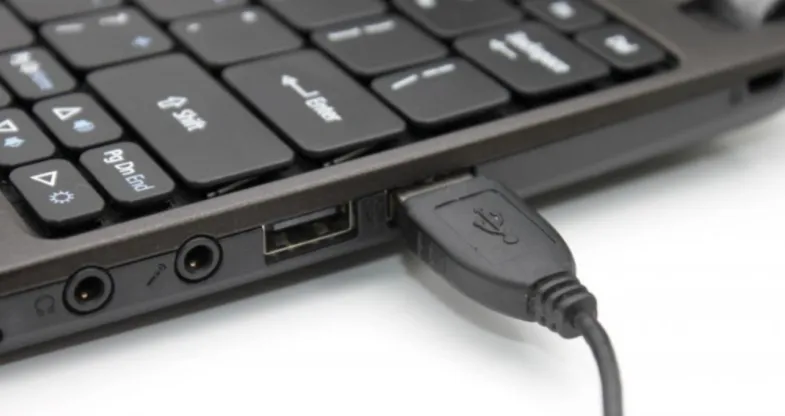

  1. Unplug the camera cable from the USB expansion board, then connect it to your computer.
    Notes
    Since the original cable of the TITAN series’ top cover camera is relatively short, if the cable length is insufficient during actual operation, you can use a USB adapter extension cable to connect it.


For TITAN51/63 machine models, you must connect each top cover camera's cable to the computer individually or simply use the left or right camera, because LightBurn software does not support dual cameras yet.

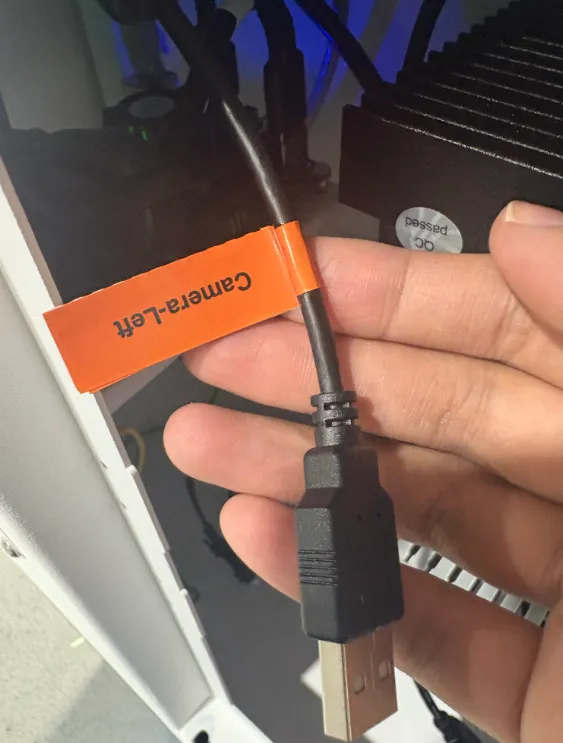

Left camera

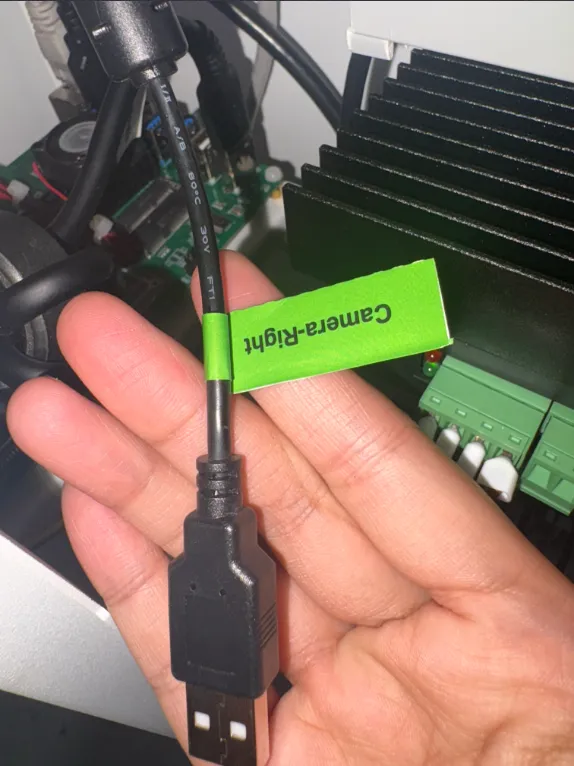

Right camera

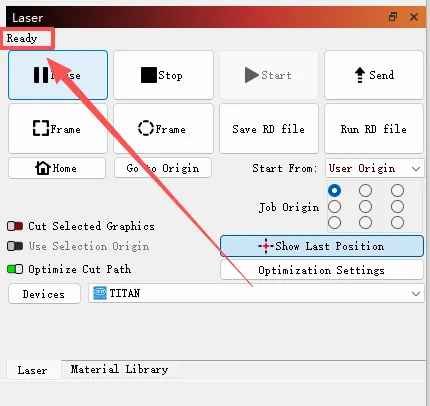

  1. Open the Lightburn software and ensure the machine and computer are successfully communicating.

For information on how to connect TITAN to a computer, please refer to this article.

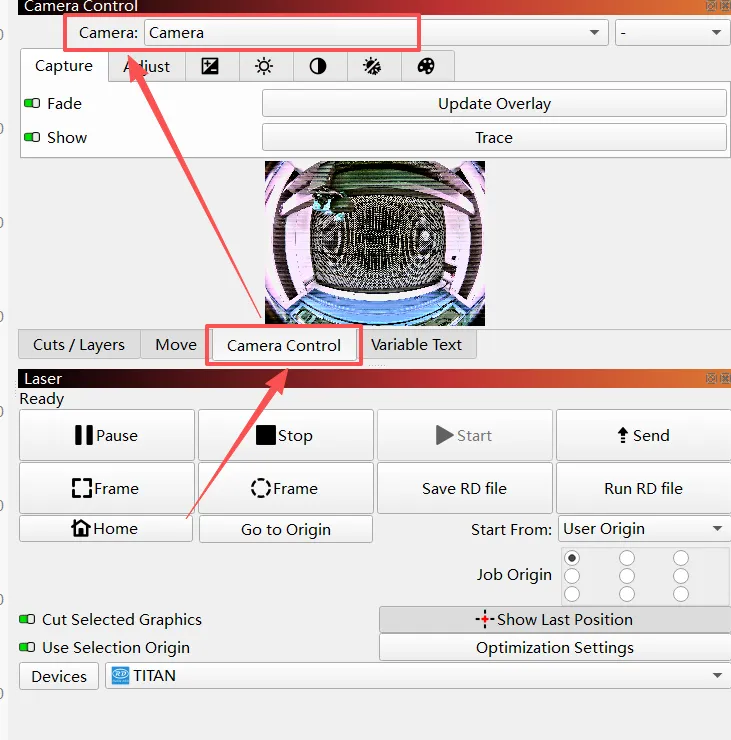

  1. Finally, select your camera in the "Camera Control" panel.

Prior to using the camera, calibration is required. For dual-camera setups, each camera must be calibrated individually. Refer to this article to complete calibration.



Still need help?

For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.

For the information provided in the ticket, please refer to this link：

Help Tech Support Troubleshoot Faster


End.
