If you need to upgrade to the new firmware, after the upgrade, please check and confirm on the touch panel whether the machine has selected the corresponding functional settings. Detailed instructions are provided below.

If you make adjustments to this screen, you may be disabling features that make the machine Class I. Proceed with caution.

Walkthrough of the menu and settings available:

First, on the machine touch screen, click the Menu button and then select the Factory Setting option.

Factory Setting Functions

Auto Focus type:

This option corresponds to the type of autofocus function on your machine:

WIFI card:

This option affects the display content on the Internet interface.

If “Yes” is selected, the following content will be displayed, showing three different connection methods:

If “No” is selected, the following content will be displayed, showing one connection method:

For the Titan series, select "Yes".
For the Bolt / NOVA PRO series, select "No".

Note: Because the Bolt series does not have a wifi card installed, it will not support a WIFI connection, even if "Yes" is checked, it cannot connect to the computer via WIFI.

Note: For Titan Series, if you select No Wifi, the laser machine screen will show a different IP address. It will be the IP address of the DSP controller, instead of the Wifi Board's IP and connection to the machine will not be achievable over wifi/ethernet.

Door cover protection type:

Improper modification of the value will affect the Class 1 machine rating. You must select XYZ to maintain Class I rating

"No": When the door cover is open, the XYZ axes can all be moved manually.

For the Bolt series, Titan series, and NOVA PRO series, the factory‑default setting is "No". With this setting, the machine complies with Class II requirements at maximum.

We recommend users keep the setting at "XYZ" to ensure maximum safety.

Blow aid:

If there is a Dual Air Assist Control panel installed on the left side of the machine, please select the "Double blow";

If there is no such panel, please select the "Single blow".

Laser condition detection:

It is used to detect whether the laser function is normal. If the RF laser tube is abnormal, a fault pop-up window will be prompted.

"Open" is checked by default for all models.

Do not move the Z-axis when the front cover is Open/closed:

Improper modification of the value will affect the Class 1 machine rating. You must select Open to maintain Class I rating

Only applicable to the Titan and NOVA PRO series, the default setting is "Close"; We recommend users keep the setting at "Open" to ensure maximum safety. When you need to adjust the optical path during maintenance mode, you may temporarily switch the option to "Close".

This option is not enabled for the Bolt series, and "Close" is checked by default.

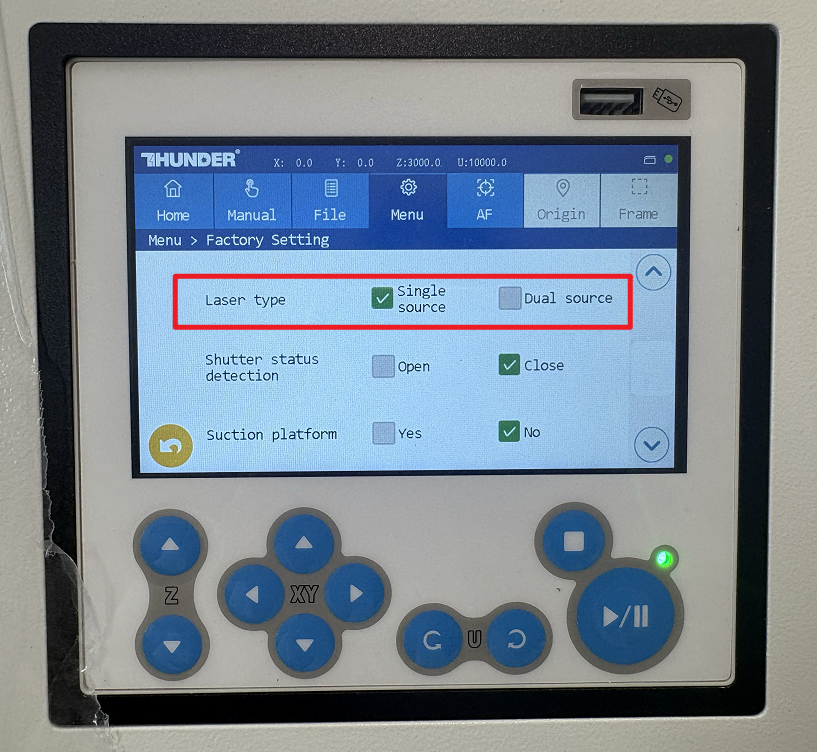

Laser type:

Laser source type selection should be based on your machine model:
For Bolt Series, Titan, and NOVA PRO: select Single source.
For Titan Pro, select Dual source.

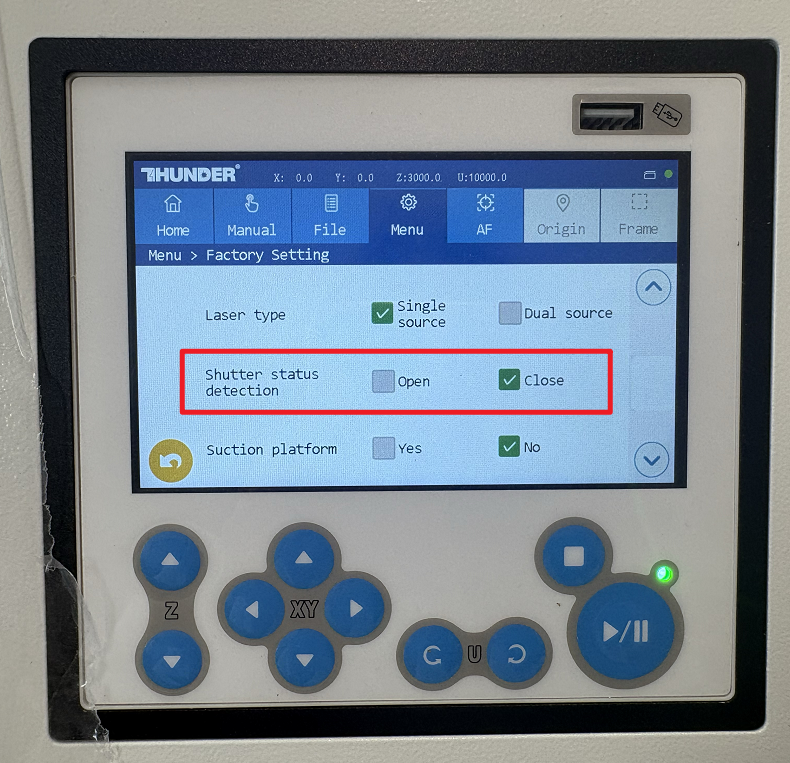

Shutter status detection

Improper modification of the value will affect the Class 1 machine rating. You must select Open to maintain Class I rating

For machines with the Shutter, this option needs to be selected as "Open".

For machines without the Shutter, select "Close".

The Shutter is an optional mechanical barrier that automatically closes when the machine is idle or any door is open, further ensuring operator safety by physically blocking any unintended laser emission.

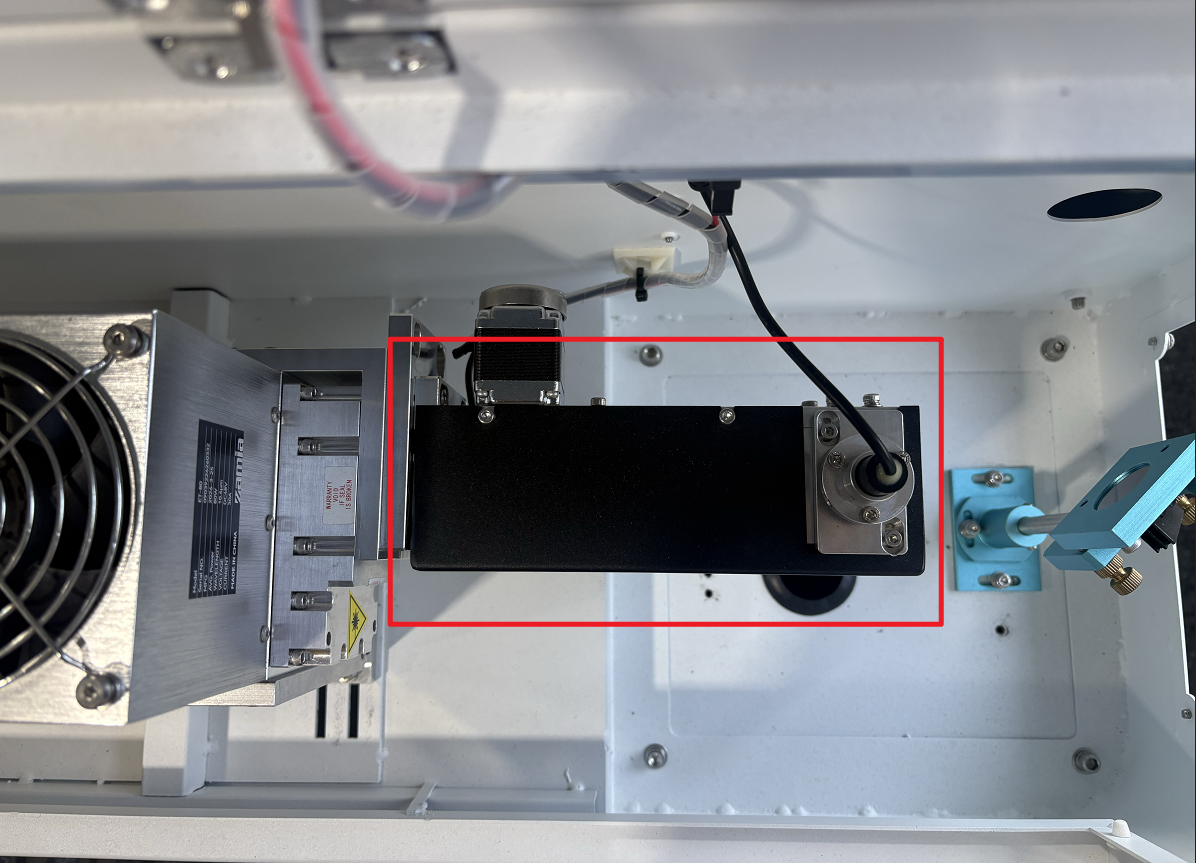

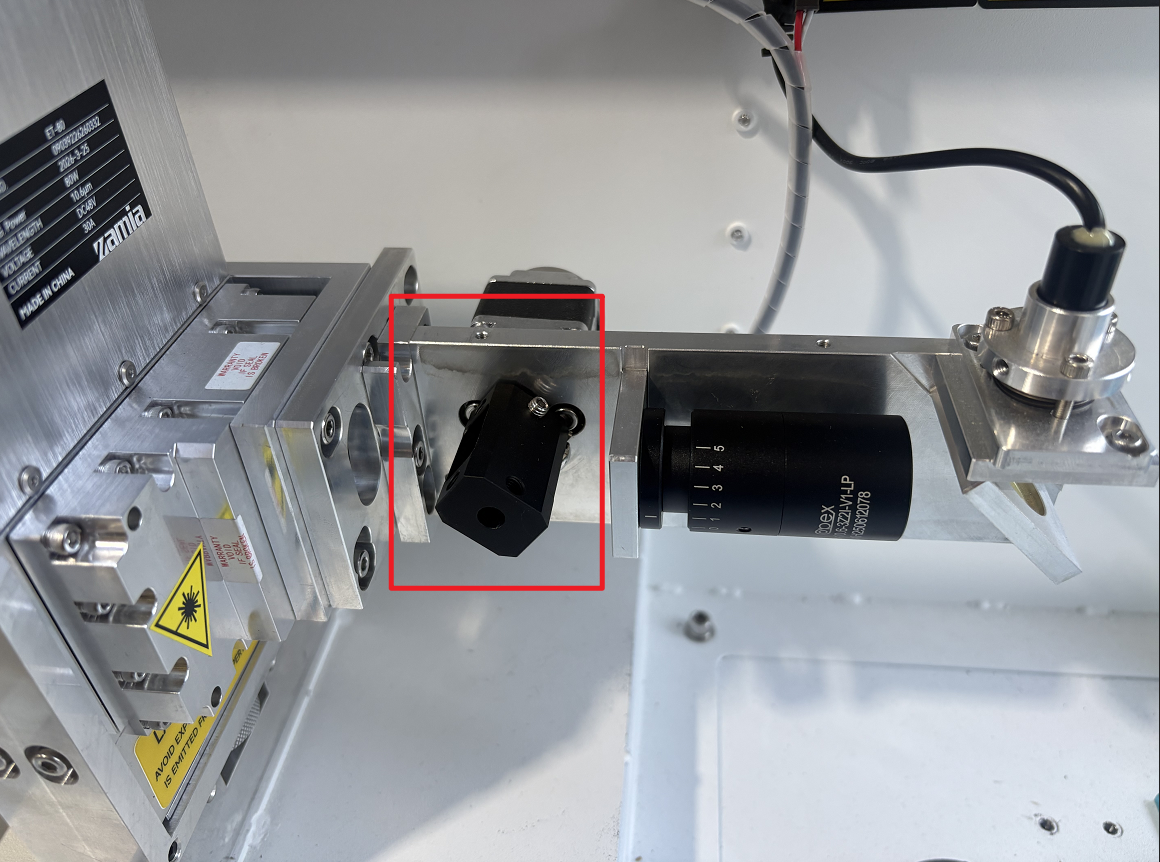

For the THUNDER laser machine, this device is installed at the front end of the laser tube, as shown in the figure below.

Bolt Series:

Titan Series:

NOVA PRO Series:


Note: For machines without the Shutter, selecting "Open" will not enable it, and this function will not take effect.

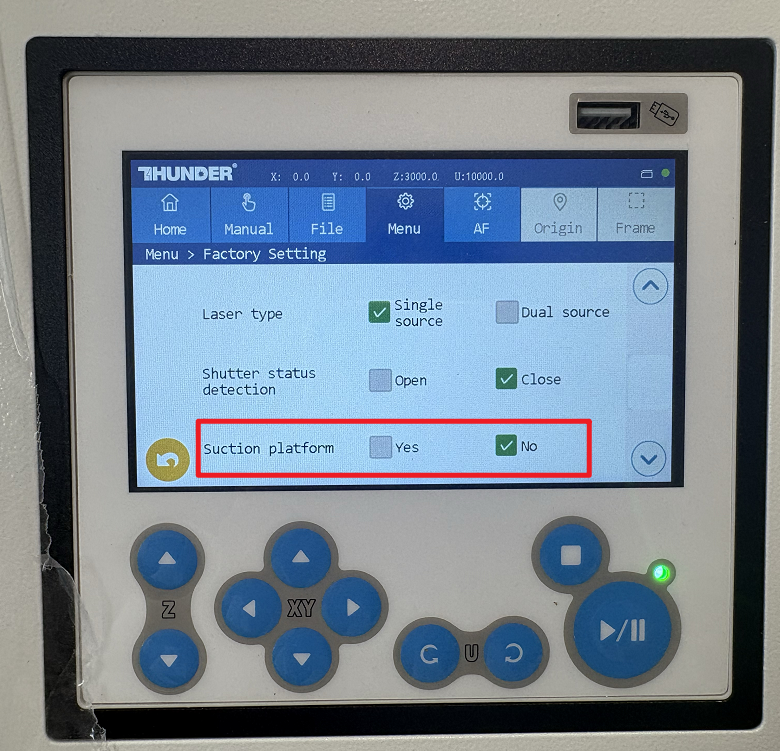

Suction status detection

Among current Thunder Laser machines, only the TITAN series is equipped with a suction platform.

For the Titan series, select "Yes".
For the Bolt / NOVA PRO series, select "No".

For information on using the suction platform, you can refer to this article.

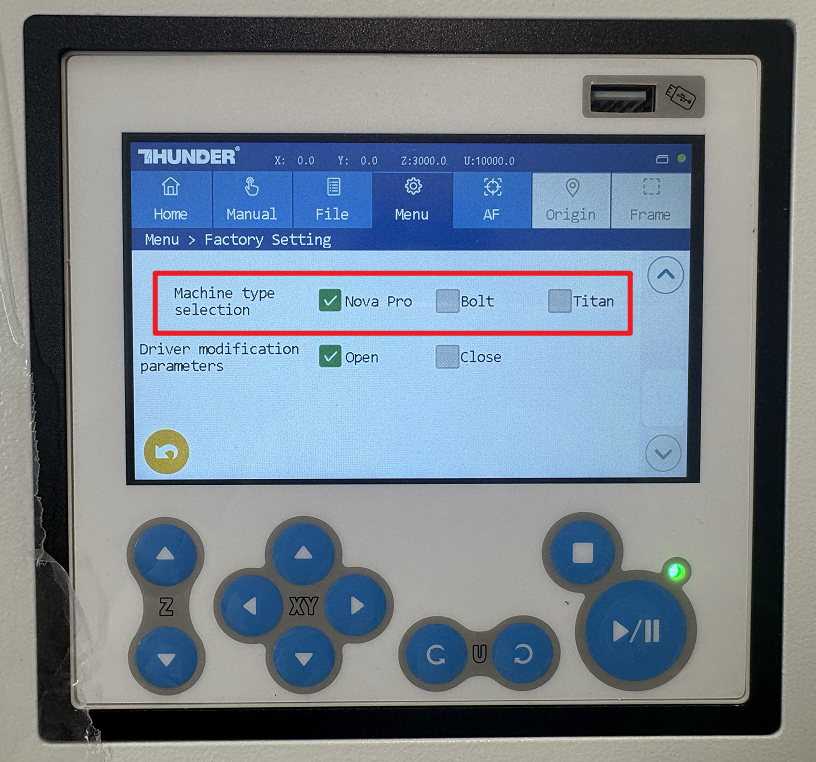

Machine Type selection

This option corresponds to the type of your machine.

For the Titan series, select "Titan".
For the Bolt series, select "Bolt".
For the NOVA PRO series, select "Nova Pro"

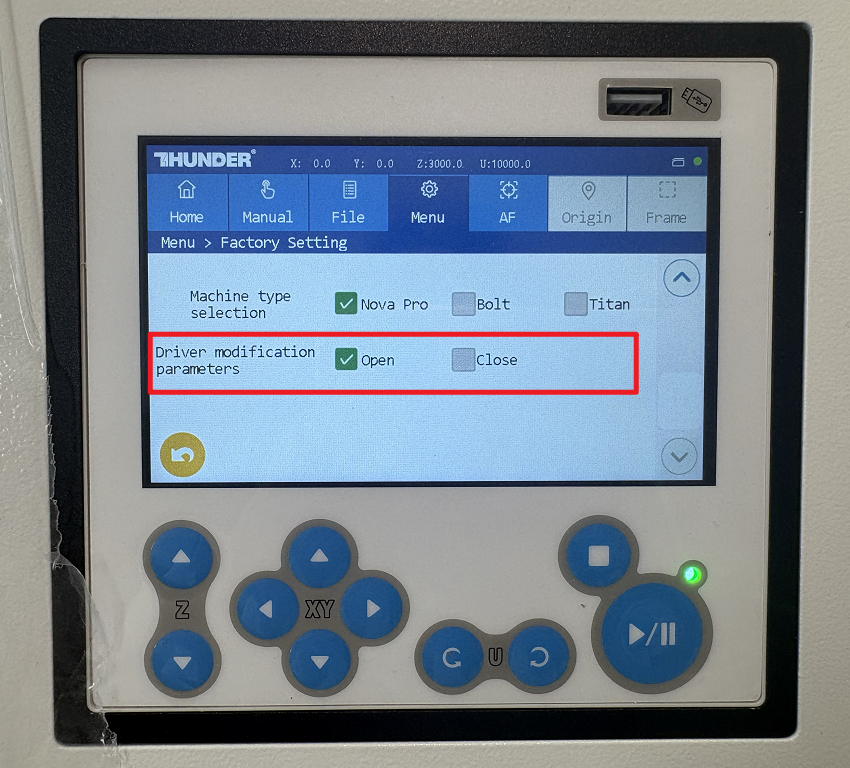

Driver modification parameters

When set to Open, the X‑axis driver will switch between different parameter sets for engraving and cutting operations.

For the NOVA PRO series, select "Open".
For the Bolt / Titan series, select "Close".
