Connecting A Thunder Laser To Laser Maker Via USB and Ethernet
Preface
This guide explains how to connect your Thunder Laser machine to the Laser Maker software using a USB or Ethernet cable.
TITAN Connection Method
1. Preparation
- USB cable
- Ethernet cable
- Computer
2. Connection method

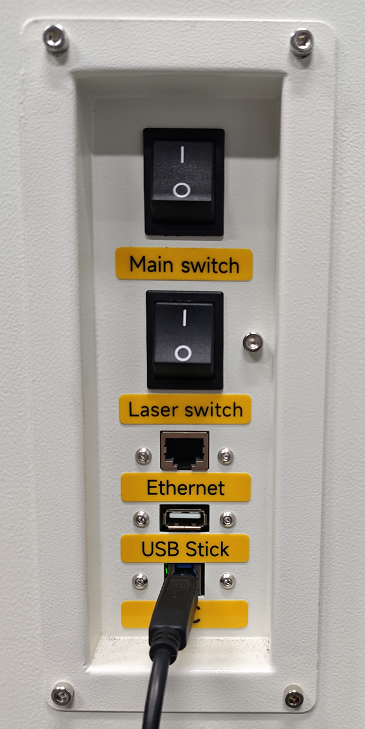

USB connection(Nova & Nova Plus Series, Bolt Series) | Ethernet connection(Nova & Nova Plus Series, Bolt Series) |
Method 1: USB Connection

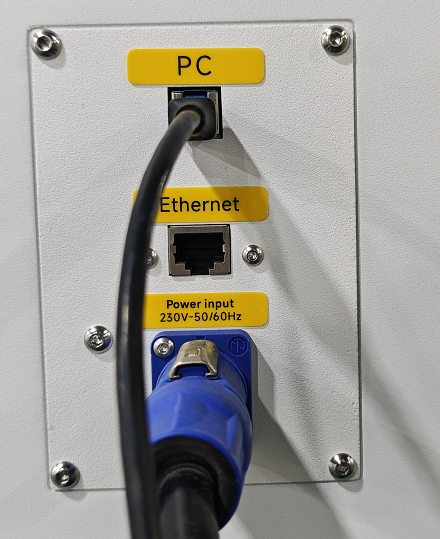

- Physical Connection: Connect your computer to the machine using the USB cable.

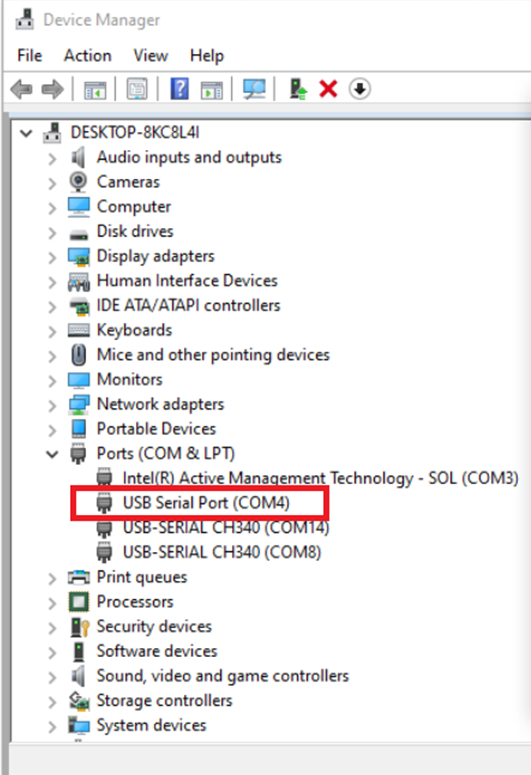

- Check Port: Open Windows Device Manager and locate the assigned USB COM port.
- Configure the software

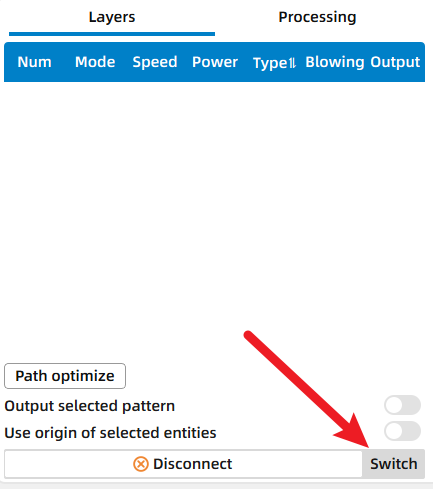

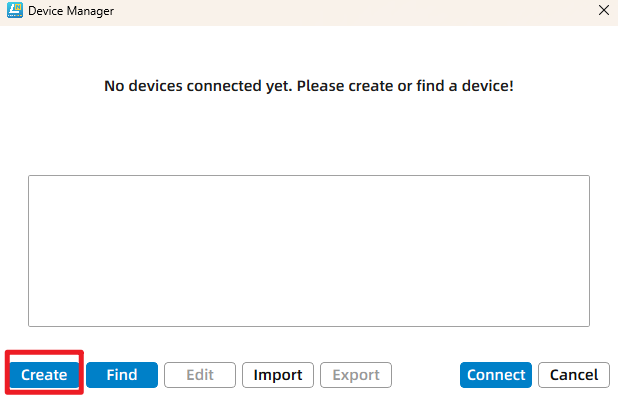

Step 1: Click the "Switch" to enter the "Device Manager" interface. | Step 2: Click the "Create" to create the device. |

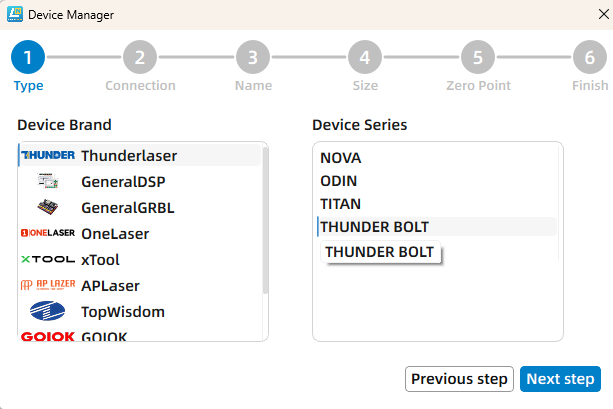

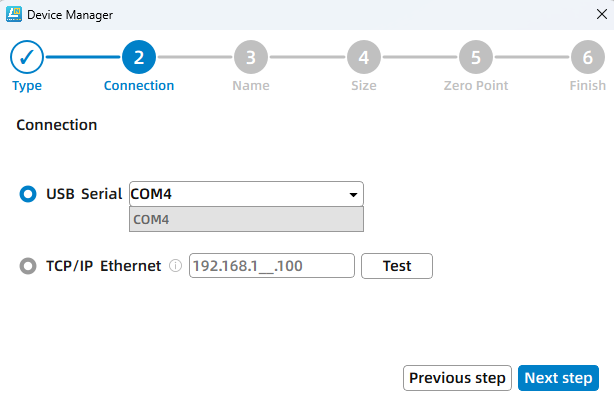

Step 3: Select the device brand and device series | Step 4: Select the correct COM port. |
Step 5: Enter the device name | Step 6: Click "Finished" to complete the creation of the device. |

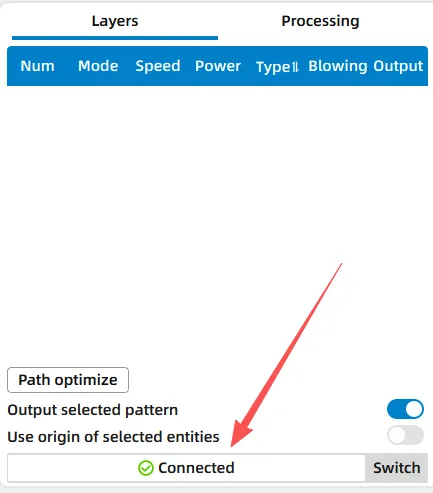

- Connection Successful: The bottom right corner of the software will now display "Connected", indicating successful communication.
Method 2: Ethernet Connection

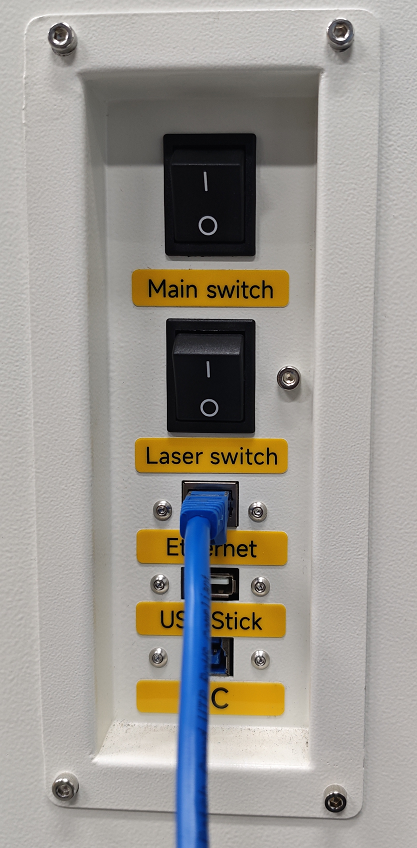

- Physical Connection: Connect your computer to the machine using the Ethernet cable.

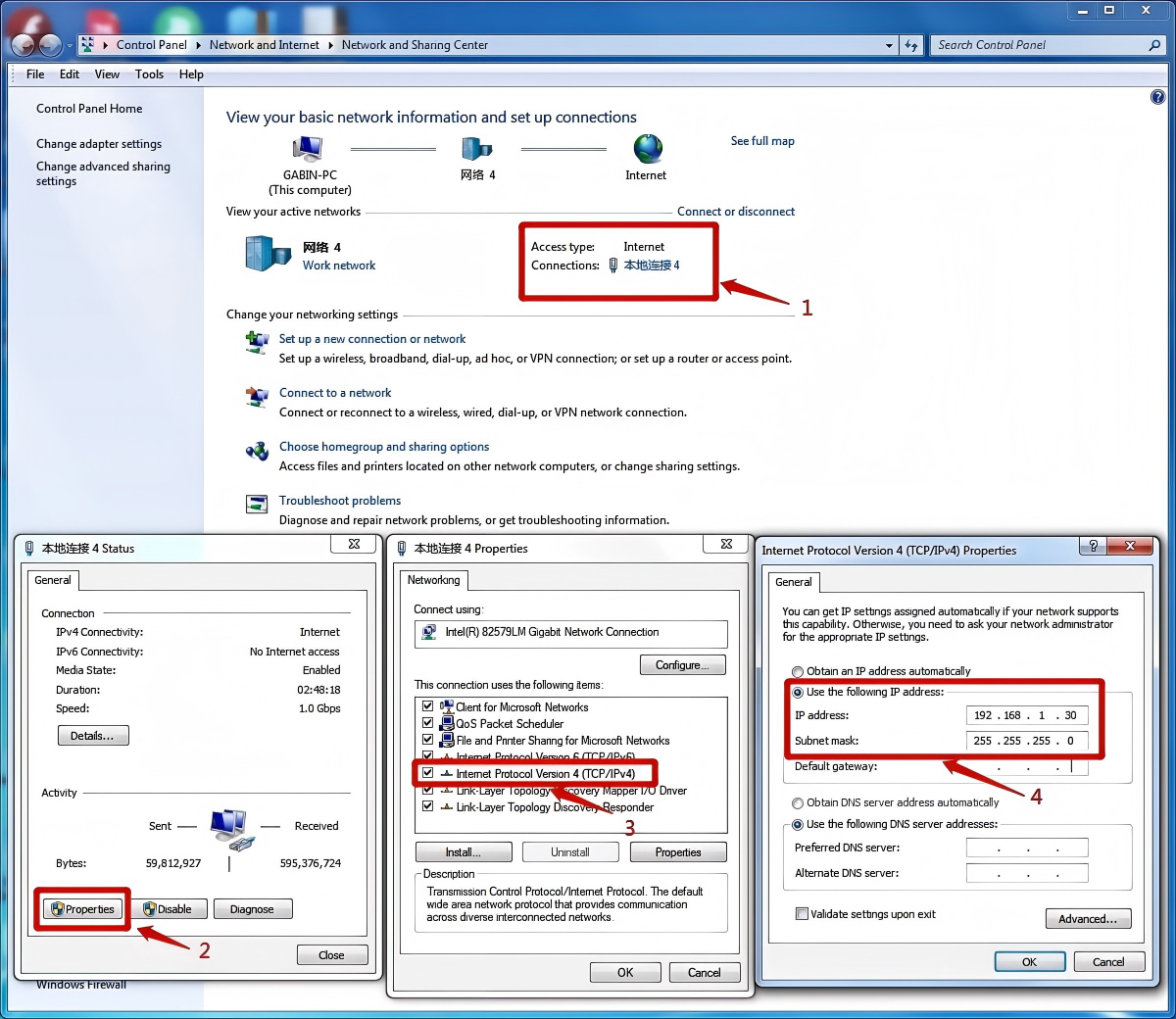

- Network Setup: Go to Windows Start > Control Panel > Network and Internet > Network and Sharing Center (to configure your PC's IP address to match the machine's network segment).

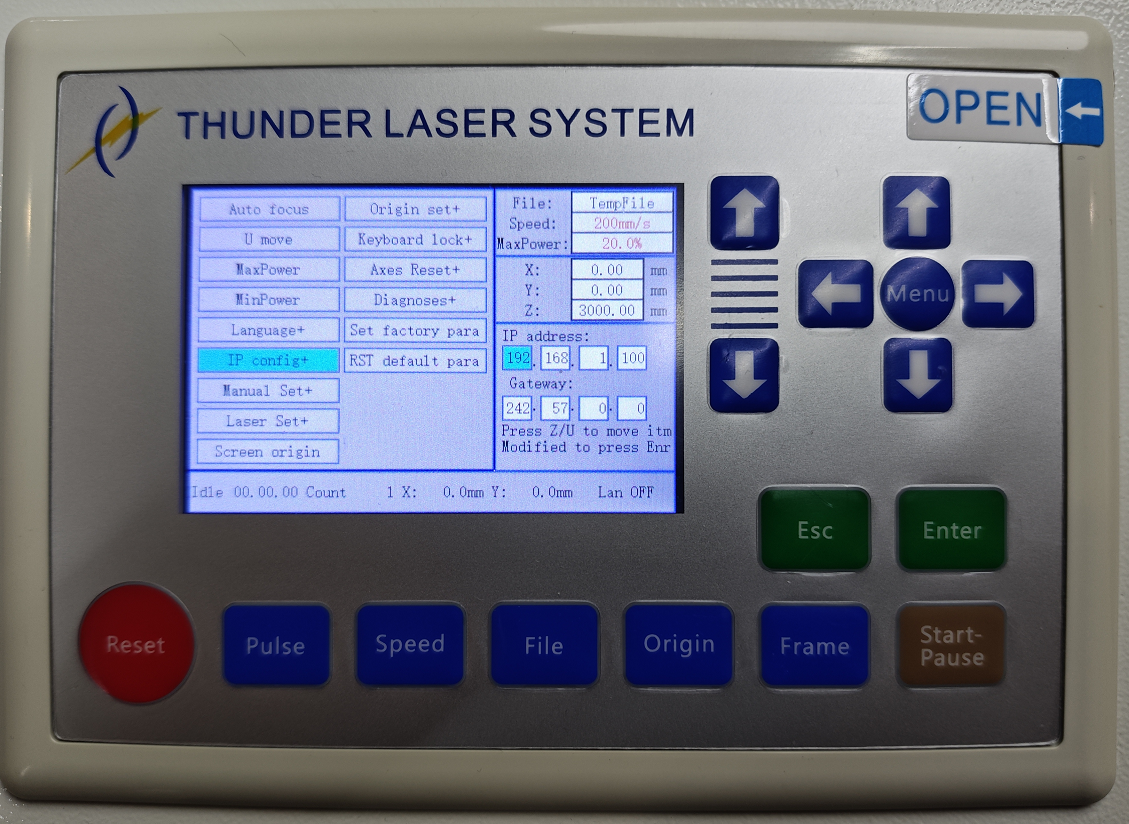

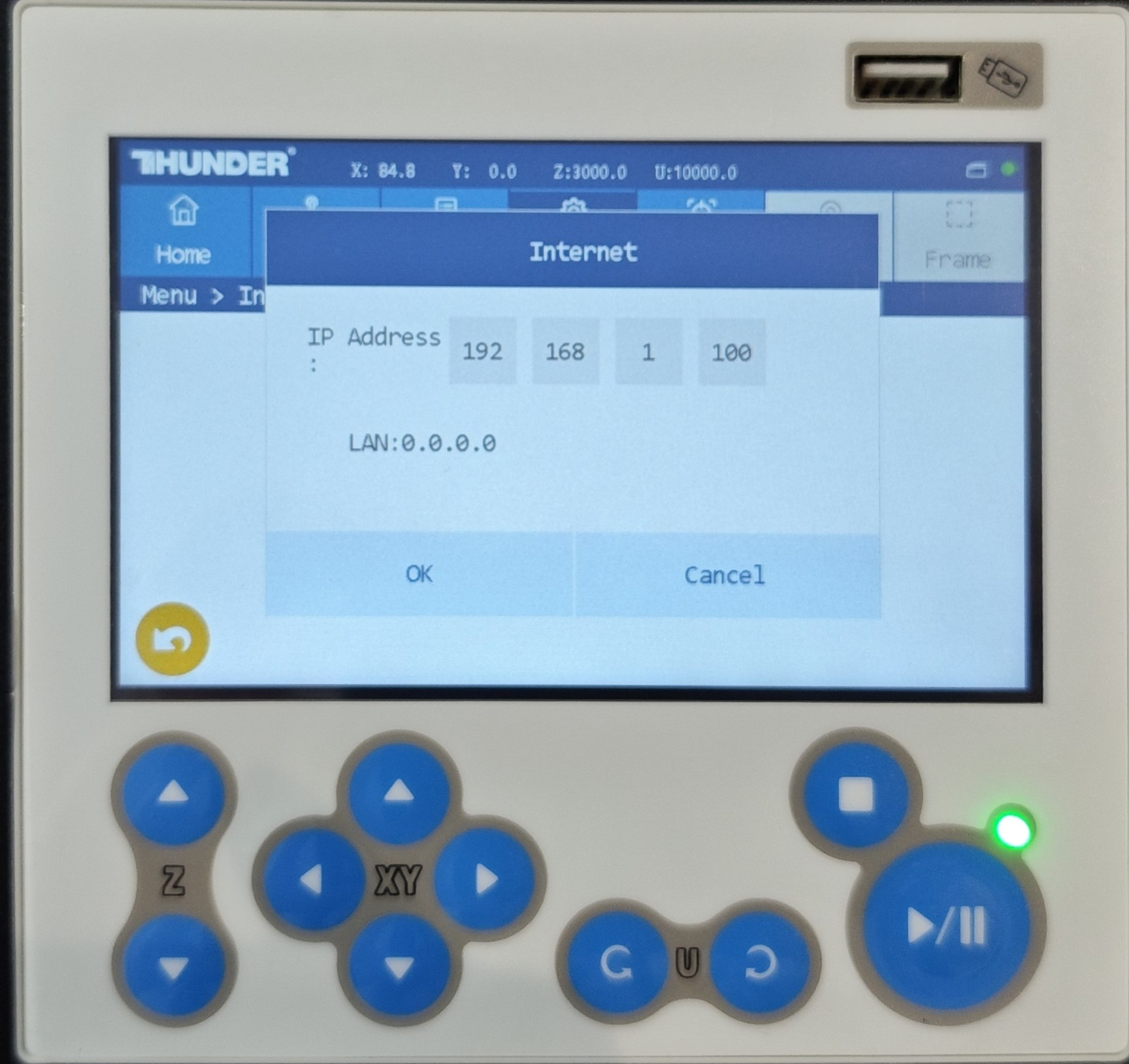

- Machine IP Configuration
Nova & Nova Plus Series | Bolt Series |
- Configure the software
In Laser Maker:
Step 1: Click the "Switch" to enter the "Device Manager" interface. | Step 2: Click the "Create" to create the device. |

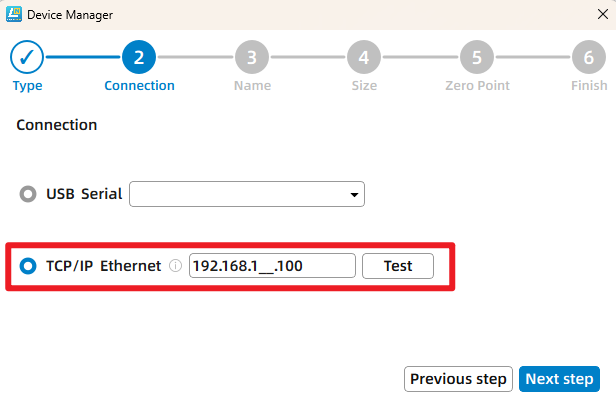

Step 3: Select the device brand and device series | Step 4: Enter the TCP/IP address of the device, and click "Test" to check whether the IP address exists. |

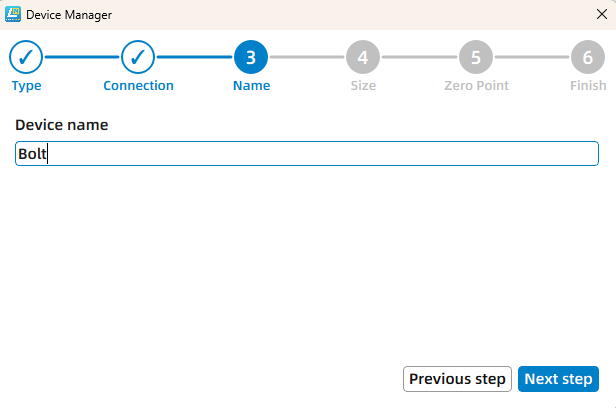

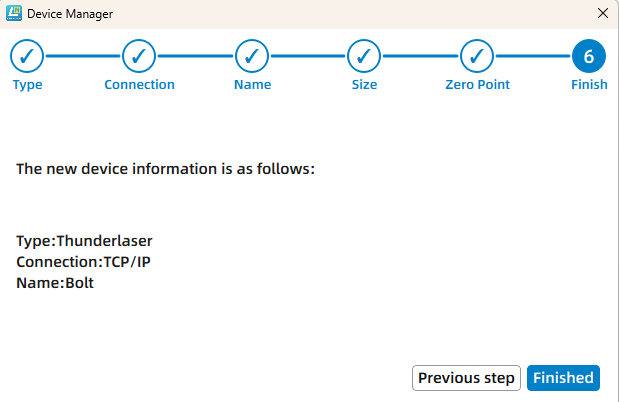

Step 5: Enter the device name | Step 6: Click "Finished" to complete the creation of the device. |
- Connection Successful: The bottom right corner of the software will now display "Connected", indicating successful communication.
3. Still need help?
For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.
For the information provided in the ticket, please refer to this link：
Help Tech Support Troubleshoot Faster
End.
