Wrong proportions from RDWorks
Reason:

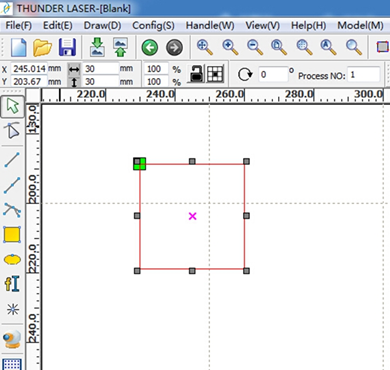

"Enable rotate engrave" is enabled. I’d like to cut a Rectangle at 30x30mm, however, it become 30×60.2 in simulation and in laser.
Solution:
Please make sure “Enable rotate engrave” is not ticked.
End
