TITAN PRO MOPA 100W-Materials Parameter Testing

TITAN PRO MOPA 100W-Materials Parameter Testing


MeterialEffectSpeed(mm/s)

Power (%)

Frequency (KHz)

Pulse Width (ns)

Hatch Type

DpiPassesAir VolumePic

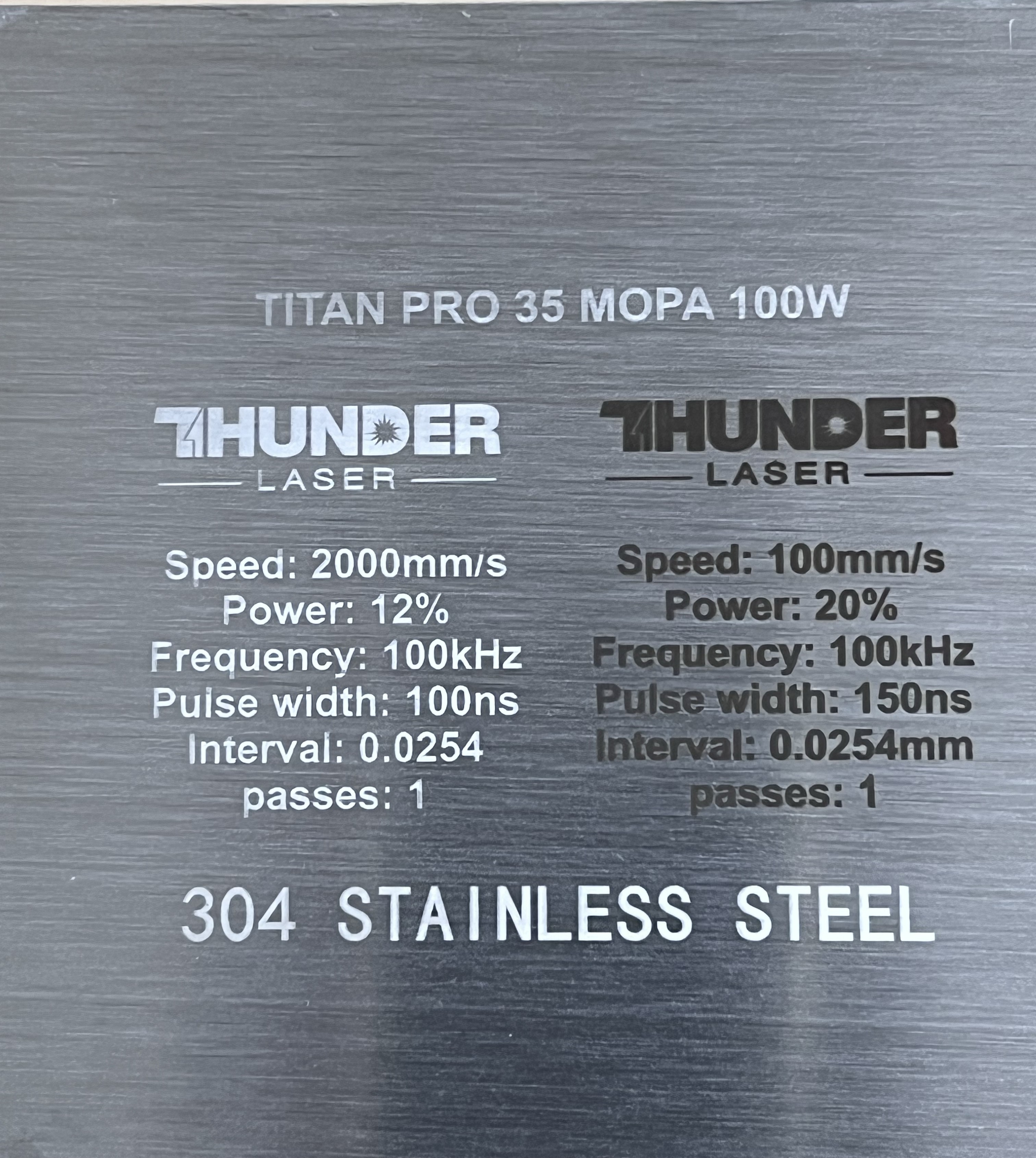

304 Stainless Steel

Black

100

20

100

150

Bidirectional

1000

1

7-15 Psi

White

2000

12

100

100

Bidirectional

1000

1

7-15 Psi

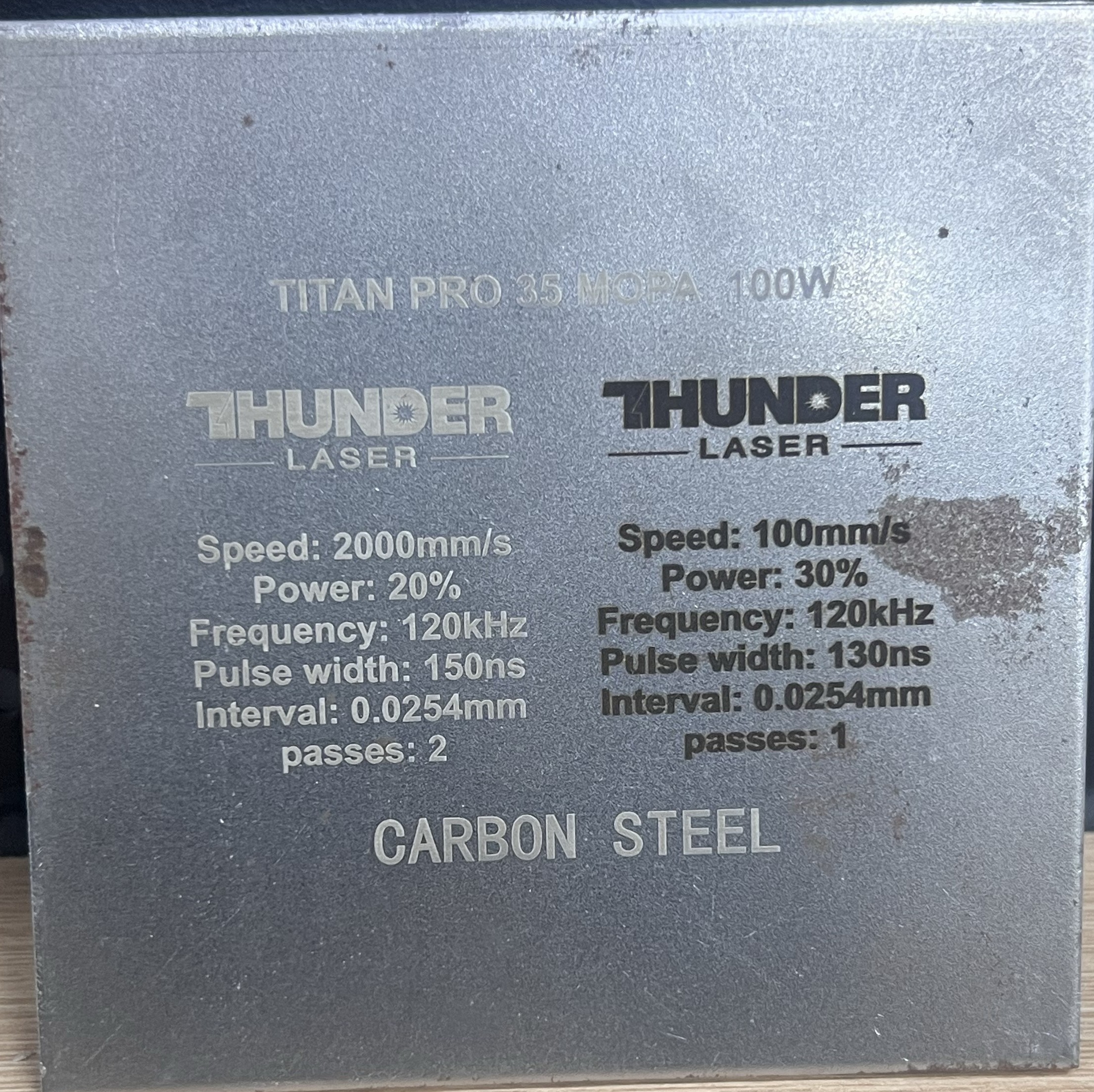

Carbon Steel
Black
100
30
120
130
Bidirectional
1000
1
7-15 Psi

White
2000
20
120
150
Bidirectional
1000
27-15 Psi

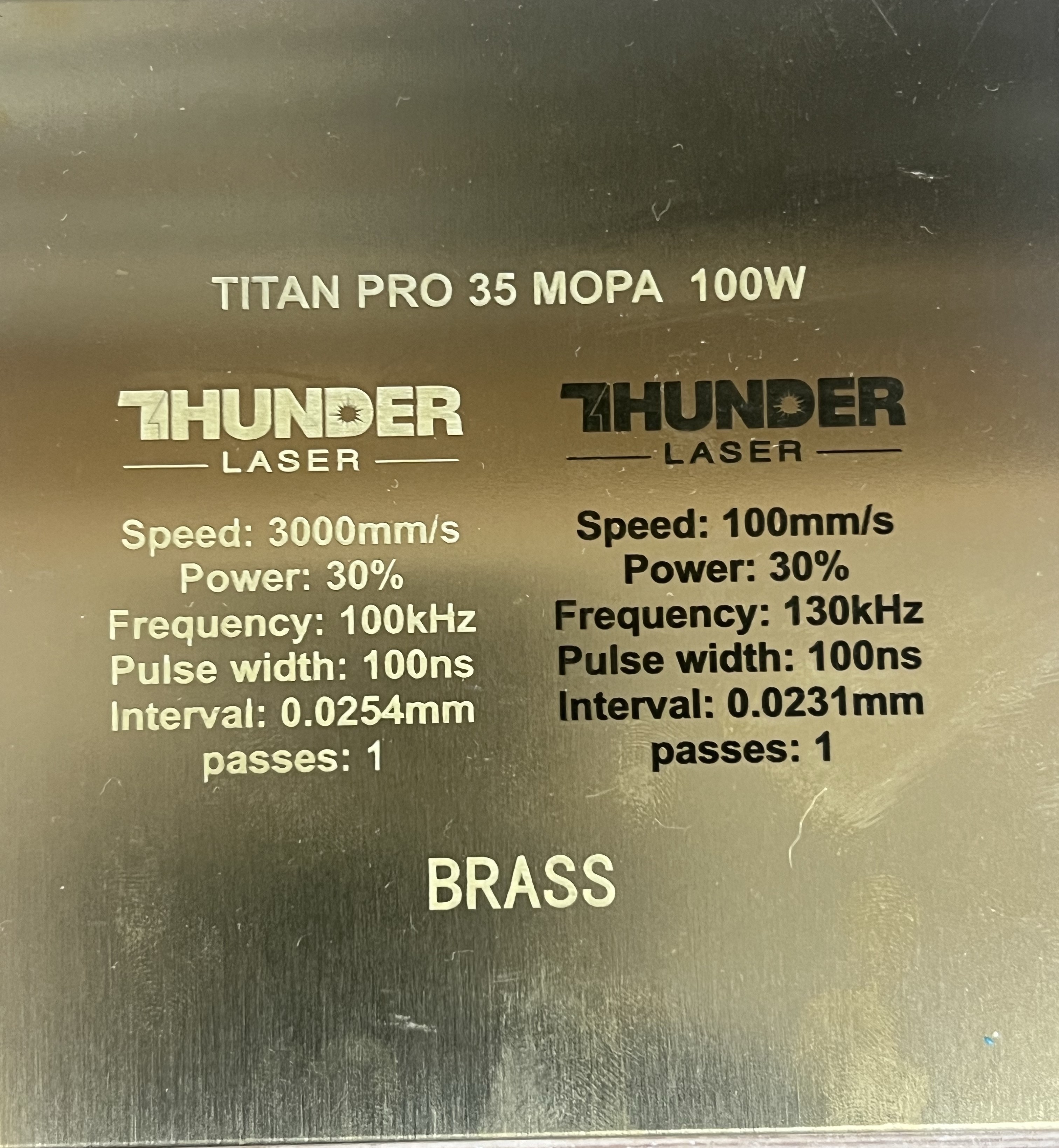

Brass
Black
100
30
130
100
Bidirectional
1100
1
7-15 Psi

White
3000
30
100
100
Bidirectional
1000

1

7-15 Psi

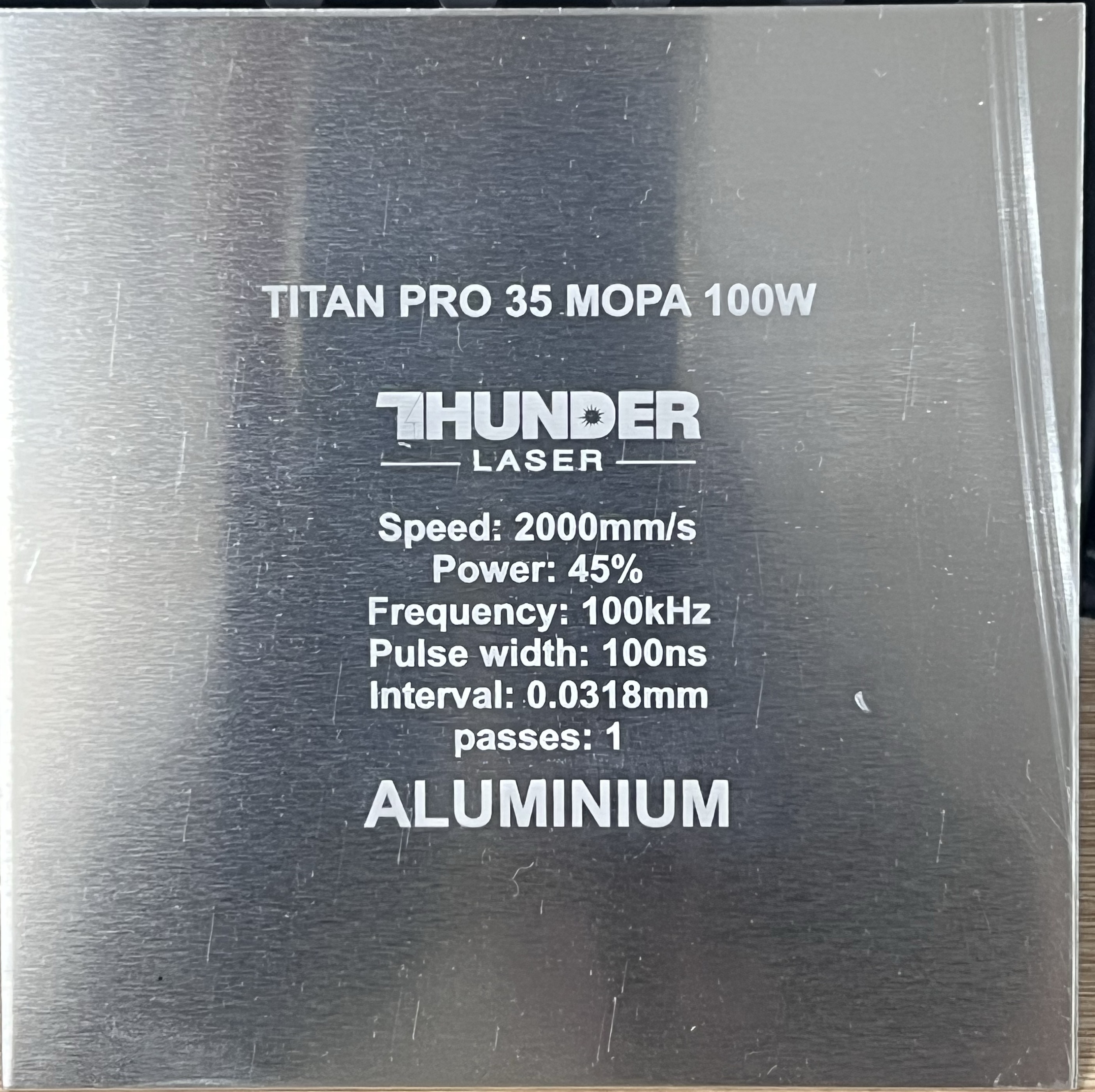

Aluminium
White
2000
45
100
100
Bidirectional
800
1
7-15 Psi

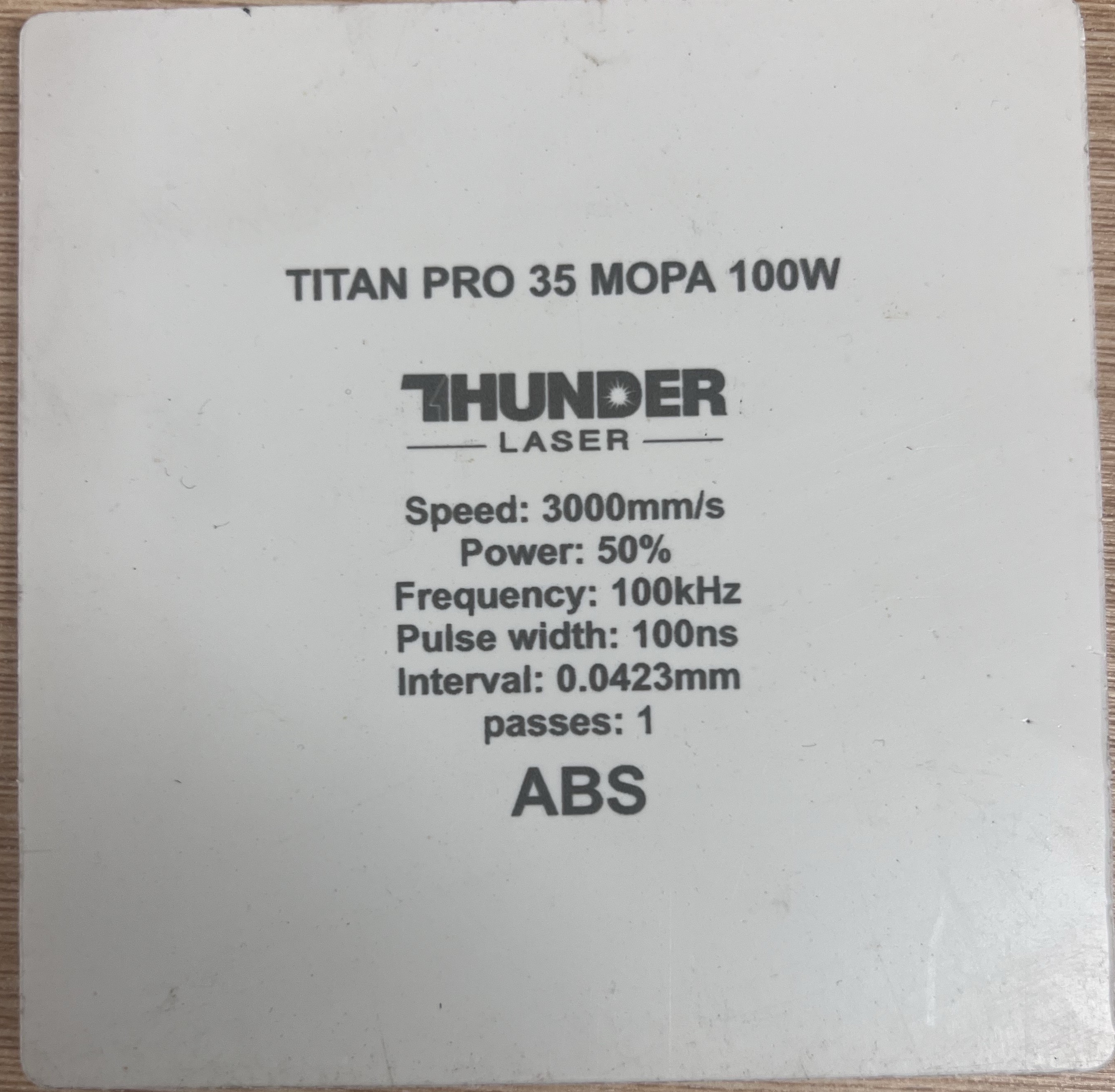

ABS
Black
3000
50
100
100
Bidirectional
600
1
7-15 Psi

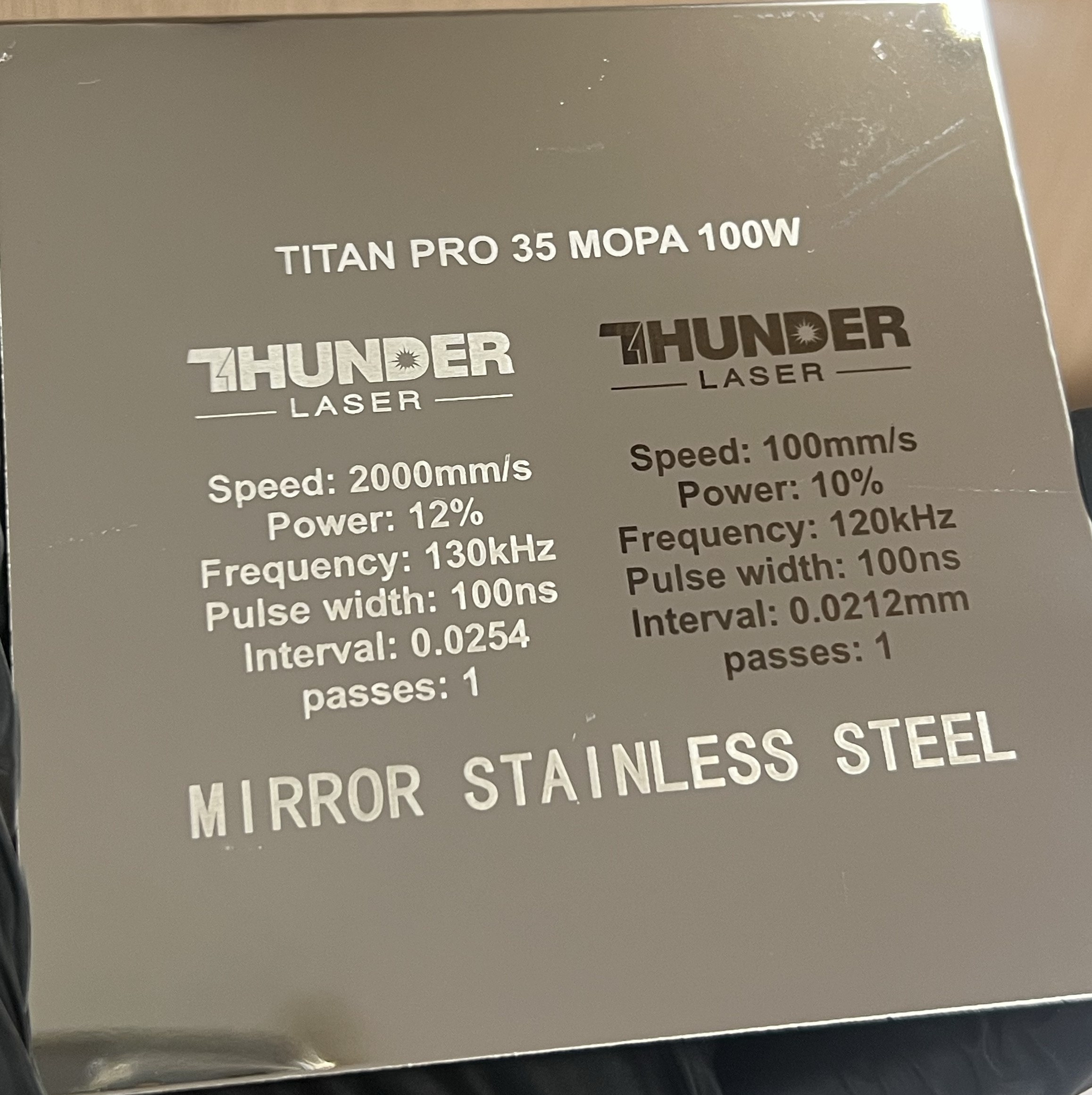

Mirror Stainless Steel
Black
100
10
120
100
Bidirectional
1200
1
7-15 Psi

White
2000
12
130
100
Bidirectional
1000
1
7-15 Psi

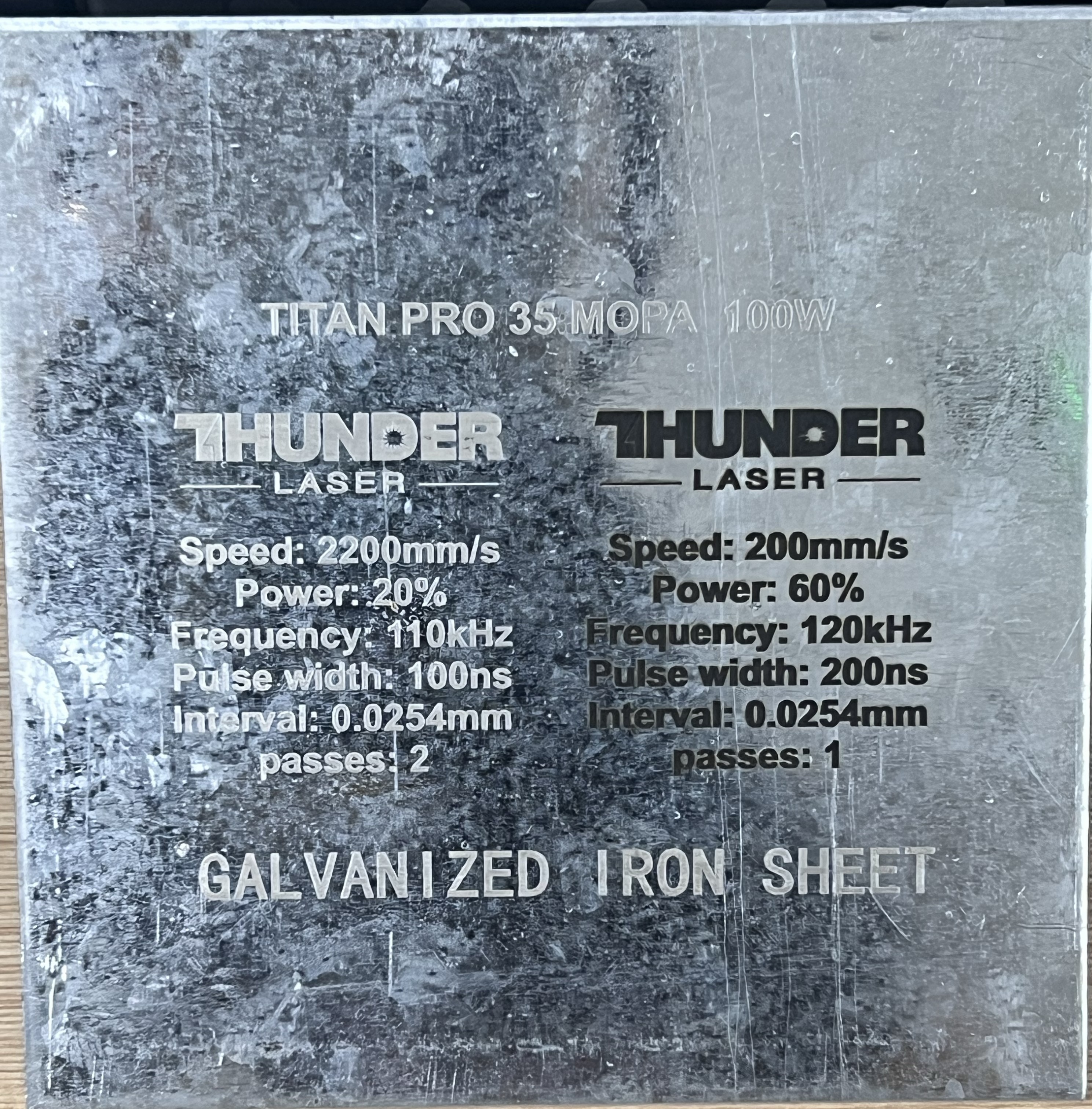

Galvanized Iron Sheet
Black
200
60
120
200
Bidirectional
1000
17-15 Psi

White
2000
20
110
100
Bidirectional
1000
2
7-15 Psi

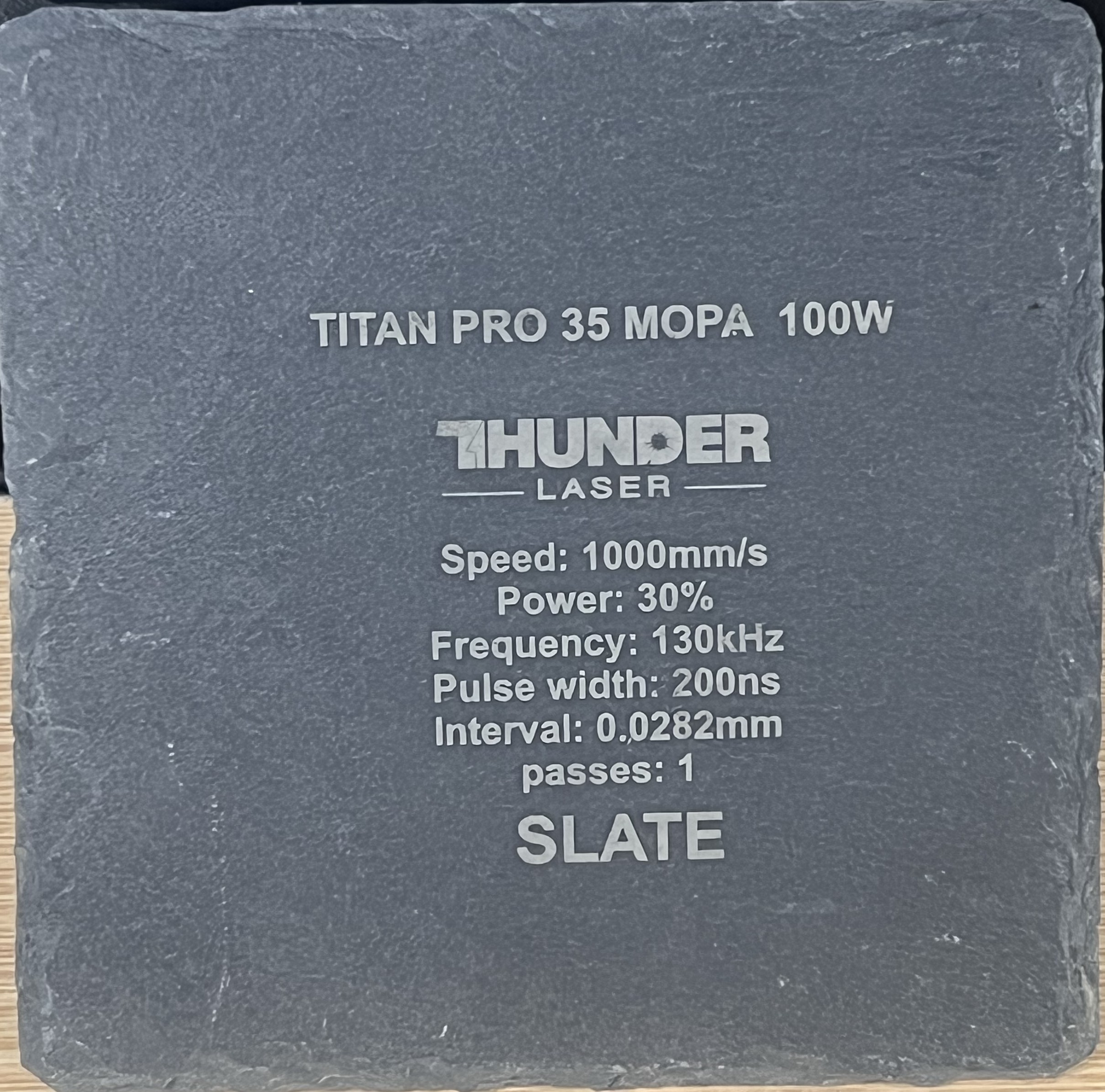

Slate
White
1000
30
130
200
Bidirectional
900
1
7-15 Psi

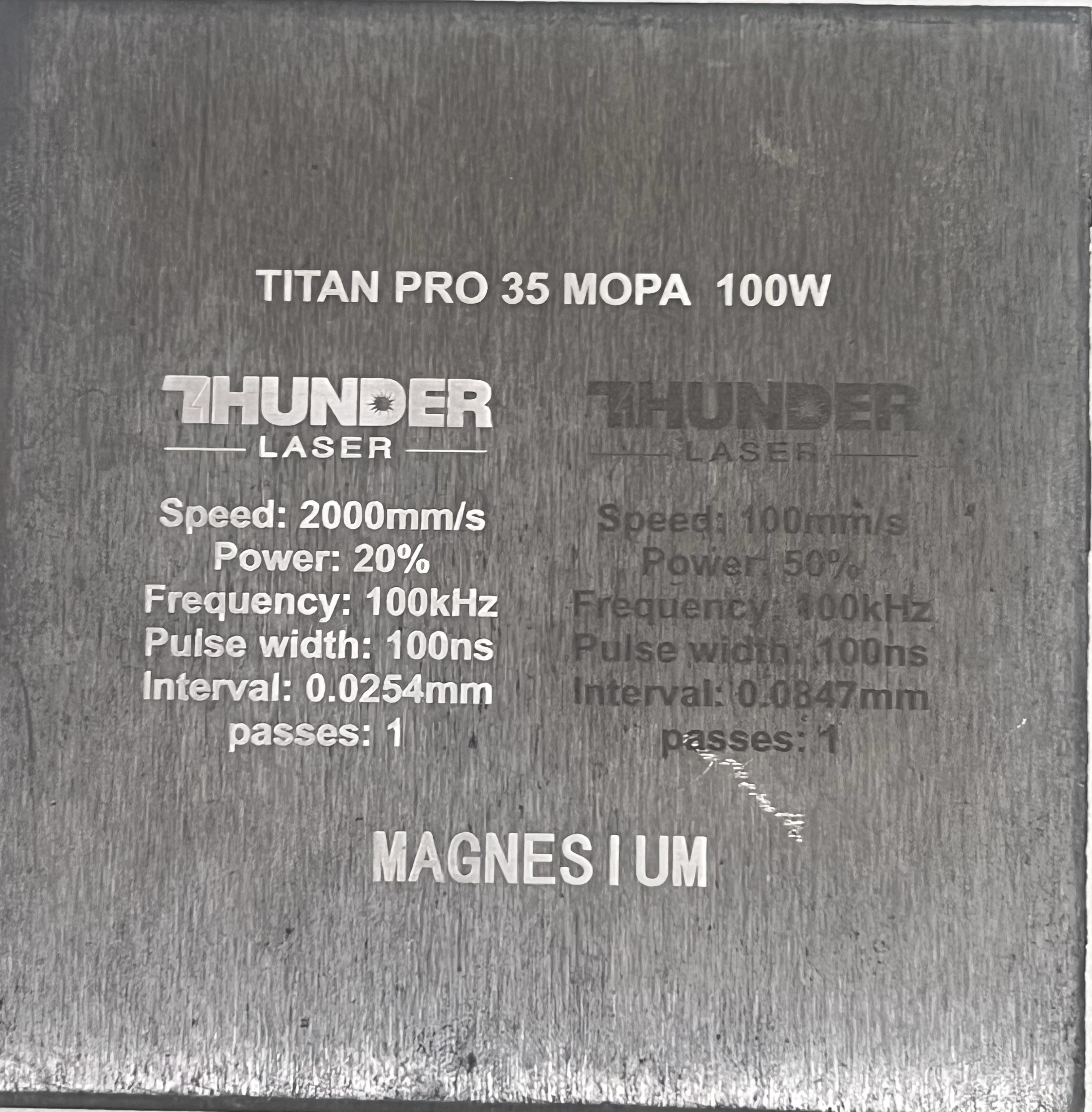

Magnesium
Black
100
50
100
100
Bidirectional
300
1
7-15 Psi

White
2000
20
100
100
Bidirectional
1000
1
7-15 Psi

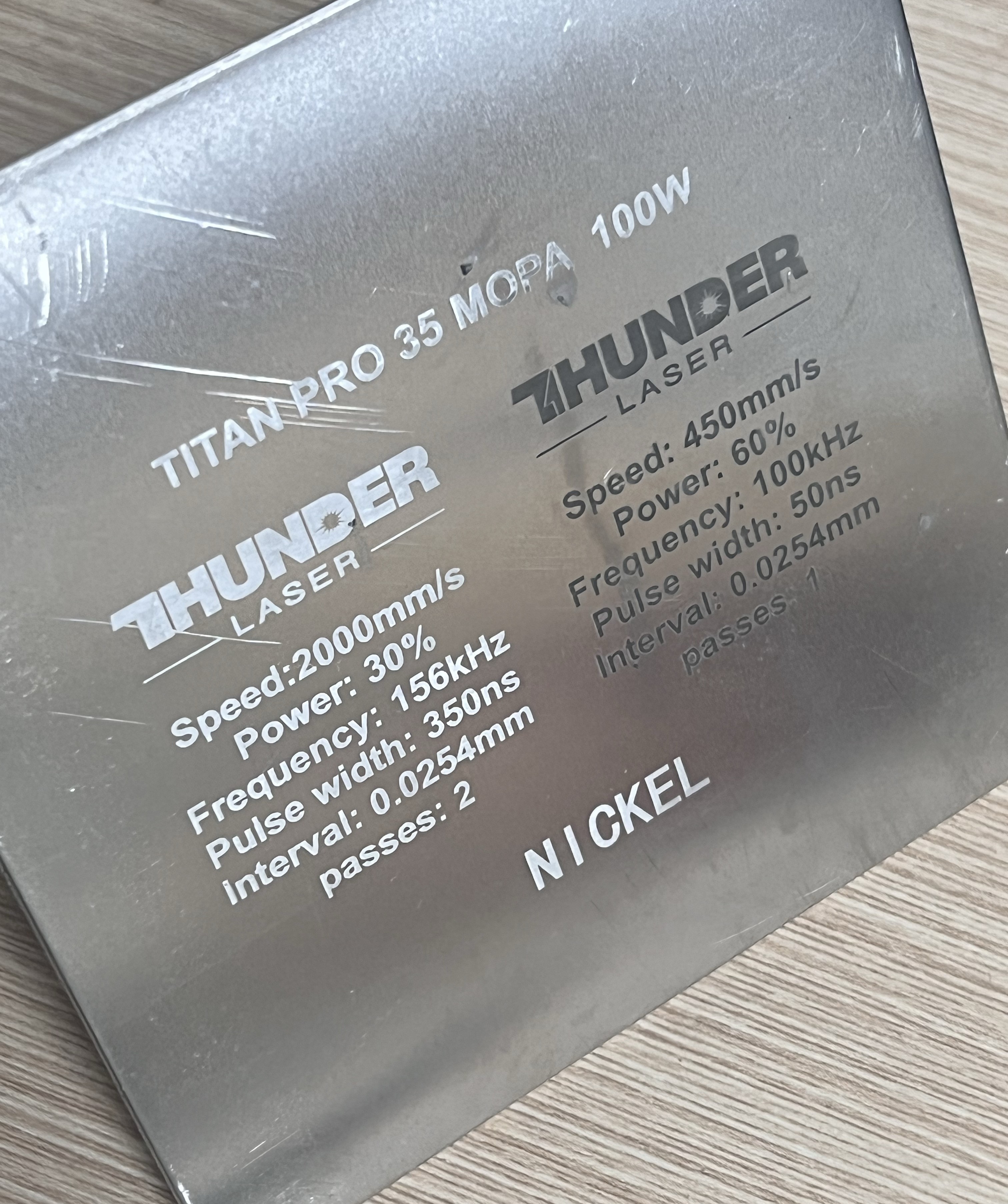

Nickel
Black
450
60
100
50
Bidirectional
1000
1
7-15 Psi

White
2000
30
156
350
Bidirectional
1000
2
7-15 Psi

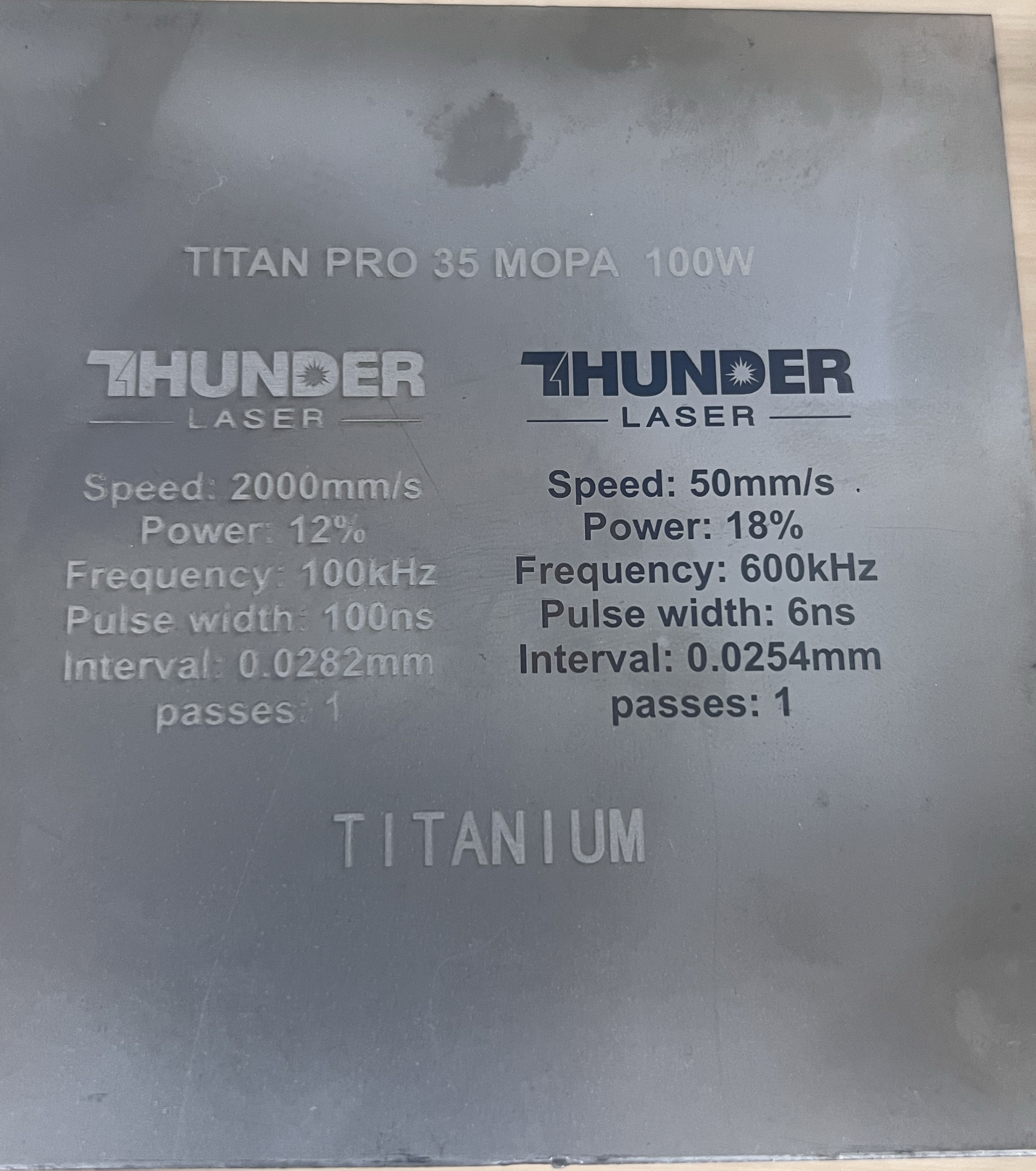

Titanium
Black
50
18
600
6
Bidirectional
1000
1
7-15 Psi

White
2000
12
100
100
Bidirectional
900
1
7-15 Psi

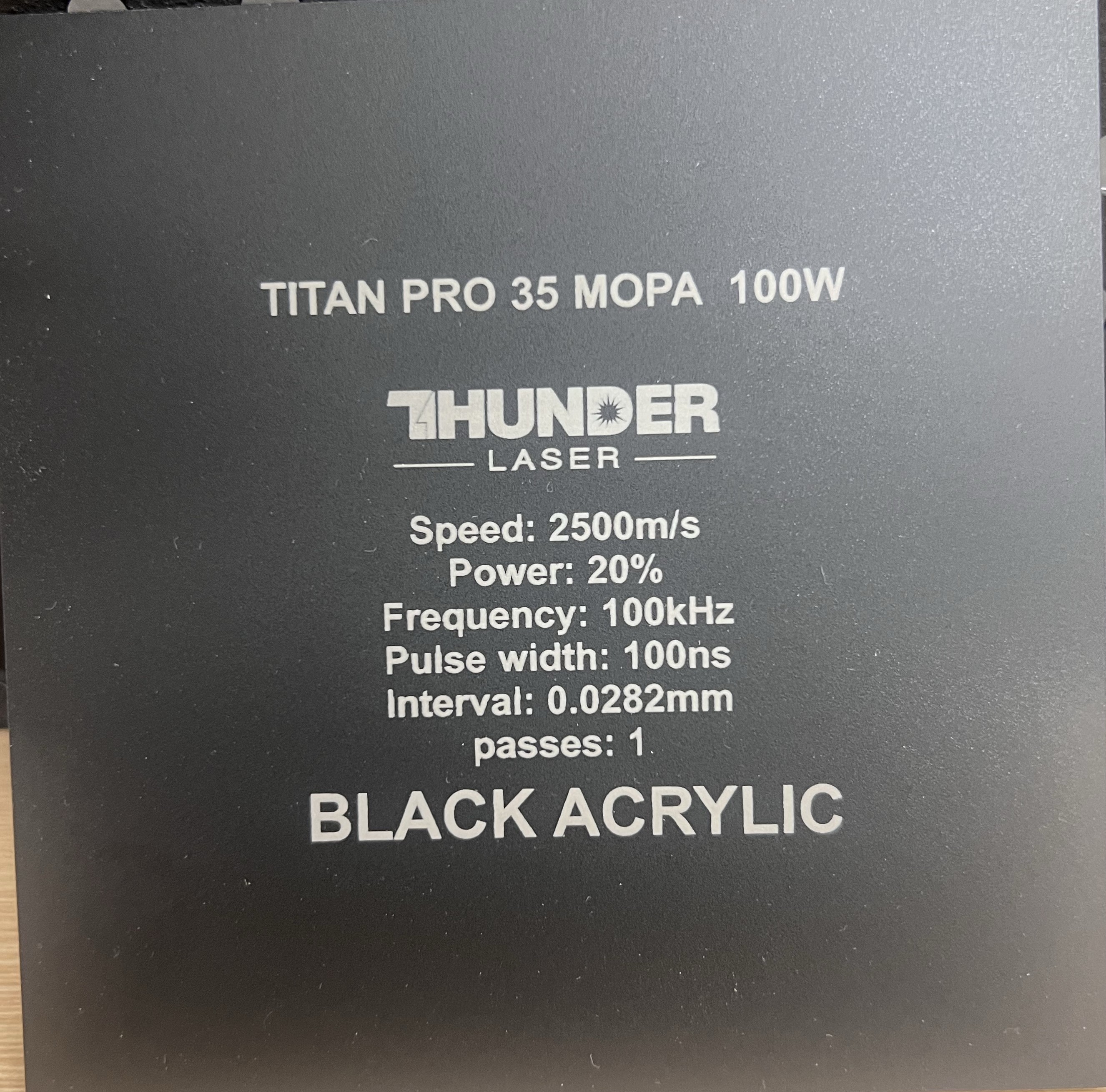

Black Acrylic
White
2500
20
100
100
Bidirectional
900
1
7-15 Psi

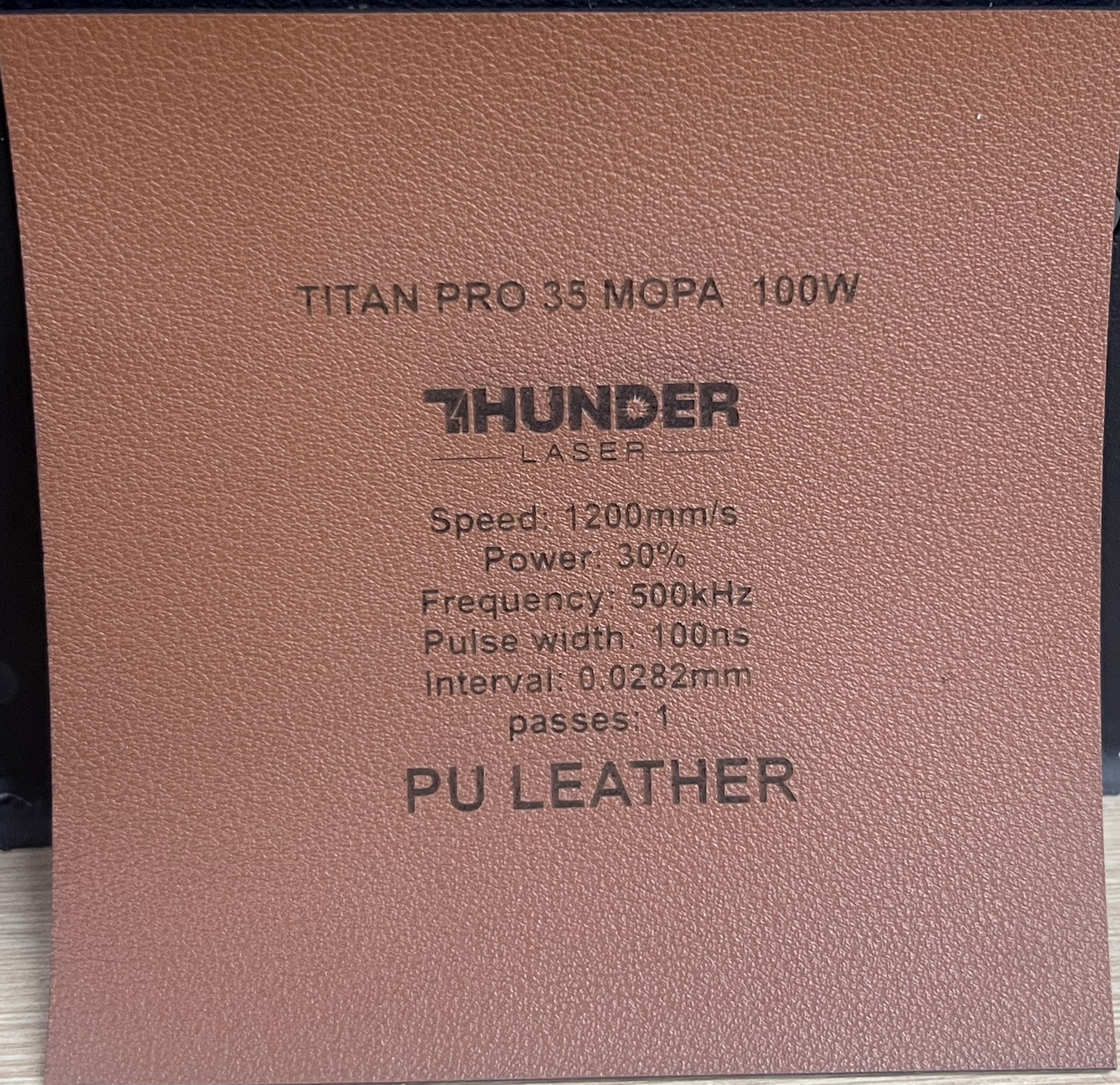

PU LEATHER
Black
1200
30
500
100
Bidirectional
900
1
7-15 Psi

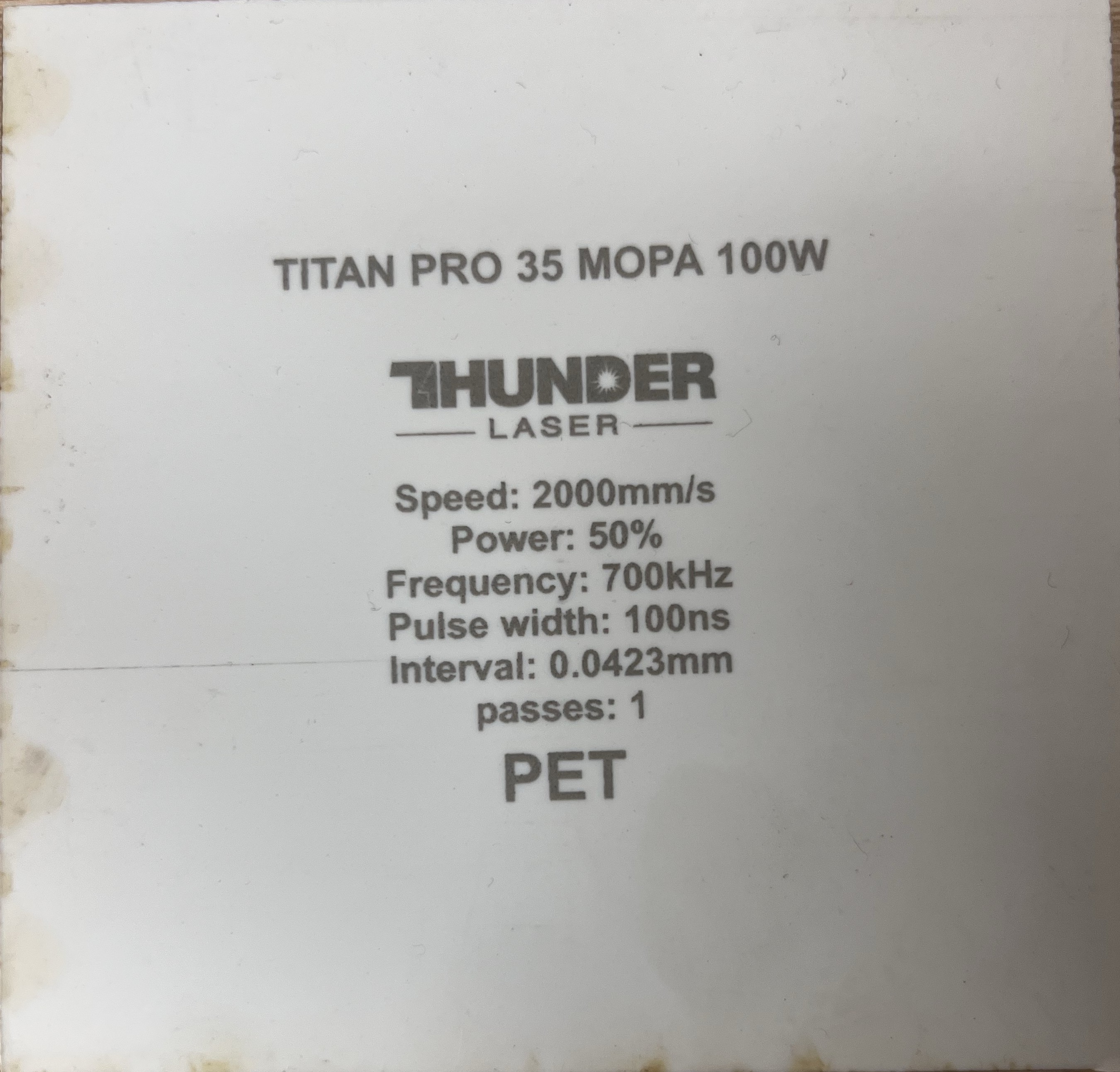

PET
Black
2000
50
700
100
Bidirectional
600
1
7-15 Psi

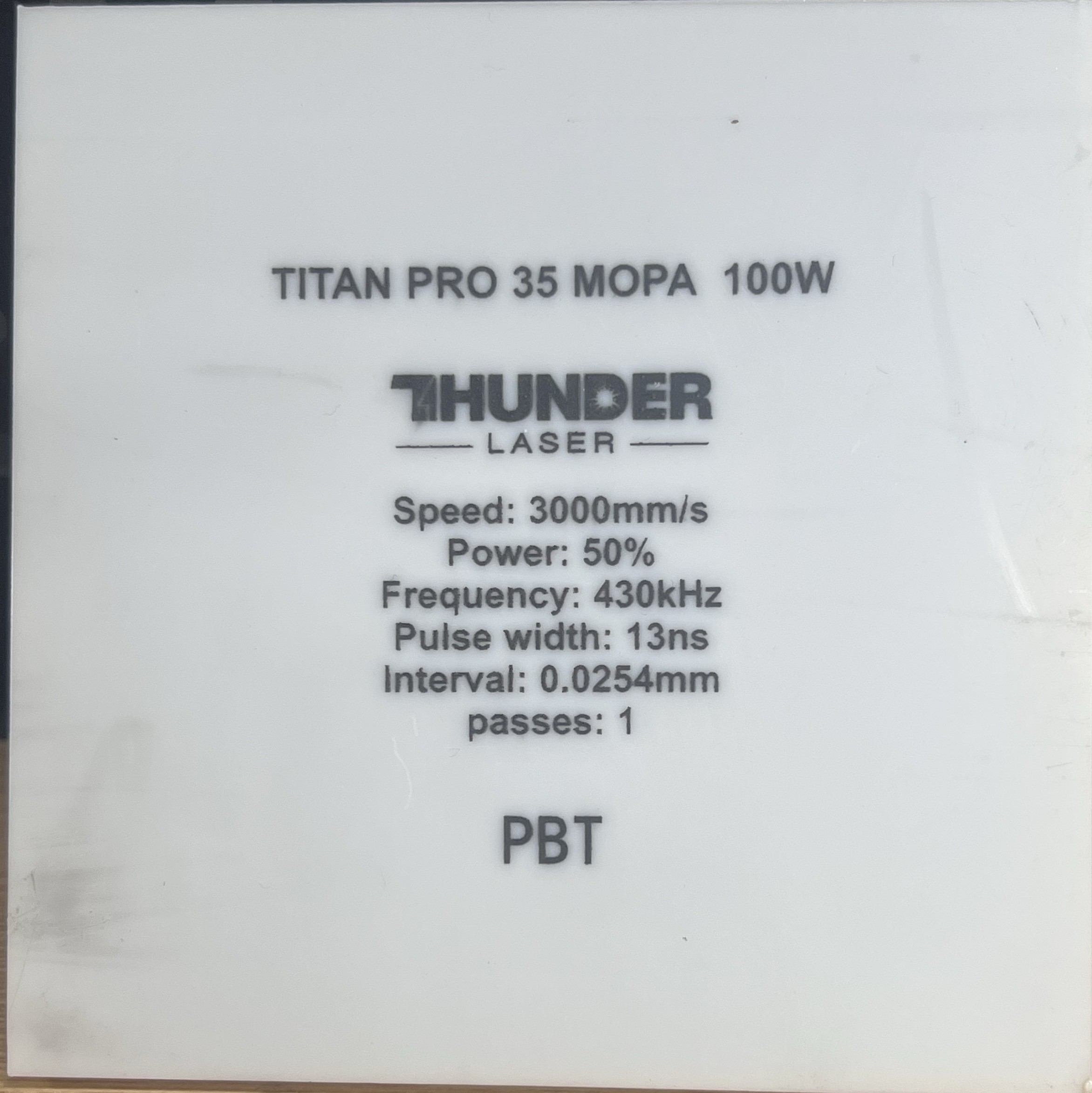

PBT
Black
3000
50
430
13
Bidirectional
1000
1
7-15 Psi
