No.

Item

Specification

Unit

Quantity Recommended


Remarks

1

US Power Cord

110 V, 15 A

pcs

1

Select one of the two based on the destination country

2

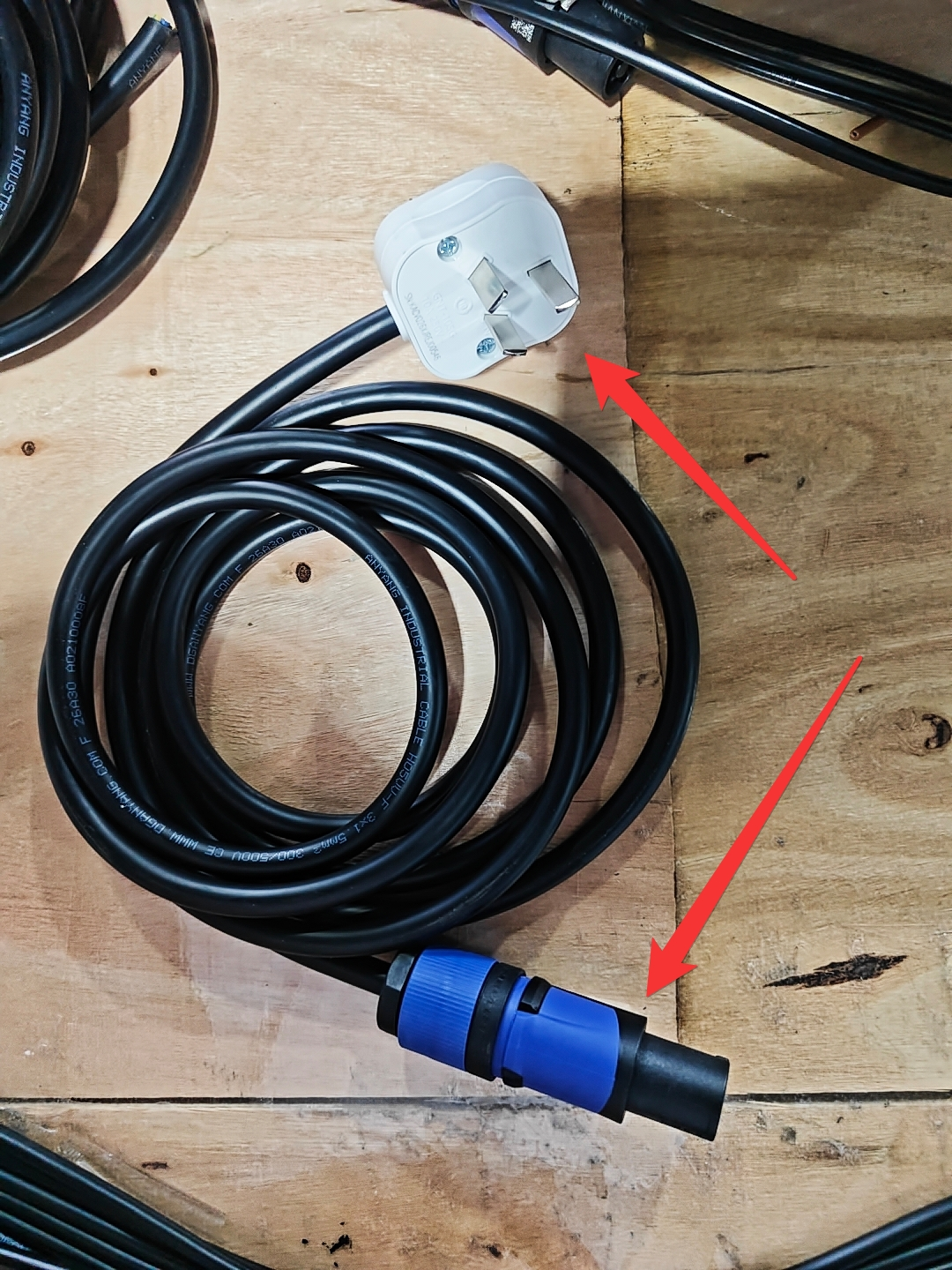

China-Standard Power Cord

220 V, 15 A

pcs

1

3

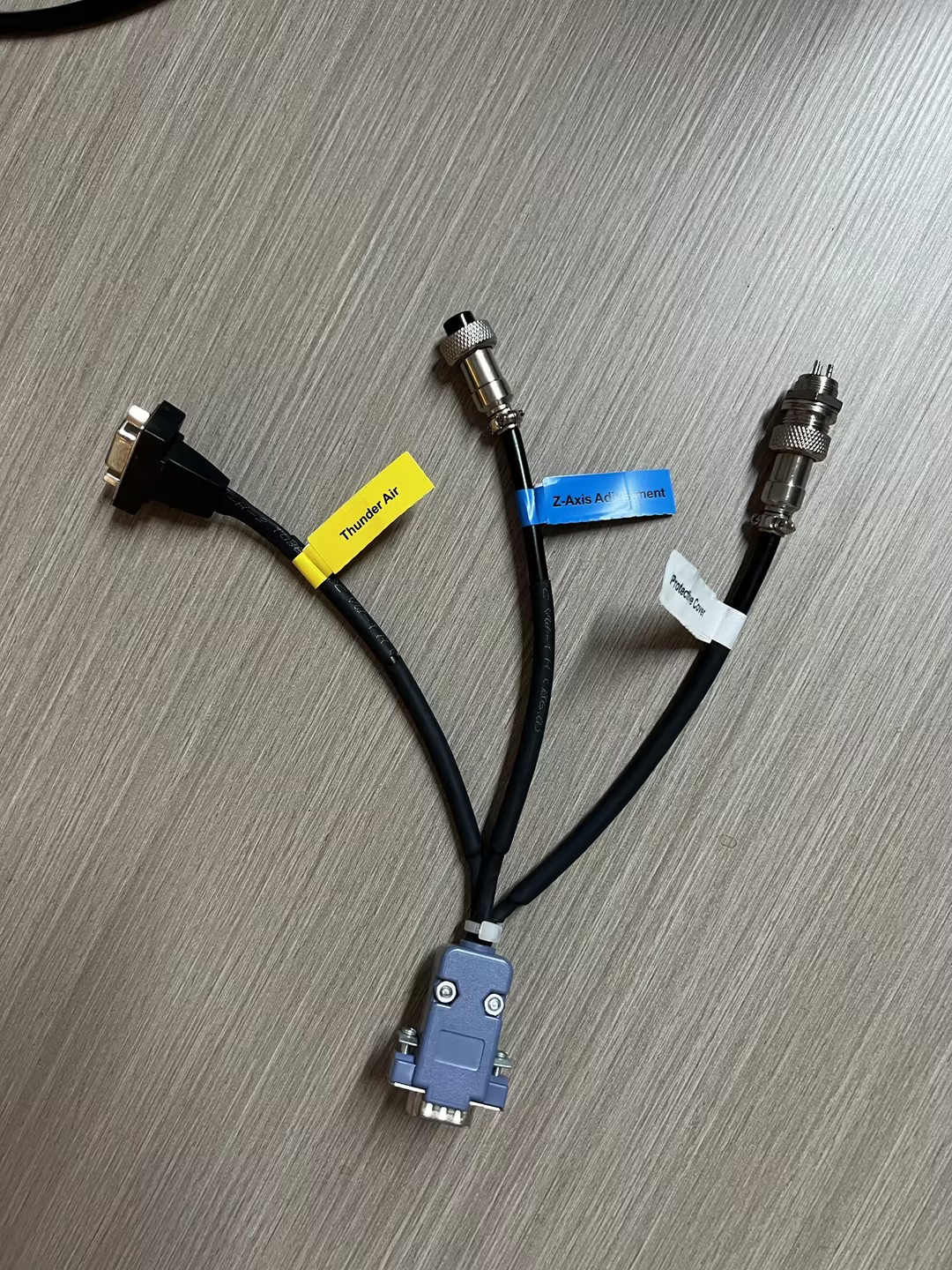

1-to-3 Breakout Cable Assembly

1-to-3 splitter

set

1

Solderless connectors

4

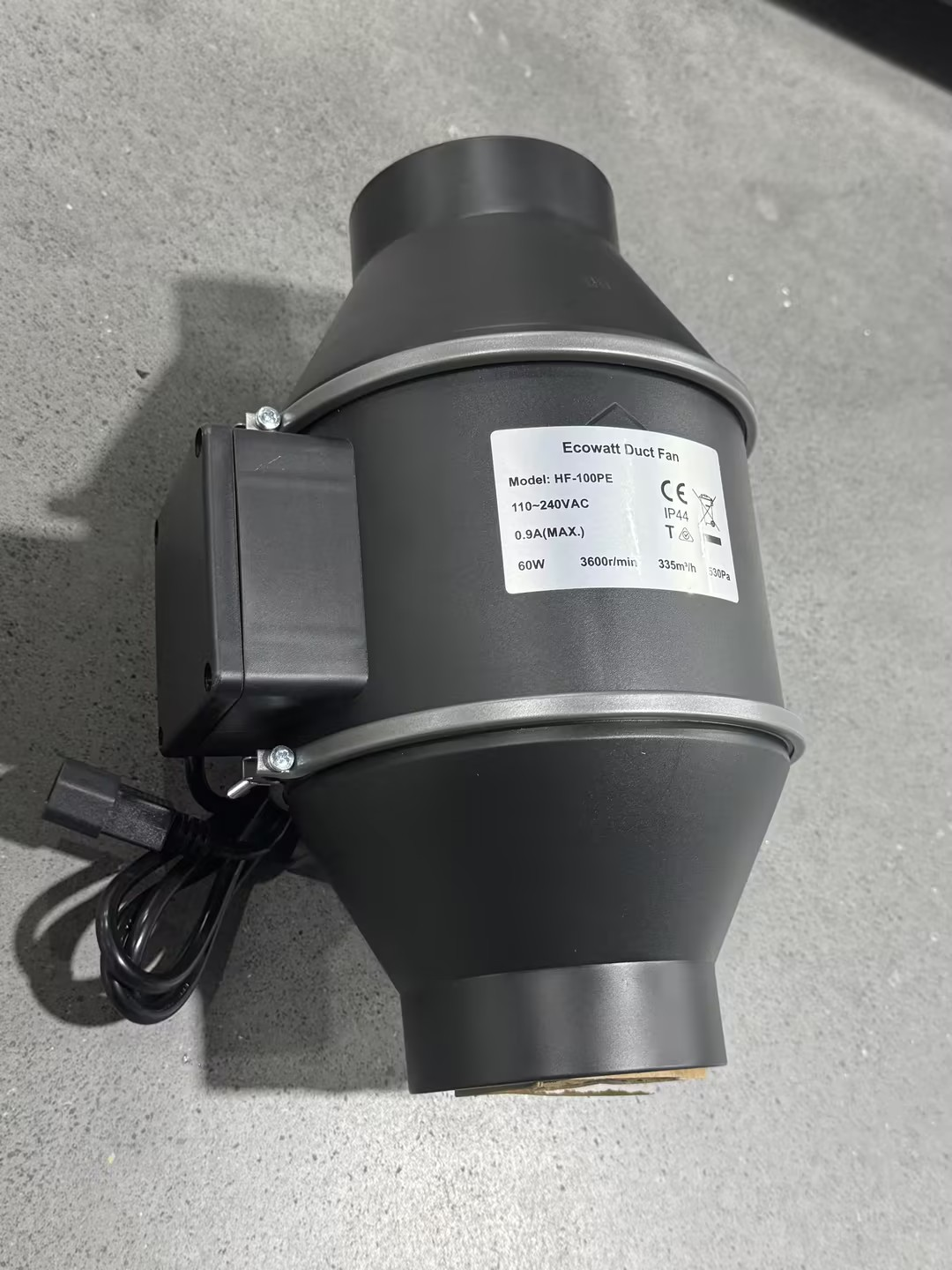

Exhaust Fan

HF-100PE, 100–240 V

unit

1

5

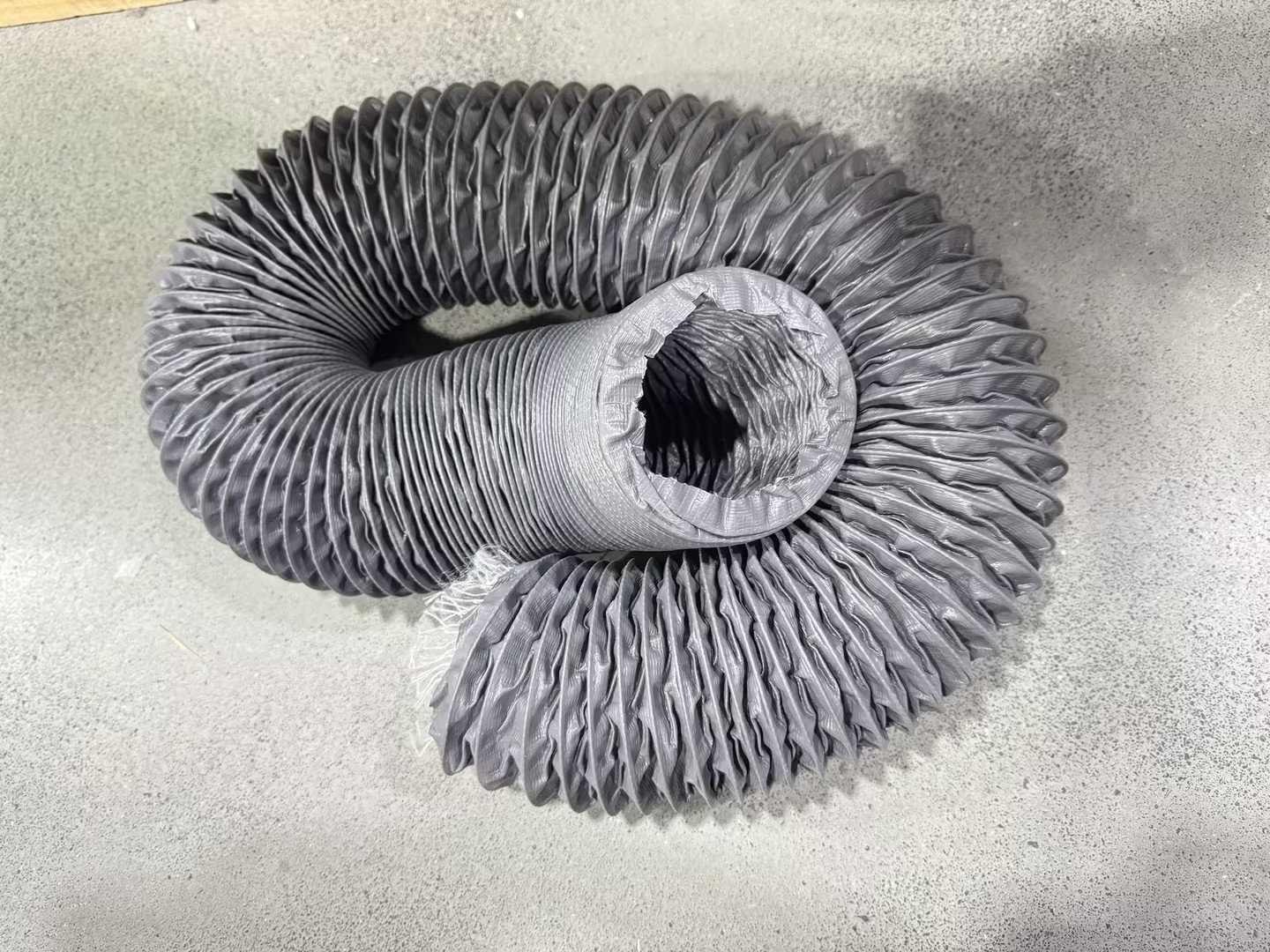

Exhaust Hose

pcs

2

6

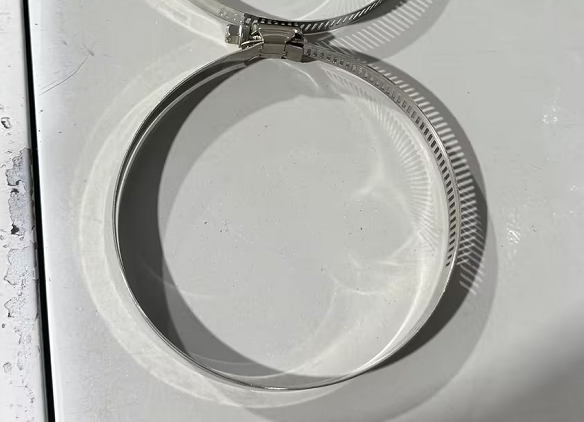

Hose Clamp

4 in (100 mm)

pcs

3

7

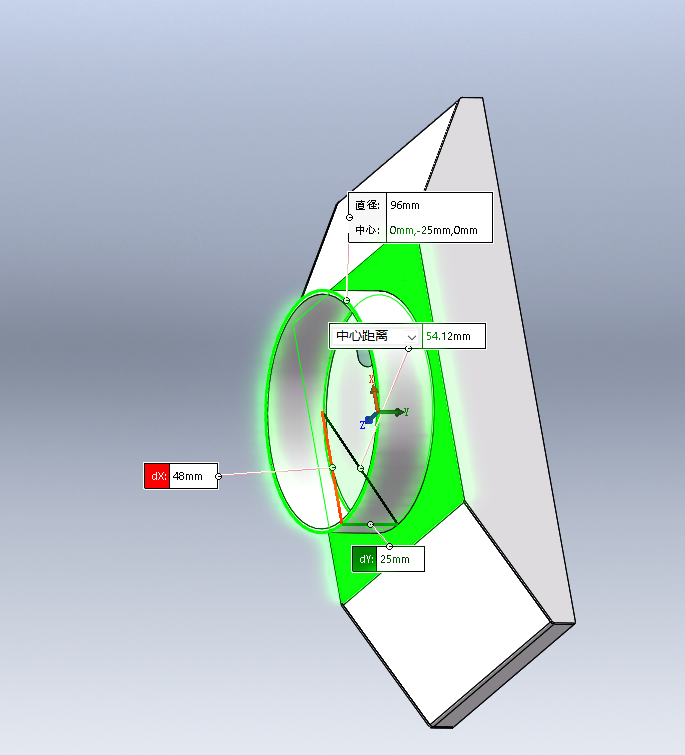

Exhaust Flange

Black; flange dimensions: 223.92 × 112.4 mm (L × W); cylindrical section: Ø96 × 25 mm (diameter × length)

pcs

1

8

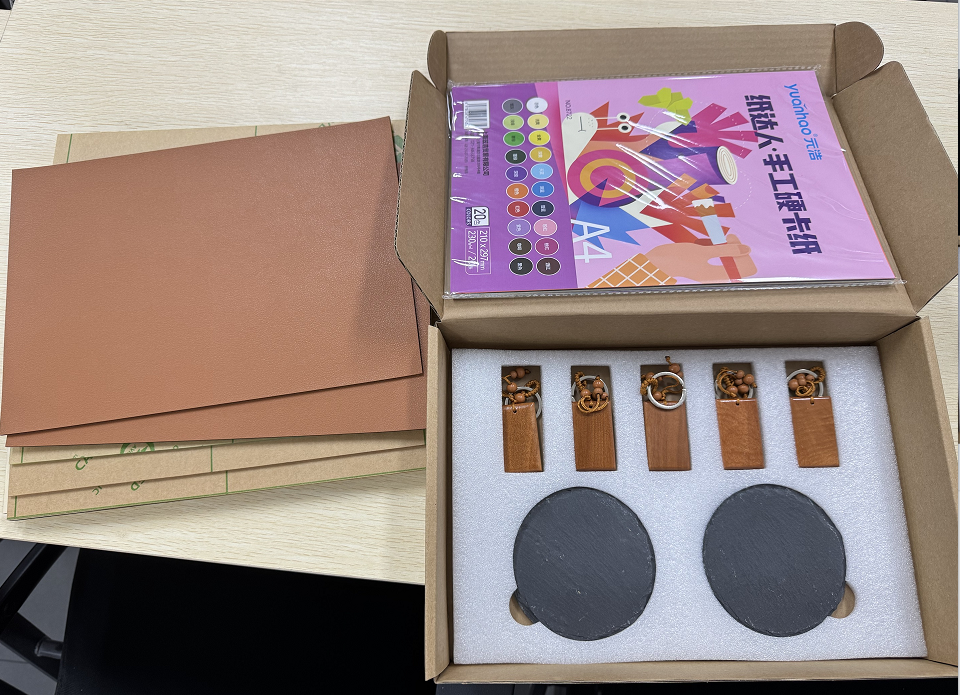

Material Sample Kit

For CO2 Source

set

1

9

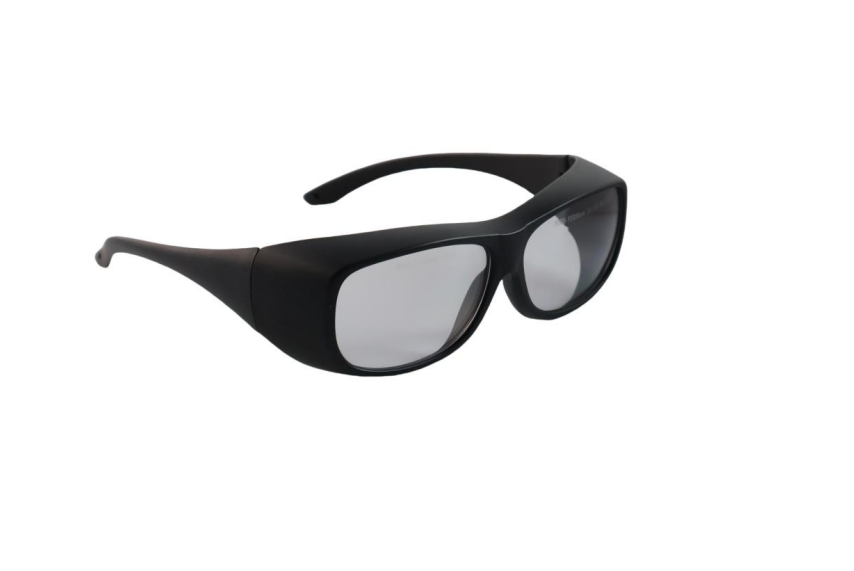

CO₂ Laser Safety Eyewear

Optical density: 4 at 10.6 μm

pcs

1

10

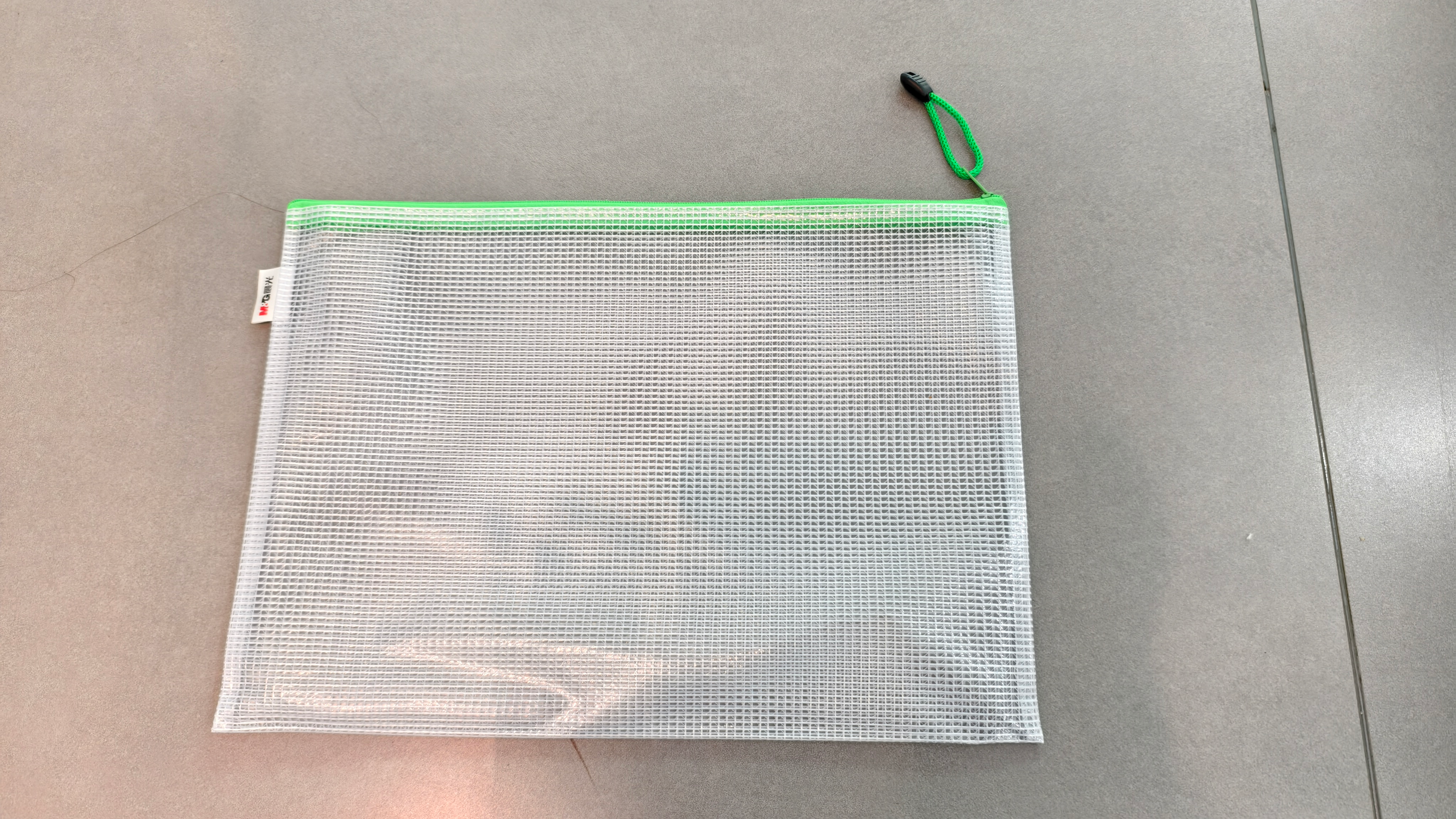

Tool Pouch

pcs

1

11

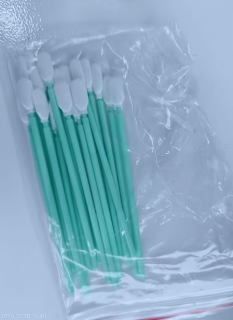

Cotton Swabs

bag

1

12

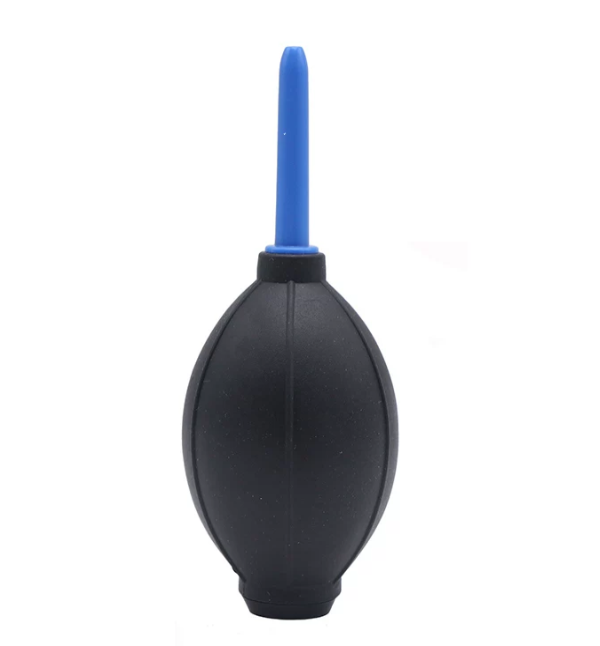

Rubber Bulb Blower

pcs

1

13

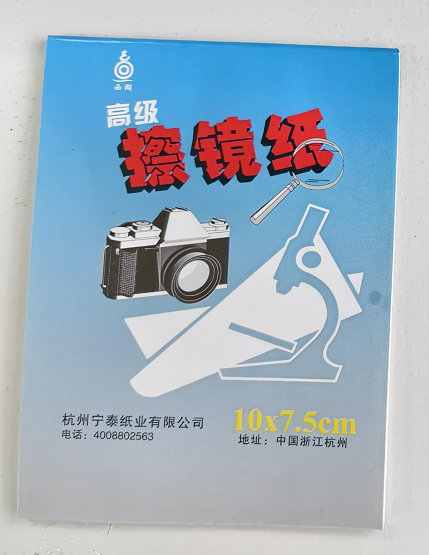

Lens Tissue

10 × 7.5 cm

pack

1

14

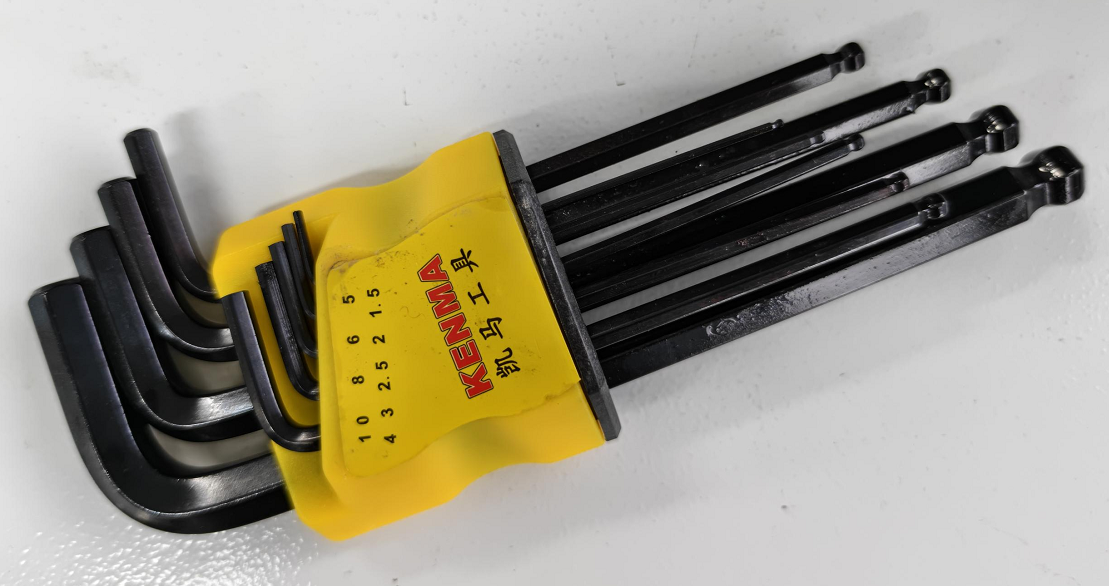

Hex Wrench (Allen Key)

pcs

1

15

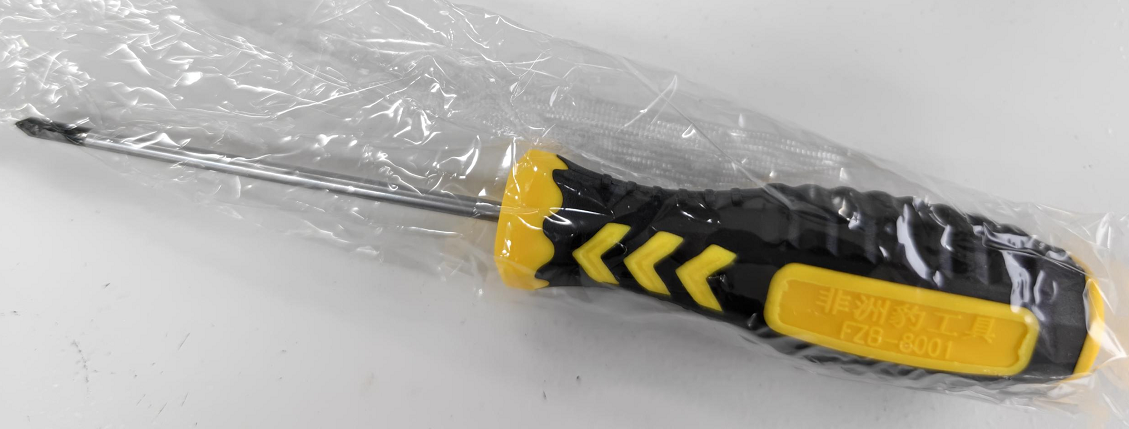

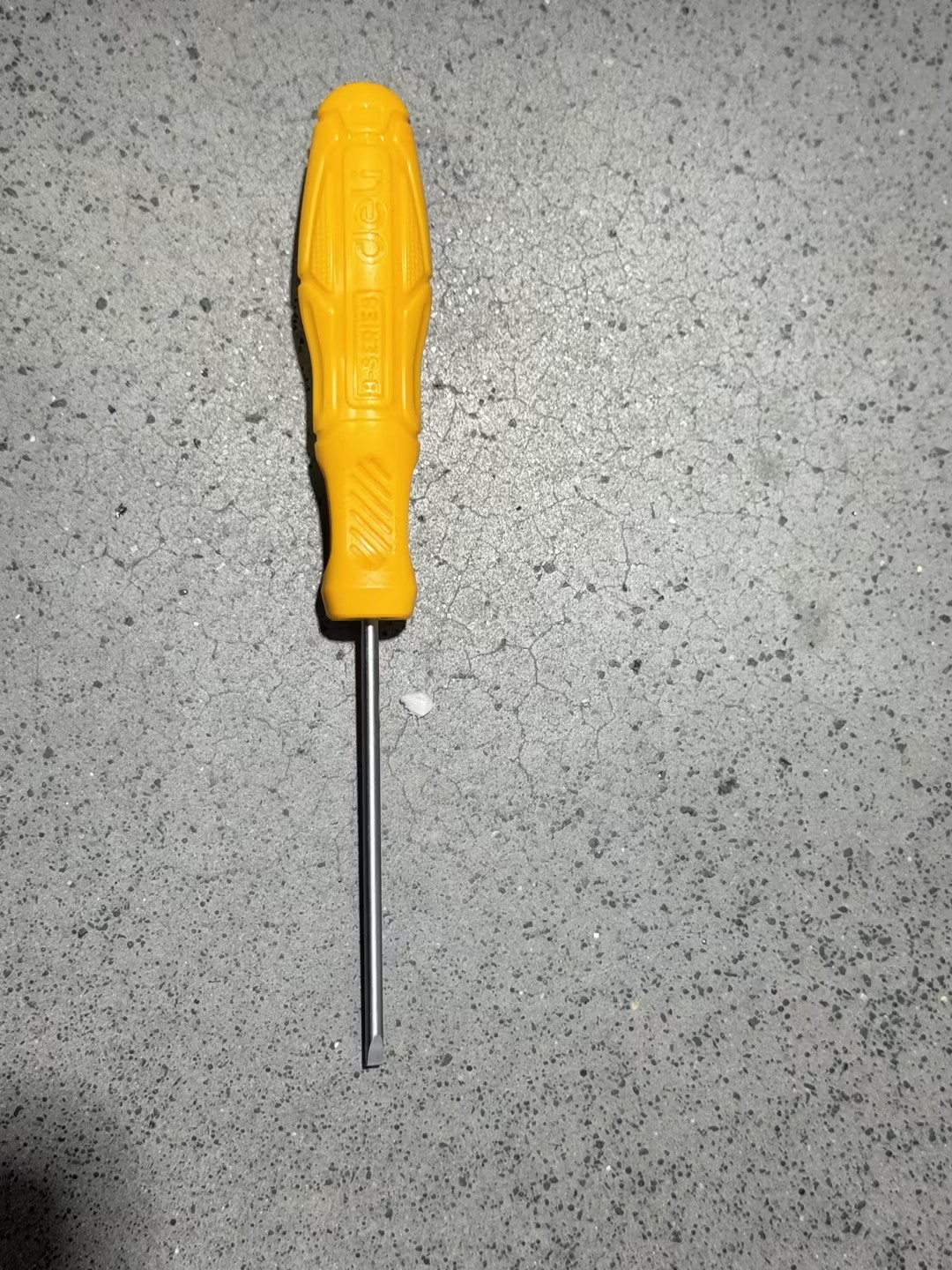

Small Slotted Screwdriver

3 × 75 mm

pcs

1

16

Small Phillips Screwdriver

3 × 100 mm

pcs

1

17

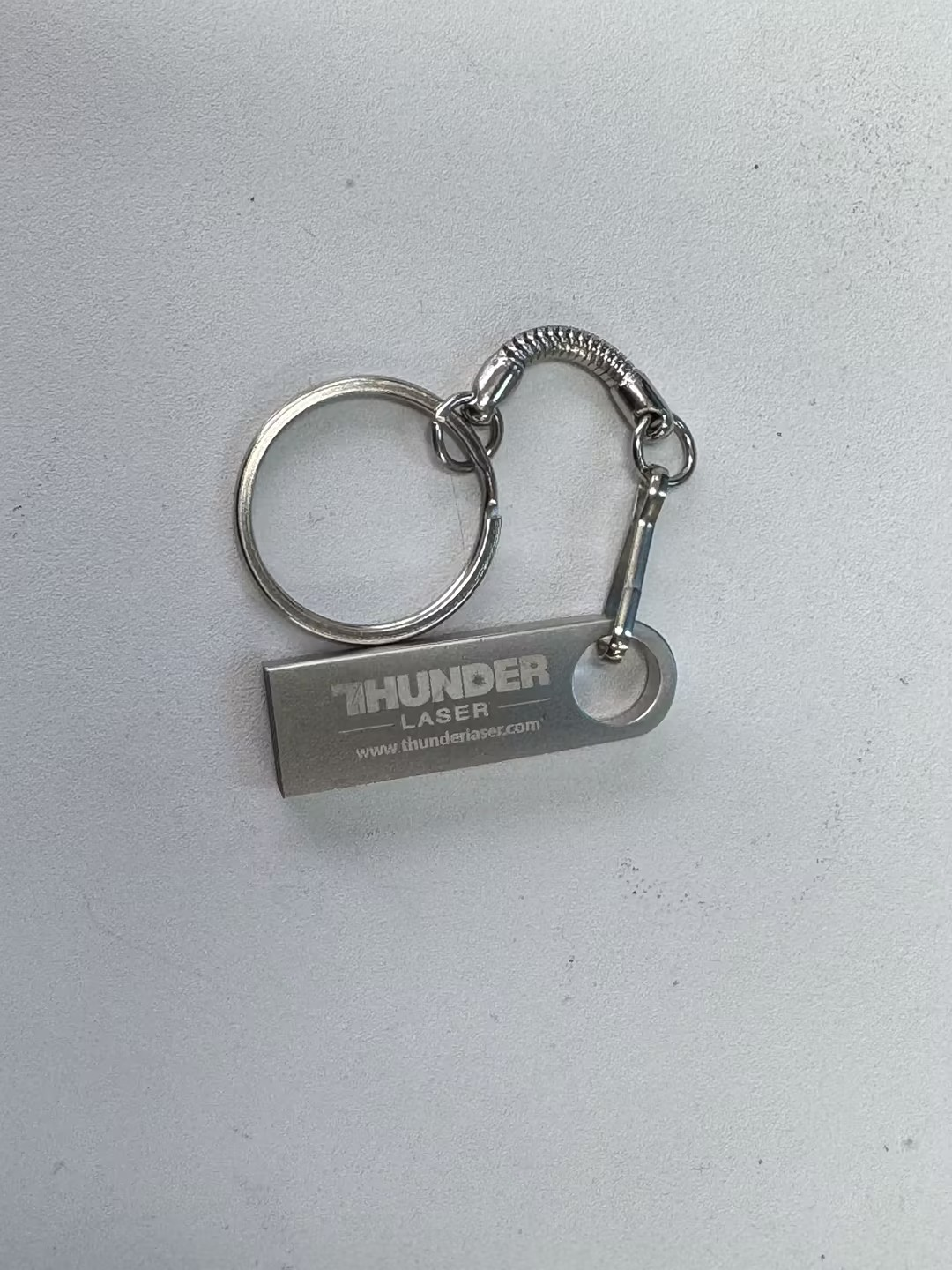

USB Flash Drive

8 GB (Silver)

pcs

1

The USB drive contains the field lens calibration files, images of the quality inspection sheet, the user manual and other documentation supplied with the machine.

18

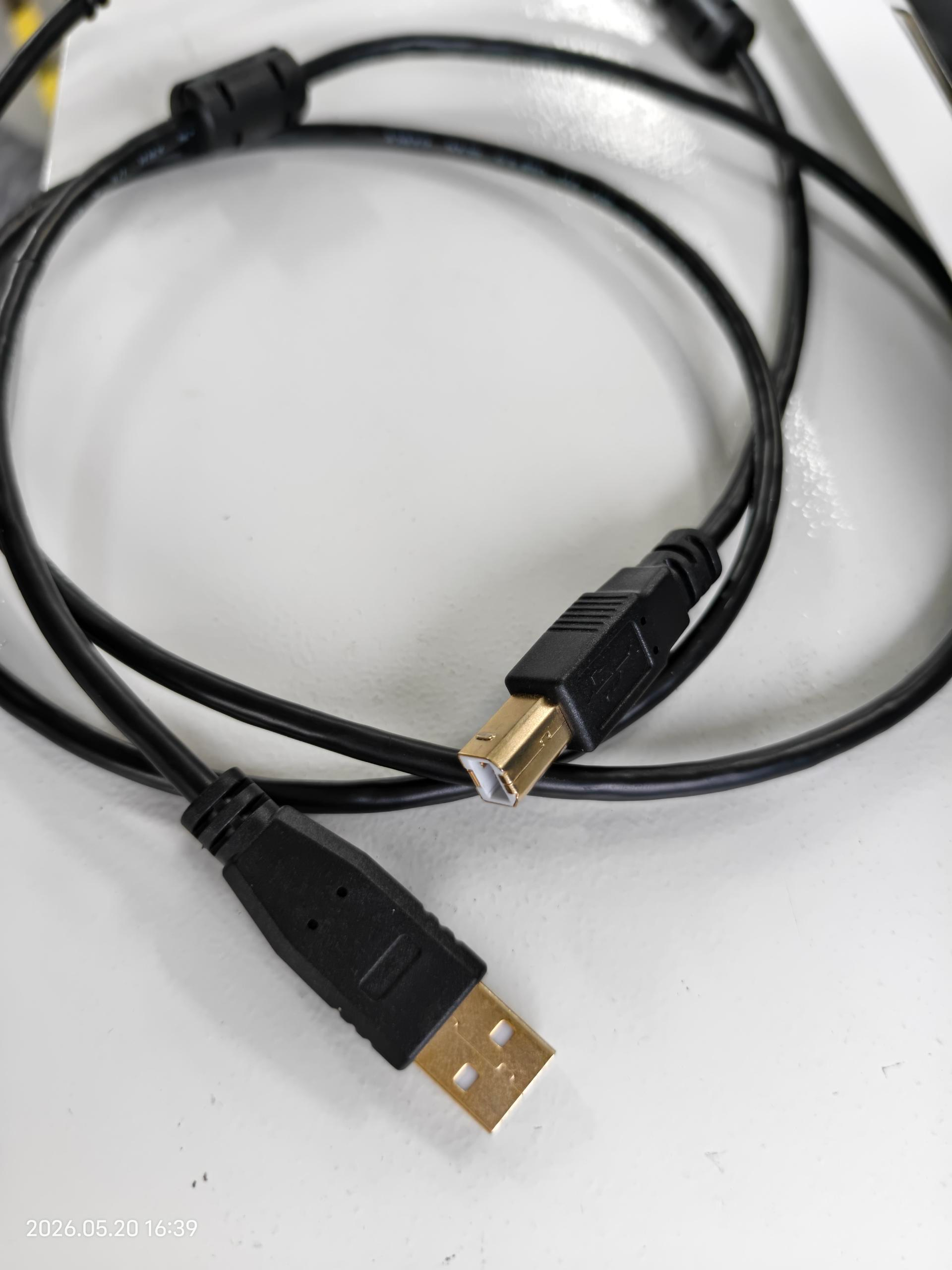

USB Cable

USB 2.0 printer cable, 1.5 m long

pcs

1

19

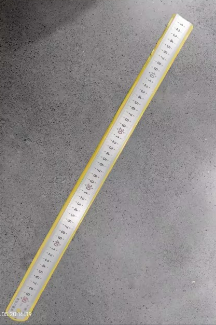

Steel Ruler

50 cm

pcs

1

20

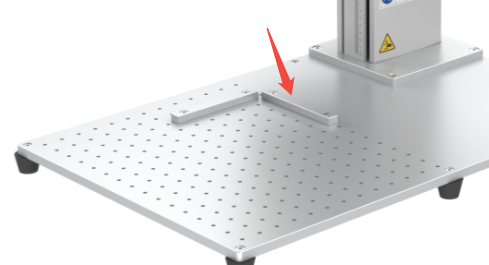

Positioning Fixture

pcs

2

21

Thunder CO₂ Galvo Packaging Set

Top cap, corrugated sleeve, pallet, and EPE foam

pcs

1
