Preface:

Having stock on hand is essential for quickly restoring machine functionality during a malfunction, and this article highlights commonly used accessories that can aid in the process.


Detail List:


Name

Reference Pictures

Recommendation level

1

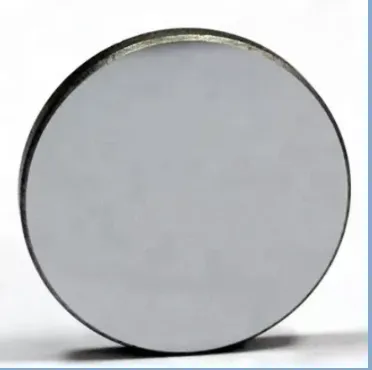

The First and Second Mirror

⭐⭐⭐⭐⭐

2

The Third Mirror

⭐⭐⭐⭐⭐

3

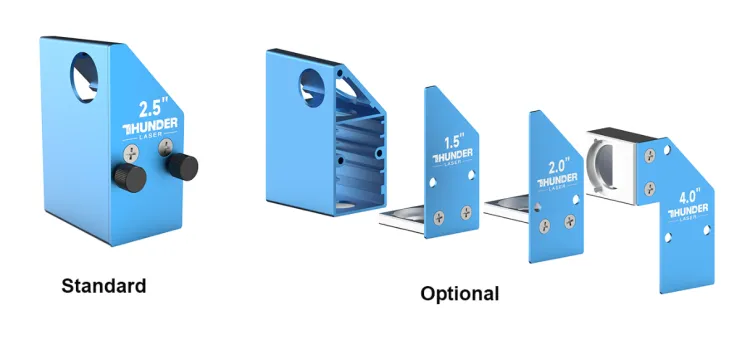

Lens

⭐⭐⭐⭐⭐

4

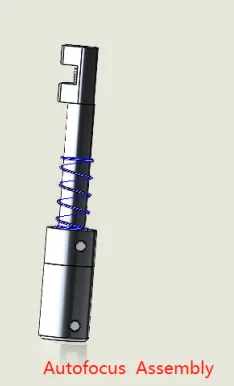

Autofocus Assembly

⭐⭐⭐

5

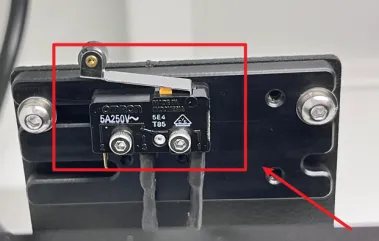

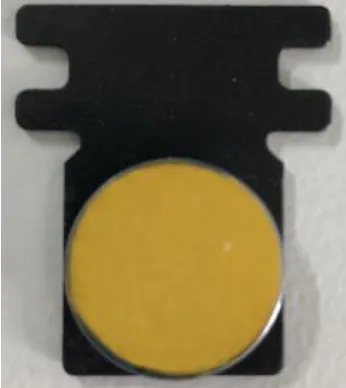

X/Y limit switch

⭐⭐⭐

6

Z limit switch

⭐⭐⭐

7

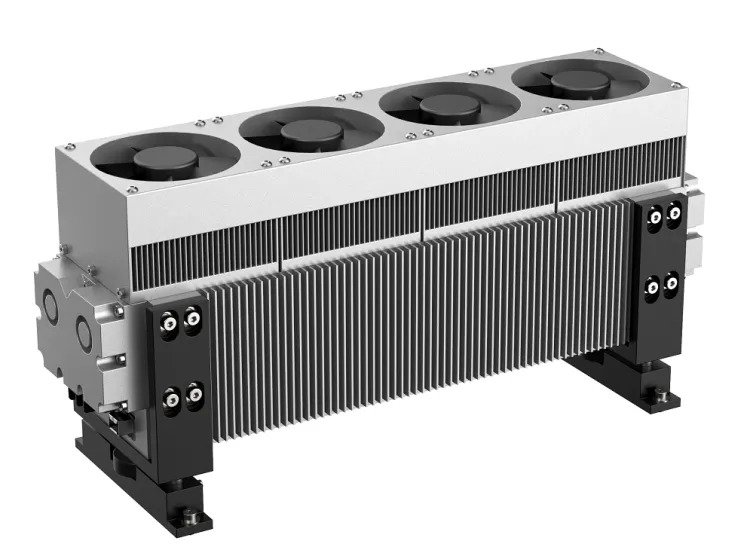

RF Tube

⭐⭐

8

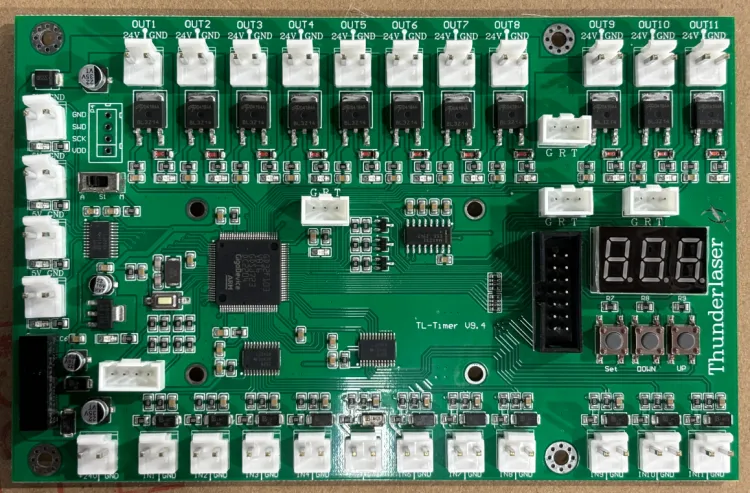

TL-Timer board

⭐⭐

9

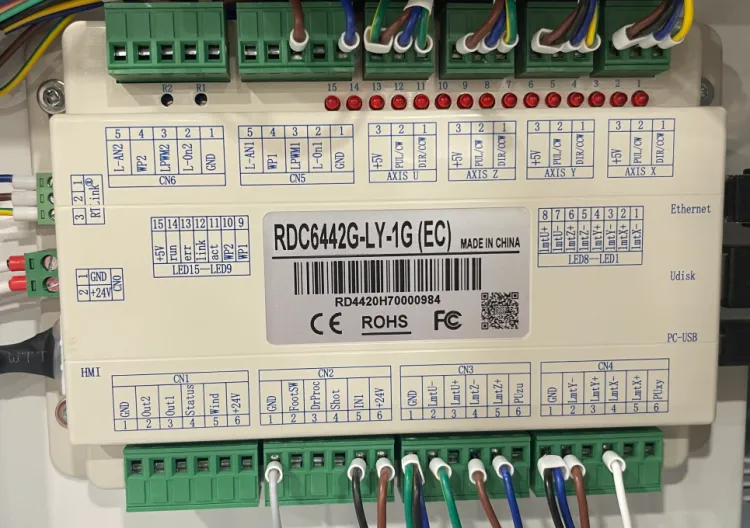

Controller

⭐⭐

10

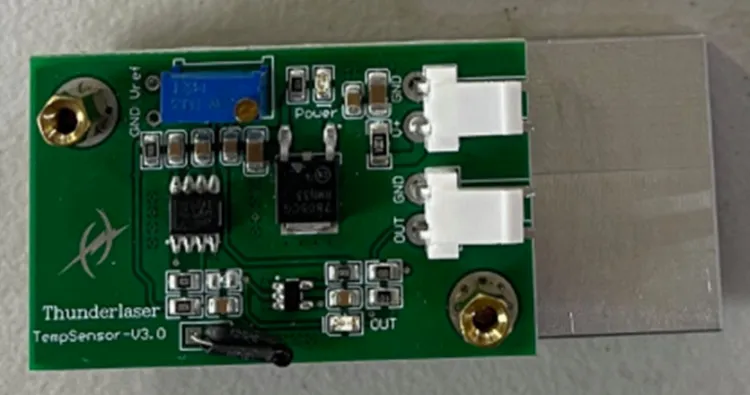

Flame sensors board

⭐⭐

11

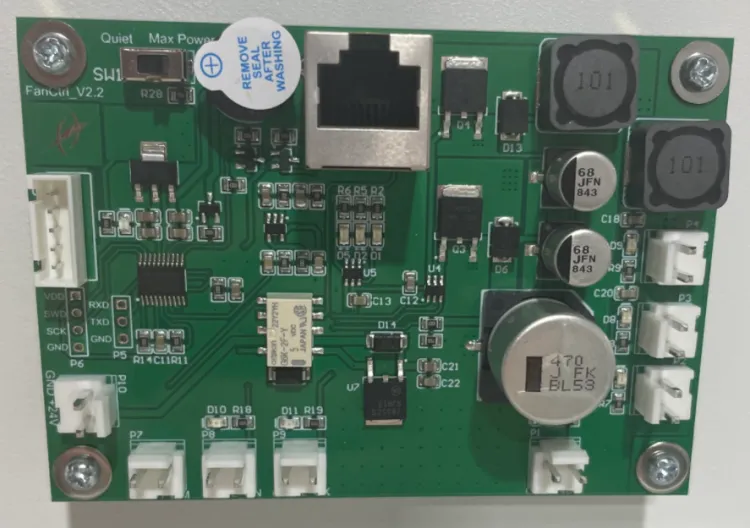

Fan control board

⭐⭐

12

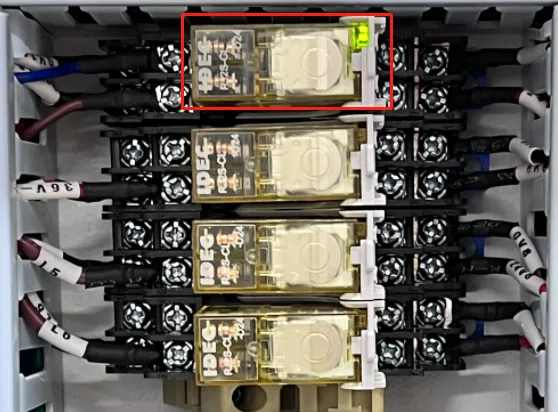

Raley

⭐⭐

13

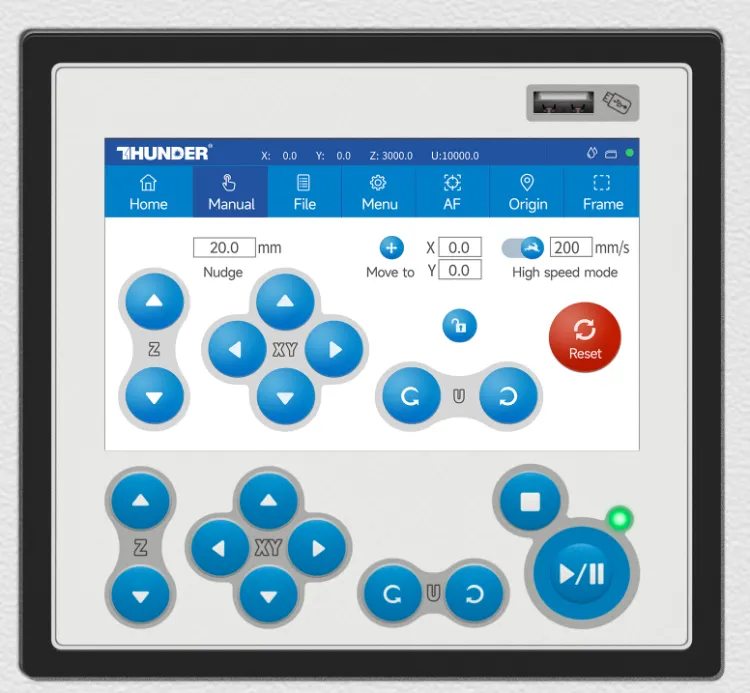

Touch Panel

⭐⭐

14

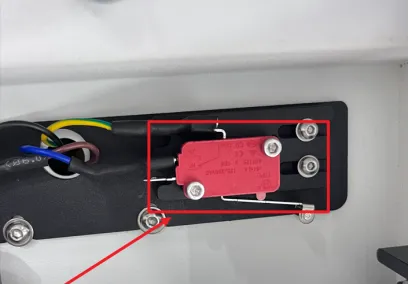

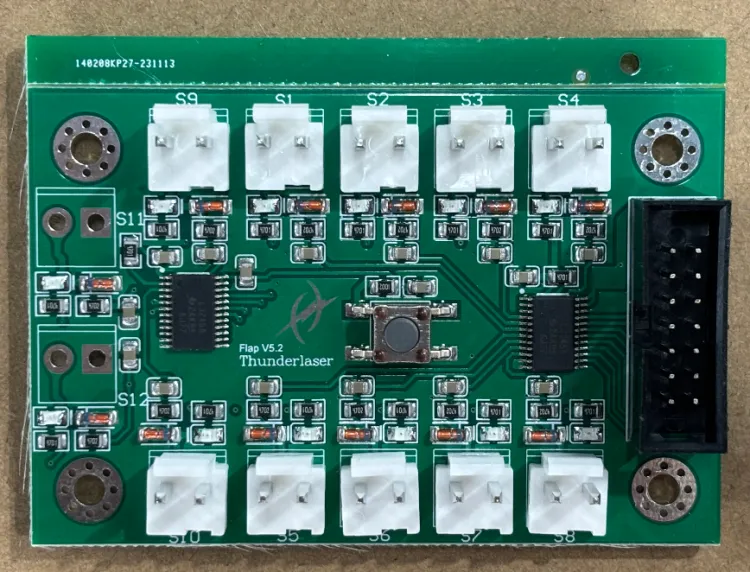

Door sensor checking board

⭐⭐

15

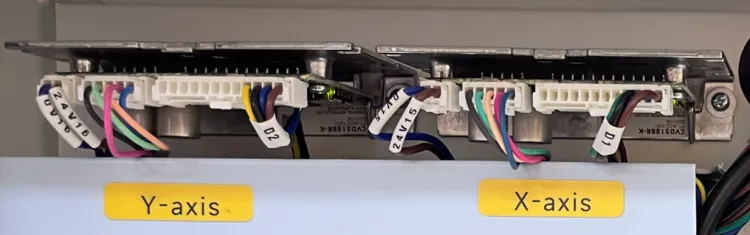

X/Y axis driver

⭐⭐

16

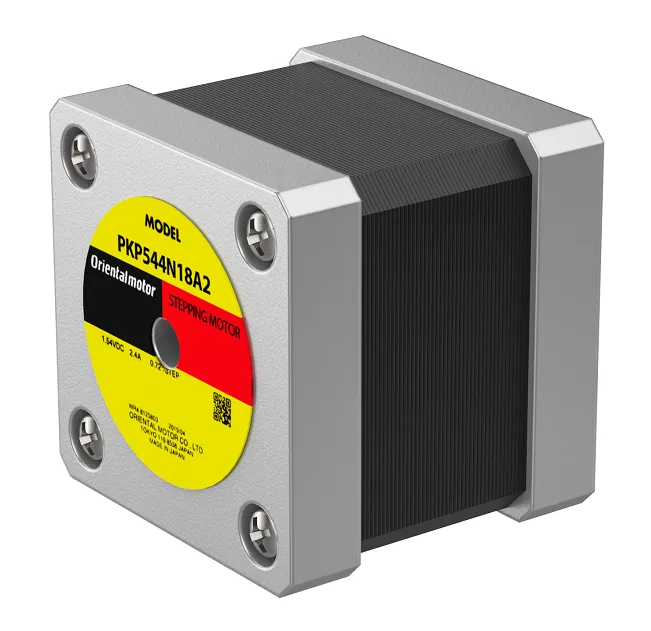

X/Y axis motor

⭐⭐

For purchasing inquiries, please provide your machine's serial number, your country, and the desired accessories by sending us an email.
Help Tech Support Troubleshoot Faster



​

End.
