Thunder AccuMetal Series: Electrical Configurations, Voltage Stabilizer Selection, and Plug Specifications

Preface

To ensure a stable and reliable power supply for the Thunder AccuMetal machine, equipment for different regions and with different power configurations requires a voltage stabilizer or integrated transformer-stabilizer of the appropriate specifications, selected according to the on-site power supply conditions.

This article introduces the electrical specifications, on-site power supply requirements, voltage stabilizer/integrated transformer-stabilizer configurations, power connection methods, and plug and socket specifications for different Thunder AccuMetal models, helping users properly prepare the on-site power supply before installation and complete the relevant electrical connections.

Electrical installation must be performed by a qualified electrician in accordance with applicable local requirements. Disconnect and isolate all power sources, follow the site lockout procedure, and verify absence of voltage before working on wiring. The emergency stop button is not an electrical isolator.

1. Machine electrical specifications

Below table identifies the machine-side supply, after any stabilizer or transformer. Three-phase voltages are line-to-line values.

Verify the equipment nameplates and approved installation data before selecting site wiring or protective devices.

Item	1	2	3	4	5A	5B	6	7	8
Machine Version	North America	INTL	Japan (East )	Japan (West)	North America	North America	INTL	Japan (East )	Japan (West)
Laser Source Power	1500W				3000W
Phase	Single-Phase	Three-Phase
Rated Voltage	220 V	380 V
Under/Over Voltage Protection	210-240V	210-240V per phase
Frequency	60Hz	50Hz		60Hz			50Hz		60Hz
Standard Chiller	CWFL-1500 BN	CWFL-1500 AN		CWFL- 1500 BN	CWFL-3000 BN		CWFL-3000 AN		CWFL- 3000 BN
Exhaust Fan	1100W centrifugal fan
Max Power	9000W	10000W			15000W
Max Current	40A	22A/ 17A/ 6A (L1/ L2/ L3) (exhaust fan/ laser source/ chiller and other)			30A/ 12A/ 26A (L1/ L2/ L3) (exhaust fan and laser source/ laser source/ chiller, laser source and other)
Steady-State Current	30A	4A/ 17A/ 4A (L1/ L2/ L3) (exhaust fan/ laser source/ chiller and other)			14A/ 12A/ 17A (L1/ L2/ L3) (exhaust fan and laser source/ laser source/ chiller, laser source and other)
Circuit Breaker	50A	32A

Confirm the site supply voltage, frequency, and number of phases when placing your order so that the correct machine configuration can be supplied. The power supplied to the machine must match its specified electrical requirements. A conventional voltage stabilizer or transformer does not change the frequency or convert single-phase power to three-phase power.

2. Site supply and voltage conditioning

The table below identifies the proposed stabilizer and transformer configurations.

SGAVR denotes the specified integrated voltage-regulating transformer: step-up for items 3, 4, 5A, 7 and 8; step-down for item 5B.
1Φ = single-phase; 3Φ = three-phase. Three-phase input and output values are line-to-line.

Item	Laser Power	Model Version Machine-Side Voltage	Recommended Stabilizer / Transformer		Input Voltage Range	Output Voltage	Stabilizer / Transformer Input Plug	Pictures of Electrical Outlets

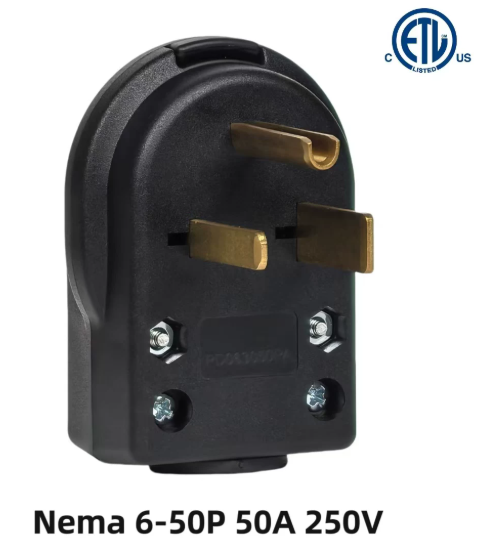

1	1500W Fiber Laser	North American 220V 1PH	Voltage Stabilizer	TND-40 kVA, 1Φ	180–254 V	220V	6-50P
2		International 380V 3PH	Voltage Stabilizer	AVR-50 kVA, 3Φ	350–440 V	380V	CEE-plug 32A 5p 6h IP44 SHARK
3		Japan (East) 380V 3PH	Integrated Voltage- Regulating Transformer	SGAVR-50 kVA, 3Φ	180–230 V	380V	WF6430
4		Japan (West) 380V 3PH		SGAVR-50 kVA, 3Φ	180–230 V	380V	WF6430

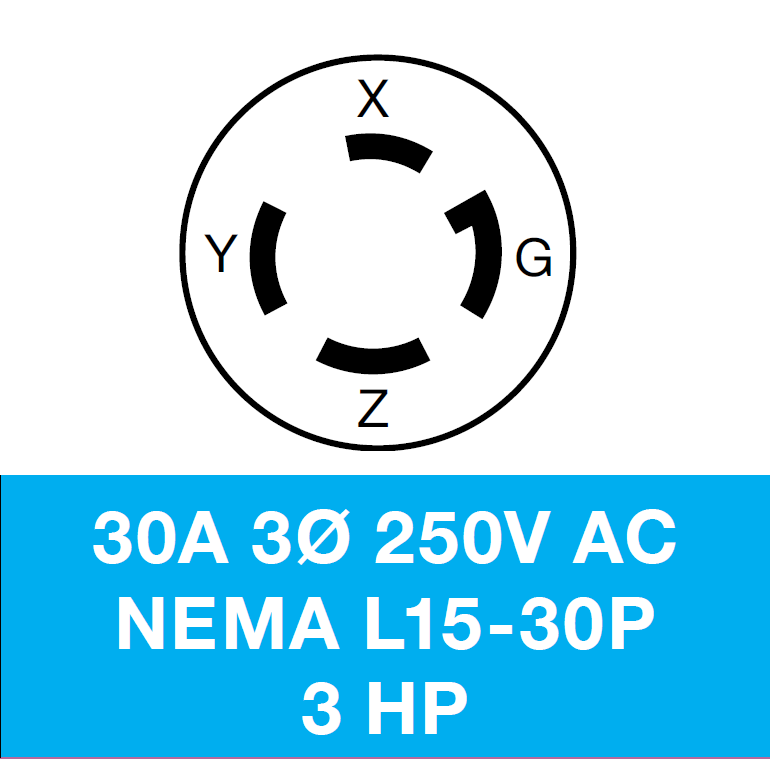

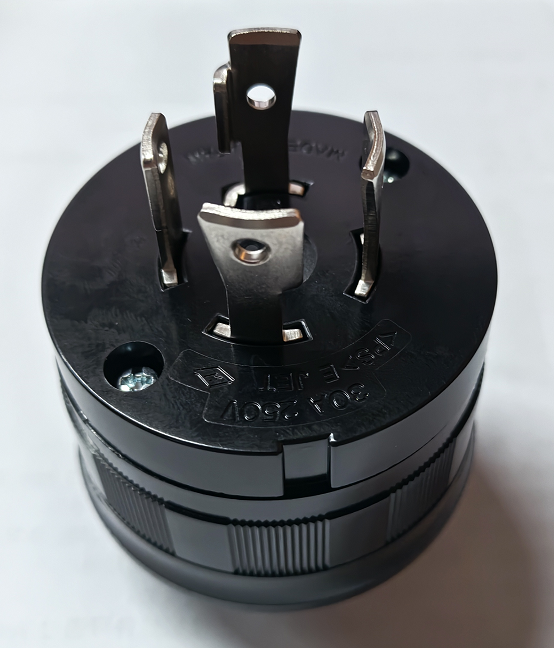

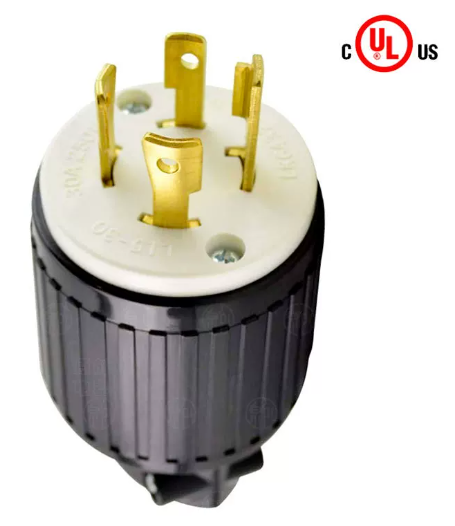

5A	3000W Fiber Laser	North America 380V 3PH		SGAVR-60 kVA, 3Φ	180–230 V	380V	L15-30P
5B		North America 380V 3PH		SGAVR-60 kVA, 3Φ	440–510 V	380V	L22-30P
6		International 380V 3PH	Voltage Stabilizer	AVR-60 kVA, 3Φ	350–440 V	380V	CEE-plug 32A 5p 6h IP44 SHARK
7		Japan (East) 380V 3PH	Integrated Voltage- Regulating Transformer	SGAVR-60 kVA, 3Φ	180–230 V	380V	WF6430
8		Japan (West) 380V 3PH	Integrated Voltage- Regulating Transformer	SGAVR-60 kVA, 3Φ	180–230 V	380V	WF6430

3. Main power connection

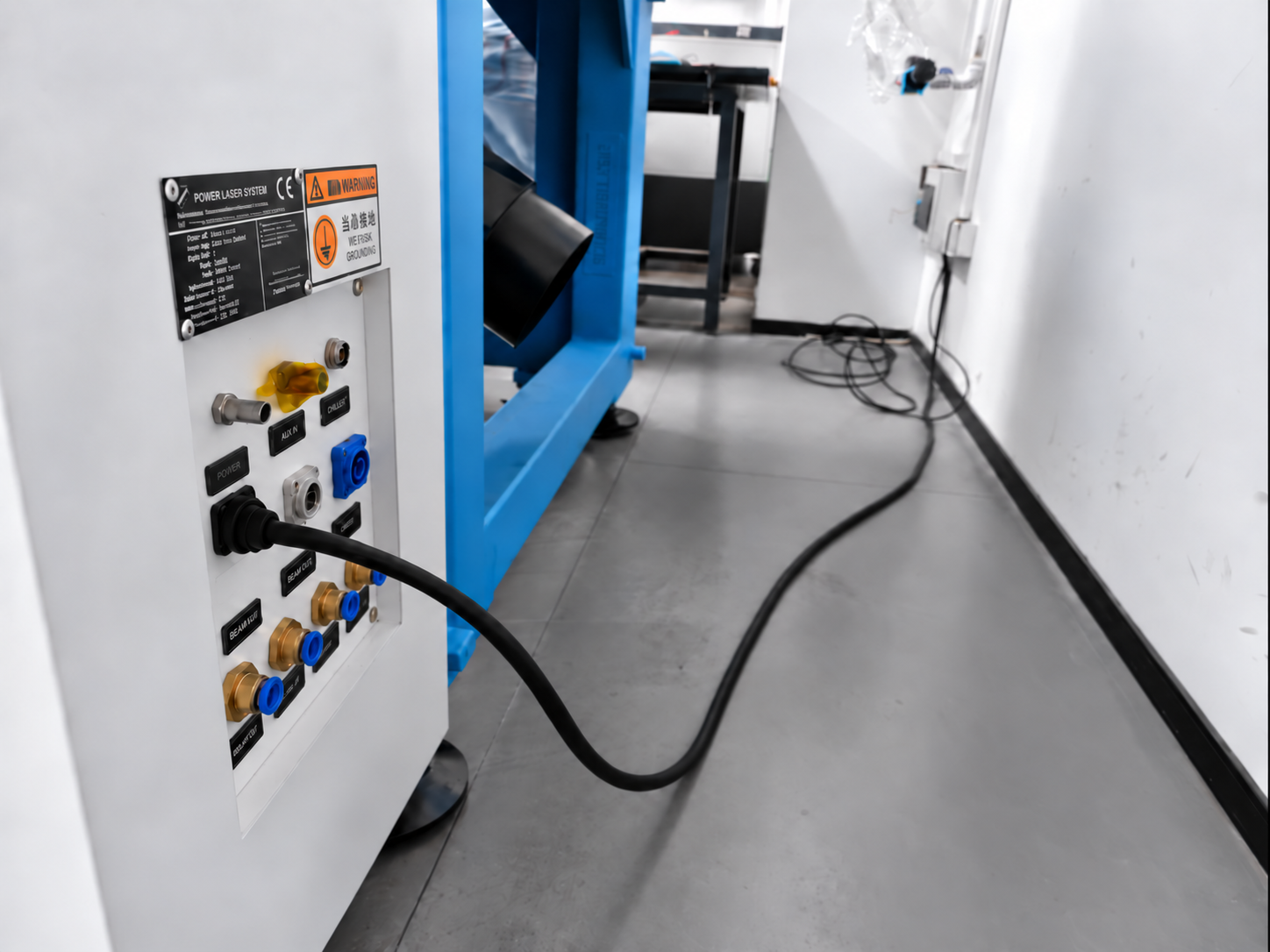

Figure below shows the machine main power cable connection. Here the machine is connected to the dedicated external circuit breaker. Identify individual conductors using their labels and the approved wiring diagram.

The machine main power cable is supplied without a plug. If a stabilizer or transformer is installed, connect the machine to its OUTPUT terminals and the protected site supply to its INPUT terminals.

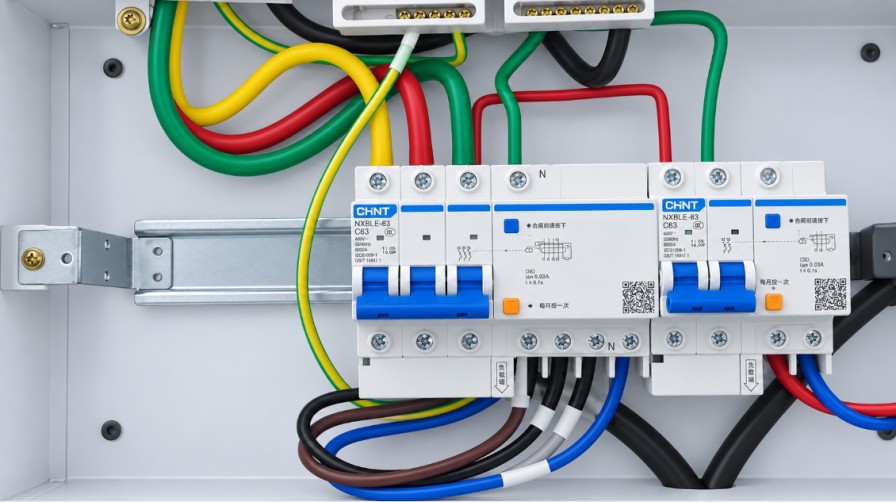

The toolbox includes an additional power cable with the plug type agreed at the time of order. This cable is intended for the stabilizer or transformer INPUT. Verify its rating against the approved site-side circuit before use. If a hardwired supply is required, a qualified electrician may remove or replace the plug according to local requirements. Terminate the cable in a suitable enclosure with isolation, overcurrent protection, and strain relief.

4. Chiller and exhaust fan connections

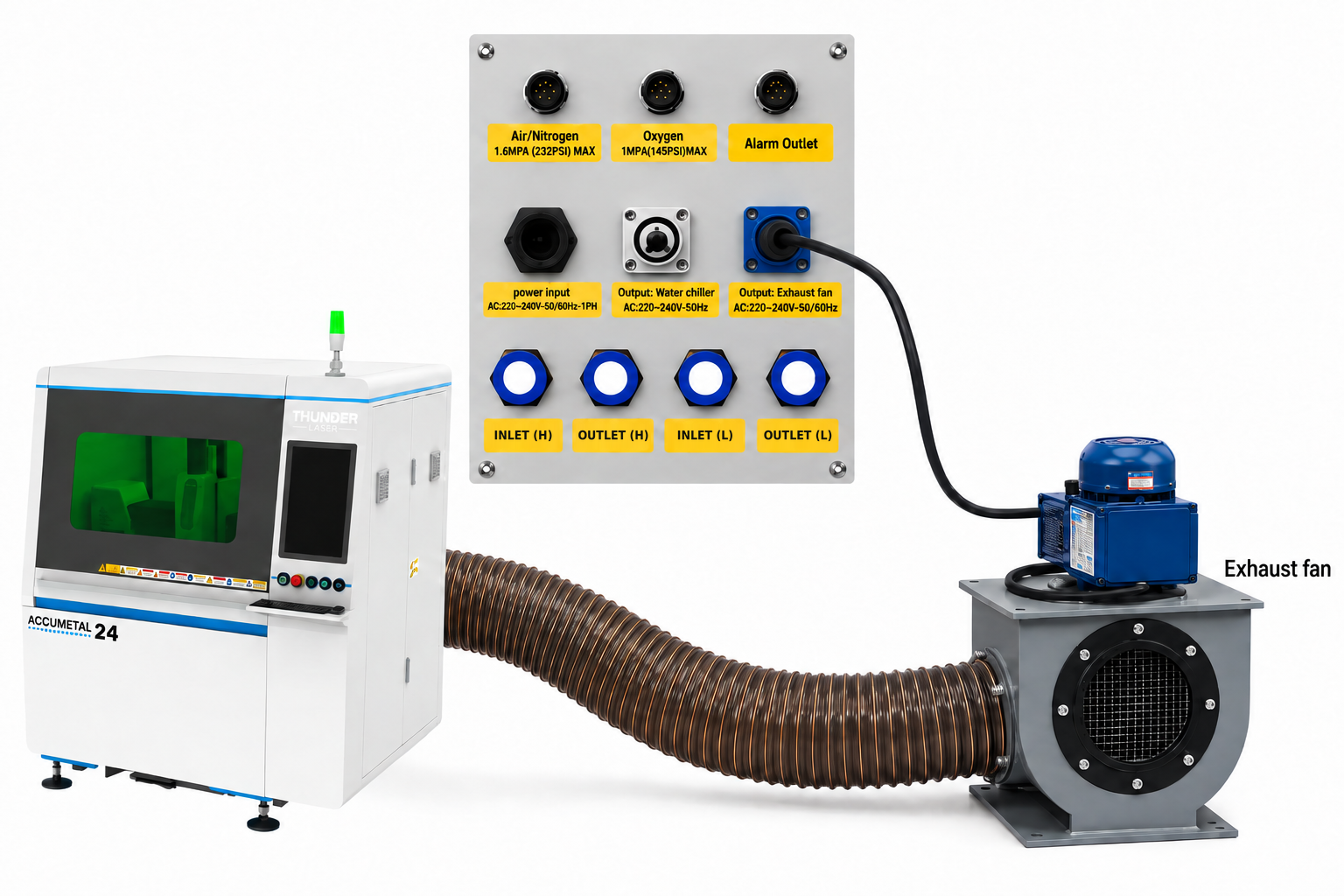

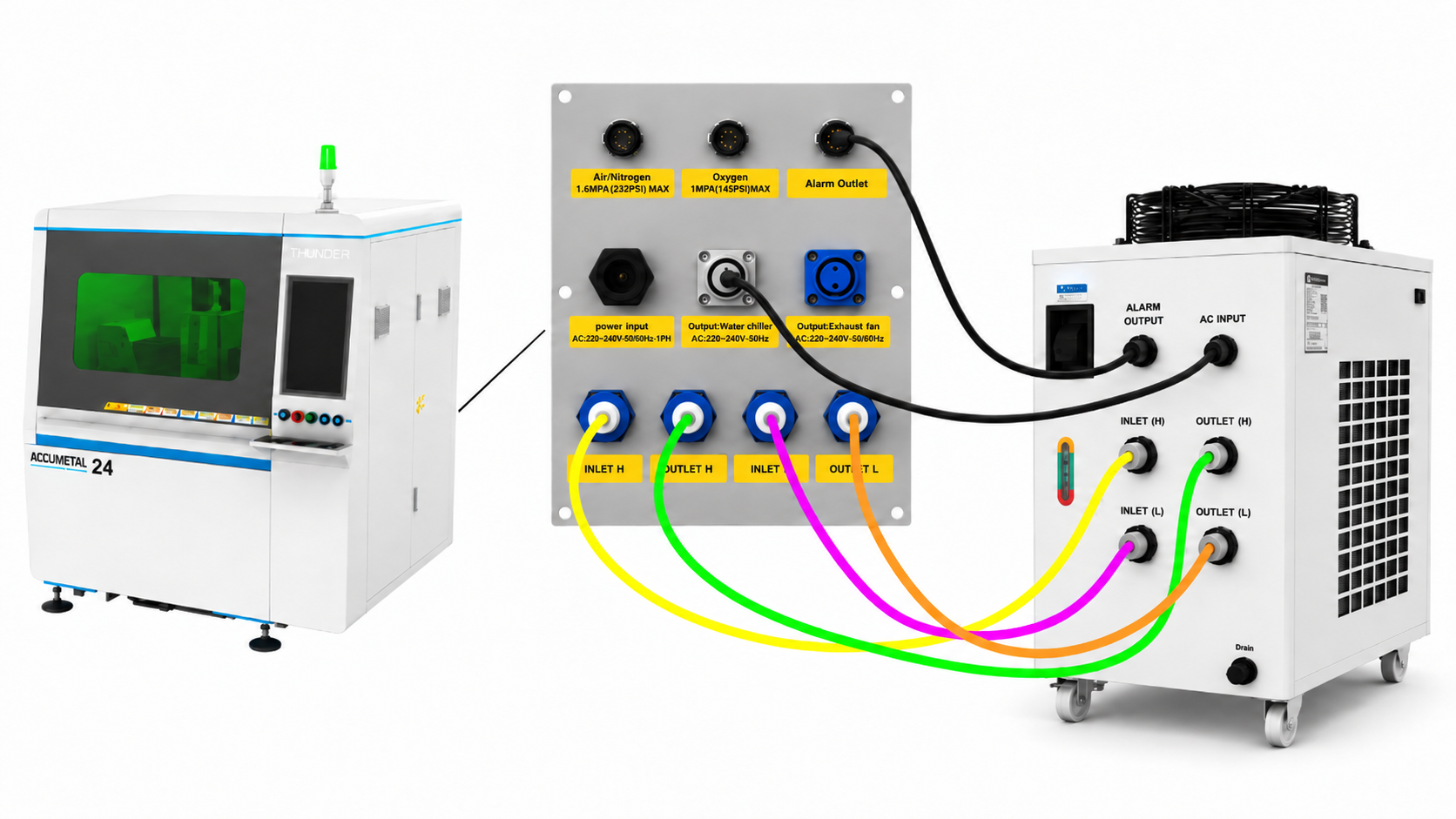

With all supplies isolated, connect the chiller to the designated water chiller output, chiller alarm cable to the alarm outlet and the exhaust fan to the designated exhaust fan output.

The illustrations below show connection locations only. Their printed voltage, frequency, current, and gas-pressure labels are not specifications for every model. Use the labels on the delivered equipment and its approved wiring diagram.

5. Optional Air Compressor Power Connection

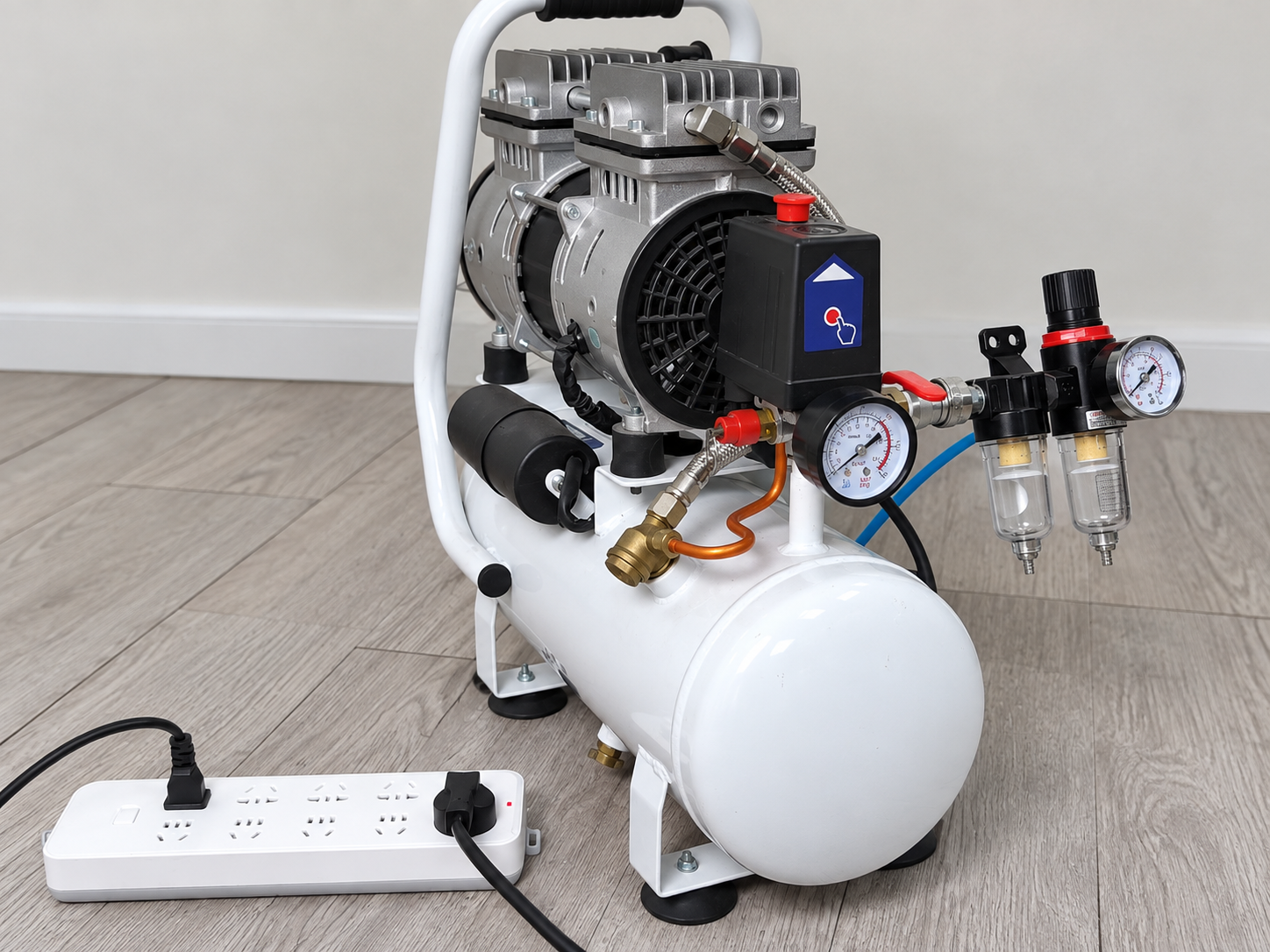

If an optional air compressor is used, connect it to a separate external power supply that meets the compressor's electrical requirements.

Do not connect the air compressor to the machine or the machine's power outlets.

6. Circuit Inspection

After completing all wiring connections, please refer to the wiring diagram below to double-check that everything is connected correctly. Then power on the machine and proceed with testing and commissioning.

Thunder AccuMetal Series Wiring Diagram

The machine monitors supply voltage and may prevent startup or interrupt operation when the monitored voltage is outside its configured limits. Use the approved protection settings for the specific machine version. If voltage protection is triggered, stop commissioning and have the supply, wiring, and stabilizer or transformer output checked. Do not repeatedly restart the machine or bypass the protection. Voltage protection reduces risk but cannot guarantee protection against incorrect wiring, loss of neutral, surges, or every supply fault. Correct the cause before restarting.
