No.

Name

Specification

Unit

Quantity Recommended


Remarks

1

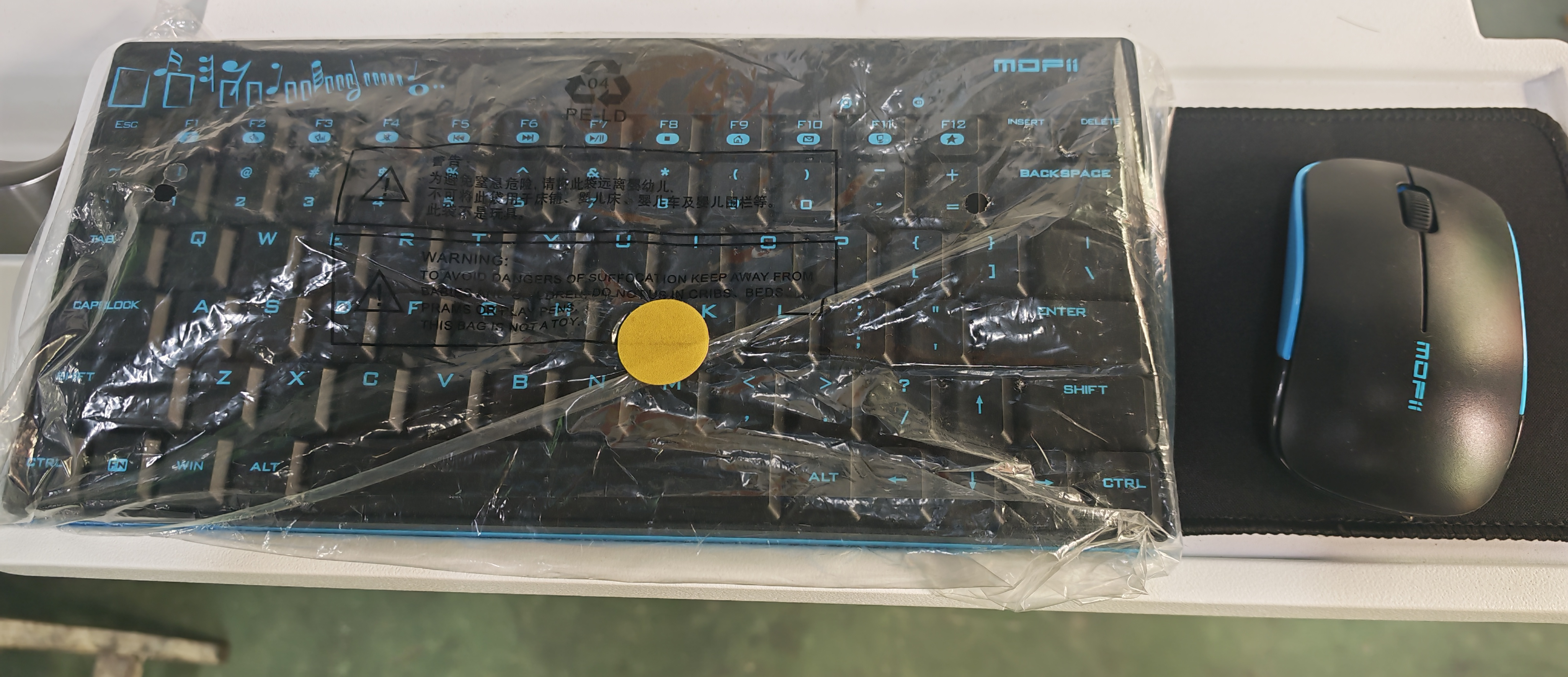

Keyboard, Mouse, and Mouse Pad

/

set

1

Equipment Control, Parameter Settings, Job File Management

2

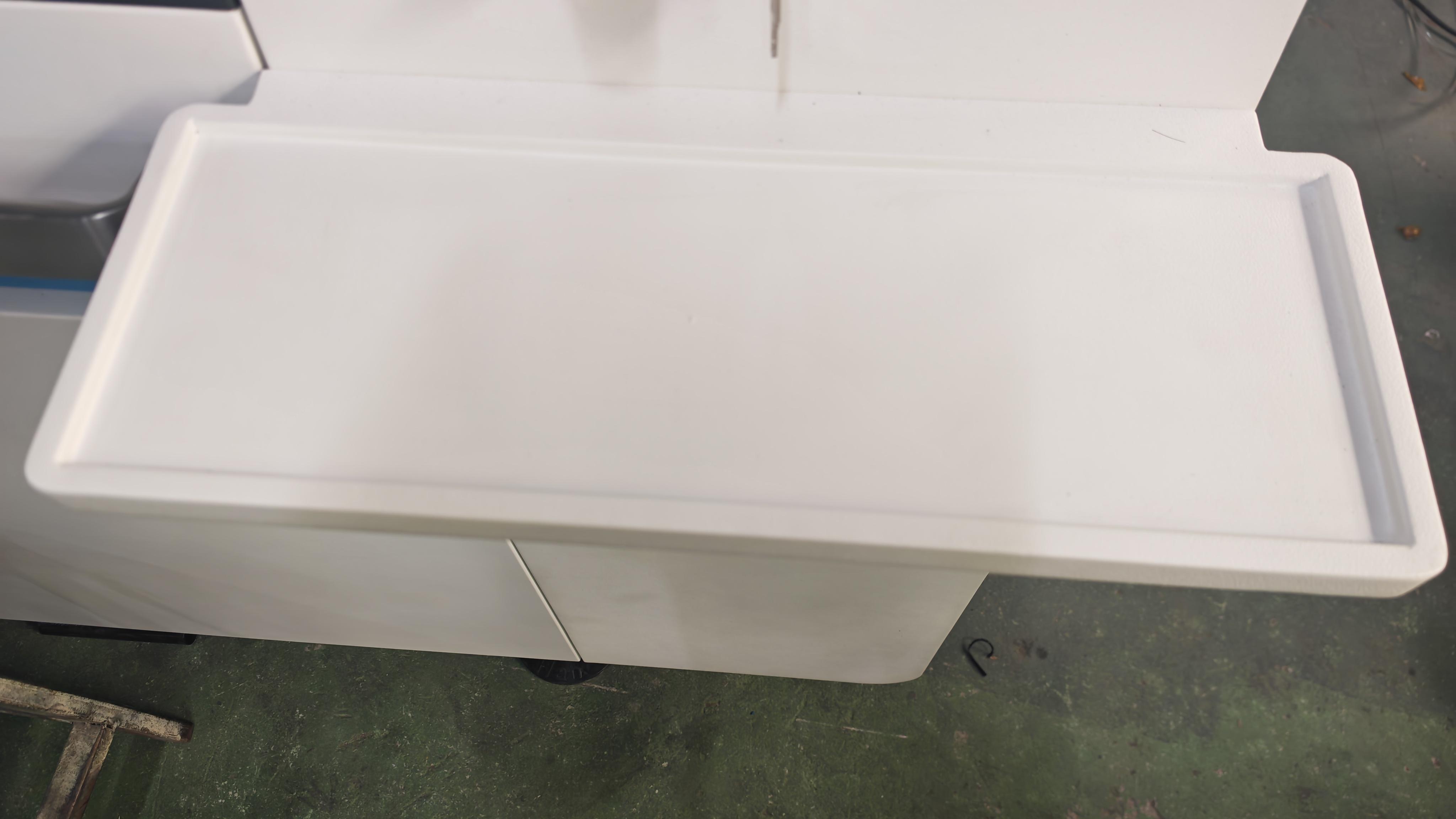

Tray

/

pcs

1

Used to hold the mouse and keyboard

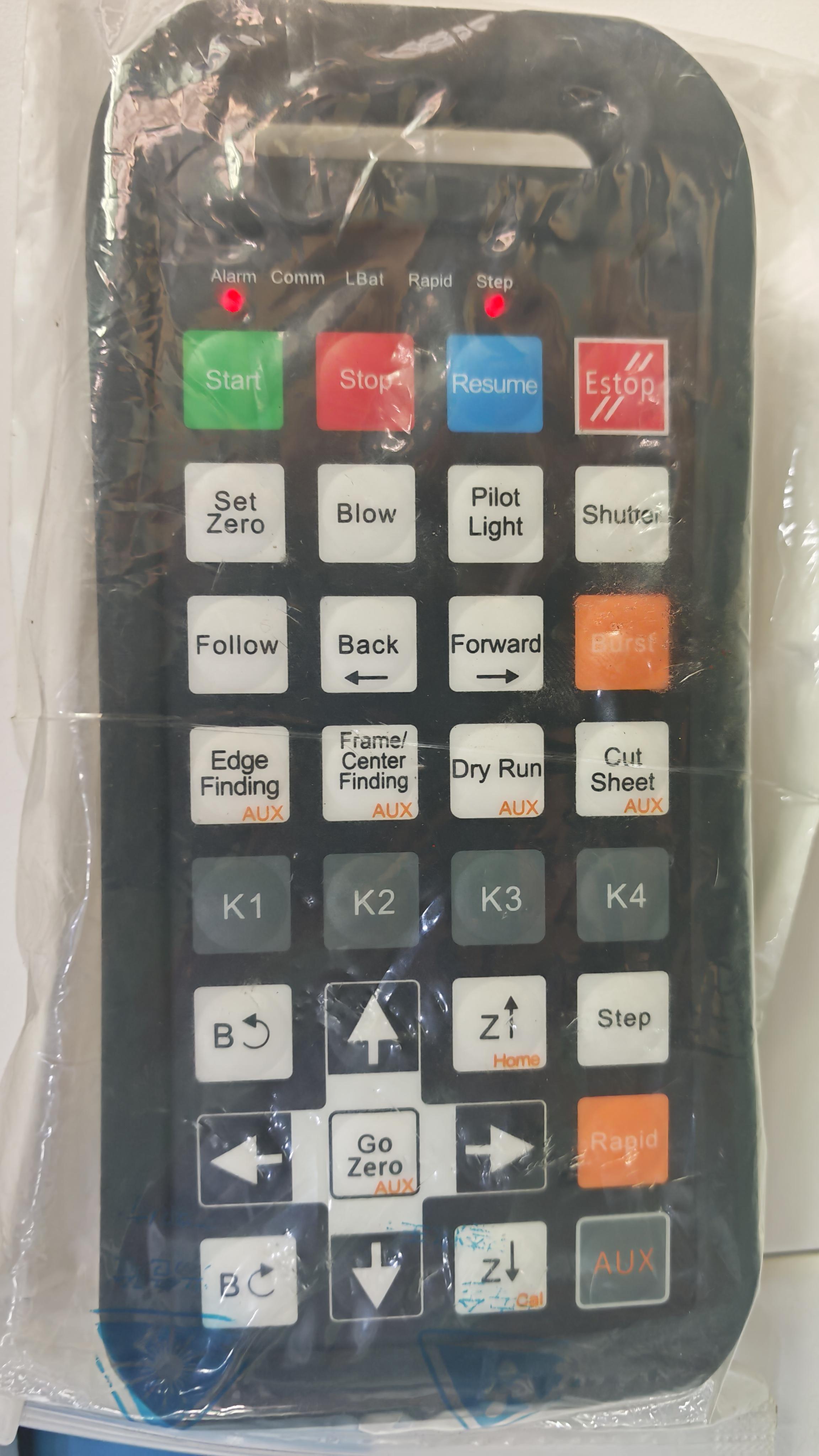

3

Wireless Remote Controller

/

pcs

1

Wireless Start/Stop, Remote control of equipment operation

4

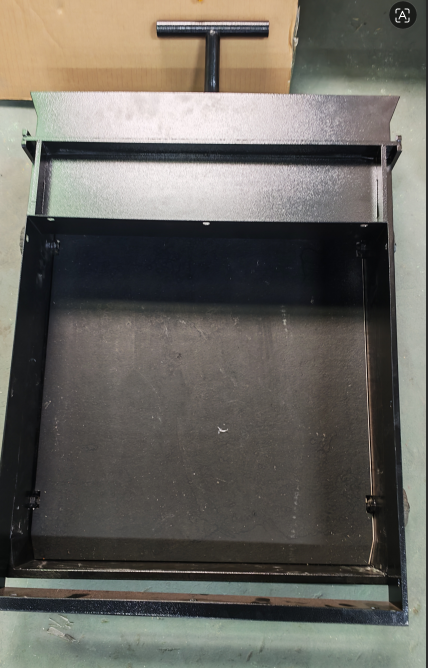

Parts Collection Drawer

/

pcs

1

Collects finished products/Scrap

5

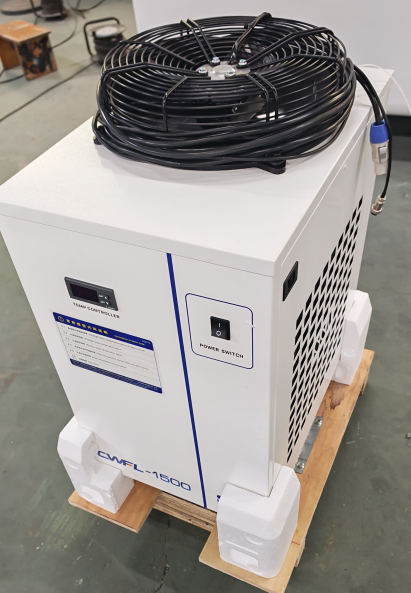

Water Chiller

CWFL-1500AN 50HZ

set

1

Used for1500W Three-Phase 380V 50HZ

Choose One of Four

Laser Generator, Cutting head circulating cooling

6

Water Chiller

CWFL-1500BN 60HZ

set

1

/

Used for1500W Single-Phase 240V 60HZ

7

Water Chiller

CWFL-3000ANS04 50HZ

set

1

/

Used for3000W Three-Phase 380V 50HZ

8

Water Chiller

CWFL-3000BNS 60HZ

set

1

/

Used for3000W Single-Phase 240V 60HZ

9

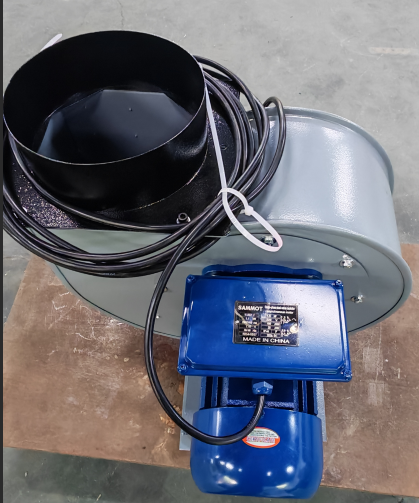

50/60 Hz Exhaust Blower

2.5A 1.1KW 220V 50/60HZ(Mesh added at air inlet and outlet)

set

1

Smoke exhaust and dust removal

10

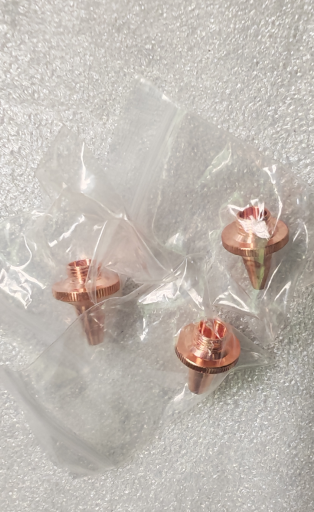

1.5 mm Single-Layer Copper Cutting Nozzle

M8

pcs

1

Consumables for cutting various materials

11

2.0 mm Single-Layer Copper Cutting Nozzle

M8

pcs

1

12

3.0 mm Single-Layer Copper Cutting Nozzle

M8

pcs

1

13

1.5 mm Double-Layer Copper Cutting Nozzle

M8

pcs

1

14

2.0 mm Double-Layer Copper Cutting Nozzle

M8

pcs

1

15

3.0 mm Double-Layer Copper Cutting Nozzle

M8

pcs

1

16

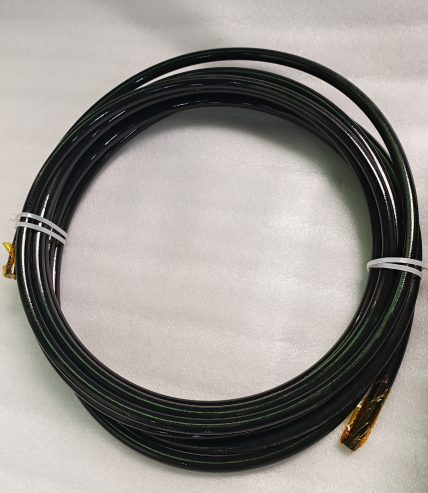

Fiber-Reinforced High-Pressure Nitrogen Hose

Inner Diameter10*Outer Diameter16

m

10

Delivers high-pressure nitrogen to assist cutting

17

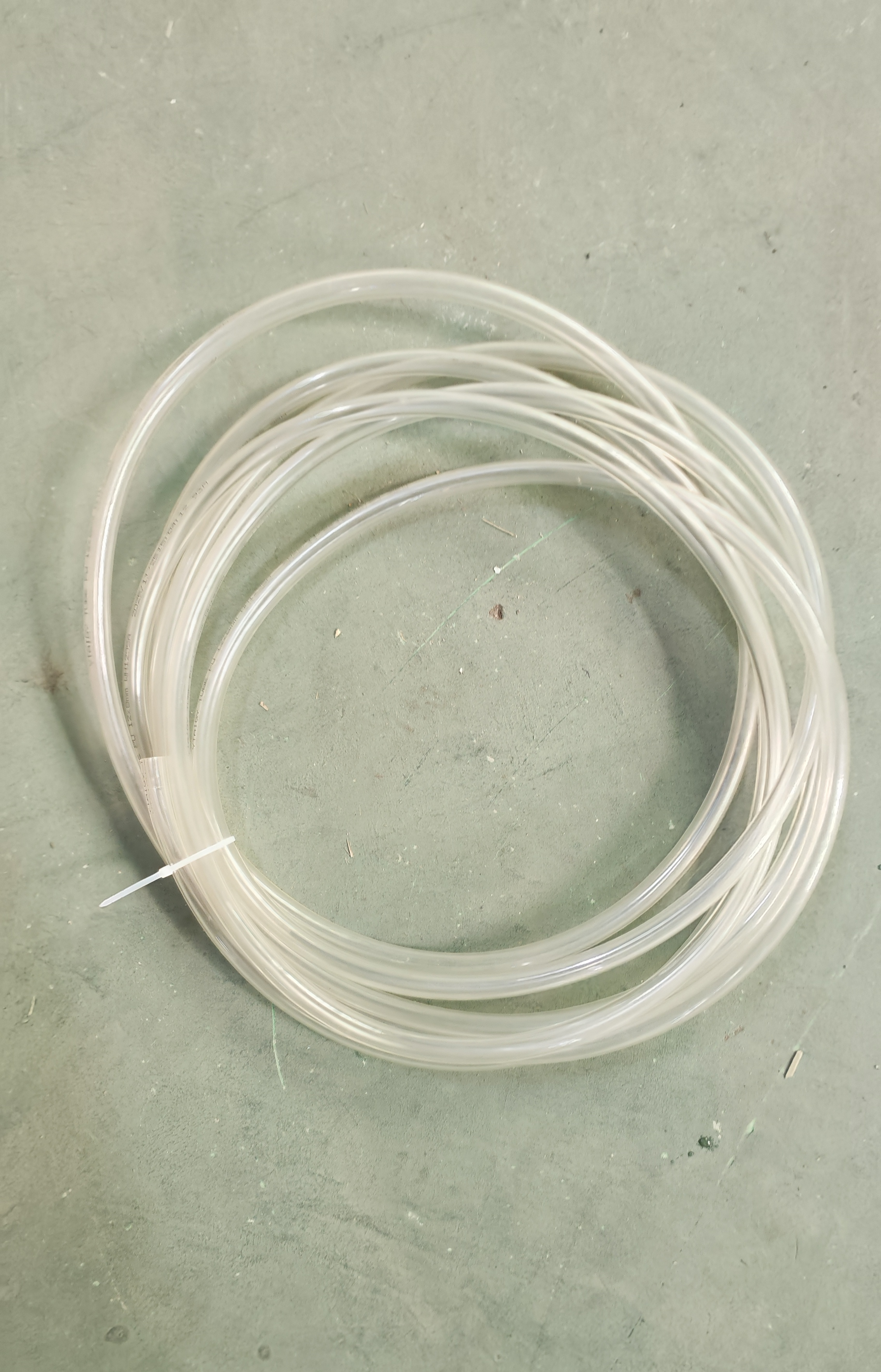

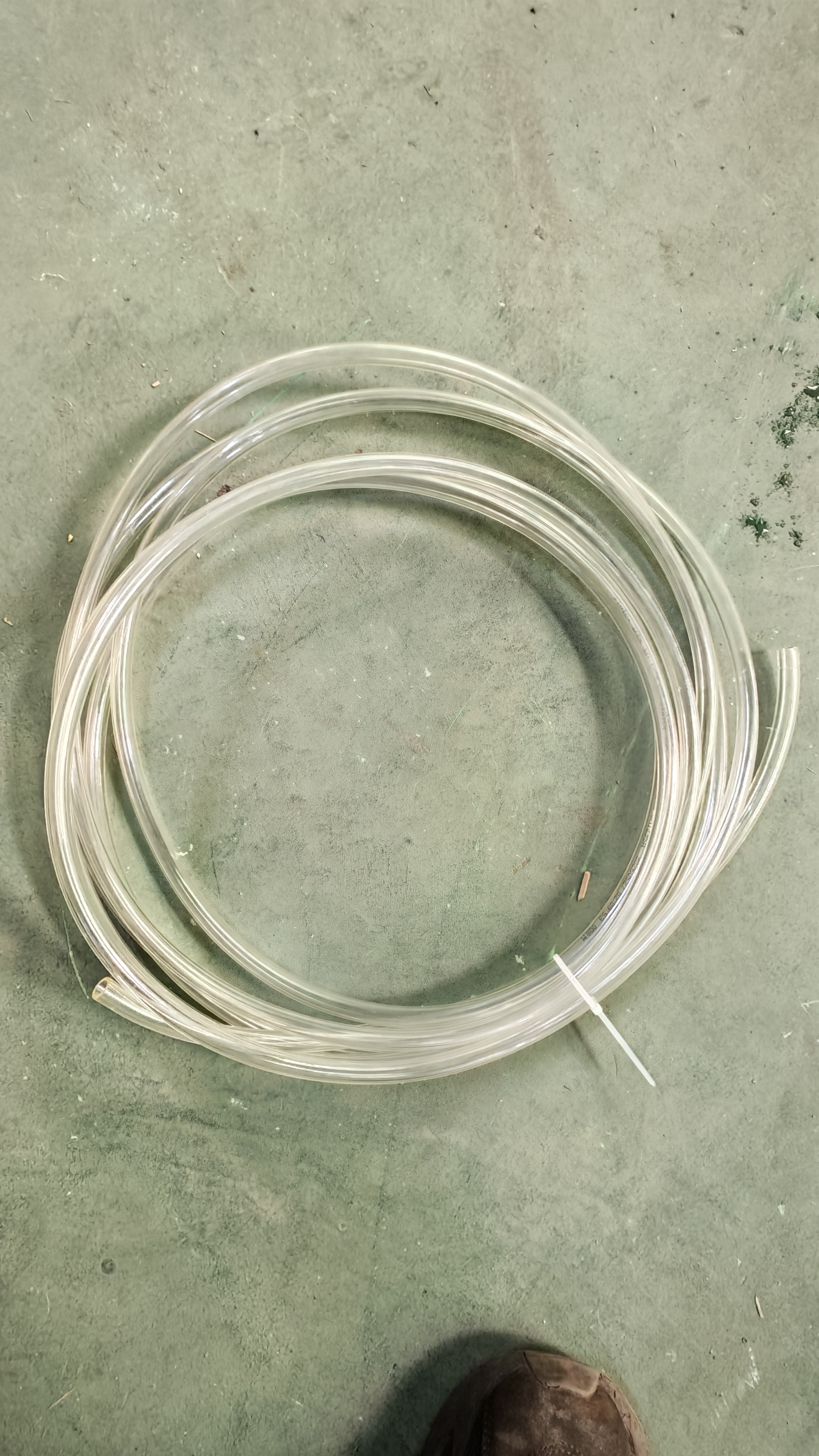

Water Hose

φ10-5m

pcs

2

Delivers cooling water, Enables heat exchange between the cutting head and the chiller, Dissipates heat to cool the fiber laser。

18

Water Hose

φ12-5m

pcs

2

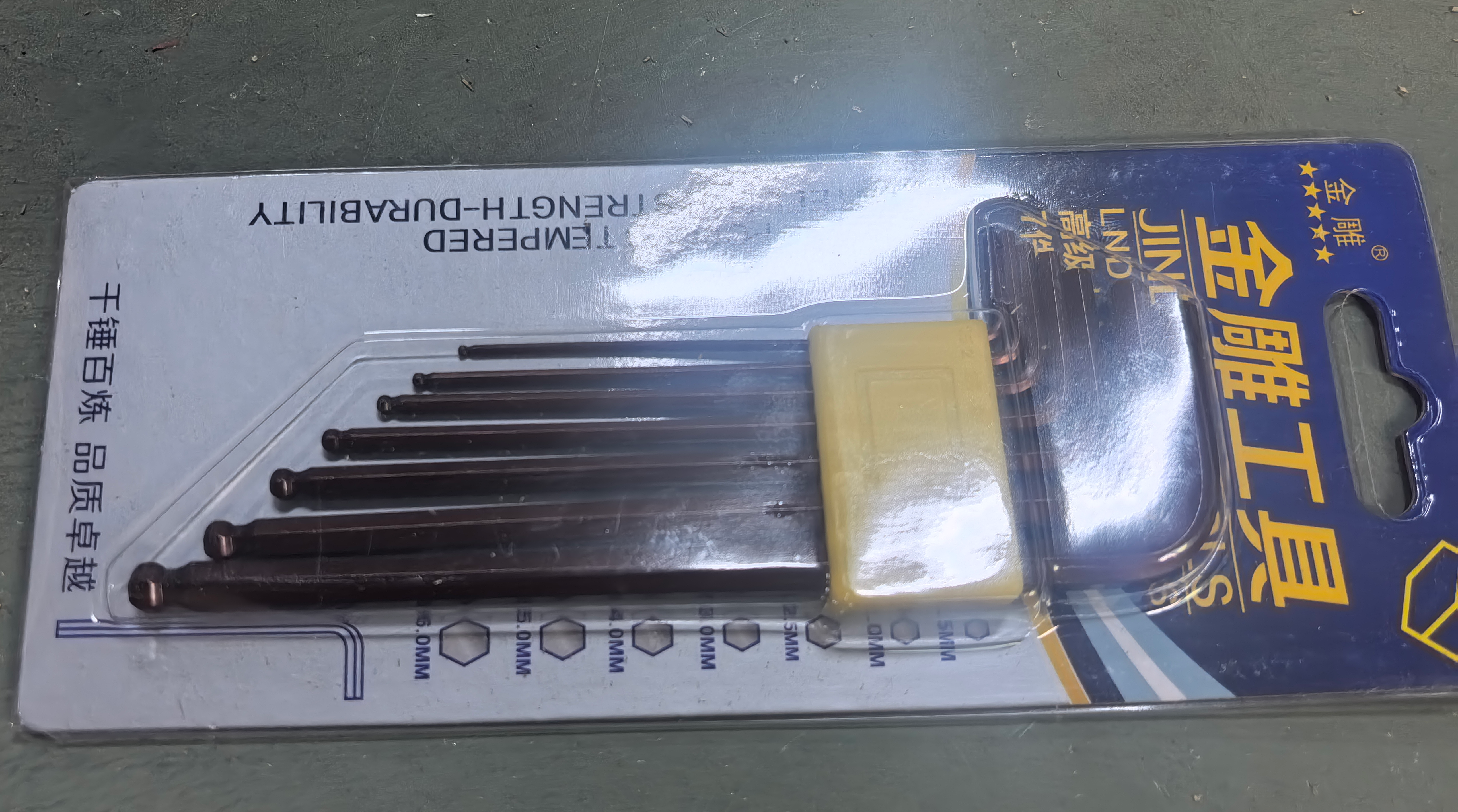

19

Hex Key

/

set

1

Used to remove/install hex socket screws during maintenance, For fastening and disassembling mechanical parts。

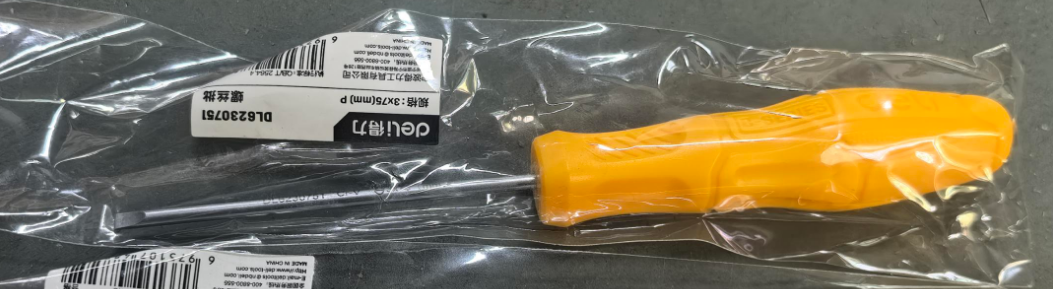

20

Slotted Screwdriver

/

pcs

1

Used to remove/install slotted screws, For equipment maintenance disassembly and assembly support。

21

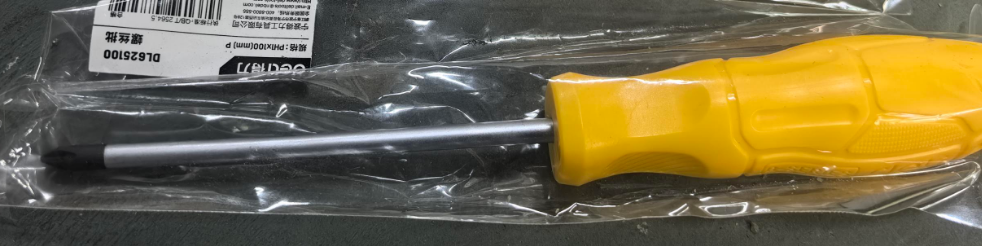

Phillips Screwdriver

/

pcs

1

Used to remove/install cross-head screws, For equipment maintenance disassembly and assembly support。

22

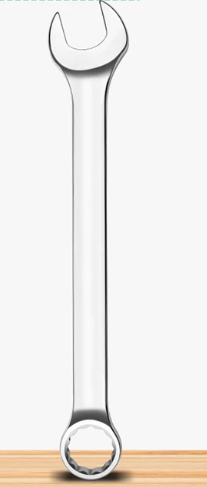

Combination Wrench

14mm

pcs

1

Used to remove/install exhaust duct steel clamps。

23

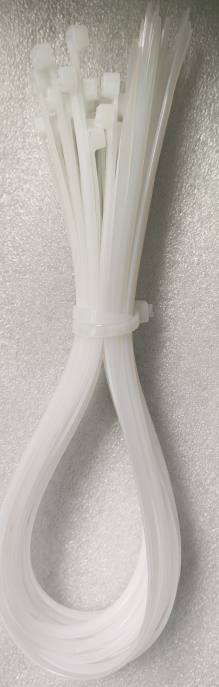

Cable Tie

8*500

pcs

24

Organizes and secures cables, Piping

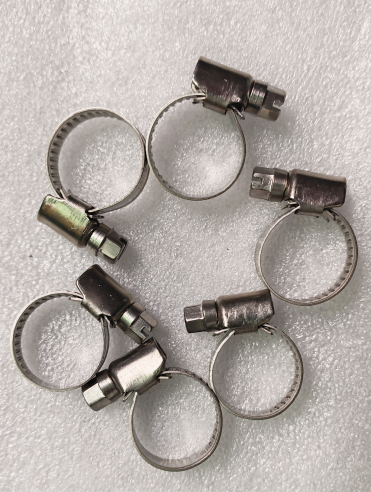

24

Hose Clamp

12-20

pcs

6

Secures hose connections

25

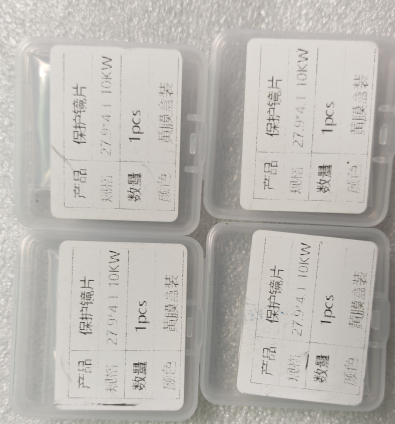

Lower Protective Window

28*4

pcs

4

Protects the optical path, Blocks dust and spatter

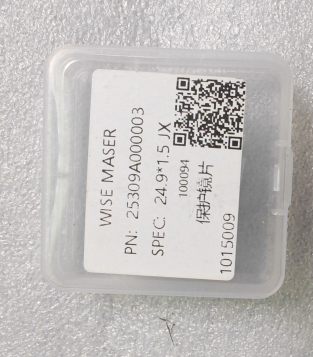

26

Upper Protective Window

24.9*1.5

pcs

1

27

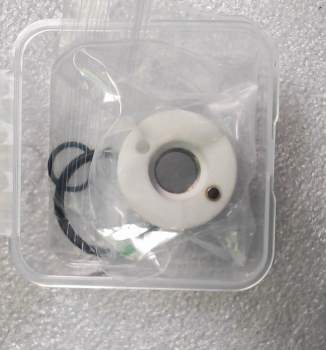

Ceramic Ring

Outer Diameter19.5*Height12.5, WTC-04

pcs

1

Cutting head insulation, Protects the electrode

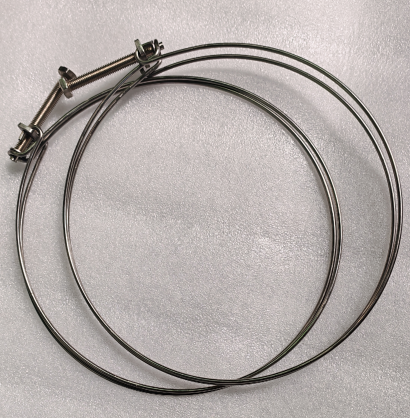

28

Steel Wire Hose Clamp

200mm

pcs

3

For fastening steel wire hoses

29

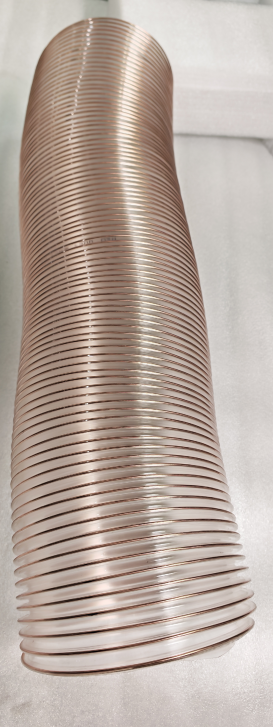

Wire-Reinforced Exhaust Duct

Inner Diameter200mm

m

6

Connects the fan exhaust duct

30

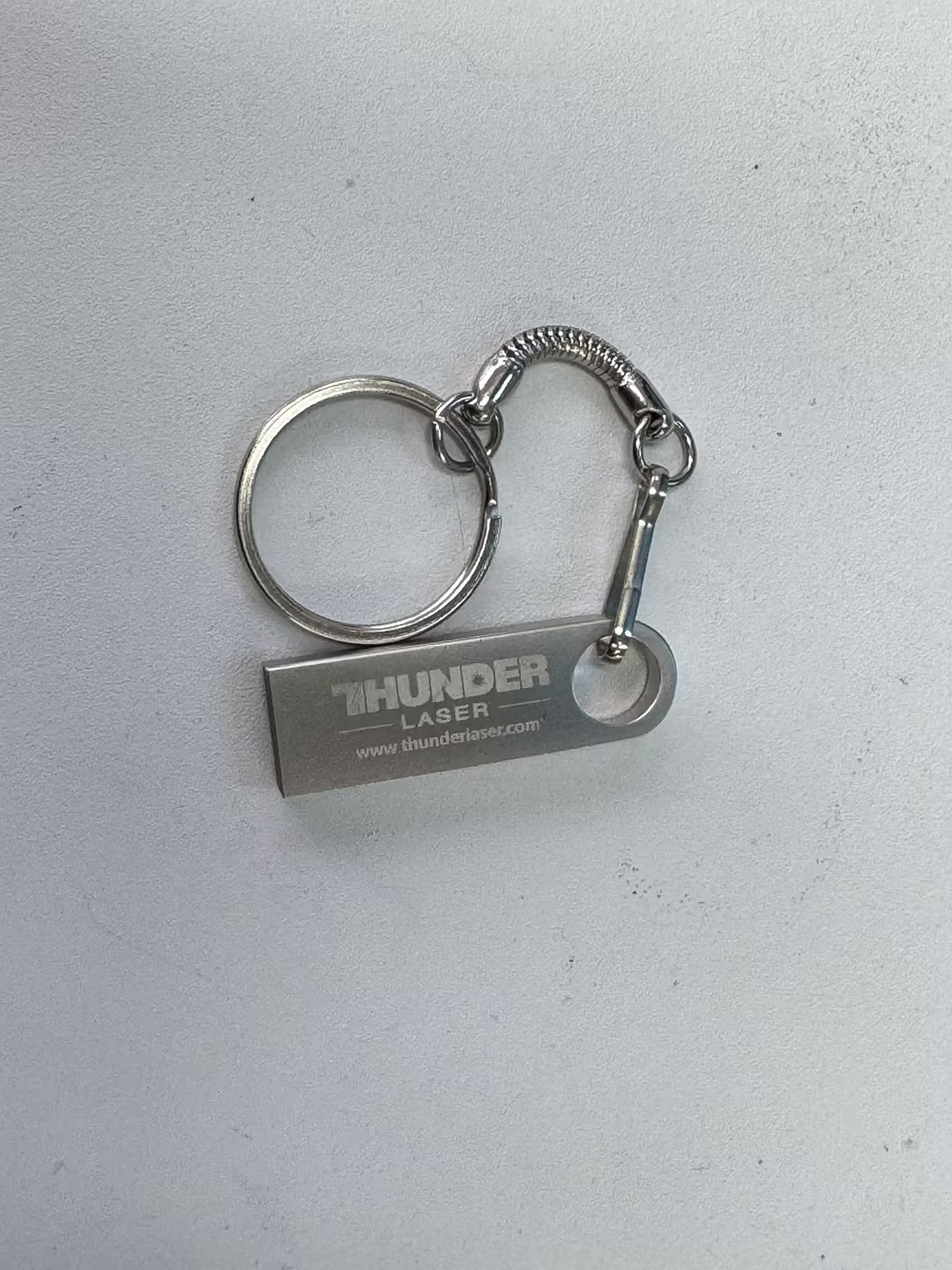

USB Flash Drive

8G(Silver)

pcs

1

The USB flash drive contains the software installation package, QC Sheet Image, Manuals and Other Shipped Documents

31

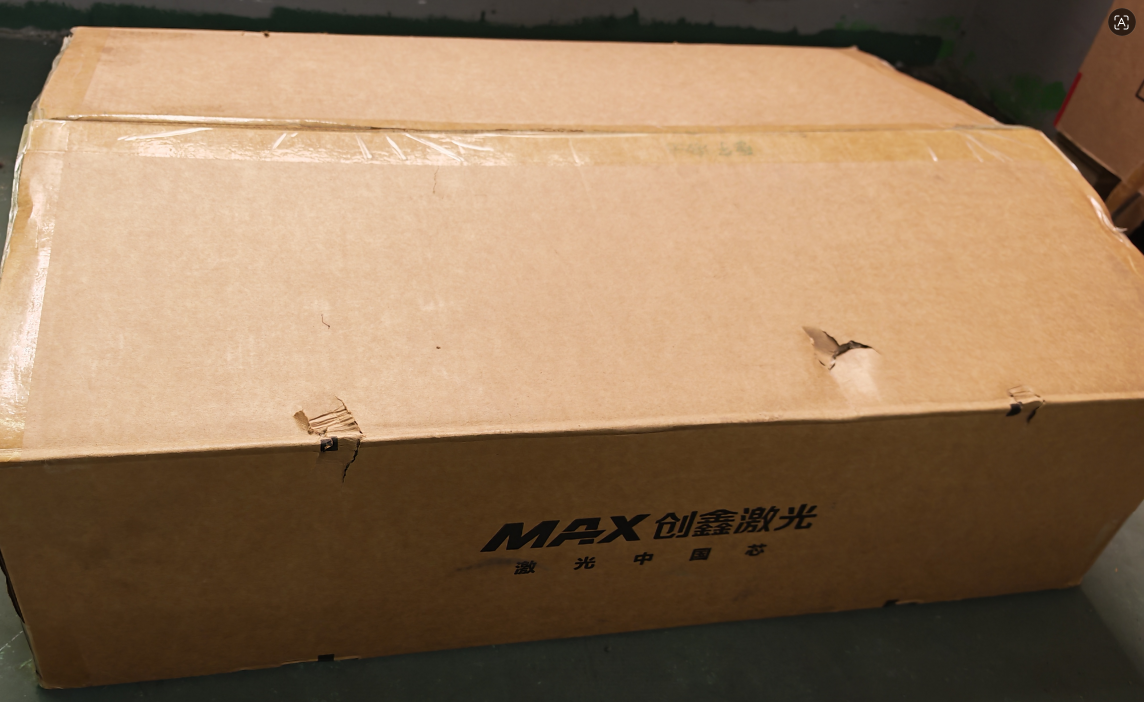

Original Fiber Laser Source Shipping Box

/

pcs

1

Original shipping box for the fiber laser source

32

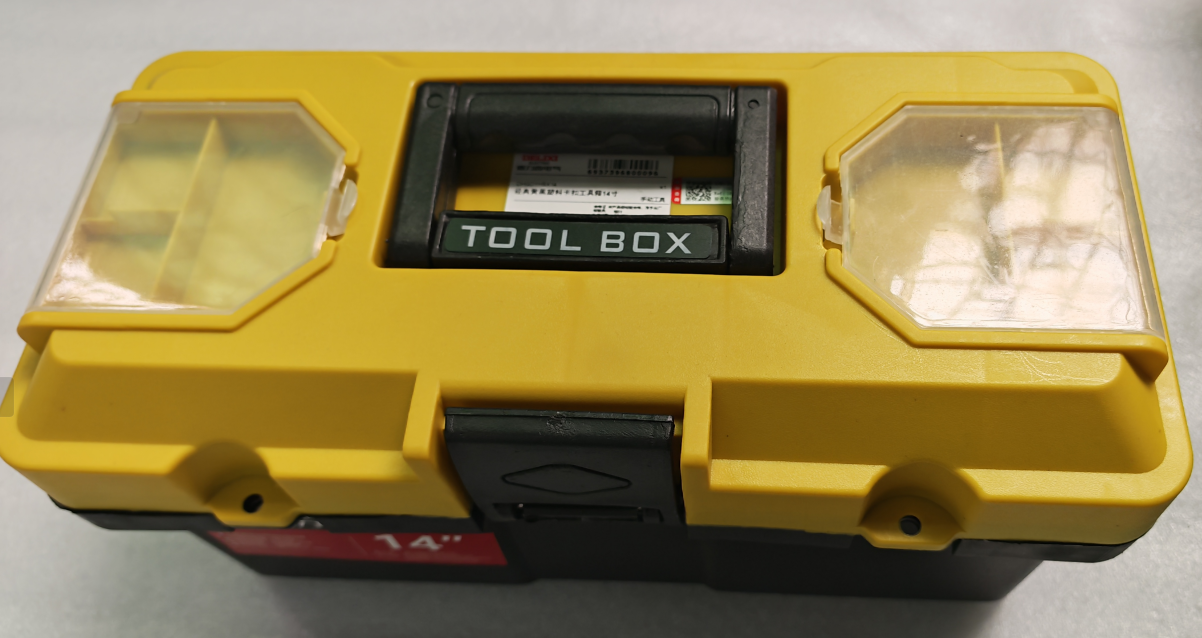

Tool Box

/

pcs

1

Stores maintenance tools and accessories

33

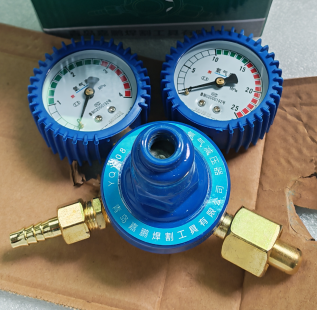

Oxygen Pressure Regulator

YQY-08

pcs

1

Stabilizes oxygen output pressure

34

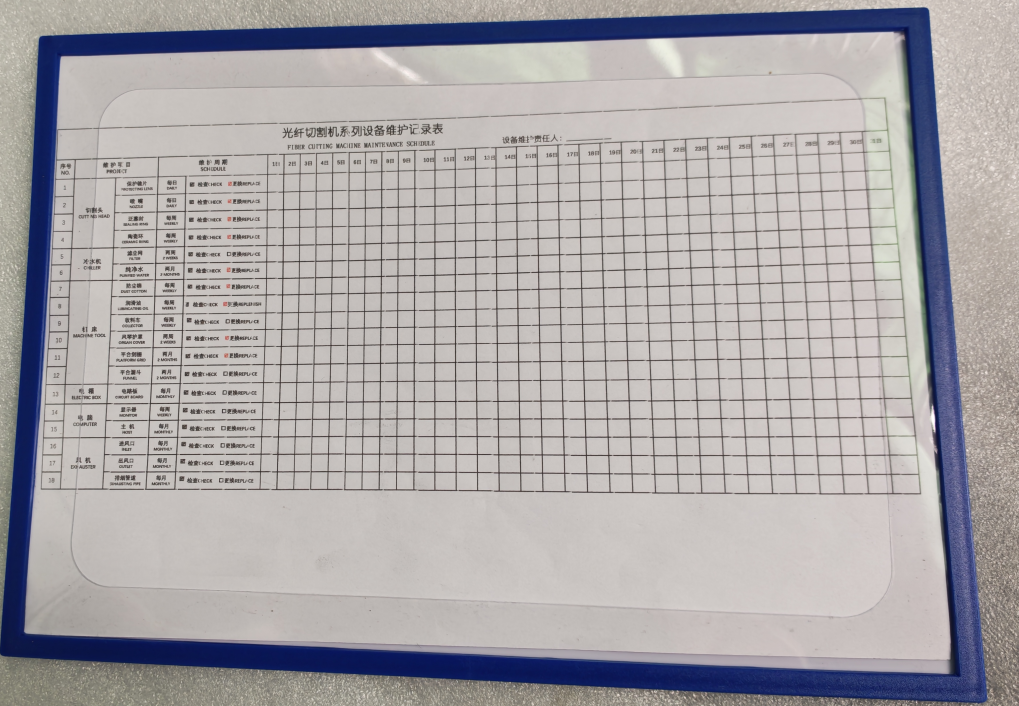

A4 Document Sleeve

A4

pcs

1

Stores maintenance manuals and other documents

35

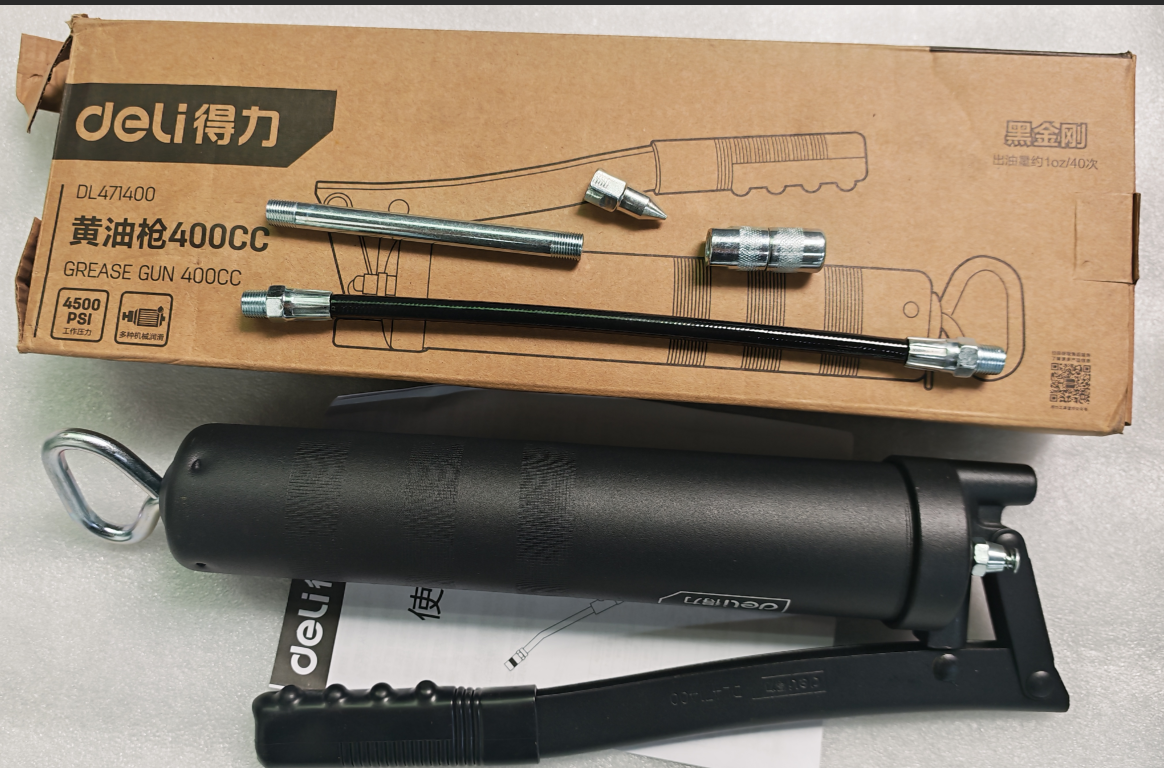

Grease Gun

DL4714, 400 cc, single piston

pcs

1

For applying grease

36

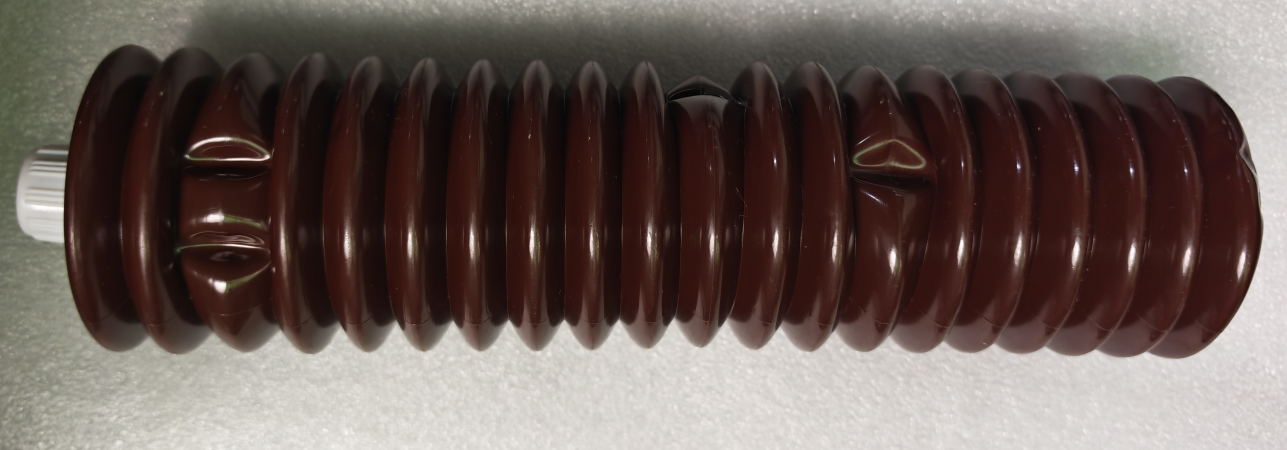

Lubricating Grease

Grease Cartridge400g

pcs

1

Lubricates and prevents rust on moving parts

37

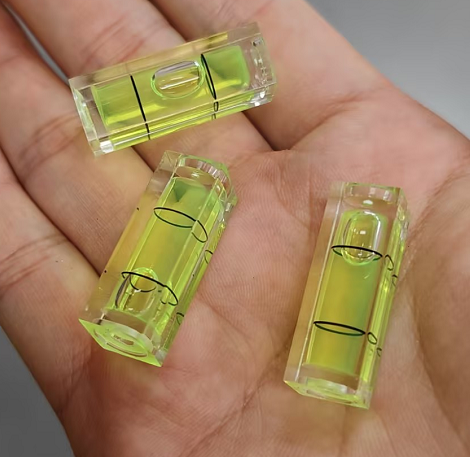

Spirit Level

/

pcs

3

Used to detect horizontal and vertical level of surfaces

38

Power Plug(TBD)

/

pcs

1

/

/
