Item

Tool

Specification

Unit

Quantity in the Toolbox (or standard with the machine)

Pic

Directions for use

1

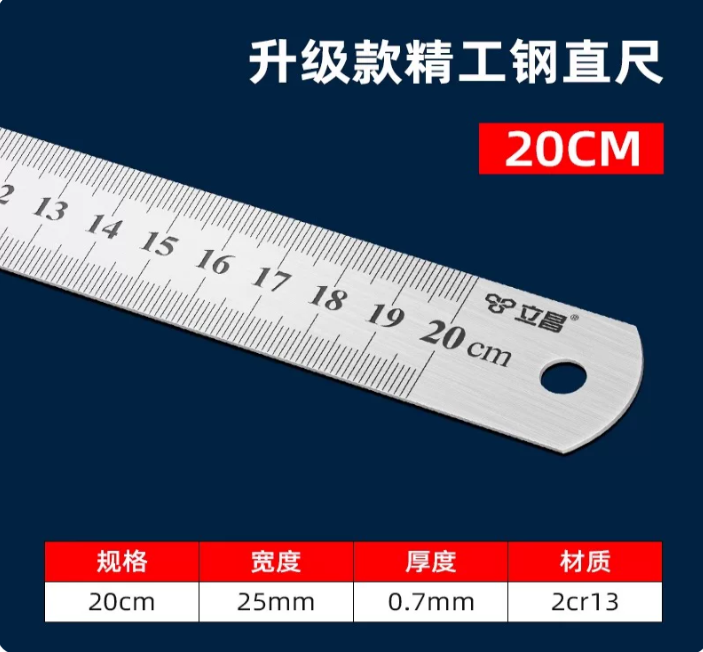

Steel ruler

200mm

piece

1

Level the Build Plate

2

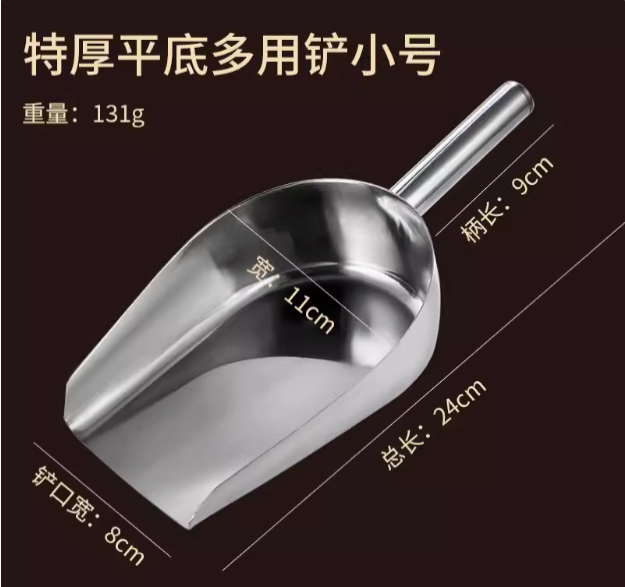

Stainless steel flat-bottomed spade

Small

piece

1

Used for powder loading, sieving and Build Cylinder cleaning

3

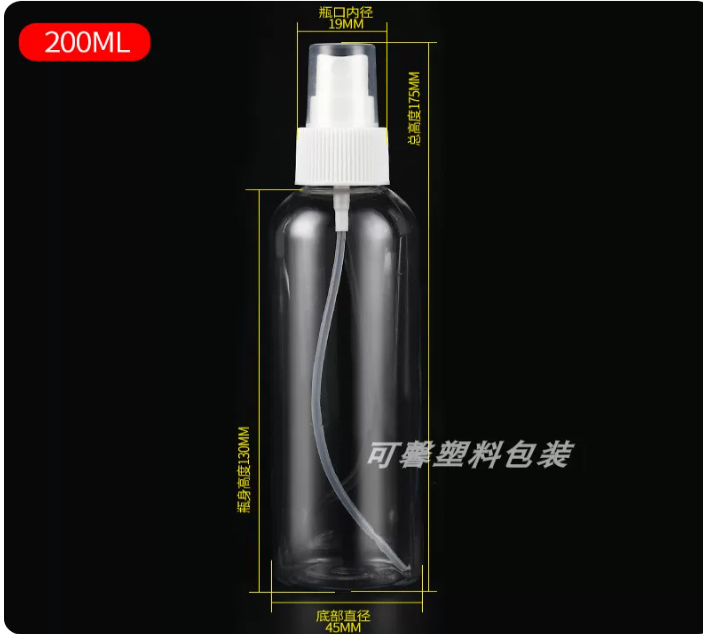

Spray bottle

200ml

piece

1

Clean the buide plate, compartments, etc.

4

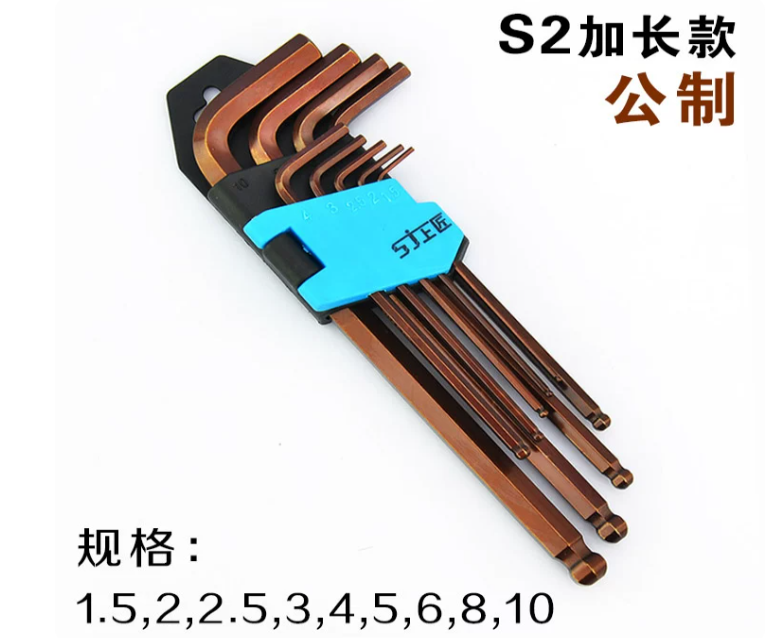

Allen key

S2 Ball End Long Arm

set

1

Install and Remove the Build Plate

5

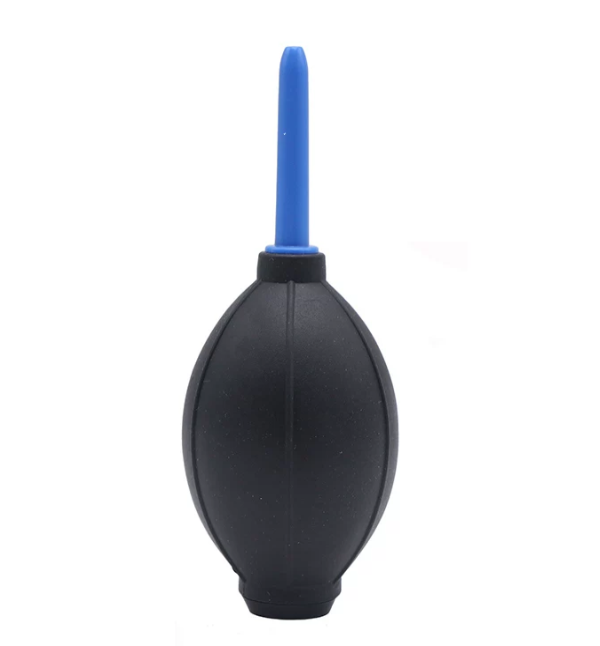

Manual air blower

5.3*14.8cm

piece

1

Dust Blaster for Cleaning

6

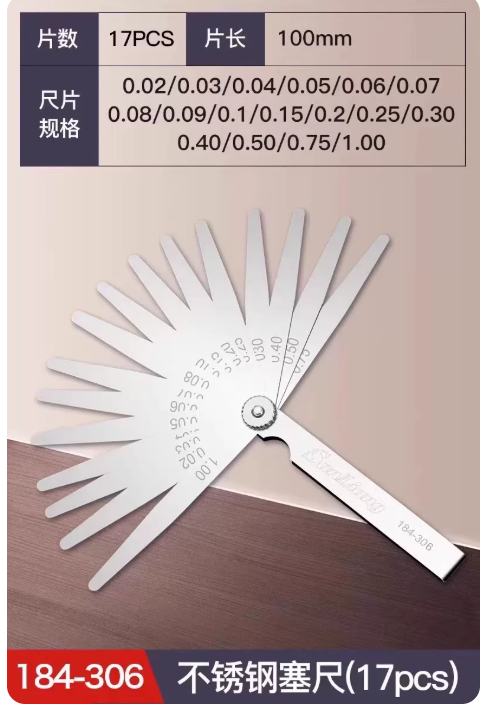

Feeler Gauge

100mm*17 pcs（0.02-1.00mm）

piece

1

used to measure the clearance between the recoater blade and the build plate after blade replacement.

7

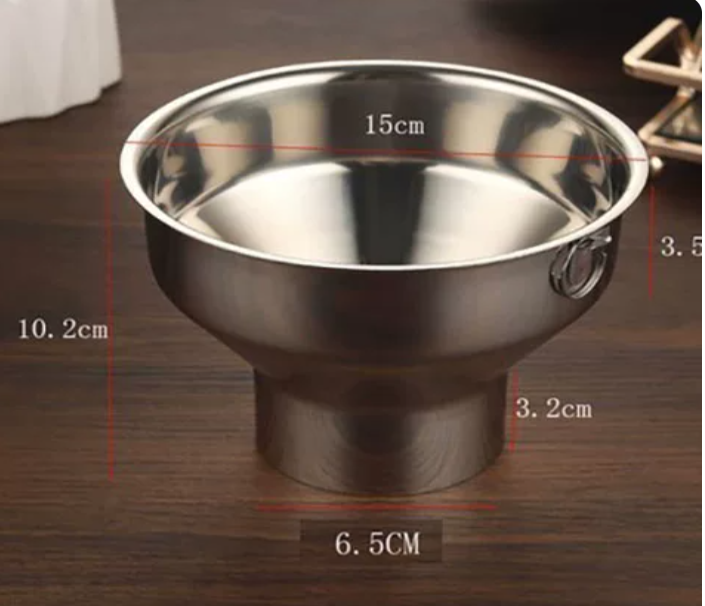

Funnel

304 Stainless Steel (Top Ø150 mm / Bottom Ø65 mm), without filter mesh

piece

1

used for powder loading into the powder cylinder.

8

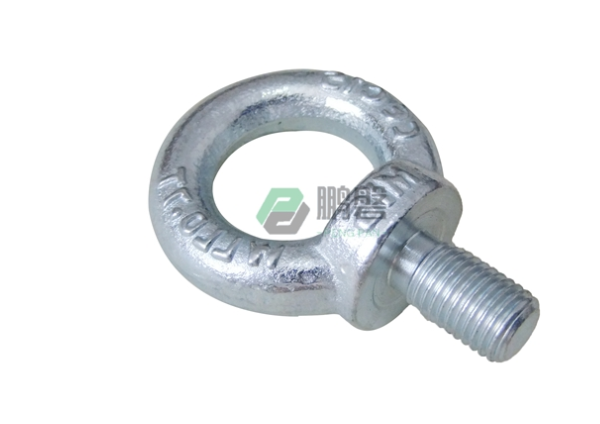

Lifting Eyebolt

M8

piece

2

used for lifting the build plate during machine loading and unloading.

9

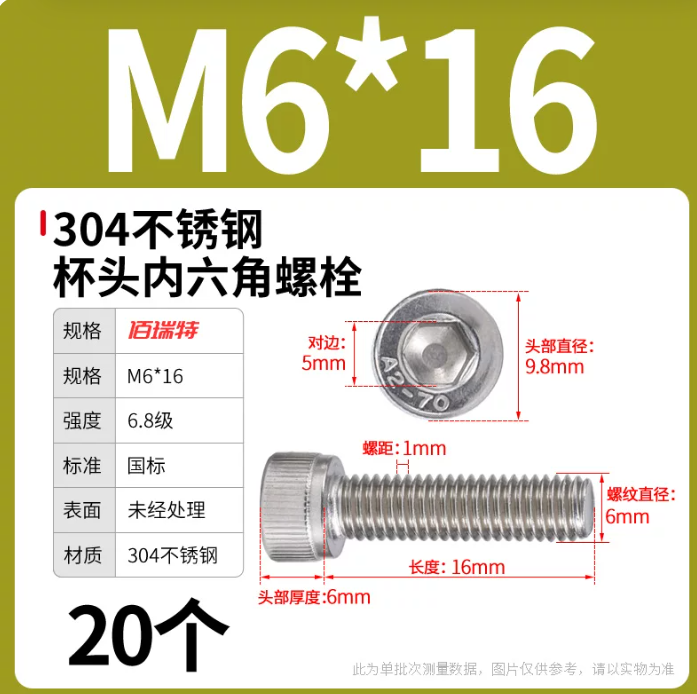

Screw

M6*16

piece

4

used for securing the diagonal mounting points of the build plate.

10

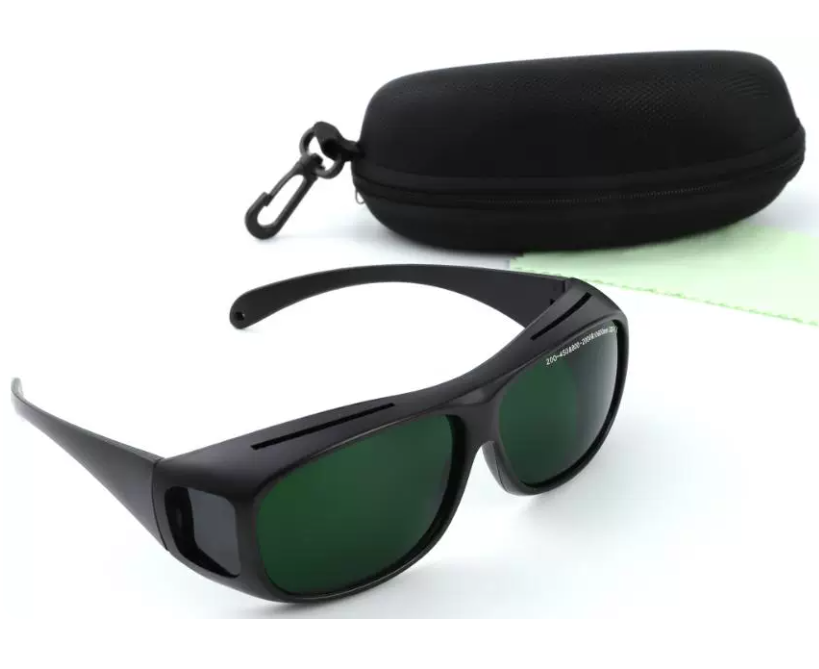

Safety Goggles

1064nm

Pair

1

Protect eye

11

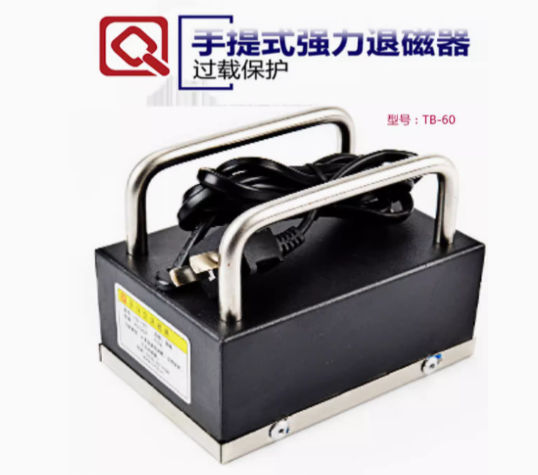

Handheld Demagnetizer

set

1

used for build plate demagnetization.

12

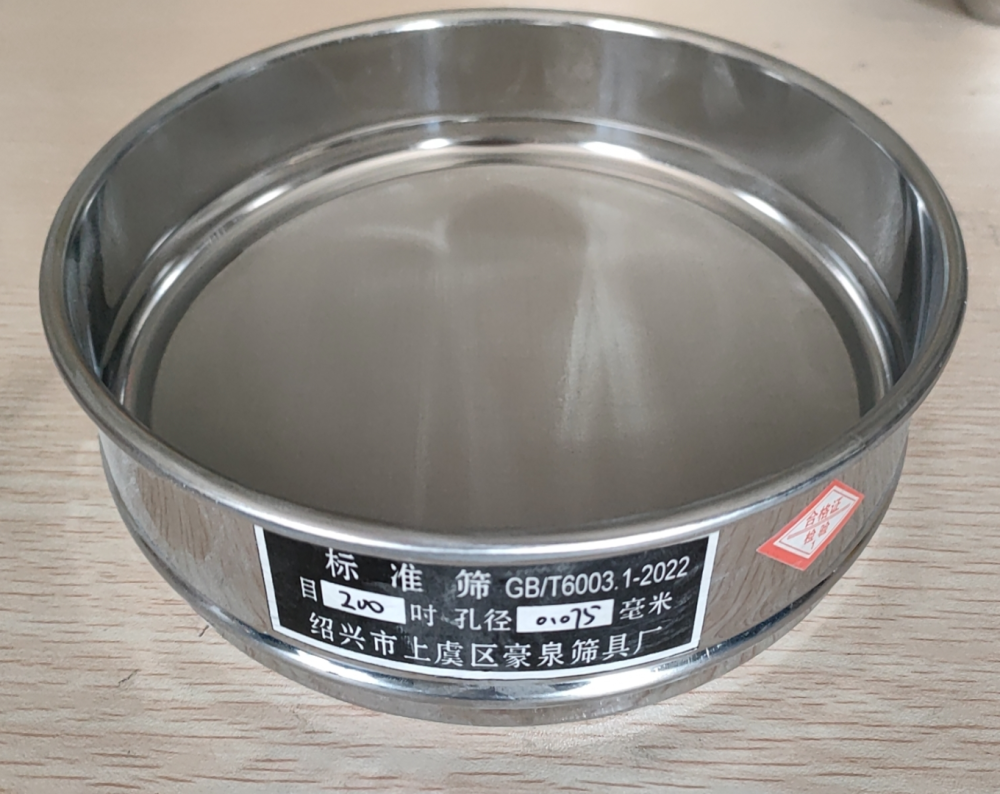

Sieve Mesh / Powder Sieving Machine

Ø200 mm, 200 mesh, 0.075 mm aperture

set

/ (recommend to source in local)

used for powder sieving.

13

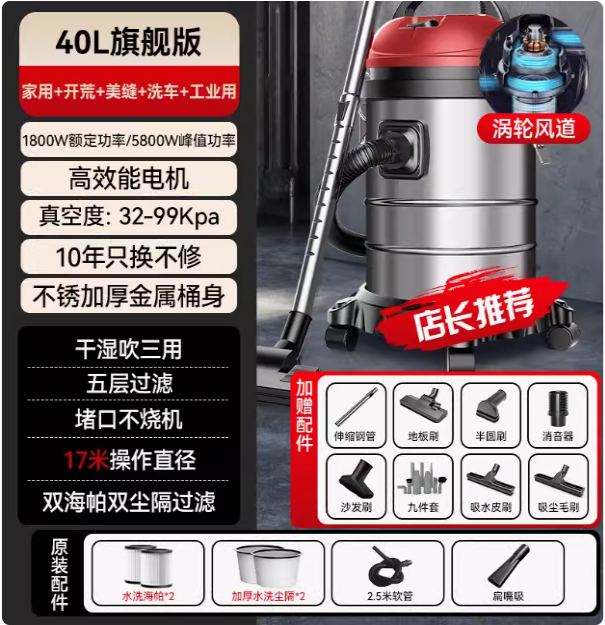

Metal Powder Vacuum Cleaner

set

/ (recommend to source in local)

used for removing black residue and residual metal powder from corners.

14

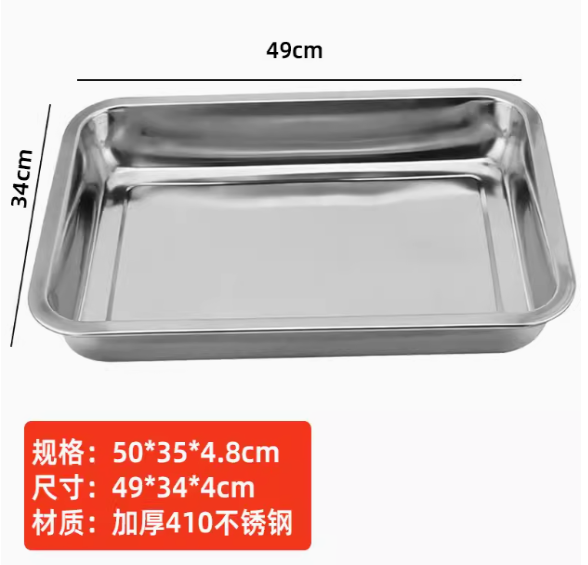

Stainless Steel Tray

50*35*4cm

piece

/ (recommend to source in local)

used for part removal after printing, powder loading, and powder drying.

Item

Consumable

Specification

Unit

Quantity in the Toolbox

Pic

Directions for use

1

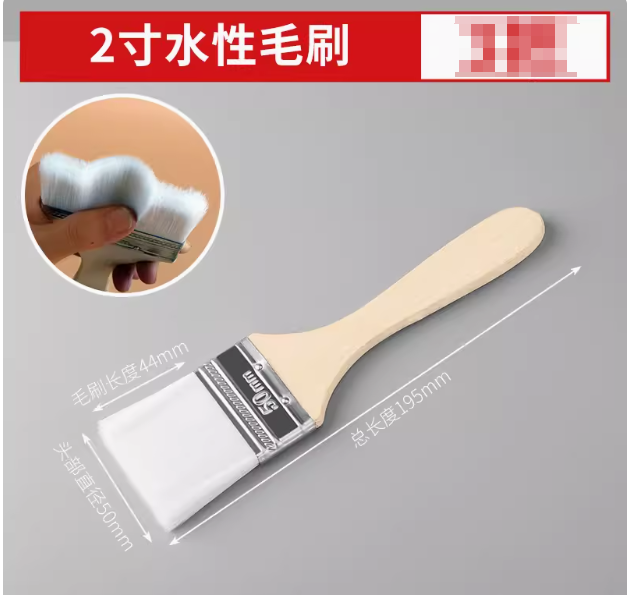

Brush

2 inch, (45 mm bristle width)

piece

2

Used for powder collection, retrieval, and cabin cleaning, etc.

2

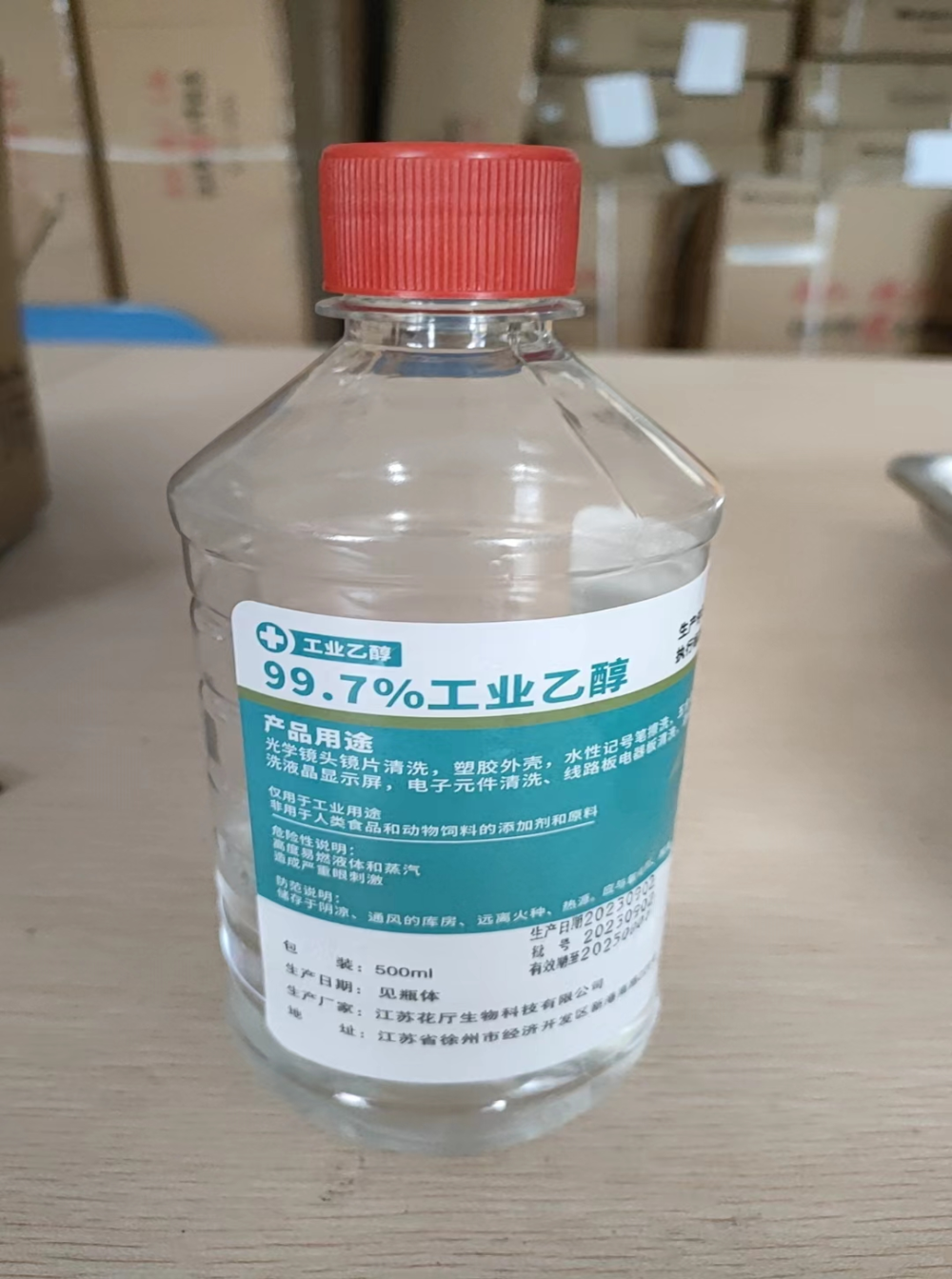

Industrial Alcohol

≥99% purity

bottle

1

Used for cleaning substrates, compartments, etc.

3

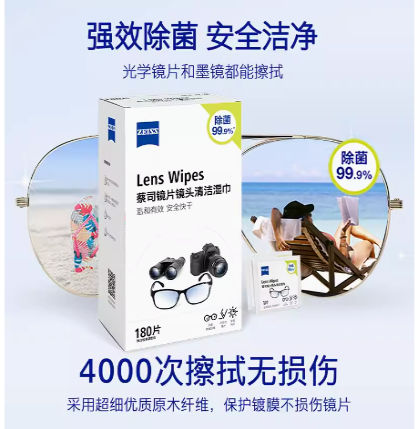

Lens Cleaning Wipes

ZEISS brand

box

20 pcs

Used for cleaning the glass panels on the top of the cabin

4

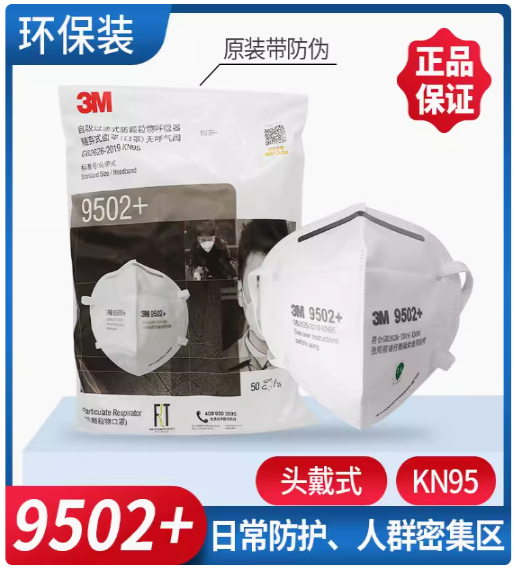

N95 Respirator Mask

3M brand

bag

5

Short-term operation of equipment, powder protection usage

5

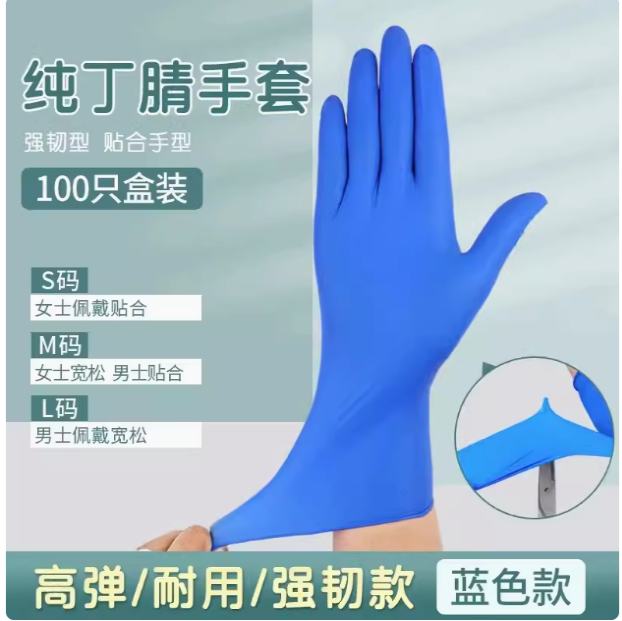

Disposable Nitrile Gloves

Size L, high-elasticity and heavy-duty type

box

20 pcs

Contacting powder during loading, unloading, and sieving the powder

6

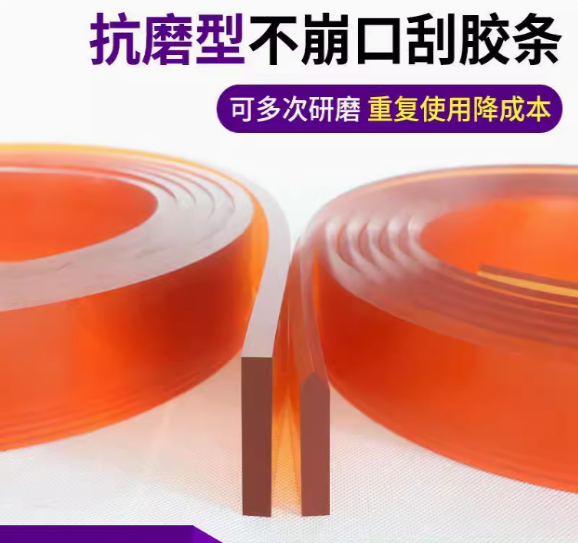

Rubber Squeegee Blade

35 × 7 mm, sharp edge, 75 Shore A hardness, 1 m length

meter

6 pcs

After the scraper wears out and cannot be repaired, it should be replaced. The cutting length for each section is 190mm.

7

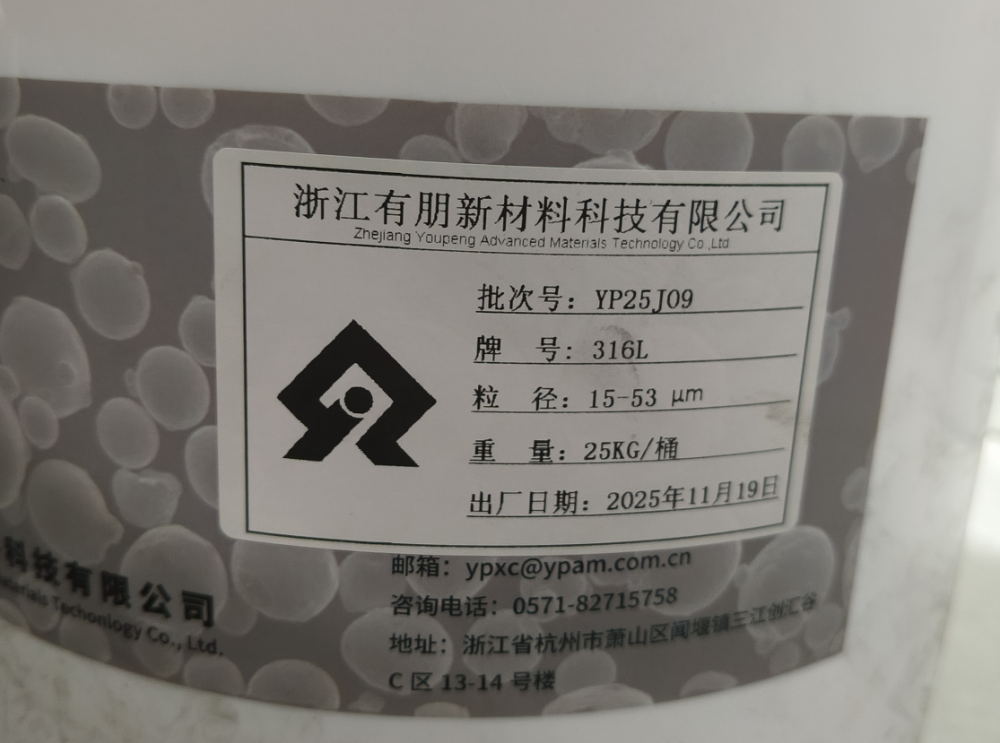

316L Stainless Steel Metal Powder

particle size 15–53 μm

bucket

50kg

consumables for printing

8

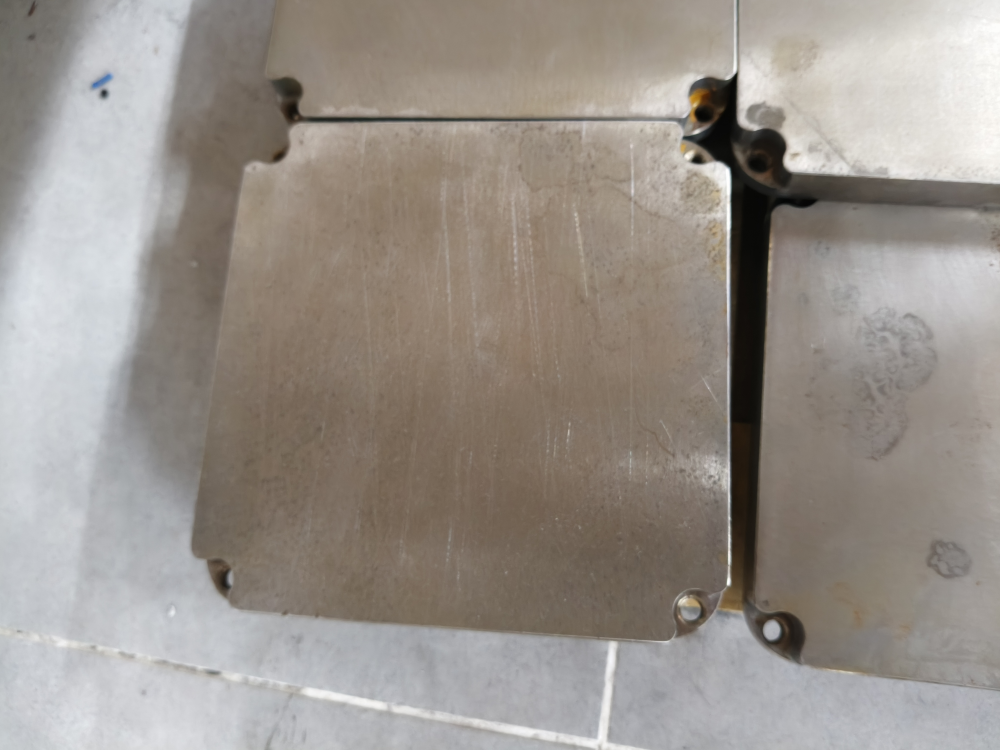

Build Plate

45# Steel

piece

3（1 in the machine，2 for spares in the toolbox）

The basic medium for printing

9

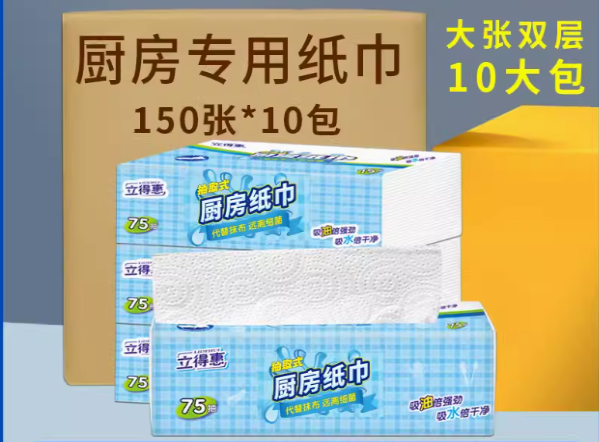

Kitchen Paper Towels

no specific requirements

bag

/ (recommend to source in local)

Spraying alcohol to wipe the substrate, cleaning the compartments, etc. (It is slightly harder than ordinary tissues, easy to use and doesn't easily tear, and cheaper than dust-free cloths)

10

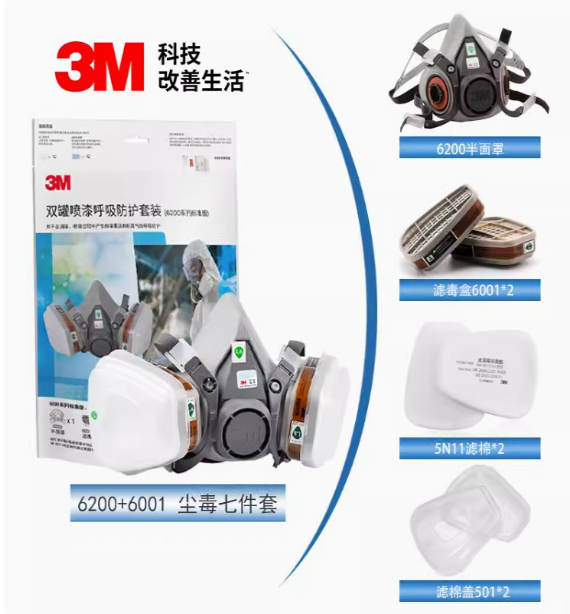

Respirator Mask

3M brand, Model 6200

set

/(recommend to source in local)

Long-term operation of equipment, special protection for powder sieving
