Power Alarm on AURORA 8 PRO（50QB）

The issue usually occurs on AURORA 8 PRO（50QB）.If you have the same problem with other AURORA models, please contact us:tech@thunderlaser.com

Problem describe

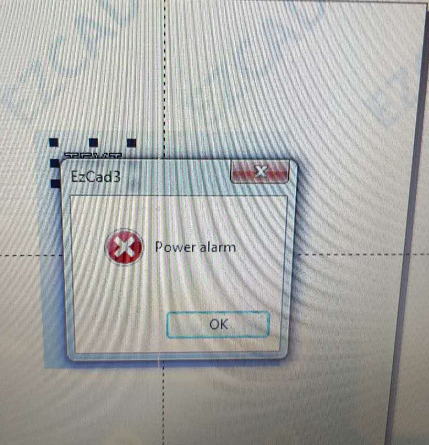

Ezcad 3 show  error" Power alarm"

Reasons：

1. Unstable voltage with laser source

Solution：

Measure the voltage of laser source, here is a video.

Open the side door, fiber source installed here. Unplug the gray cable, then measure the voltage.

Video link:https://www.youtube.com/watch?v=rzHG8gOEfpQ

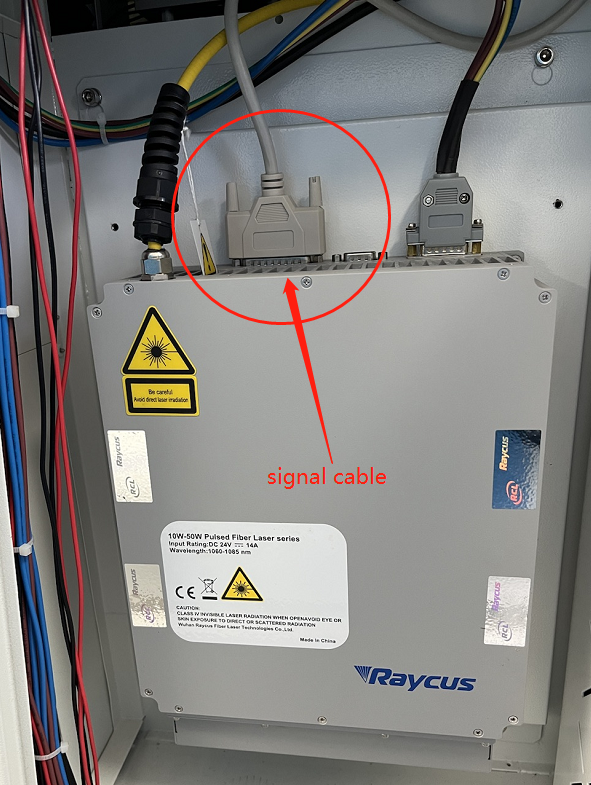

2. Unstable signal between the controller and laser source

Solution:

Please unplug the signal cable between the controller and laser source.

If still cannot help above, submit a ticket, email to tech@thunderlaser.com.

End
