Lightburn Material Test for All RF Tubes

Lightburn Material Test for All RF Tubes

Test with 3mm plywood, LightBurn software，Engraving(Fill) and Cutting(Line) modes, 30W, 55W RF tubes.

Engraving(Fill)

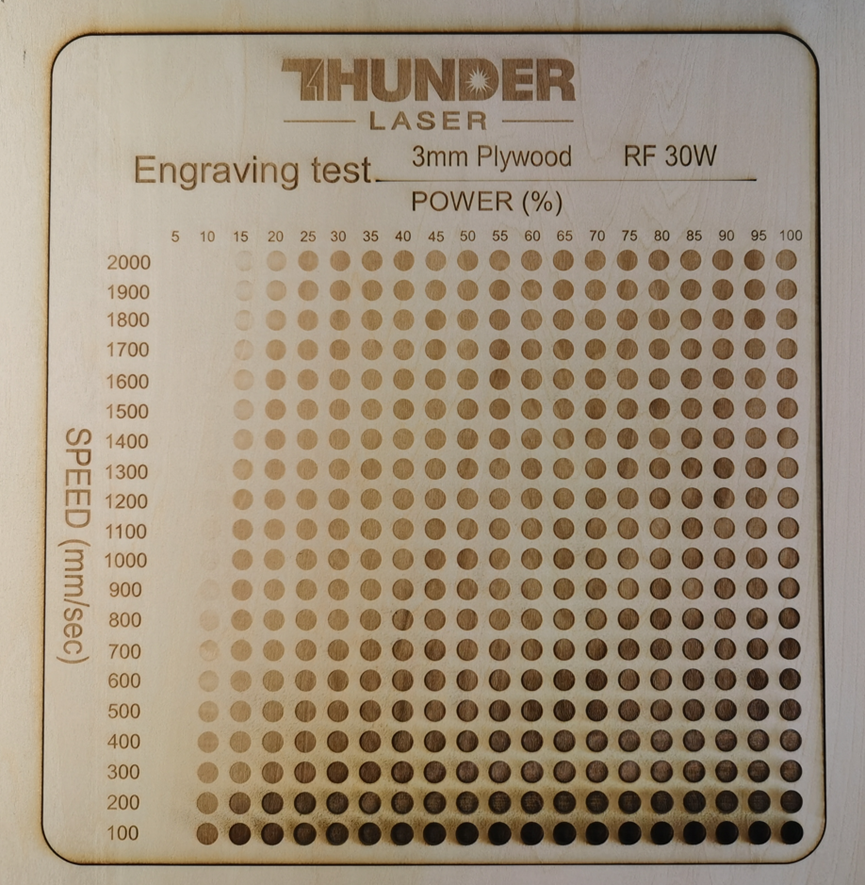

30W

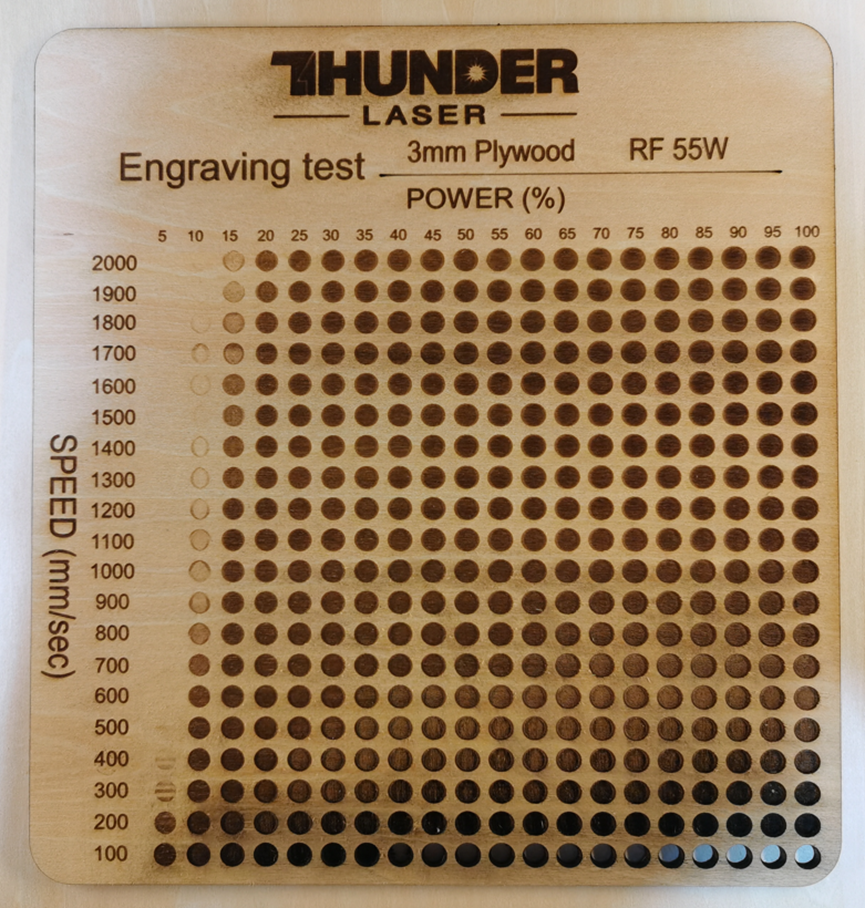

55W




Cutting(Line)


30W

cutting is coming

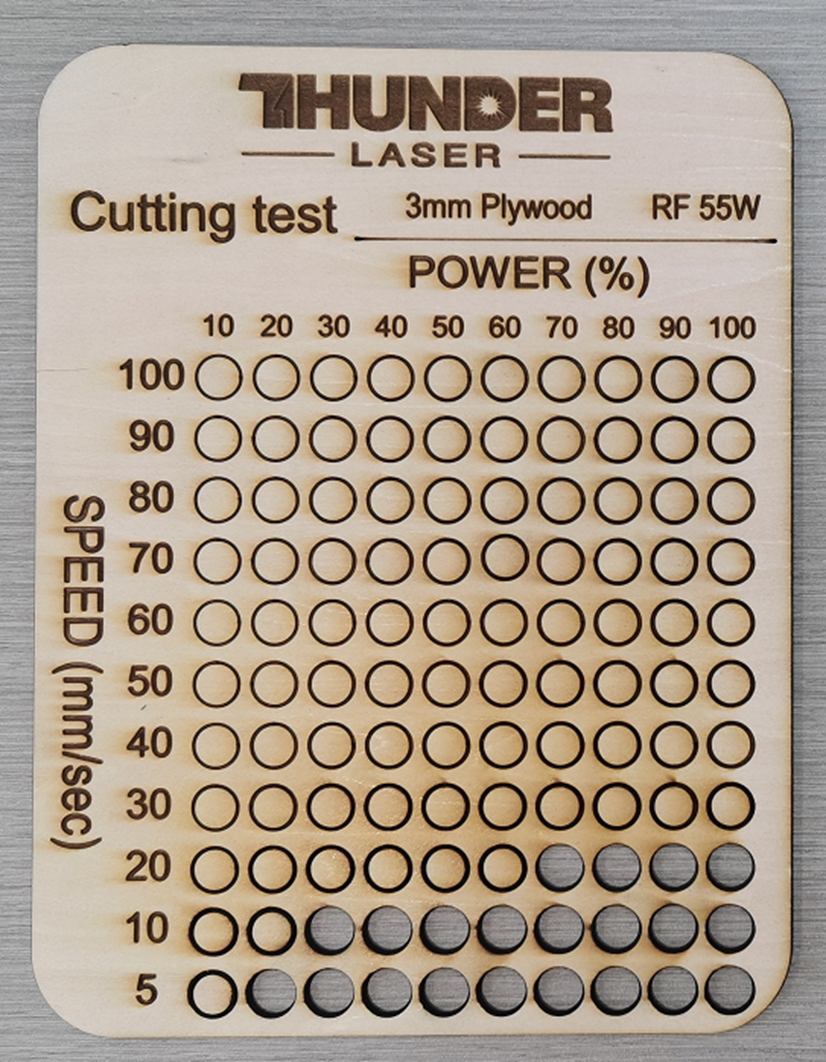

55W



Note: If the circle does not close, it is caused by the minimum power setting being too low. Please email to tech@thunderlaser.com .

Material test file download

The lbrn files are attached


END
