How to adjust the honeycomb table to level

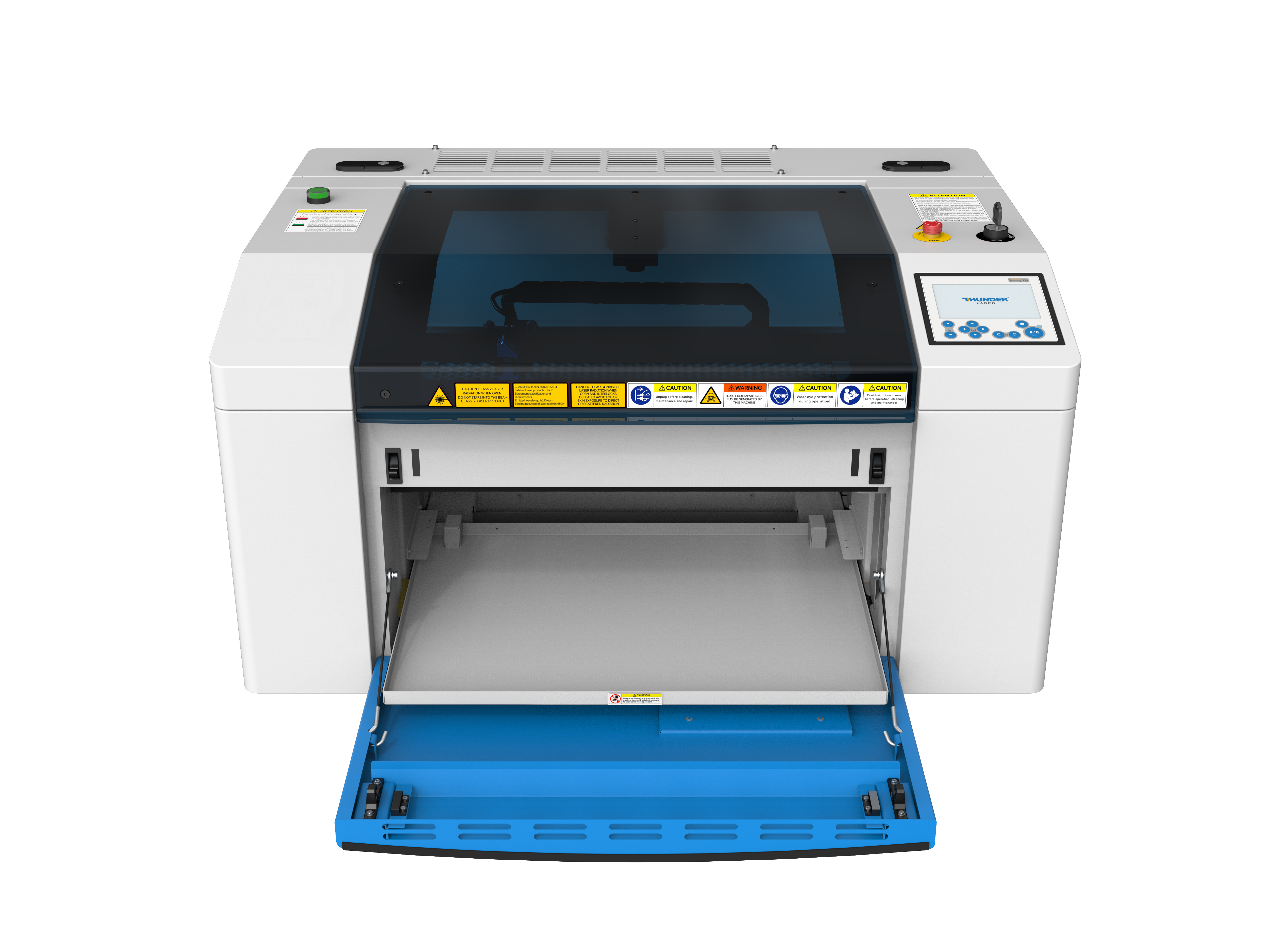

1. Open the front door and remove the drawer.

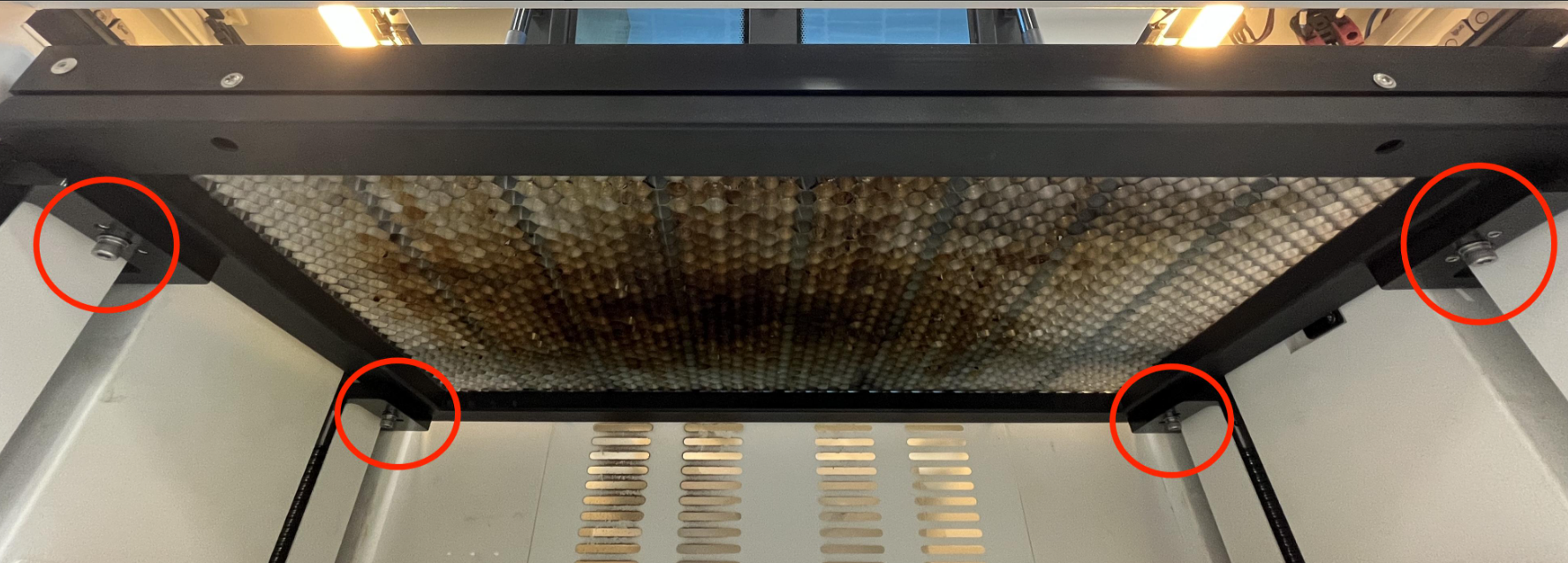

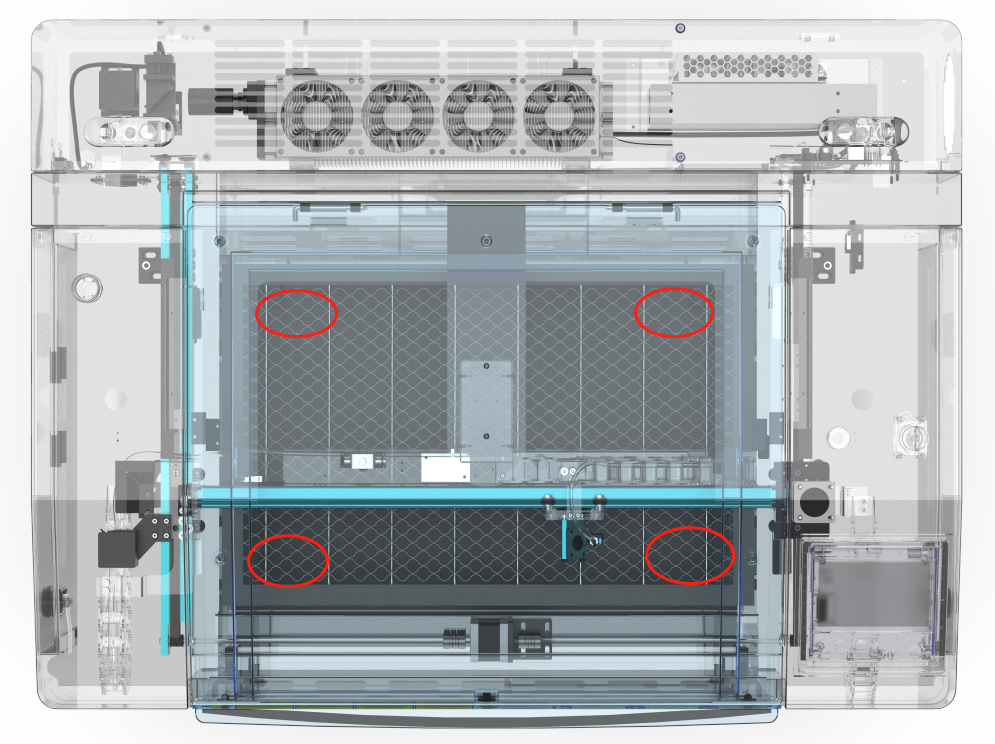

2. These four screws are used to secure the table holder.

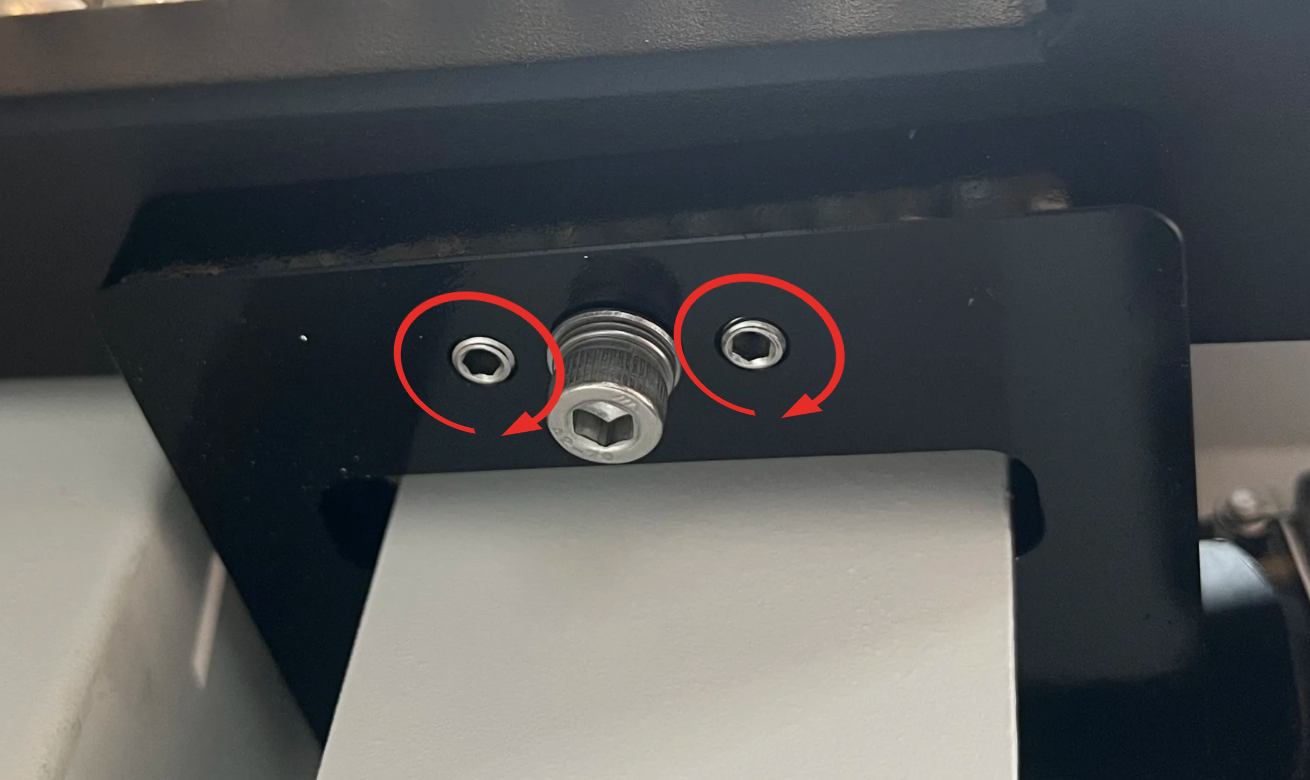

3. Unlock the set screws.


   During the adjustment process, it is necessary to observe the change in height and to re-lock the fixing screws after each corner has been adjusted.

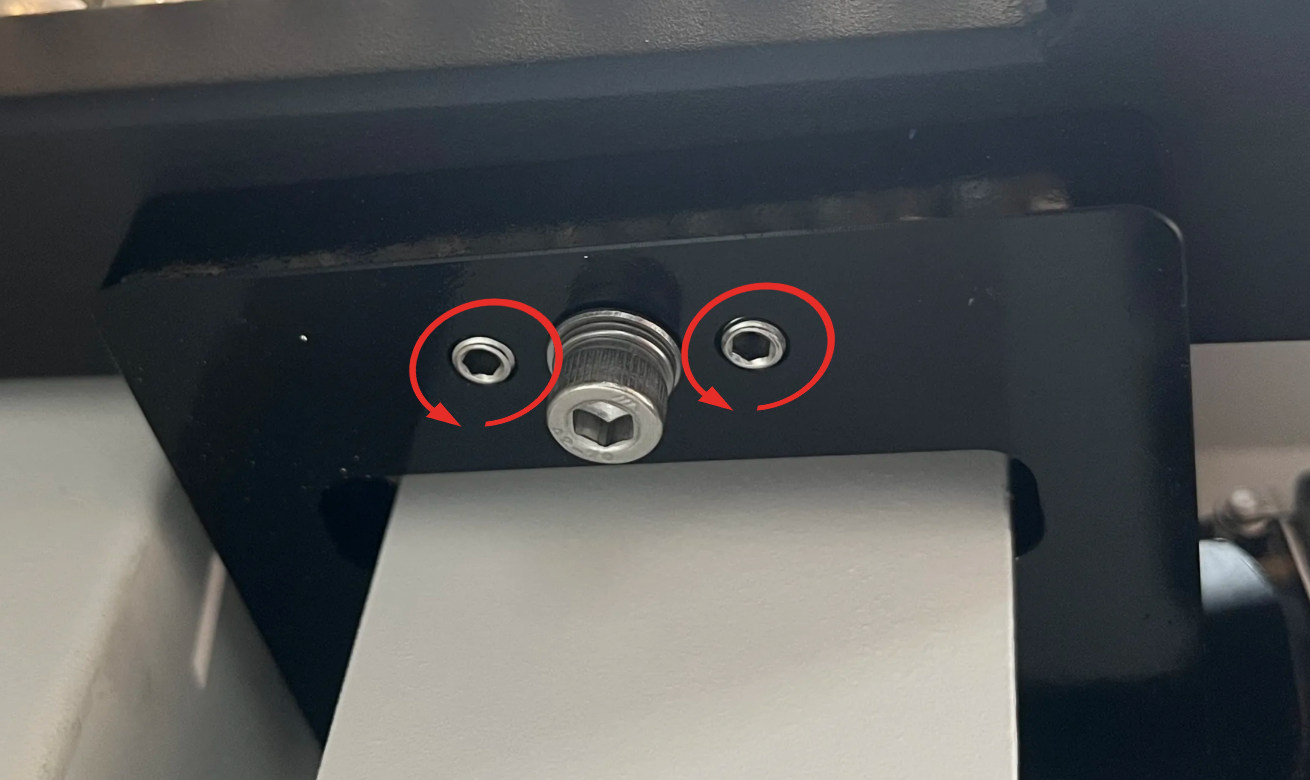

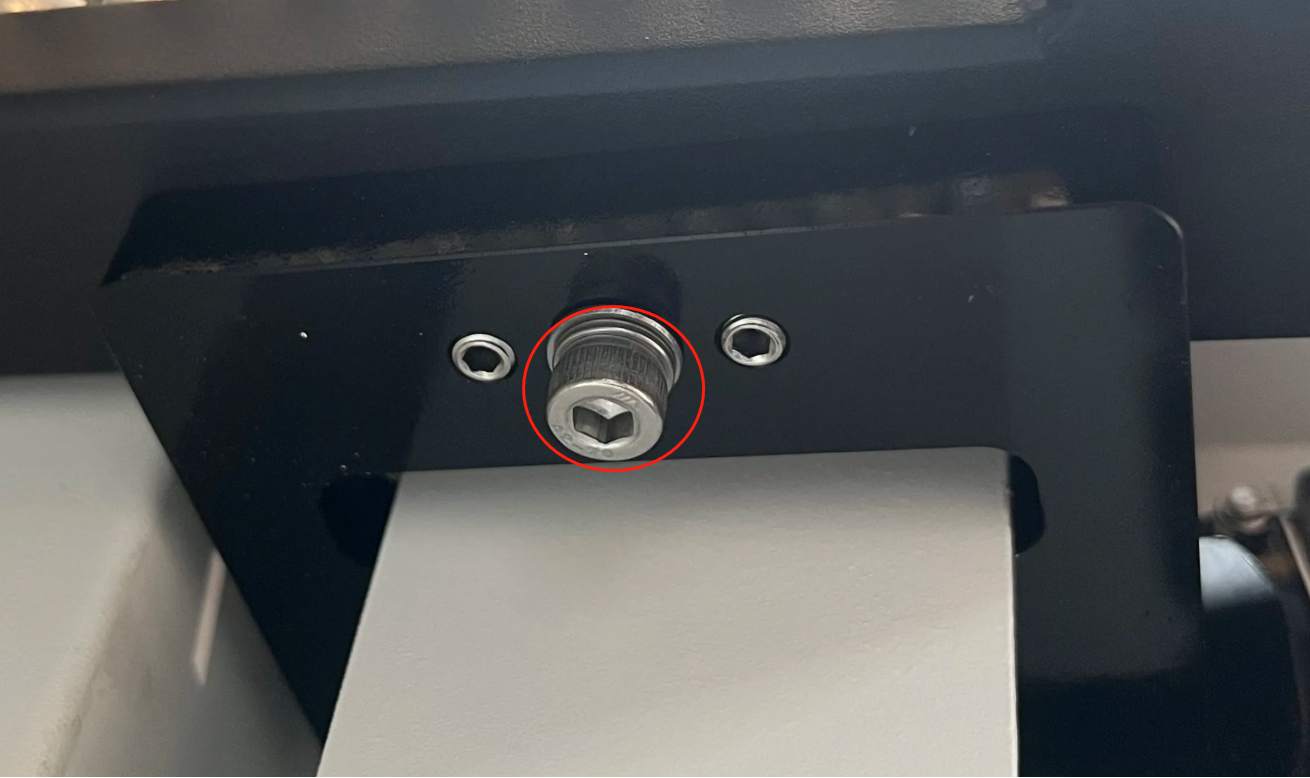

   a. Adjust the bolt clockwise to make the honeycomb table upward.

   b. Adjust the bolt counterclockwise to make the honeycomb table downward.



Check that the honeycomb table is level

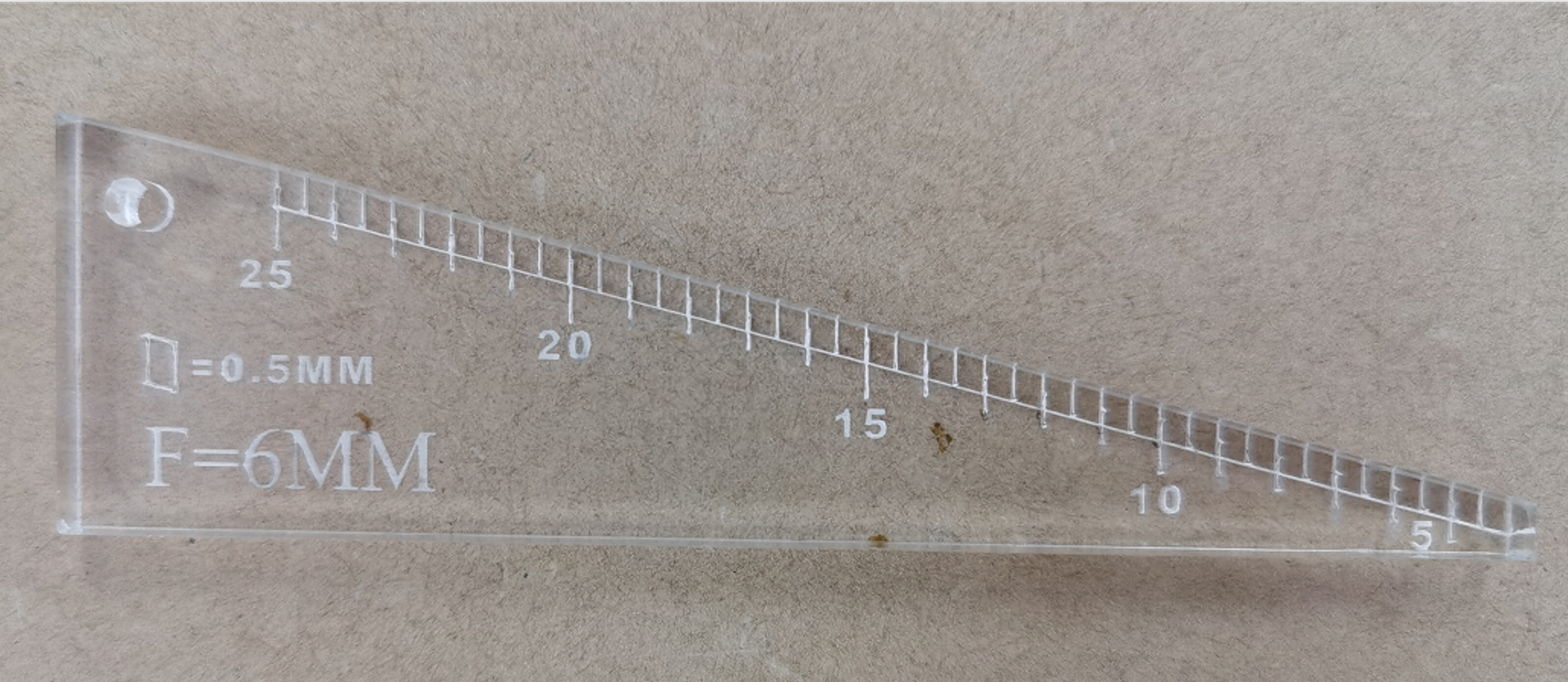

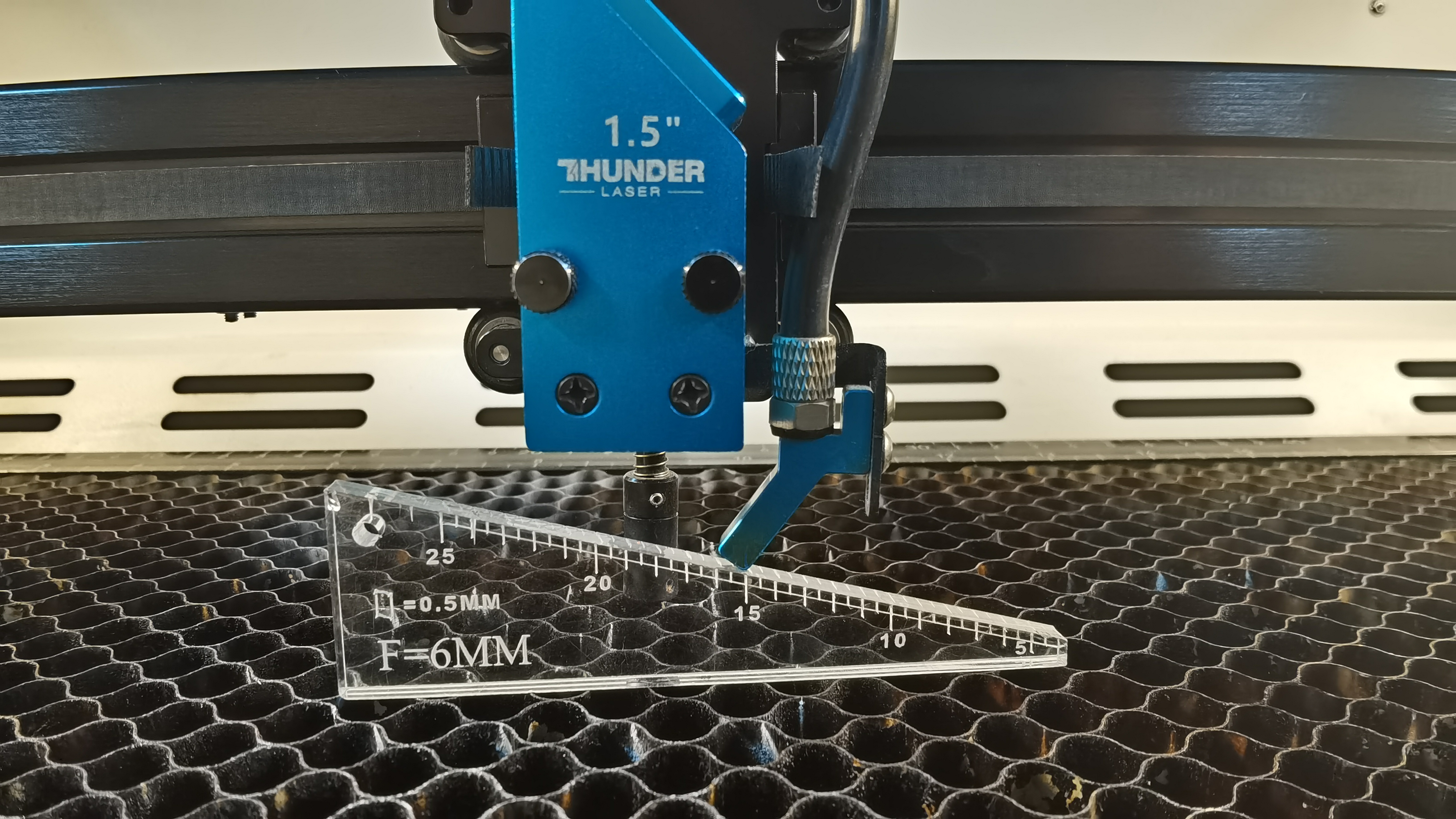

You can find a reference object, we use an acrylic ruler in this article. You also can make one.

Here is the sample file: Ruler

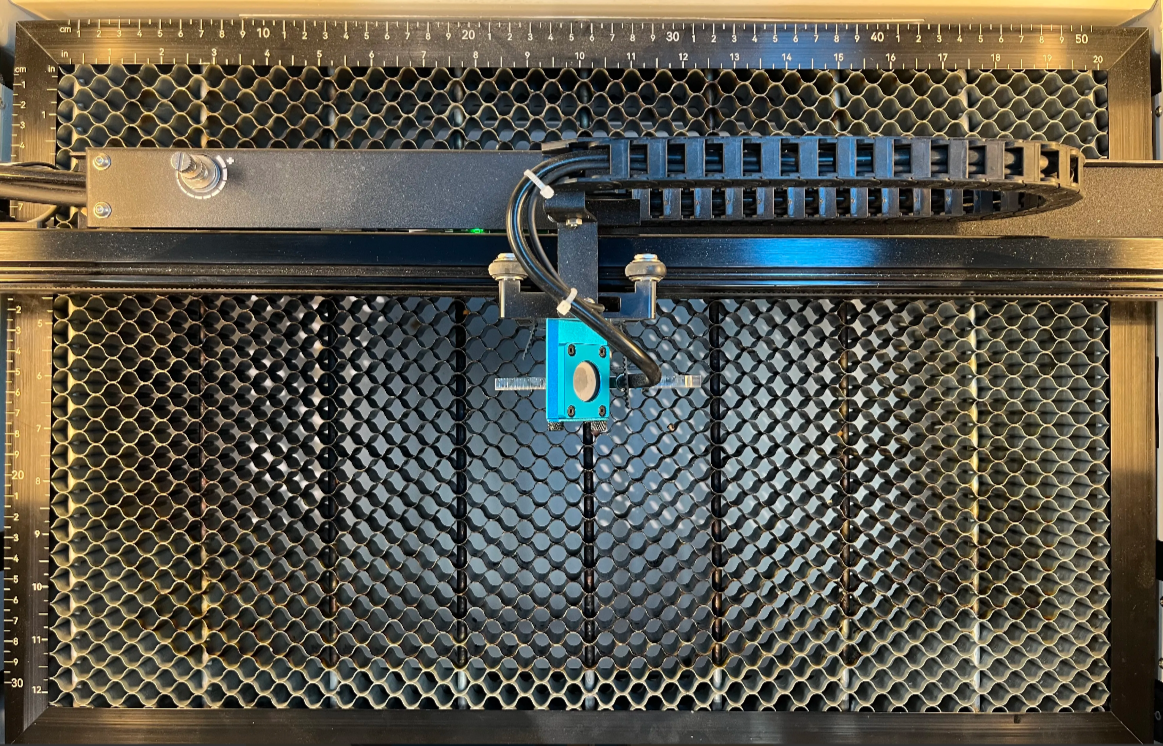

1. Please move the laser head to the center of the table.

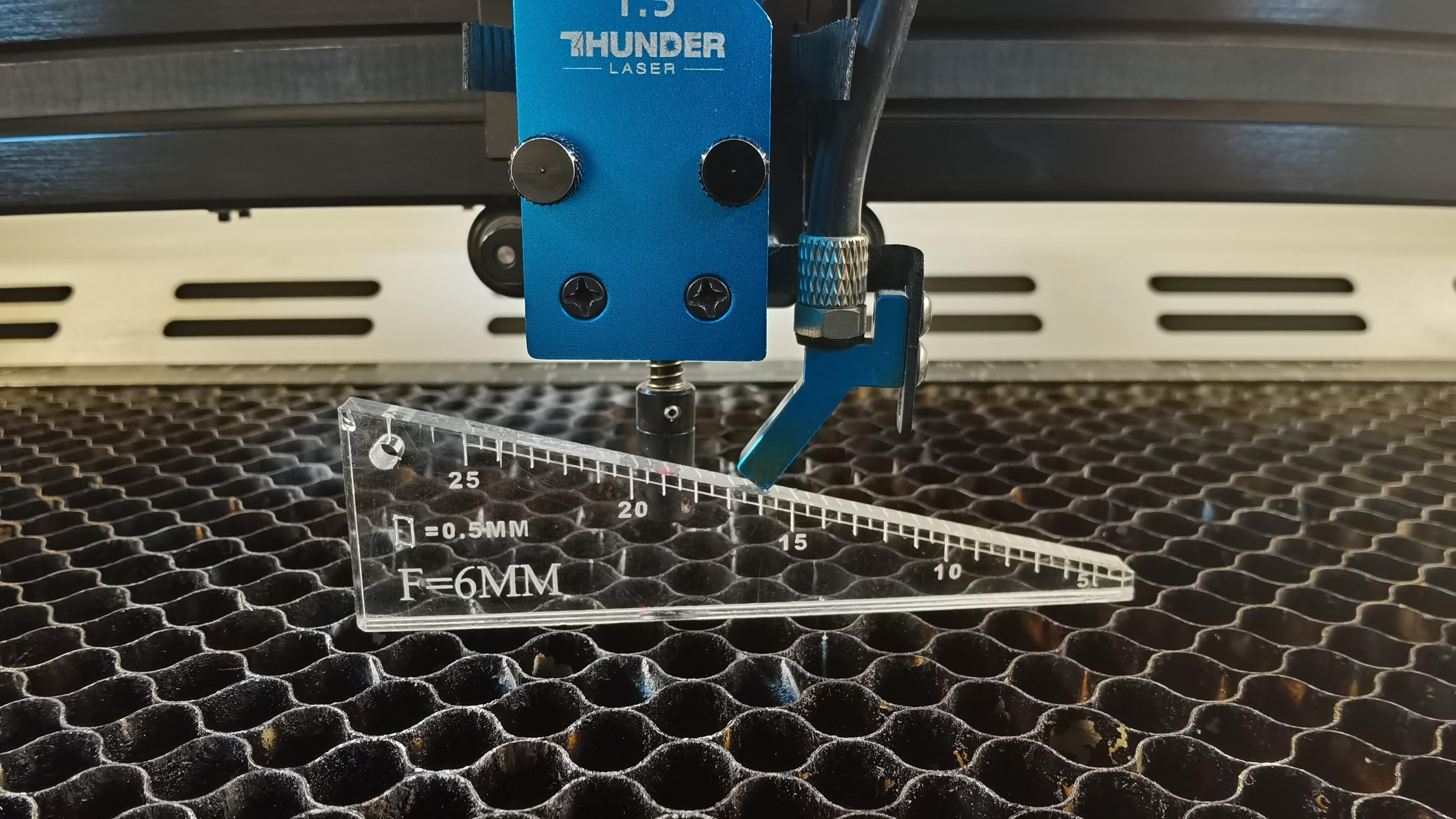

2. Adjust the height of the air nozzle to the honeycomb table to 15mm.

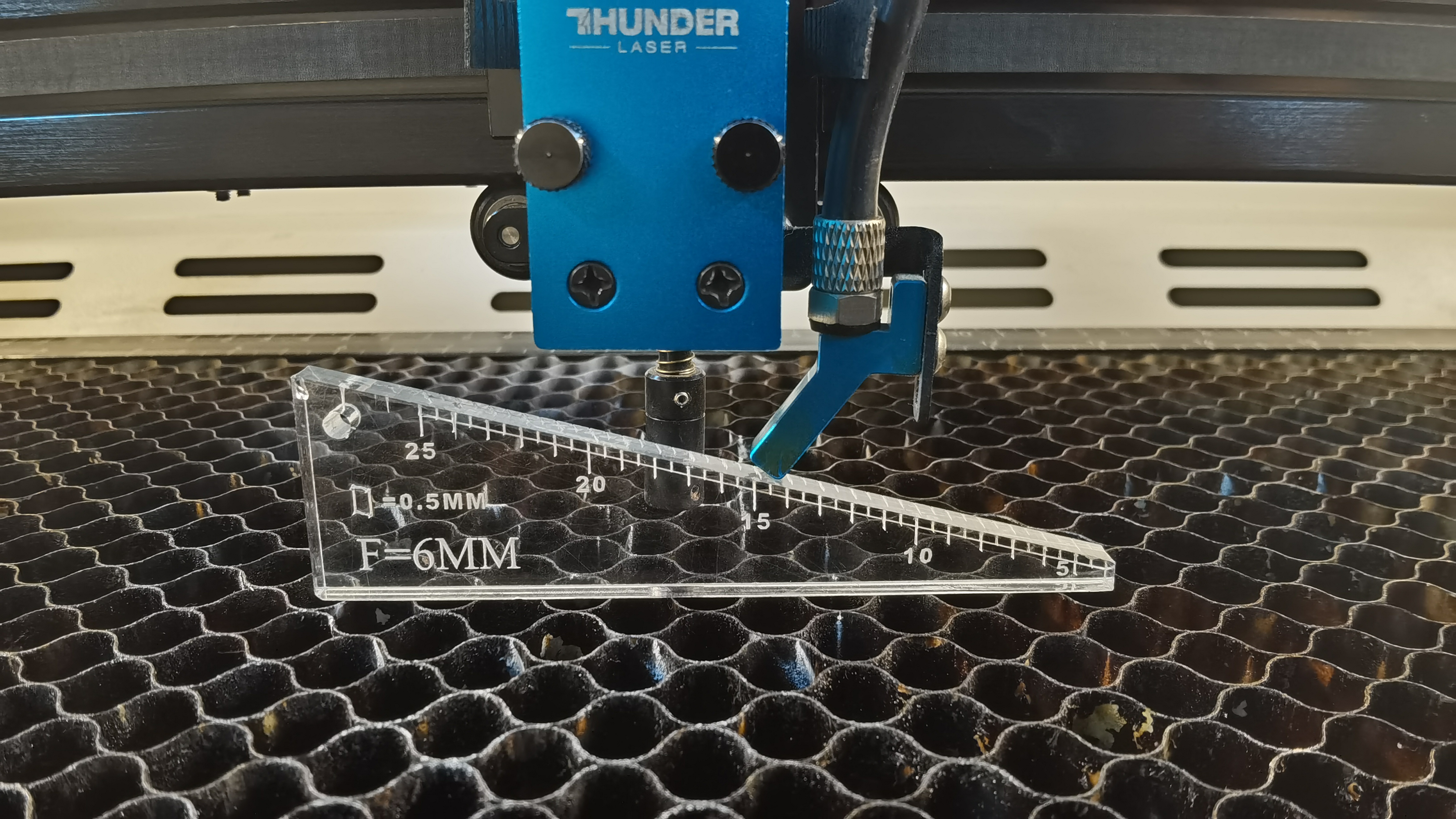

3. Then check the height from the air nozzle to the table at the four corners.
   The standard error does not exceed 0.5 mm.)

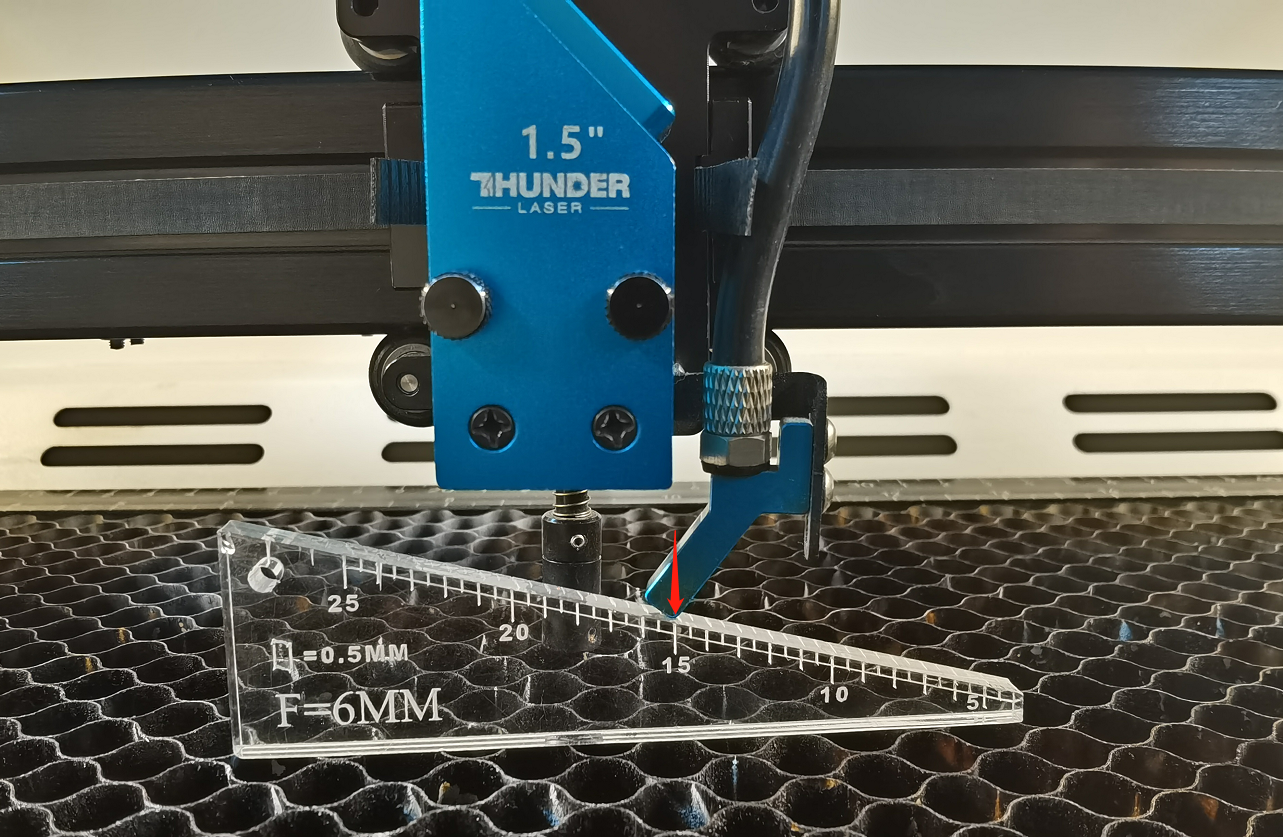

   A height of less than 15 mm indicates a high honeycomb table.

   Then it needs to be re-adjust.

   A height higher than 15 mm indicates a low honeycomb table.

   Then it needs to be re-adjust.

   A height equal to 15 mm indicates that the honeycomb table is level.




Here is a video that shows how to level the honeycomb table, also can reference it.

Level your Honeycomb table on Thunder Bolt
