Level the Honeycomb Bed on TITAN Series

Level the Honeycomb Bed on TITAN Series

Preface

This guide provides detailed instructions on how to horizontally adjust the honeycomb bed on the TITAN series, offering operational steps and technical support to help users efficiently complete configuration tasks.

Tools Required

M5 Allen wrench

Specific steps

How to adjust the honeycomb bed to level

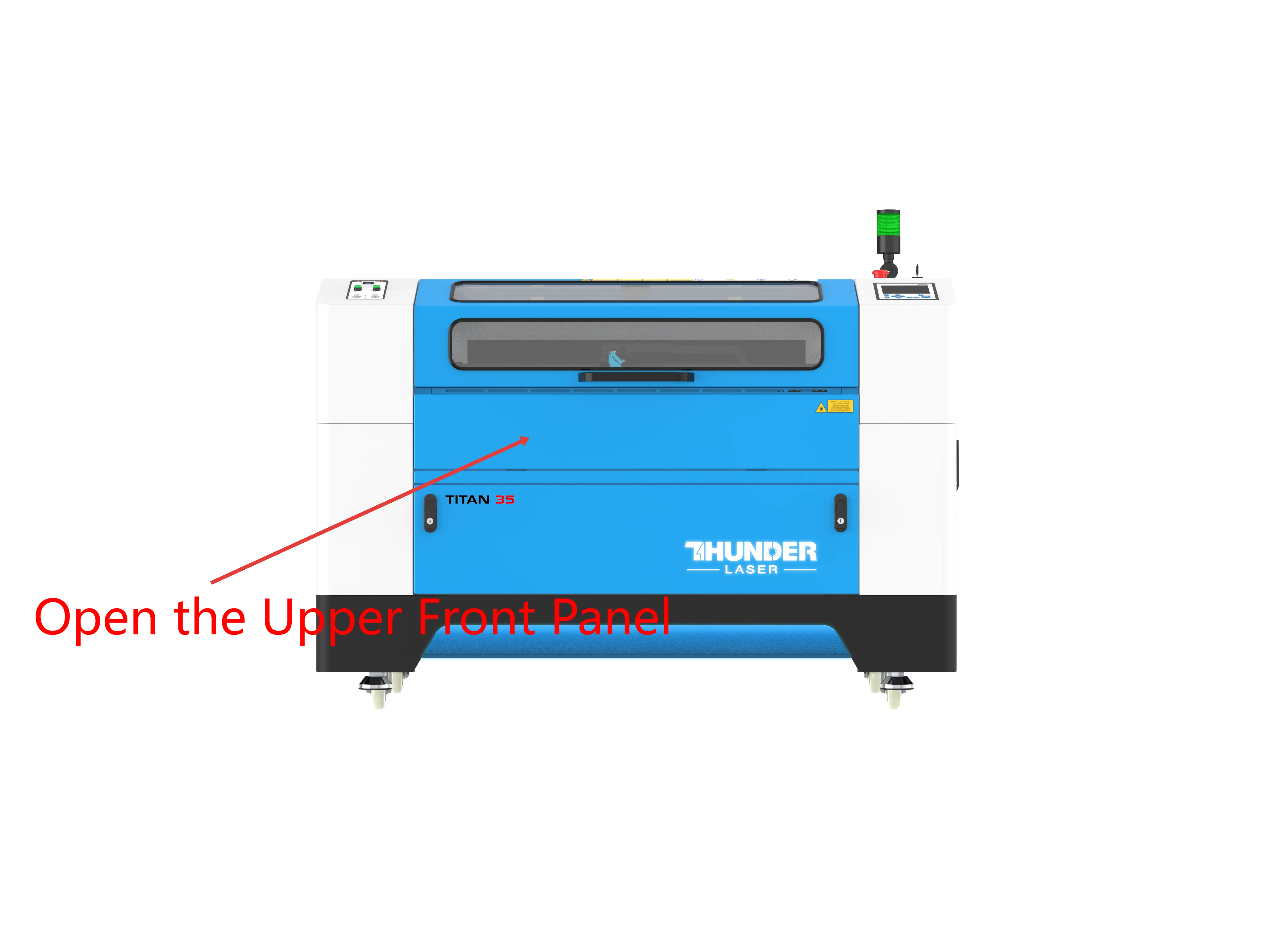

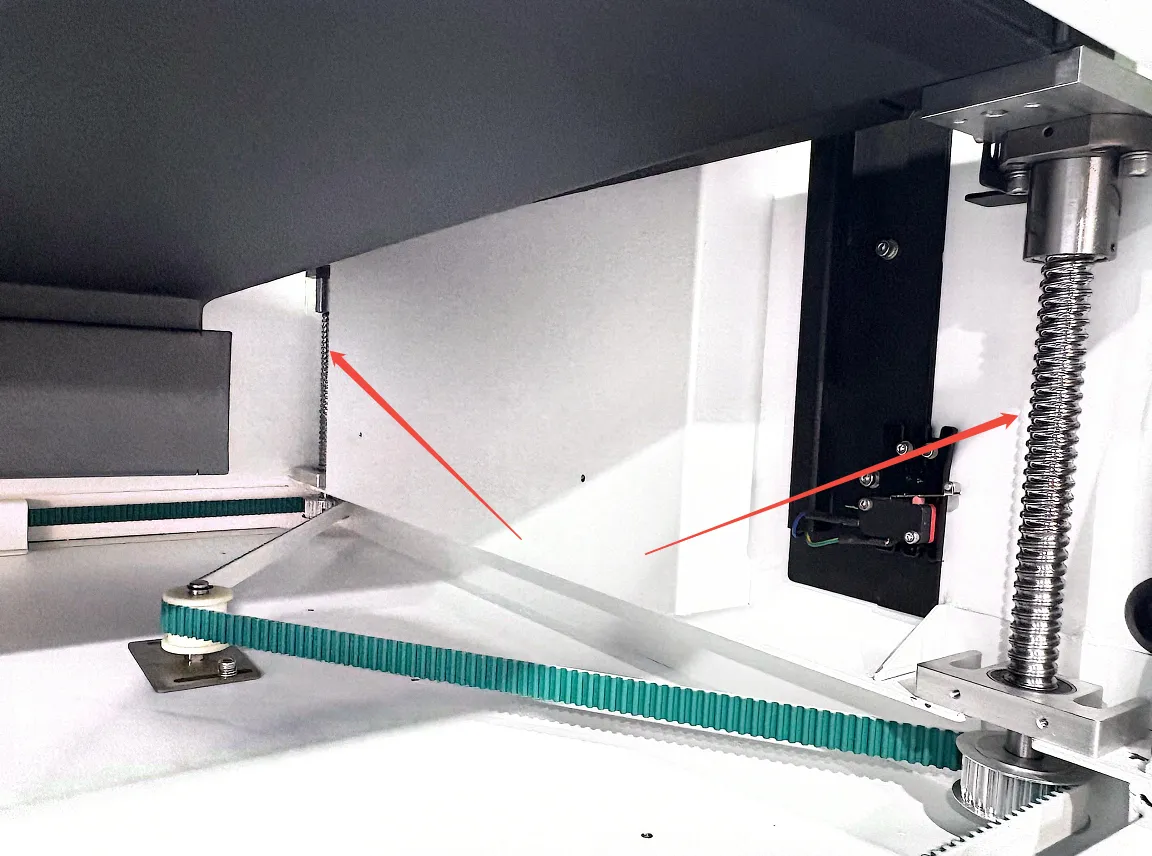

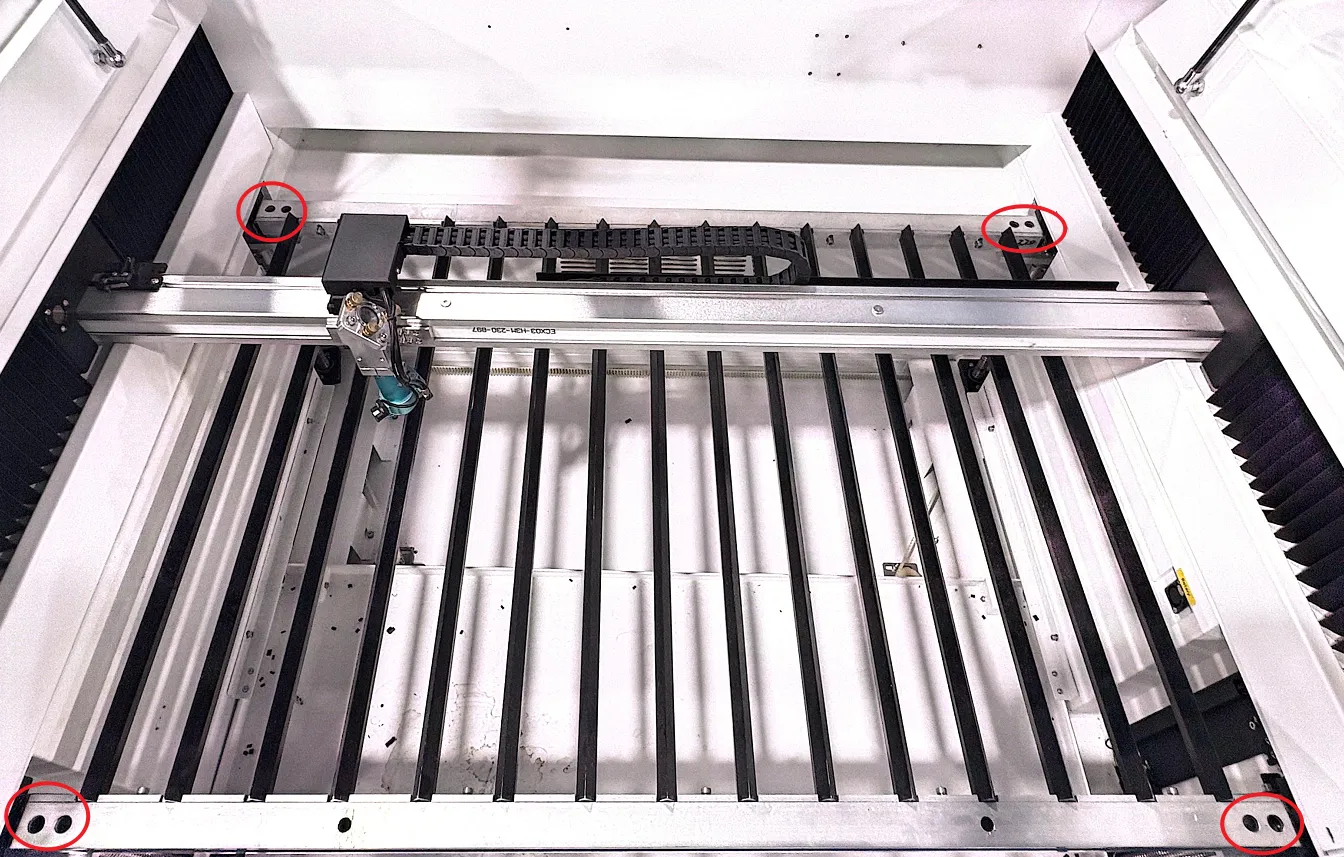

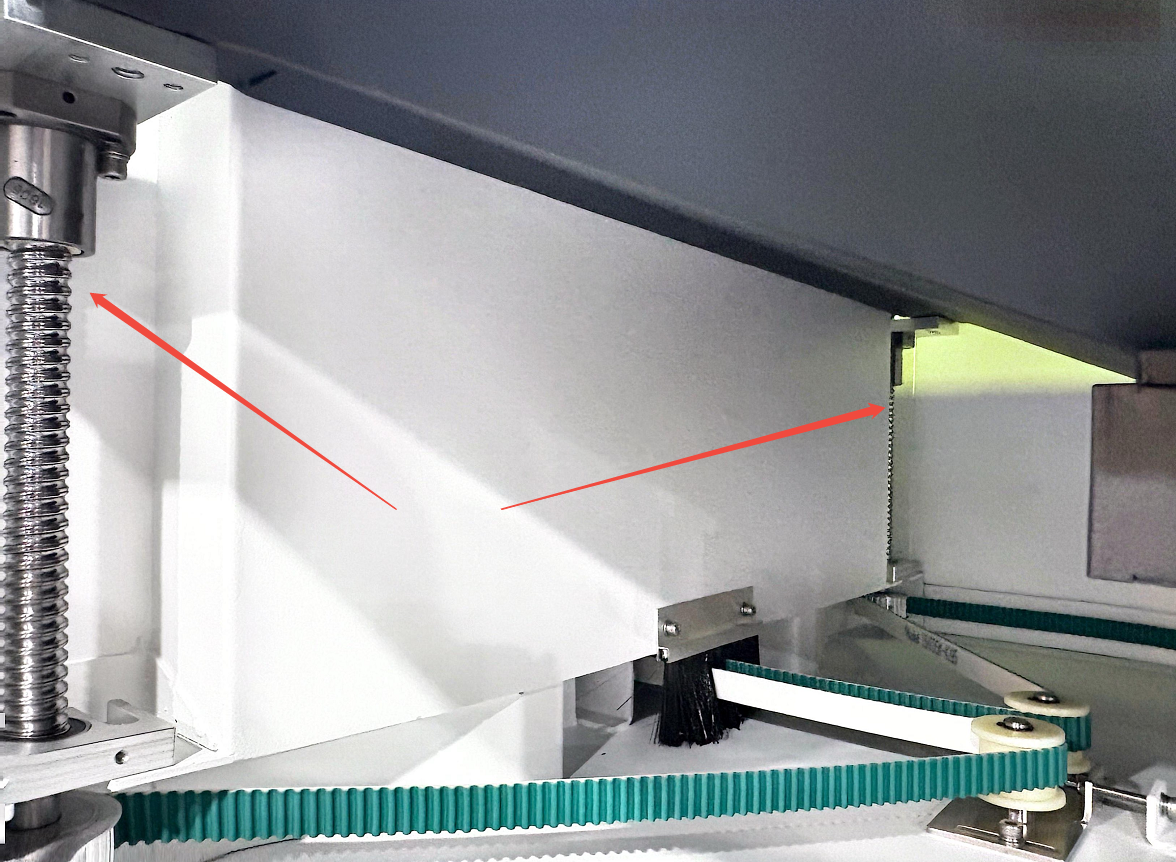

1. First, open the front door and locate the four lead screws.

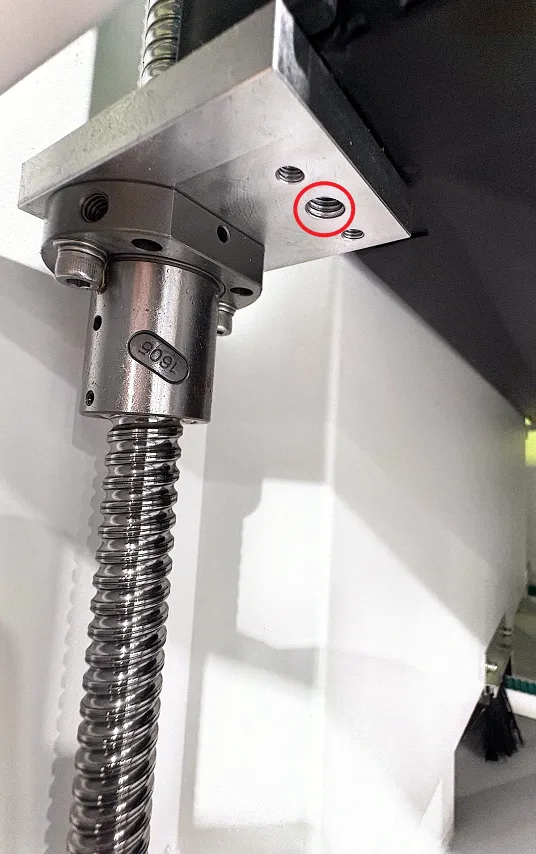

2. The two screws provided on each lead screw are used to secure the platform.

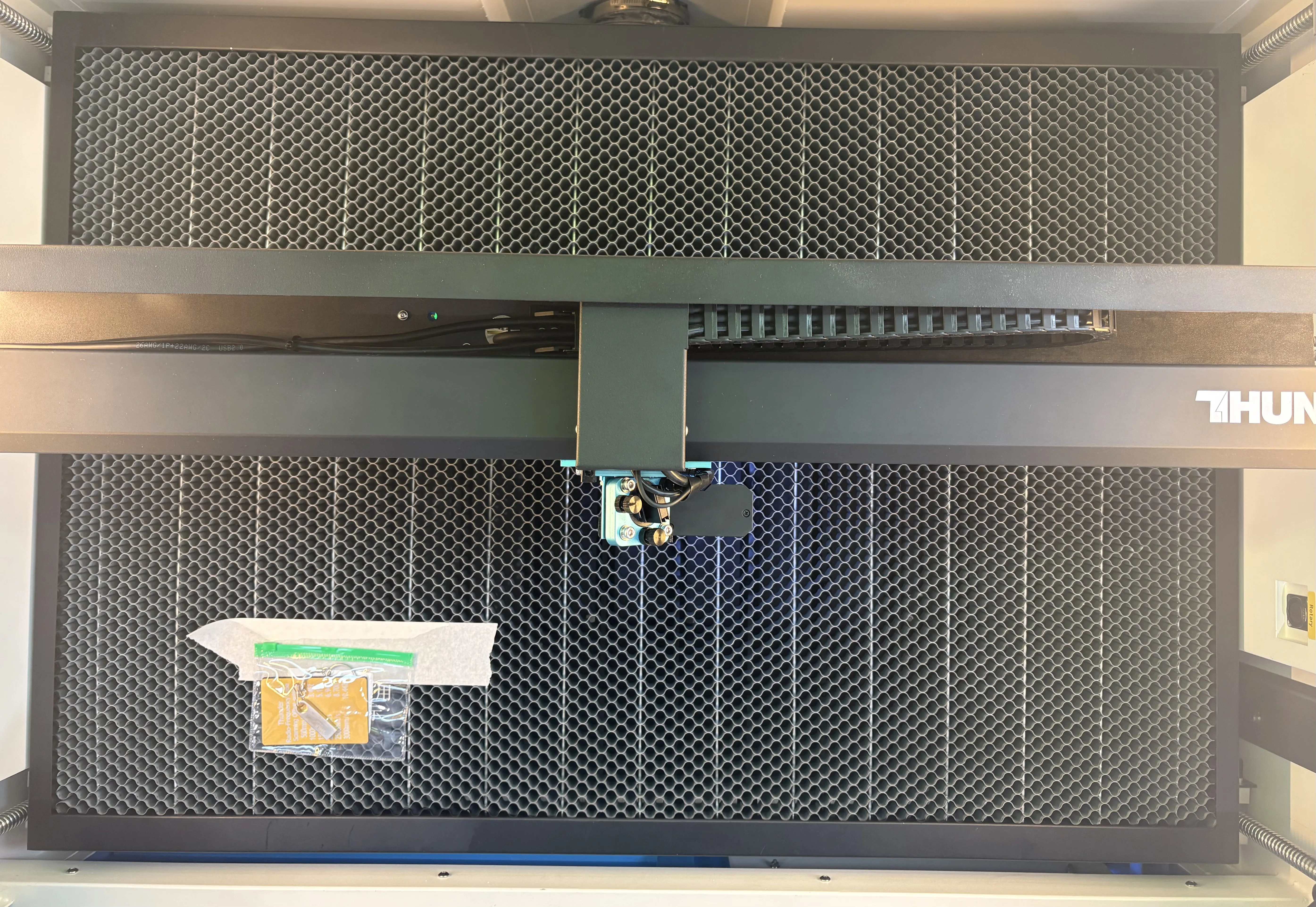

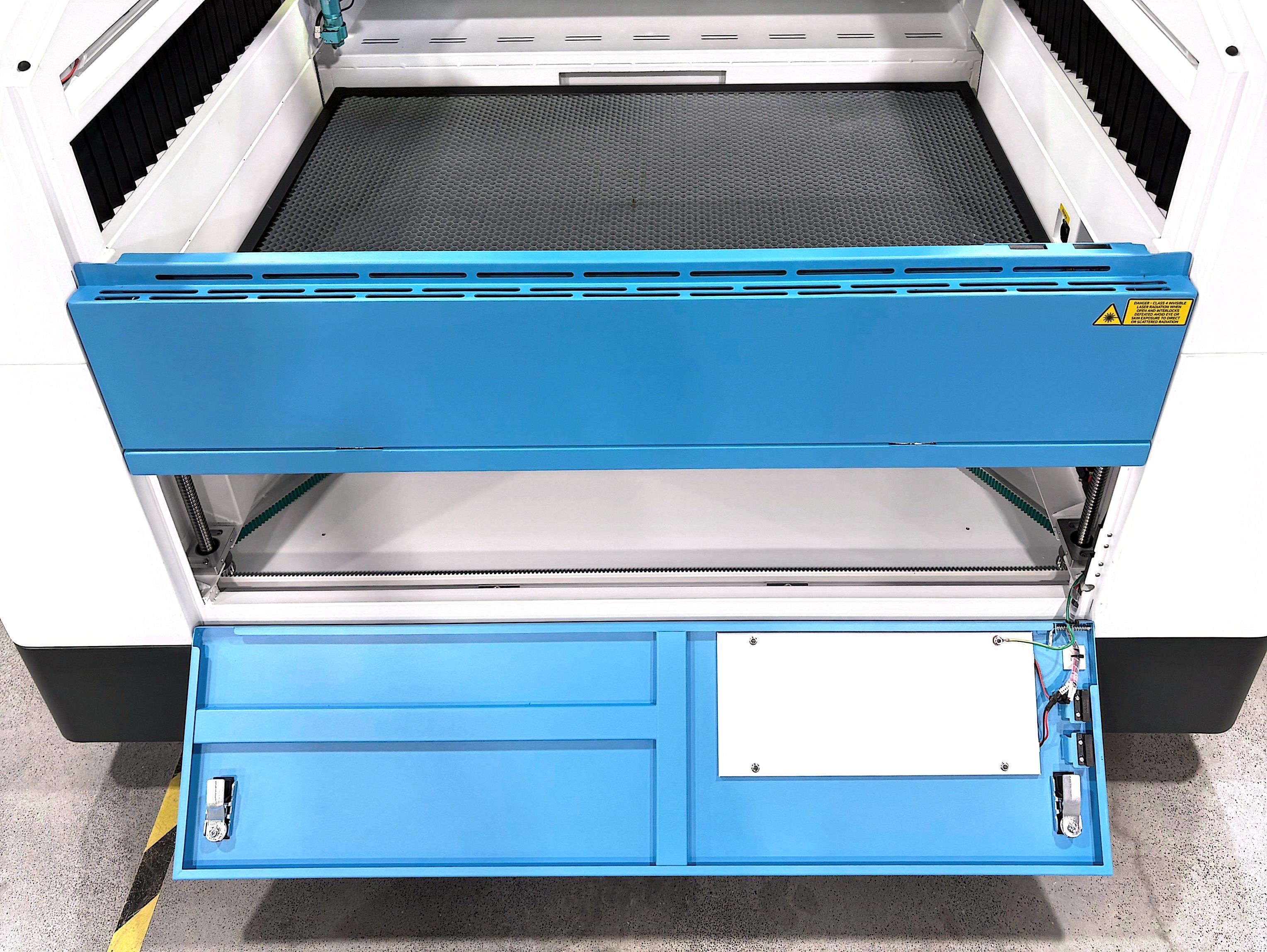

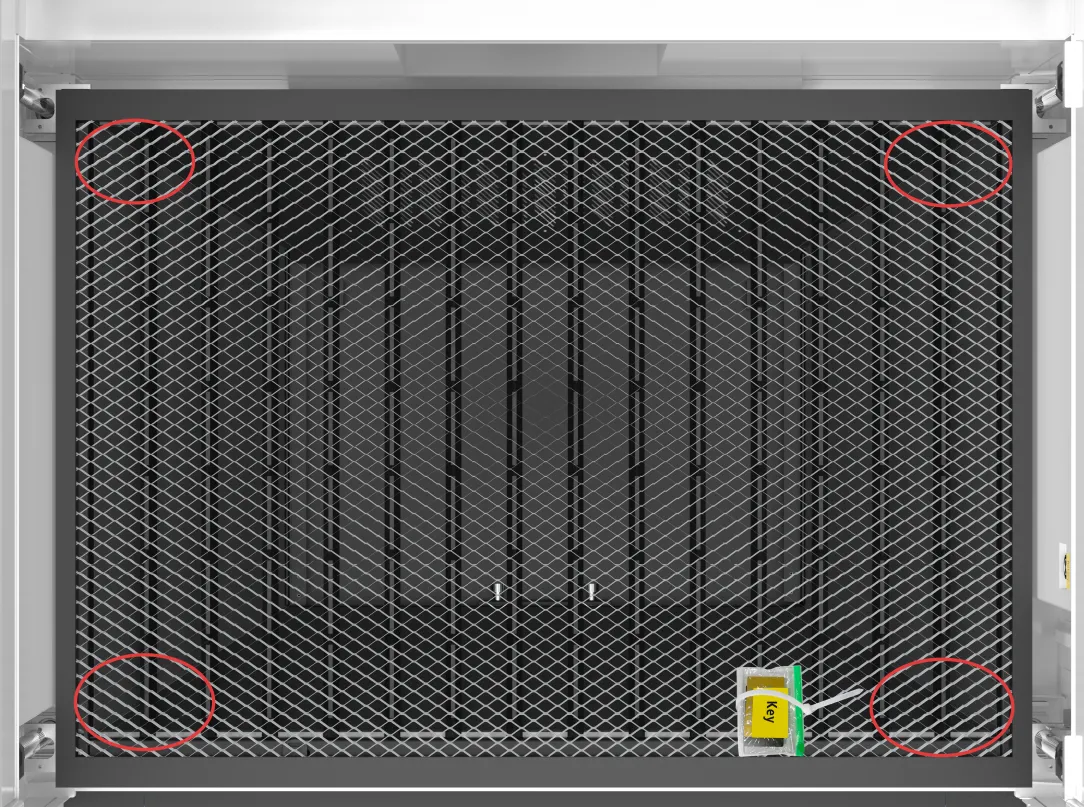

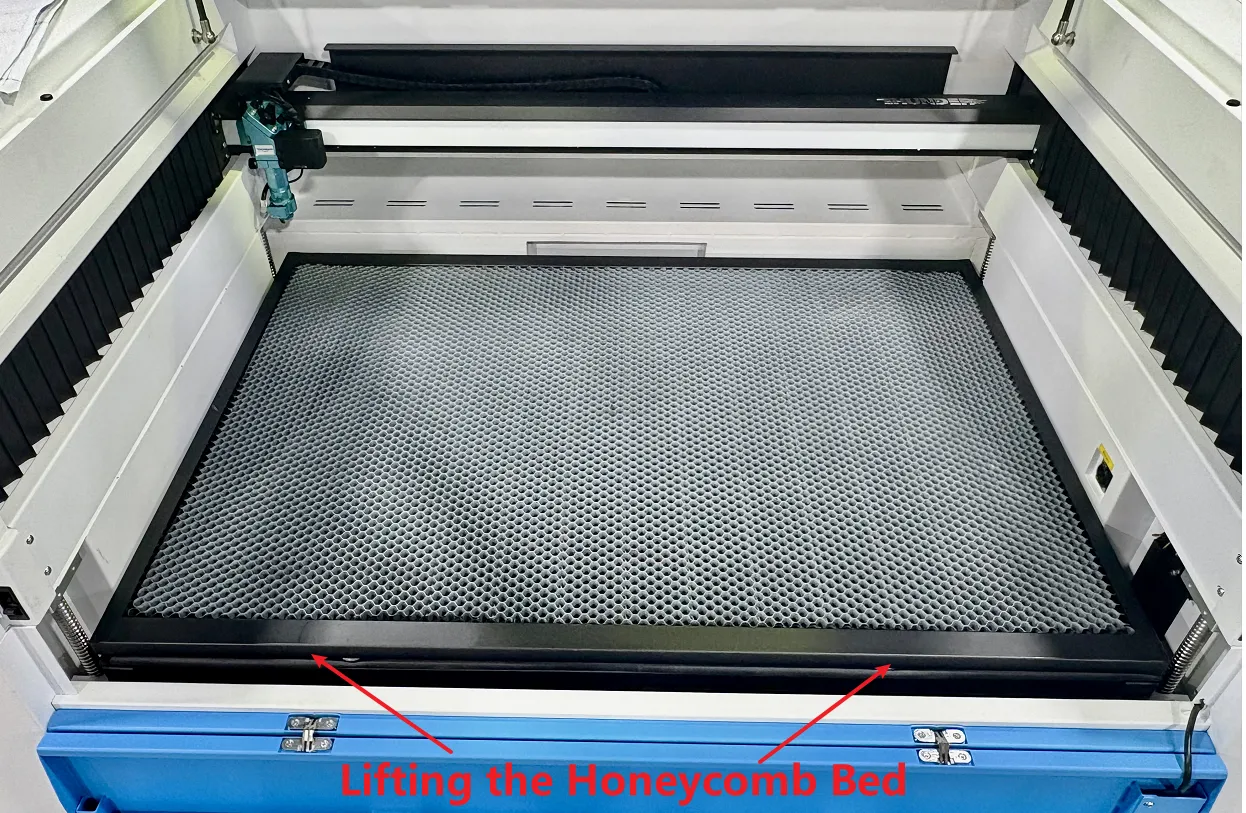

You can open the front door and lift the honeycomb bed in order to locate the screws located at the four corners that hold the platform in place.

Notes
In the corner that is lower, use an M5 Allen wrench to loosen the screw at that position.

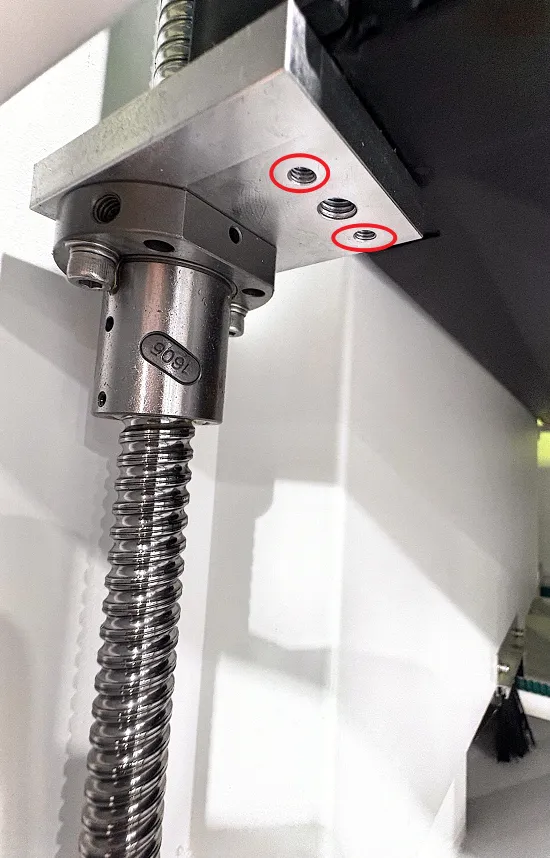

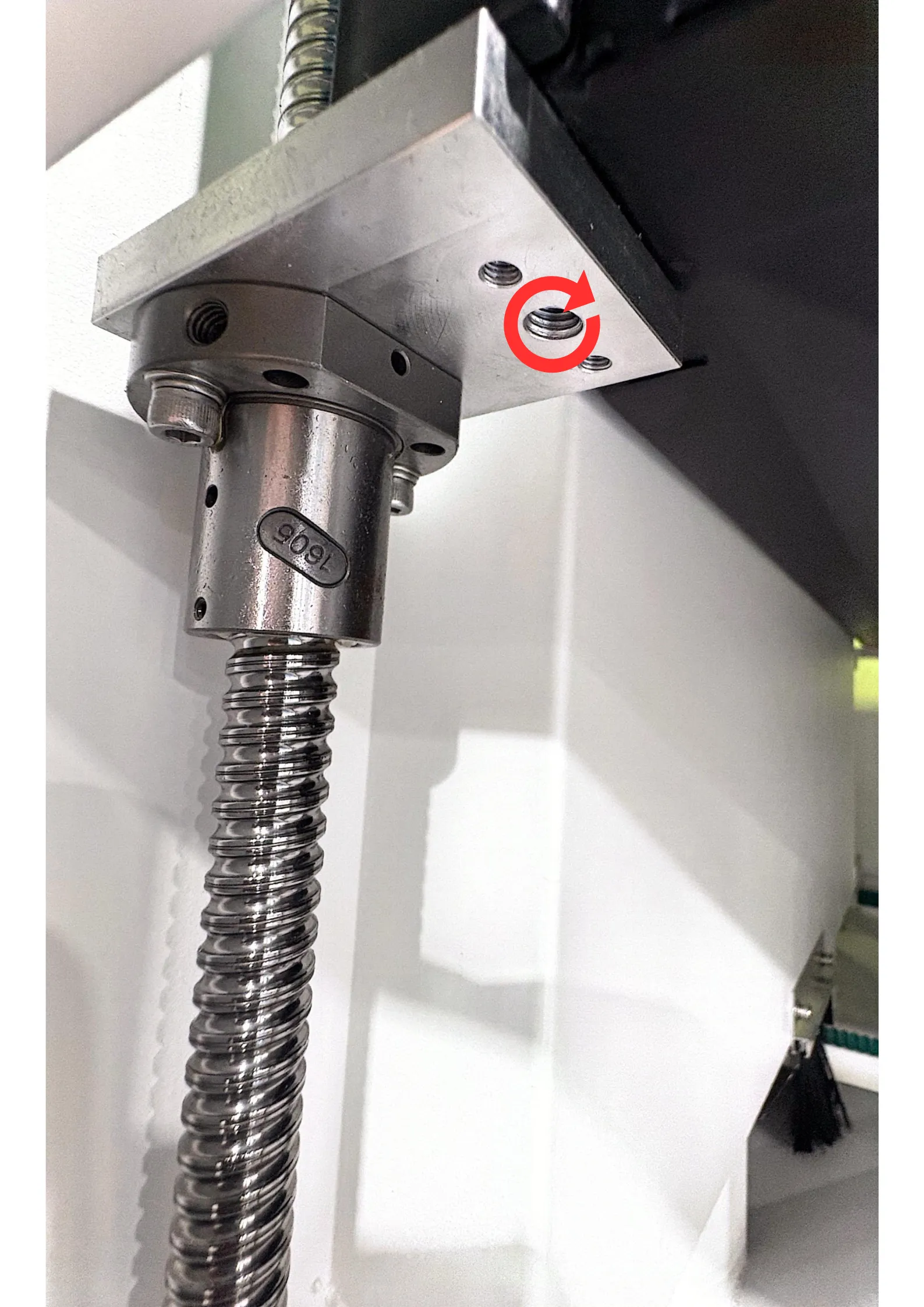

3. Next, use an M5 Allen wrench to adjust the screw in the middle of the lead screw, which is used to set the height of the platform.

Notes
During the adjustment process, it is necessary to observe the change in height and to re-lock the fixing screws after each corner has been adjusted.

a. Adjust the bolt clockwise to raise the honeycomb bed upward.


b. Adjust the bolt counterclockwise to make the honeycomb bed downward.

Check that the honeycomb bed is level

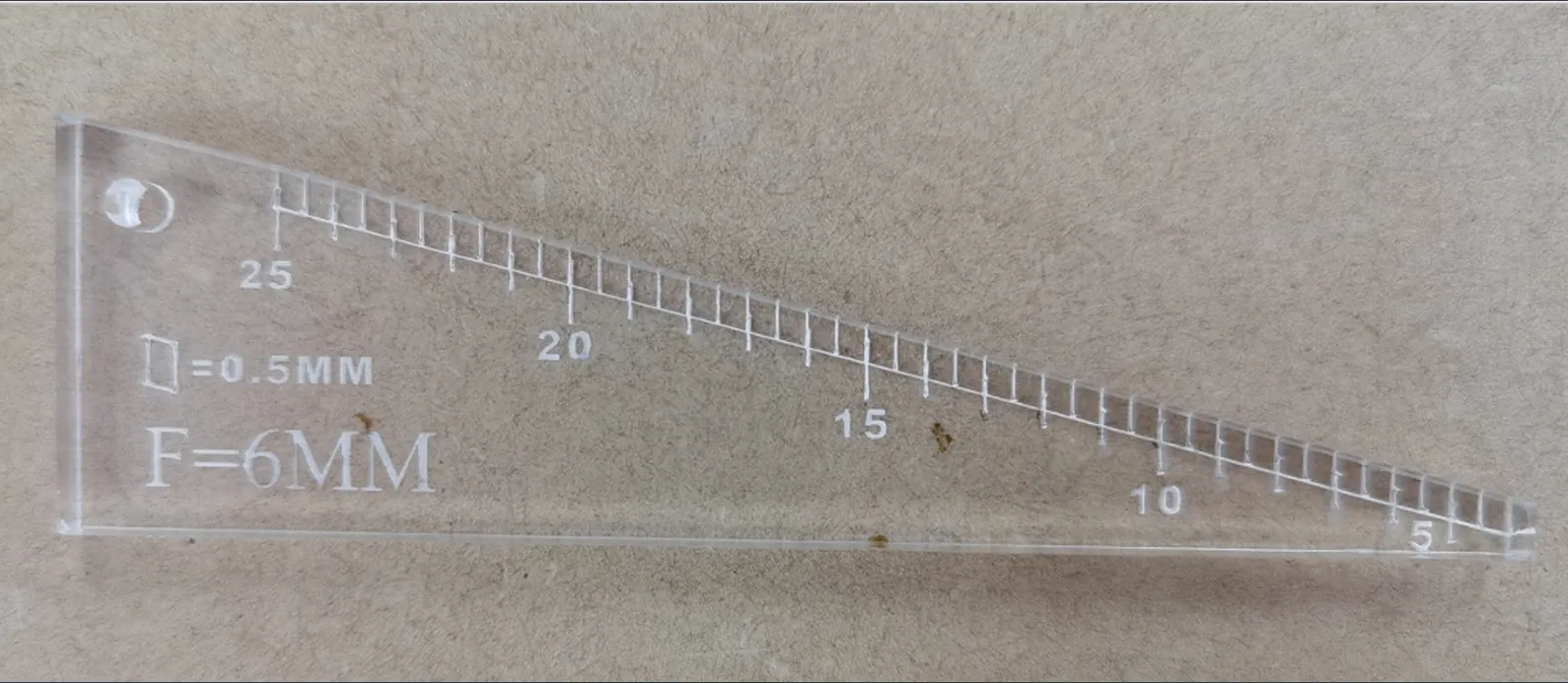

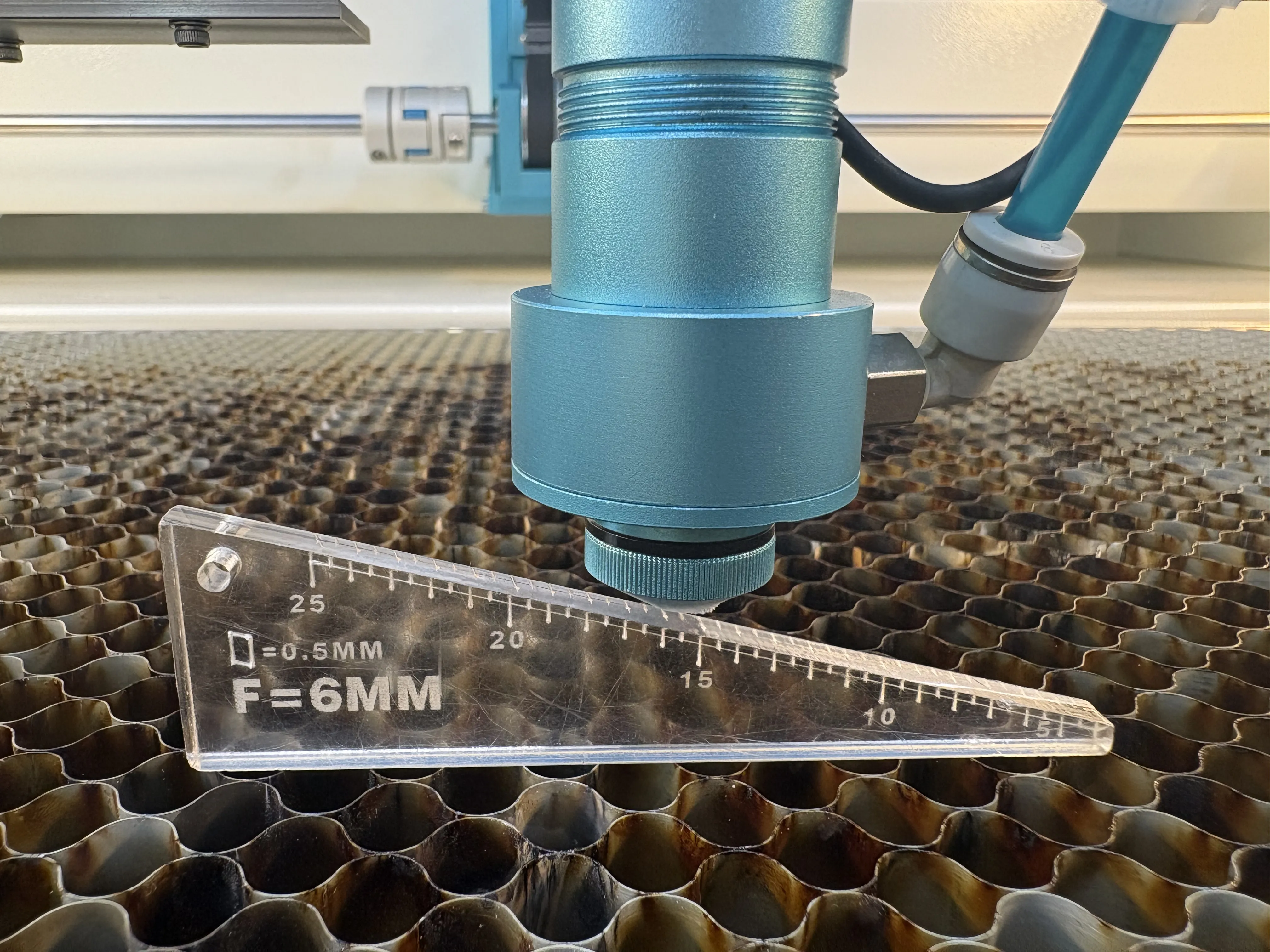

You can find a reference object; we use an acrylic ruler in this article. You can also make one.


Here is the sample file: Ruler

  1. Please move the laser head to the center of the table.

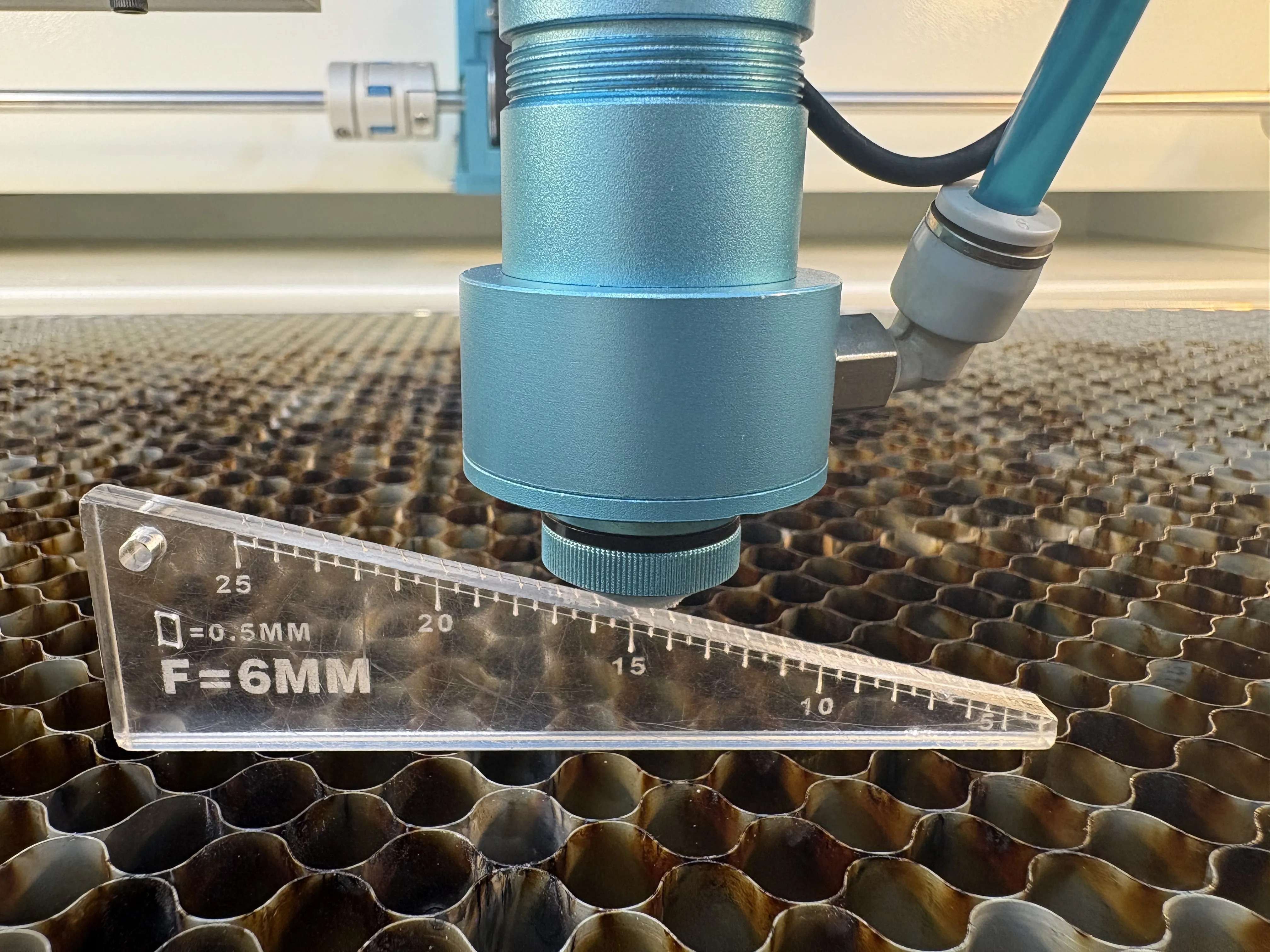

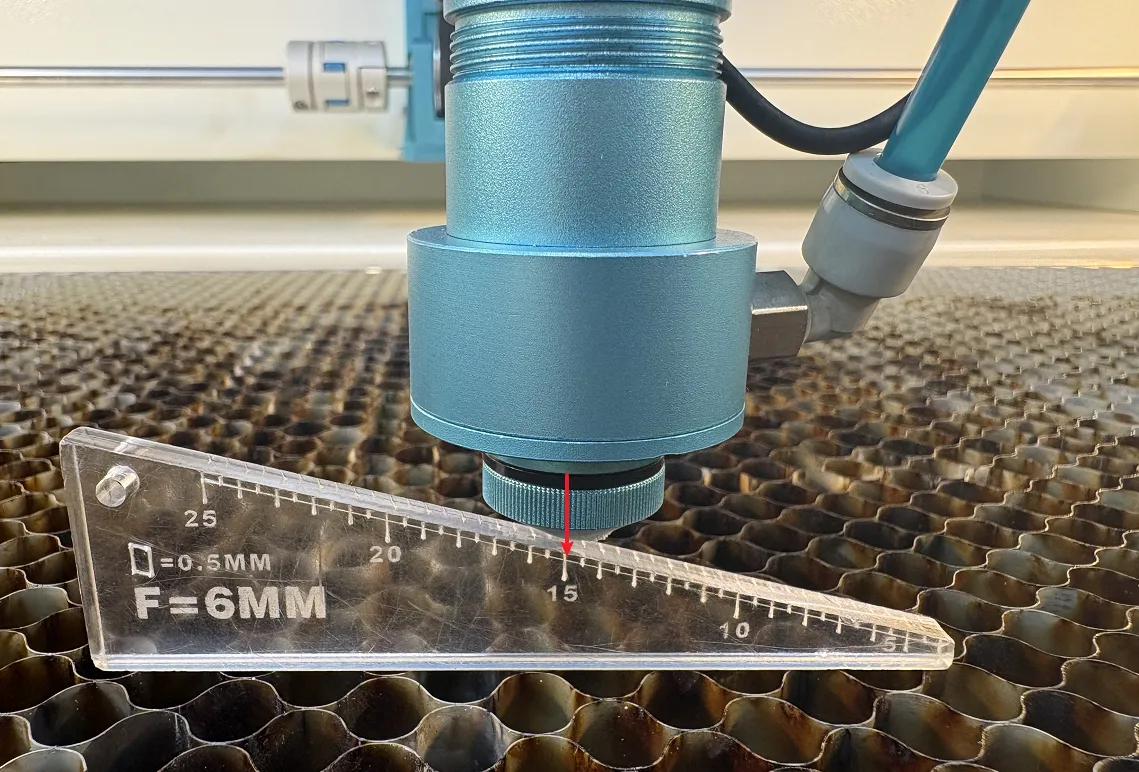

  2. Adjust the height of the air nozzle to the honeycomb table to 15mm.

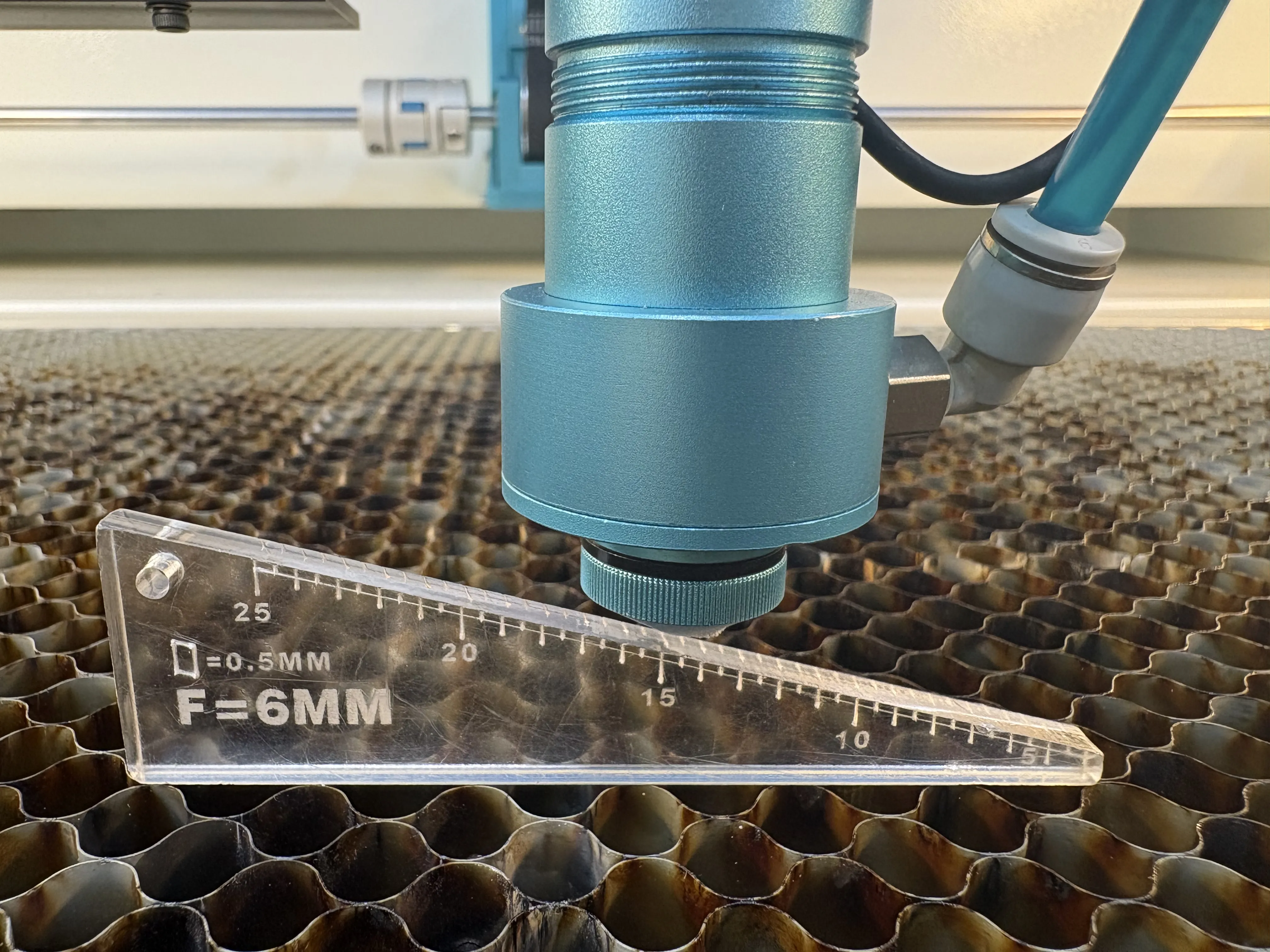

  3. Then check the height from the air nozzle to the table at the four corners.
    Notes
    The standard error does not exceed 0.5 mm.

    a. A height of less than 15 mm indicates a high honeycomb bed.

    Then it needs to be re-adjusted.

    b. A height higher than 15 mm indicates a low honeycomb bed.

    Then it needs to be re-adjusted.

    c. A height equal to 15 mm indicates that the honeycomb bed is level.


Still need help?

For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.


For the information provided in the ticket, please refer to this link：

Help Tech Support Troubleshoot Faster

End.
