How to upgrade the firmware

How to upgrade the firmware

Note:

The firmware must be provided by Thunderlaser.

Please make sure the software and laser machine are connected before updating.

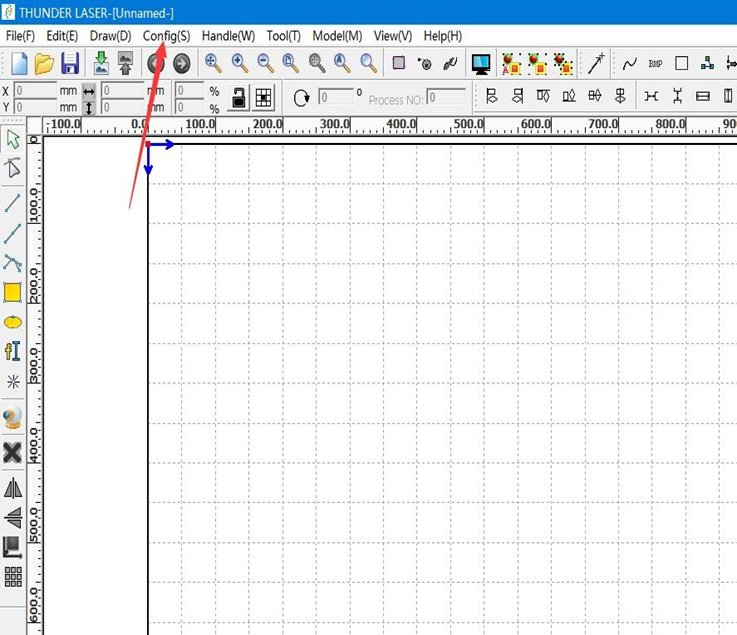

Step1:


Step2:


Step3:


Step4:

Choose the firmware we provide.


After this step, the software will show that “ Update files download successfully”.


Step 5

Press ”Enter” button on LCD panel, then it update successfully.

End.
