How to Set the Marking Order in EzCad

How to Set the Marking Order in EzCad

When we use the AURORA series for processing, we need to follow a processing order sequence.

At this time we need to set the marking order of multiple objects, how to set the processing order of objects on EzCad, let's take a look at the following tutorial.


  1. Check the Object list in the view menu.


  1. Here we demonstrate with a new text, the new will appear in the upper left corner of the object list after completion.

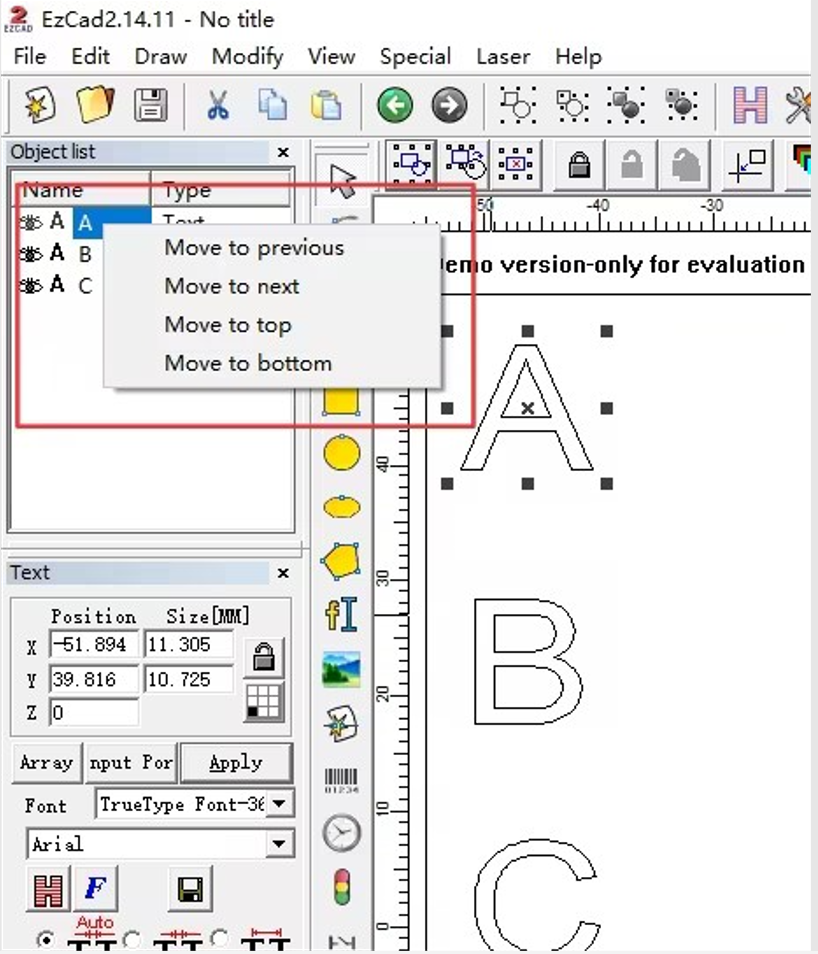

  1. Right-click to select the adjustment option to adjust the marking order
    Marking order from top to bottom
    Bitmap files and vector files to adjust the marking order in the same way as above.


  2. After adjusting the order of the objects as shown below, the actual machining order of the machine changes from A>B>C to A>C>B.
    Note: A>B>C means start marking object A, then object B, and finally object C in that order.

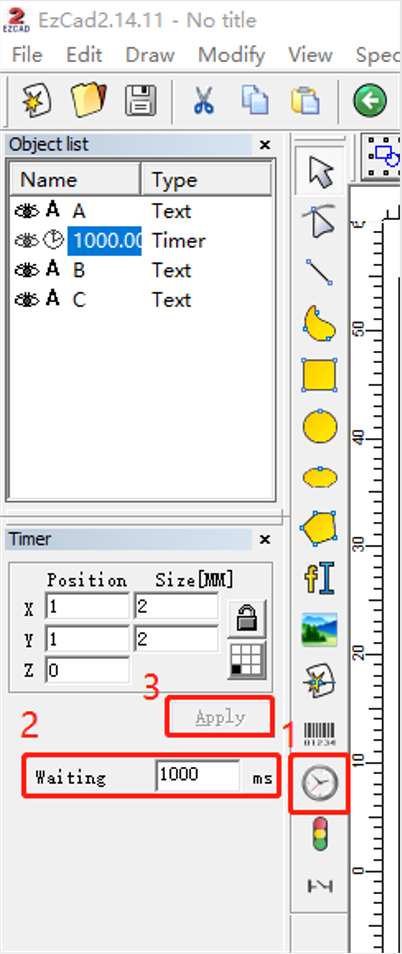

  3. When marking multiple objects at the same time, you can add a timer to make the marking process pause for a certain amount of time.
    As shown below in order >>Set Time>>Apply
    The timer adjusts the order in the same way as above.

    If the timer is added between object A and object B as shown above, the machine will pause for 1000ms after marking text A and then start marking text B again.

Above is how we set the marking order in EzCad, marking order setting is very simple, and I hope it can help you easily solve the various problems of the Aurora series.



End.
