How to replace the LCD panel of NOVA series

How to replace the LCD panel of NOVA series

Replacement steps

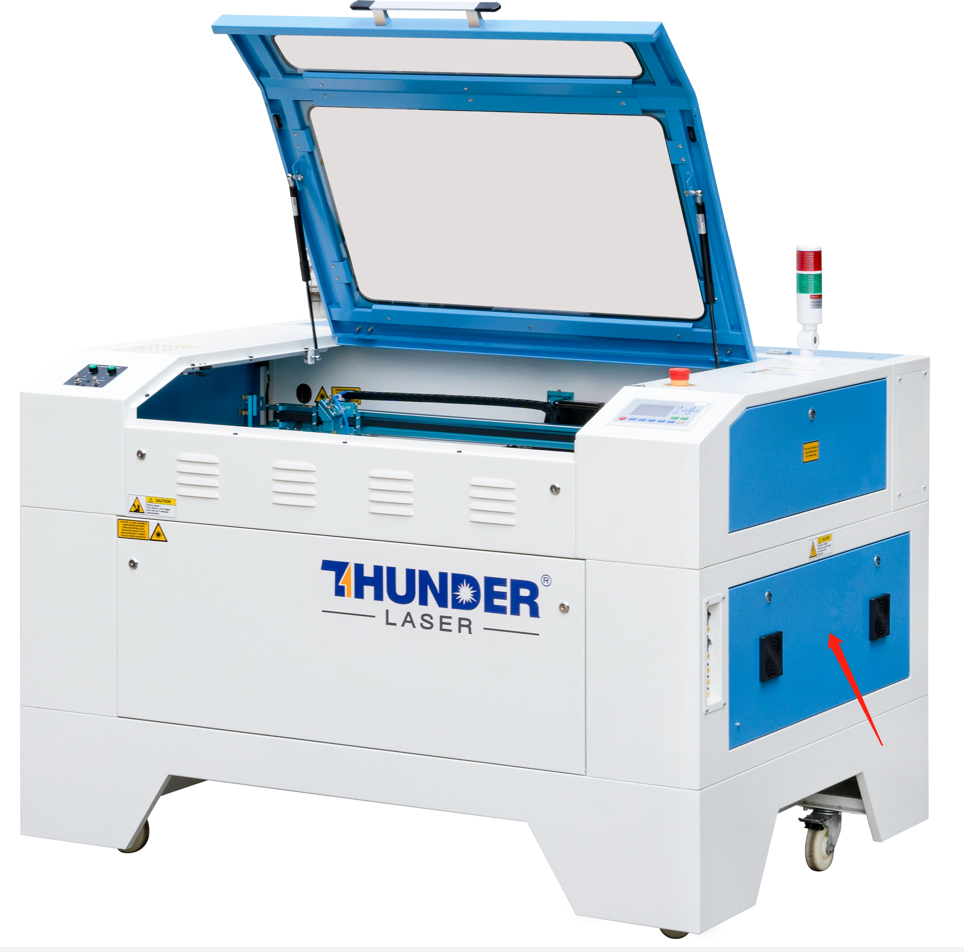

  1. Turn off the machine and unplug the power cable.

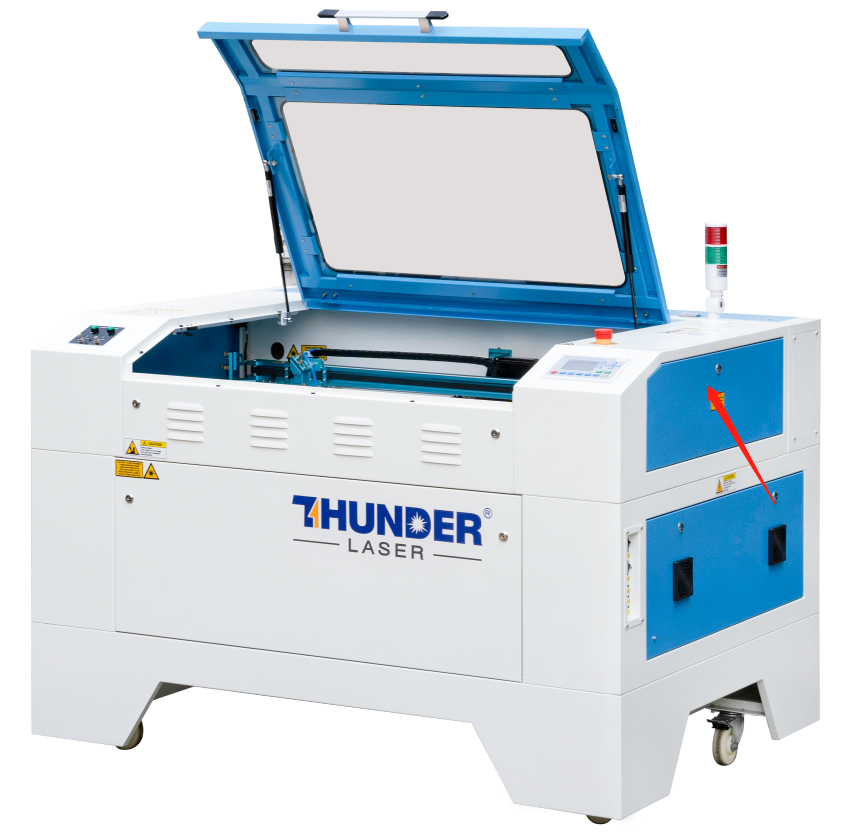

  2. Open the upper right door.

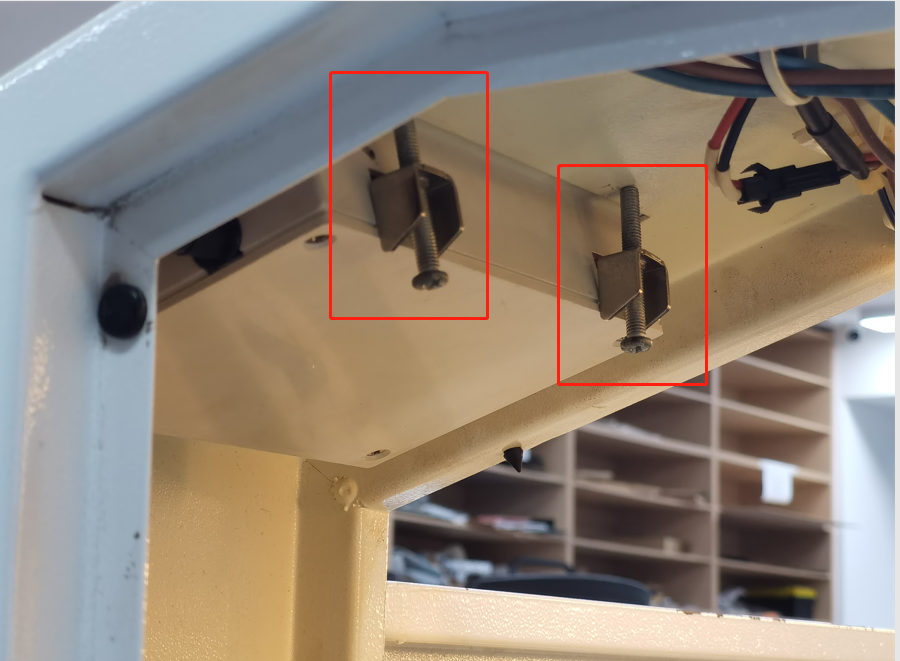

  3. Use a Phillips screwdriver to unlock the panel retaining clips.


  4. Open the lower right door and unplug the signal cable from the controller to the LCD panel.

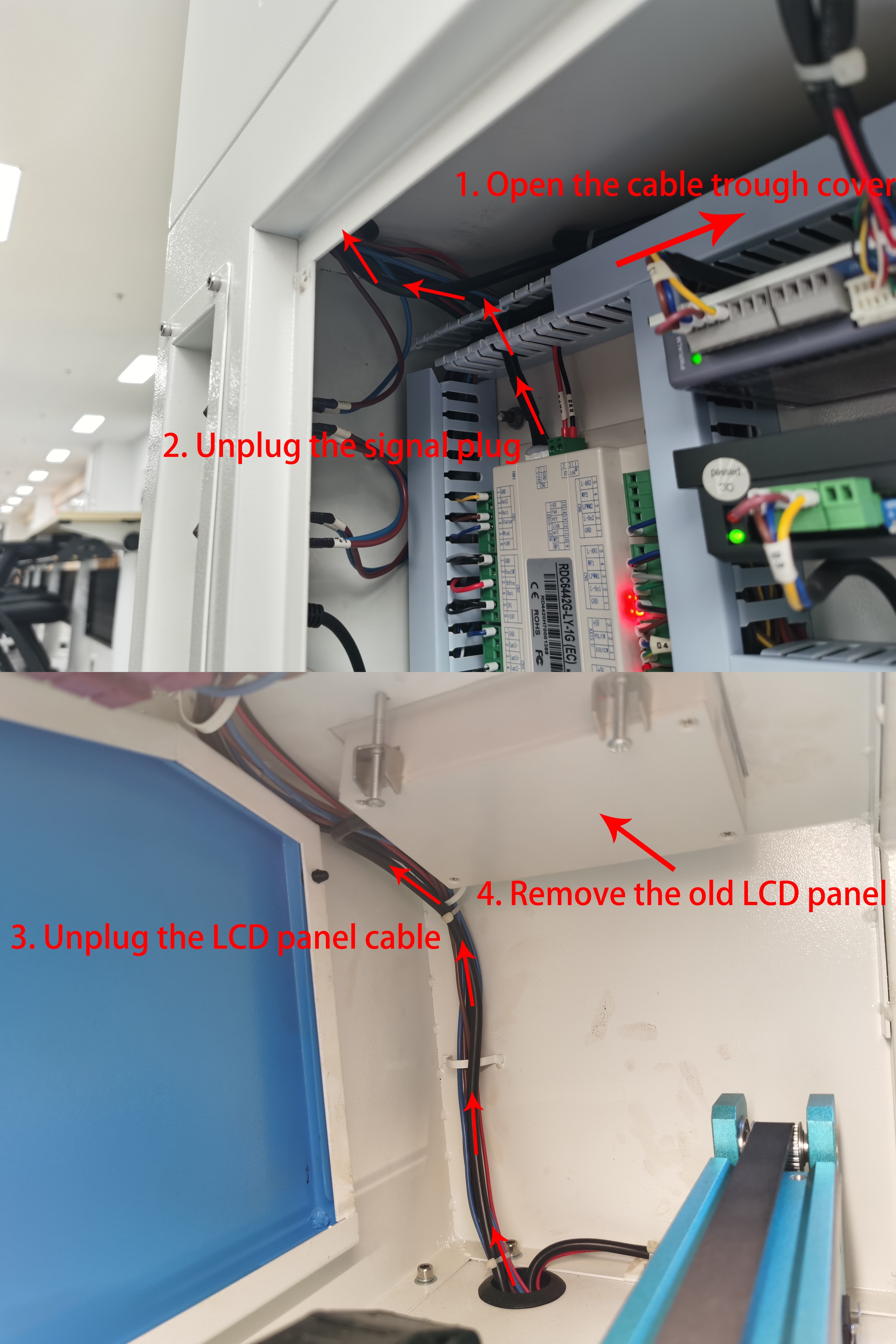

  5. Follow the path in the figure below to remove the old LCD panel.


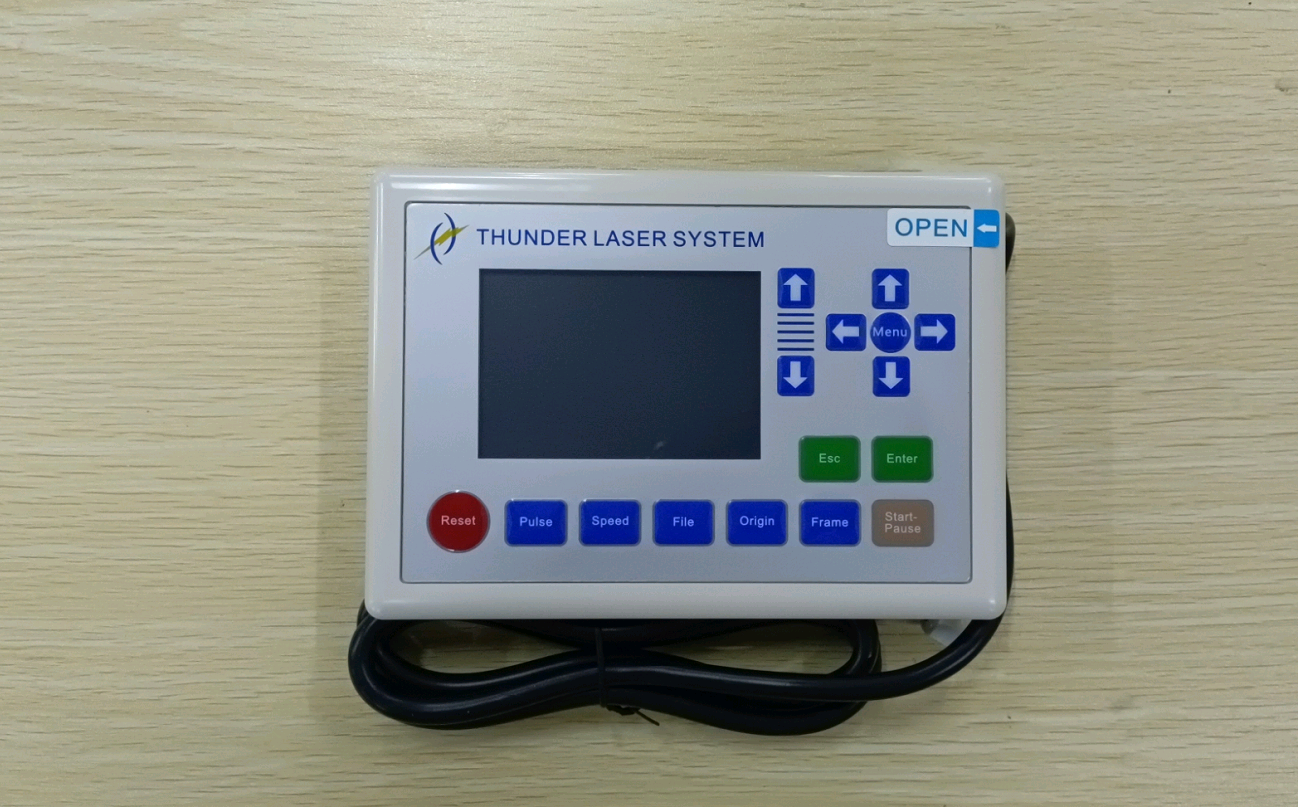

  1. Install the new LCD panel on the machine and connect the signal cable to the controller.

End.
