How to Properly Install the TITAN Laser Head to Avoid Scratching the Machine's Sheet Metal

Preface

This article explains the correct installation direction of the TITAN laser head to prevent the machine's sheet metal from being scratched due to inertia during homing.

Lens Tube Installation Guide:

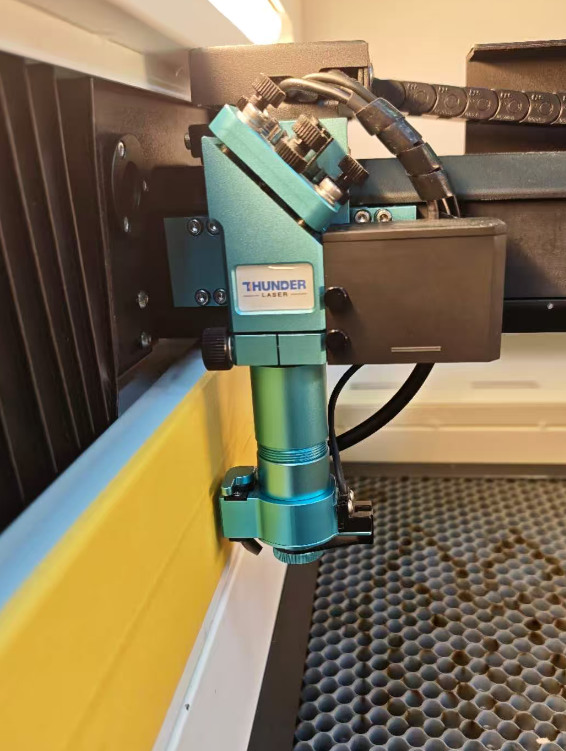

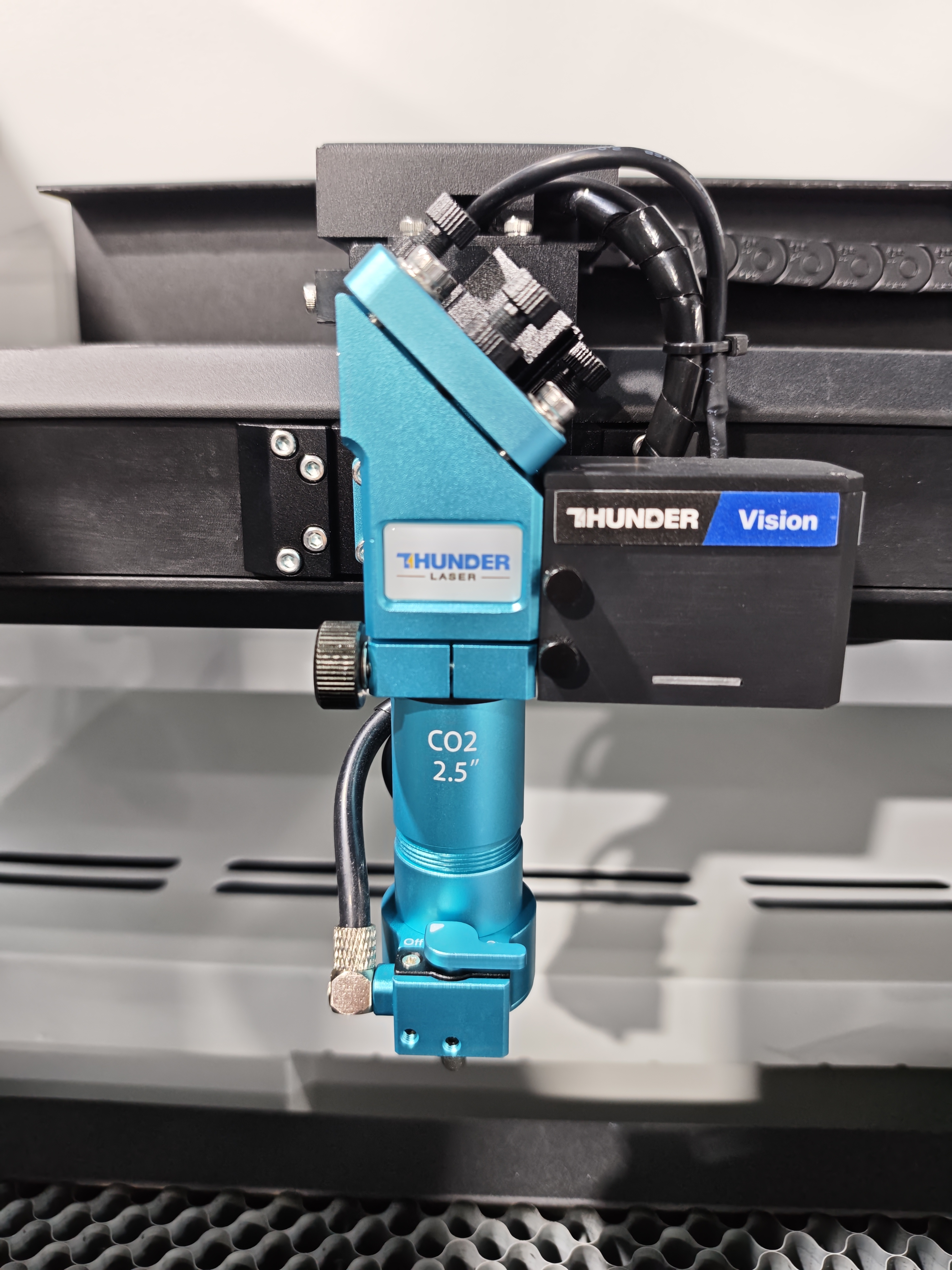

The correct laser head installation direction is shown in the image below.

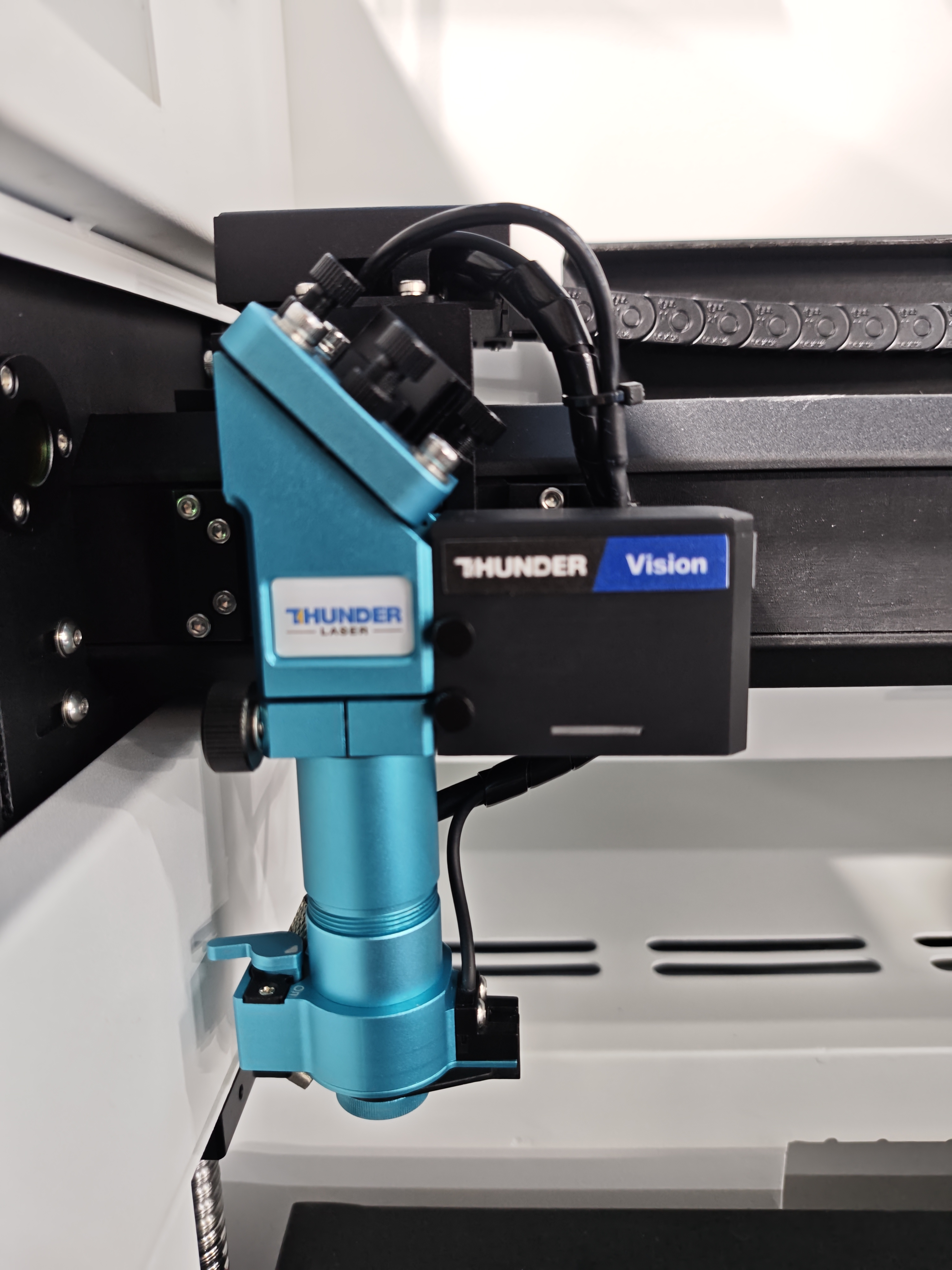

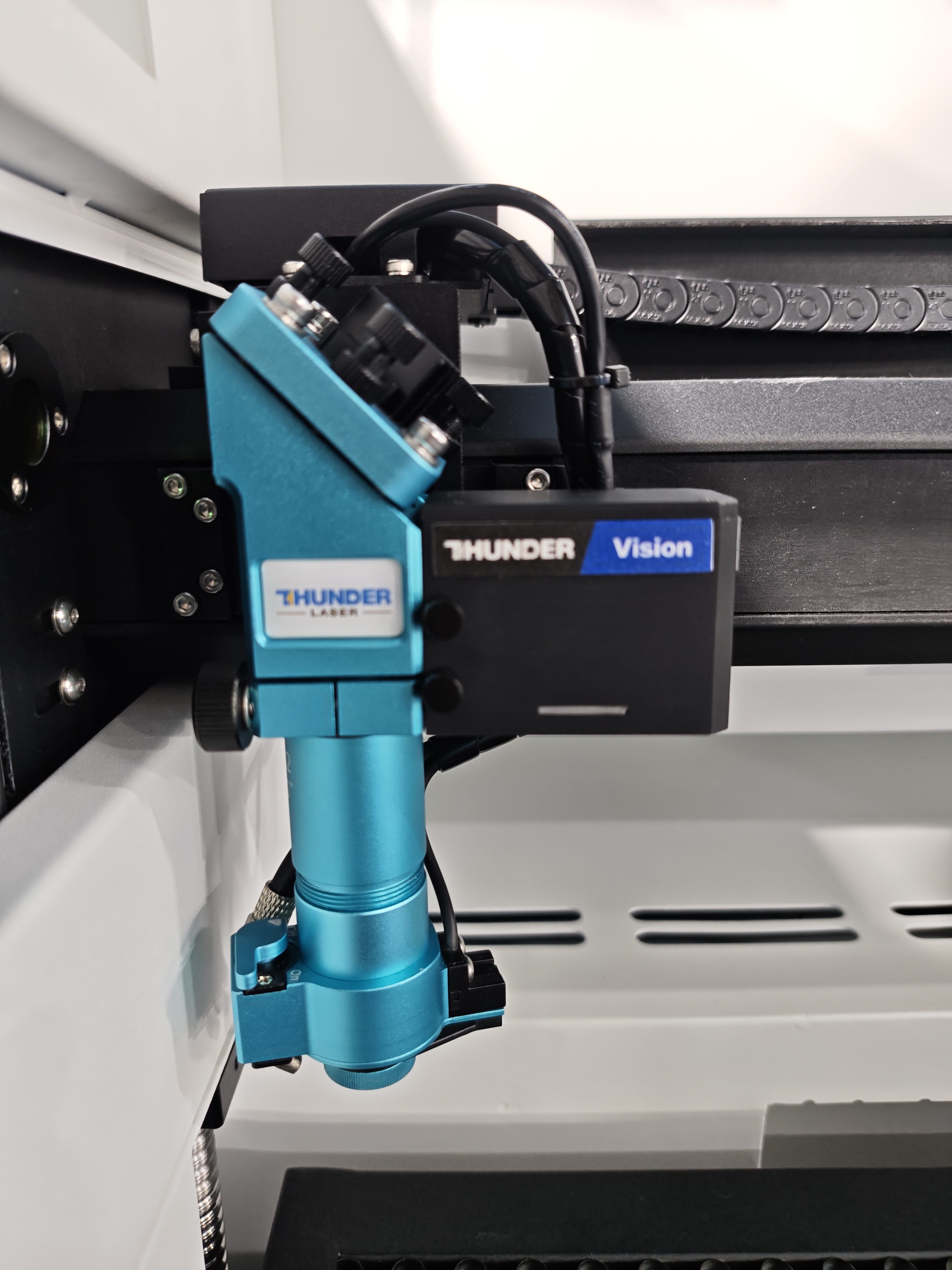

Examples of incorrect installation:

If internal air assist is enabled, please switch it back to external air mode when the machine is not in use.

Still need help?

For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.

For the information provided in the ticket, please refer to this link：

Help Tech Support Troubleshoot Faster

End.
