How to install driver for Ezcad3

How to install driver for Ezcad3

Installation steps:

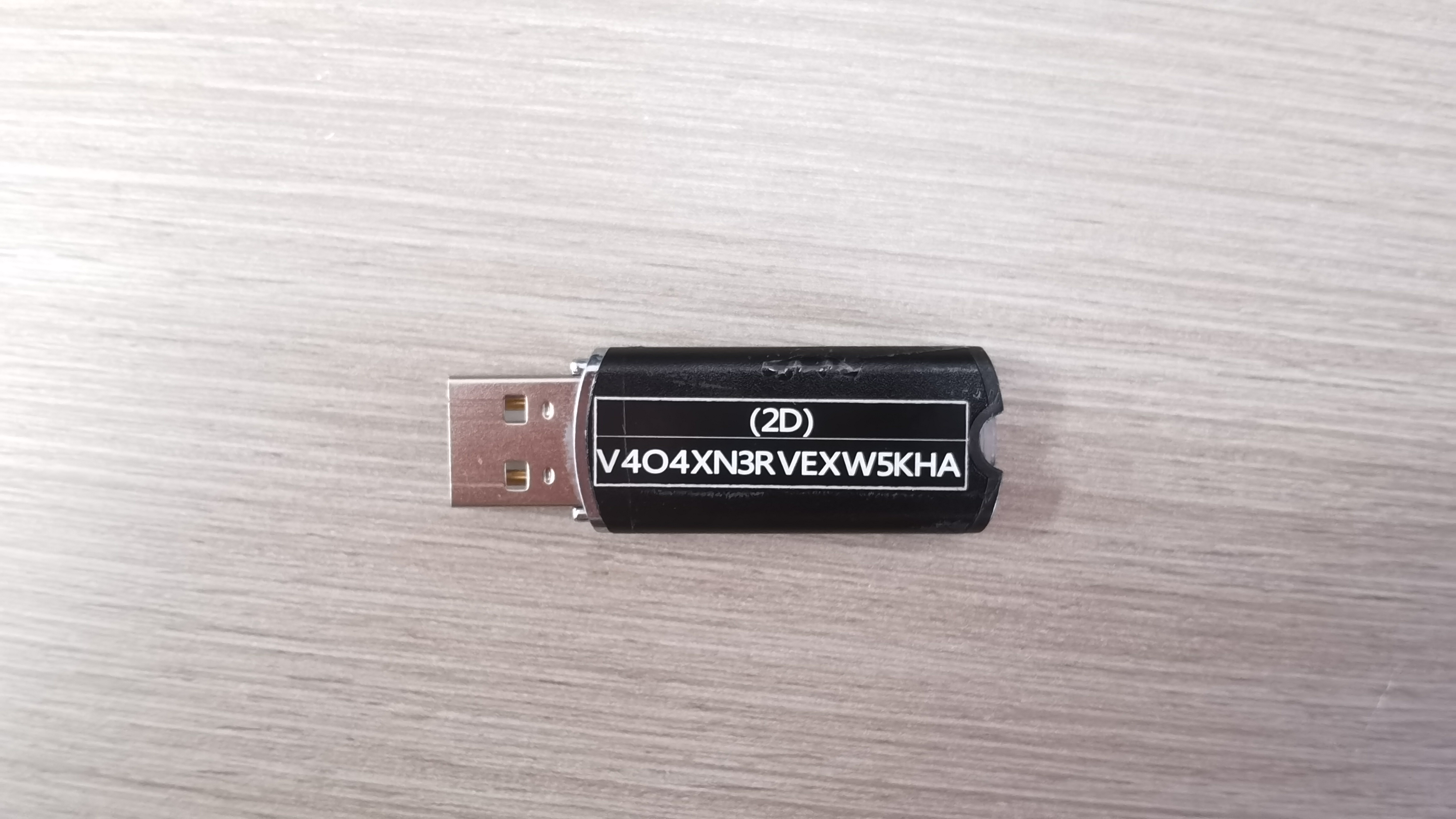

The dongle must be plugged into the computer during the installation process.

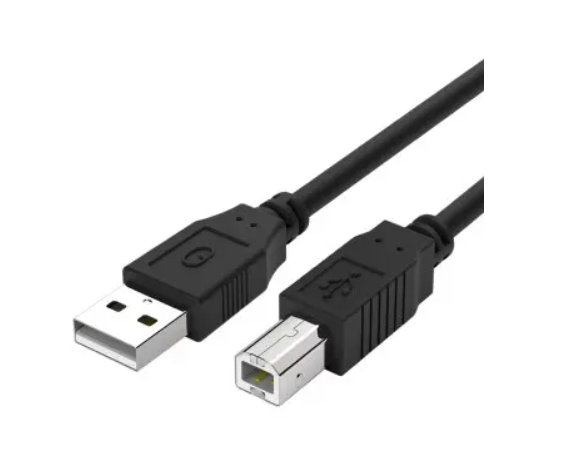

1. Connect your fiber laser with PC through USB cable.


2. Open manage on your computer.

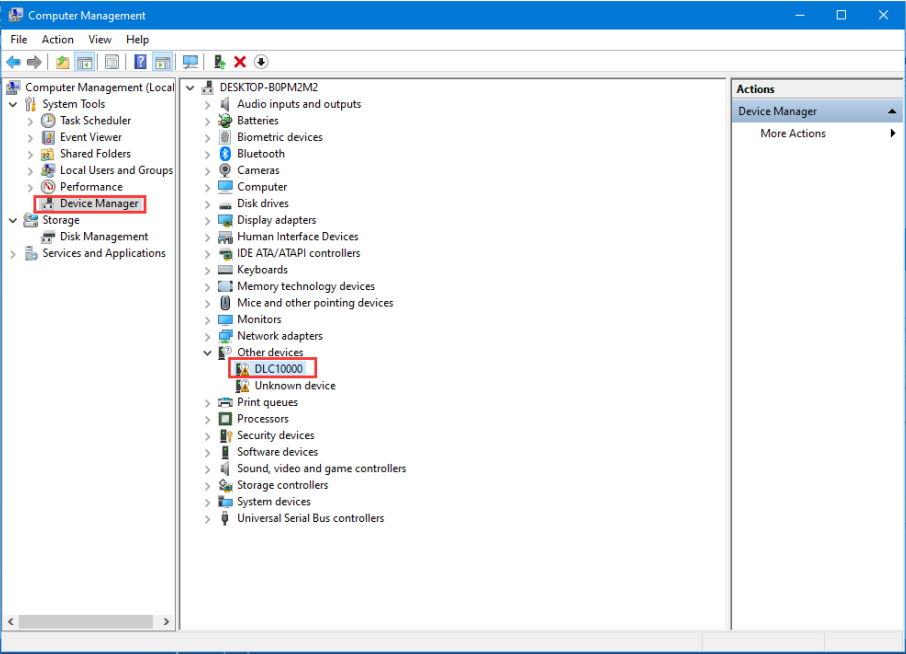

3. Find the devices (DLC10000) with exclamation marks in device manger>>others devices.

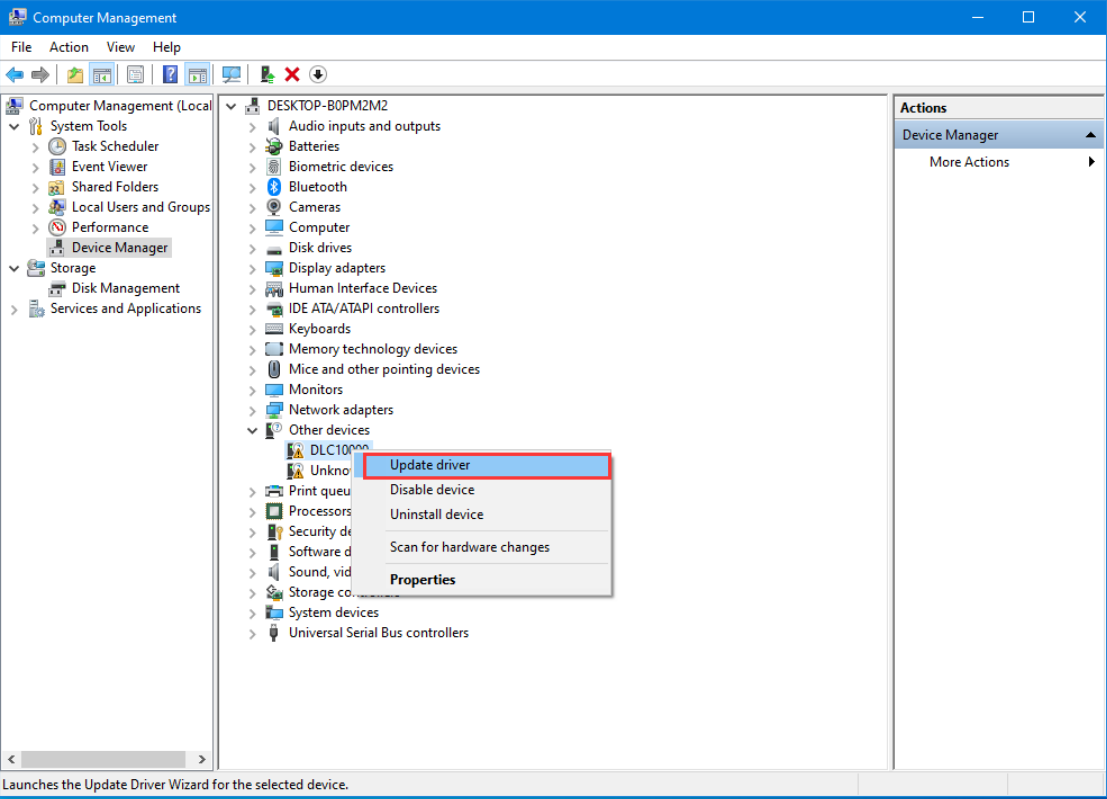

4. Update the driver.

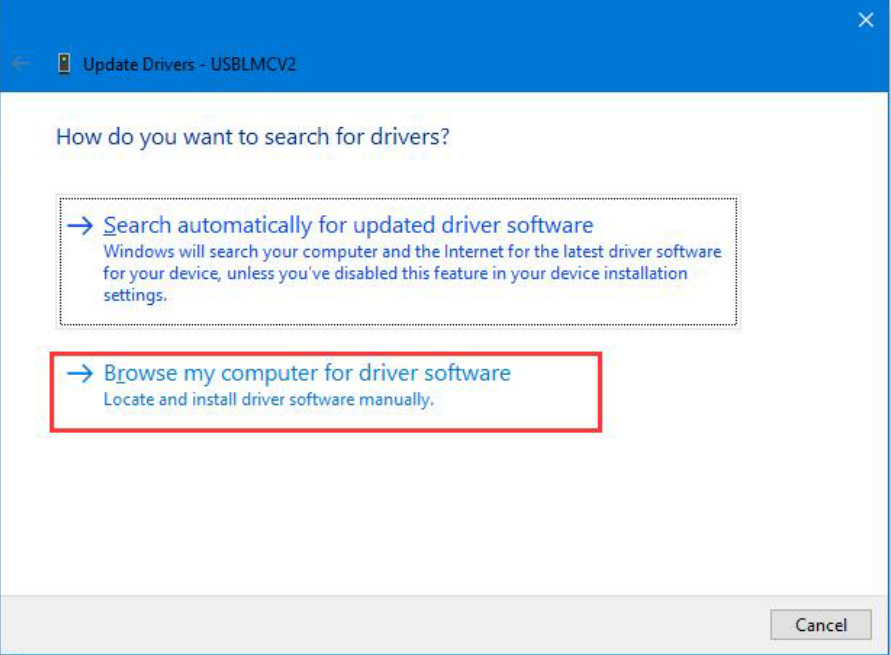

5. Browse my computer for driver software.

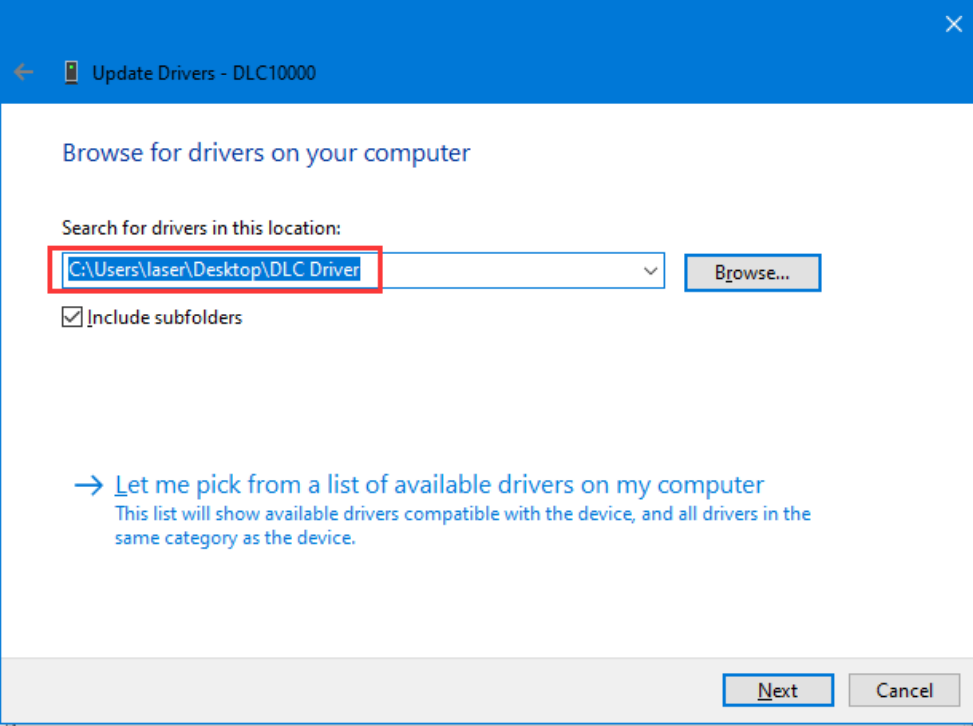

6. Select the correct driver file.


You can find the driver file under this path:
U-disk came with the machine >> AURORA Series - Fiber Laser >> Aurora 8 PRO >> Fiber software >> Driver

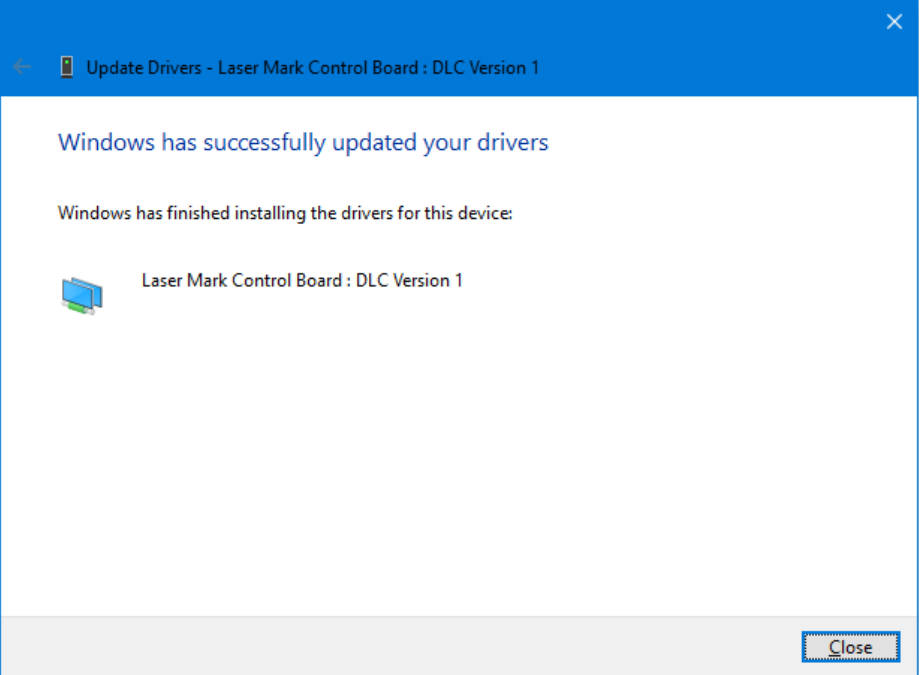

7. Successful update.


If the above installation steps do not complete the installation, please contact us : tech@thunderlaser.com

End.
