How to delete the memory of the controller
Why we need to delete the memory
It will cause a file transfer error if the memory file is full.
When the software prompts the following warning, you need to clean up the files in memory.

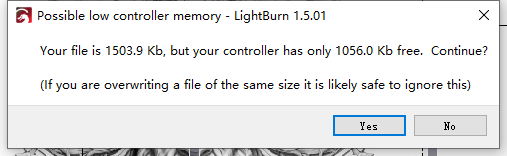

LightBurn：

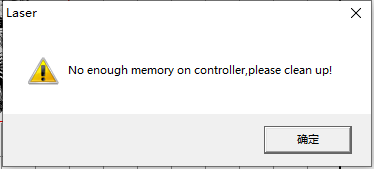

RDWorks：
On the LCD panel
How to delete all files：

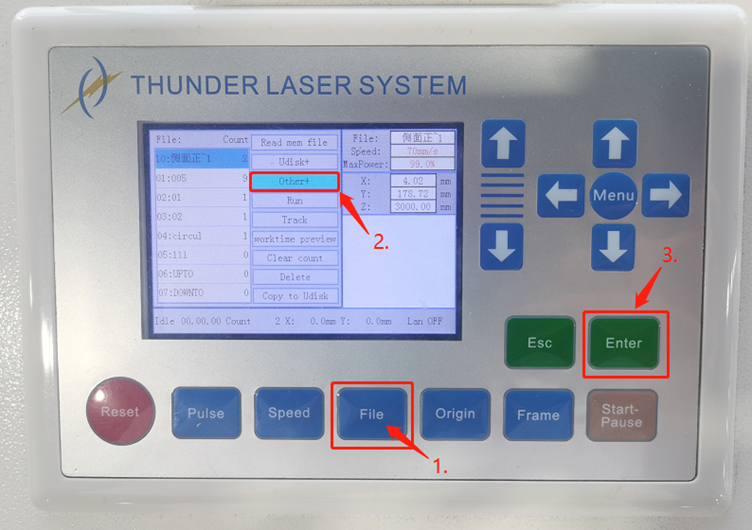

File>>Other+ >> Enter >> del

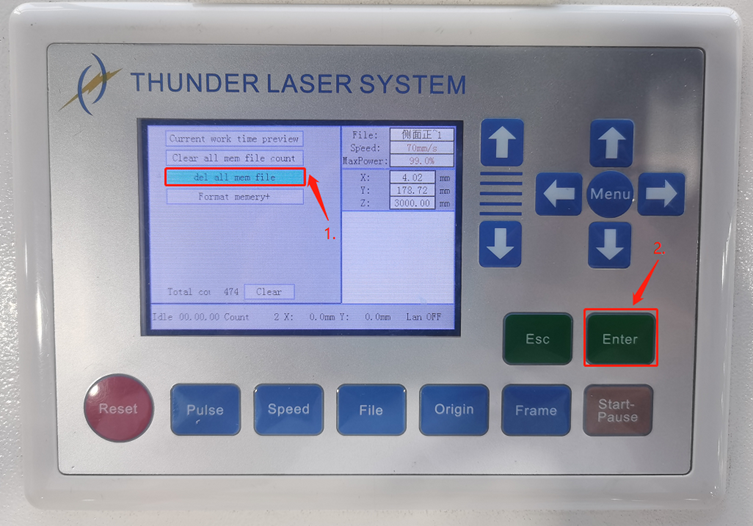

all mem file >> Enter
How to delete a file

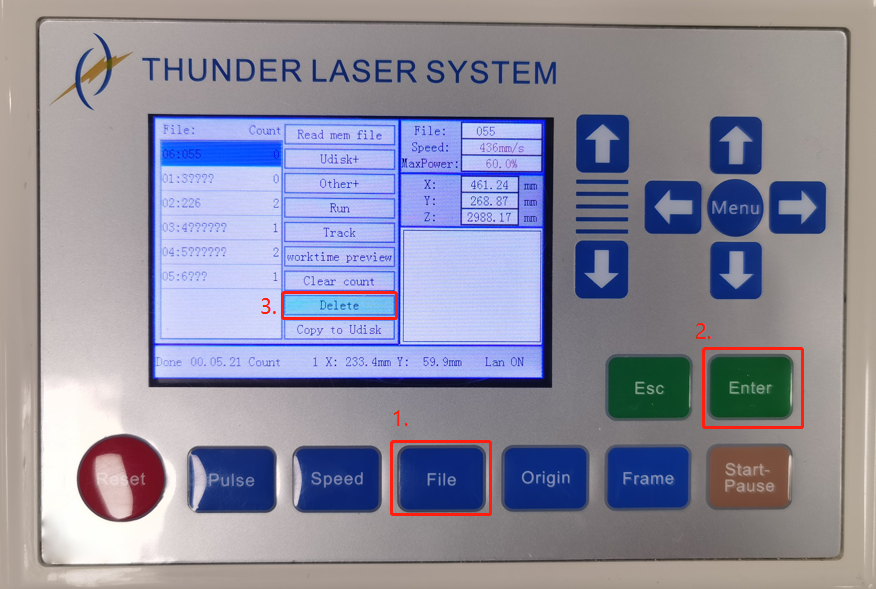

File>>Enter >> Delete >> Enter

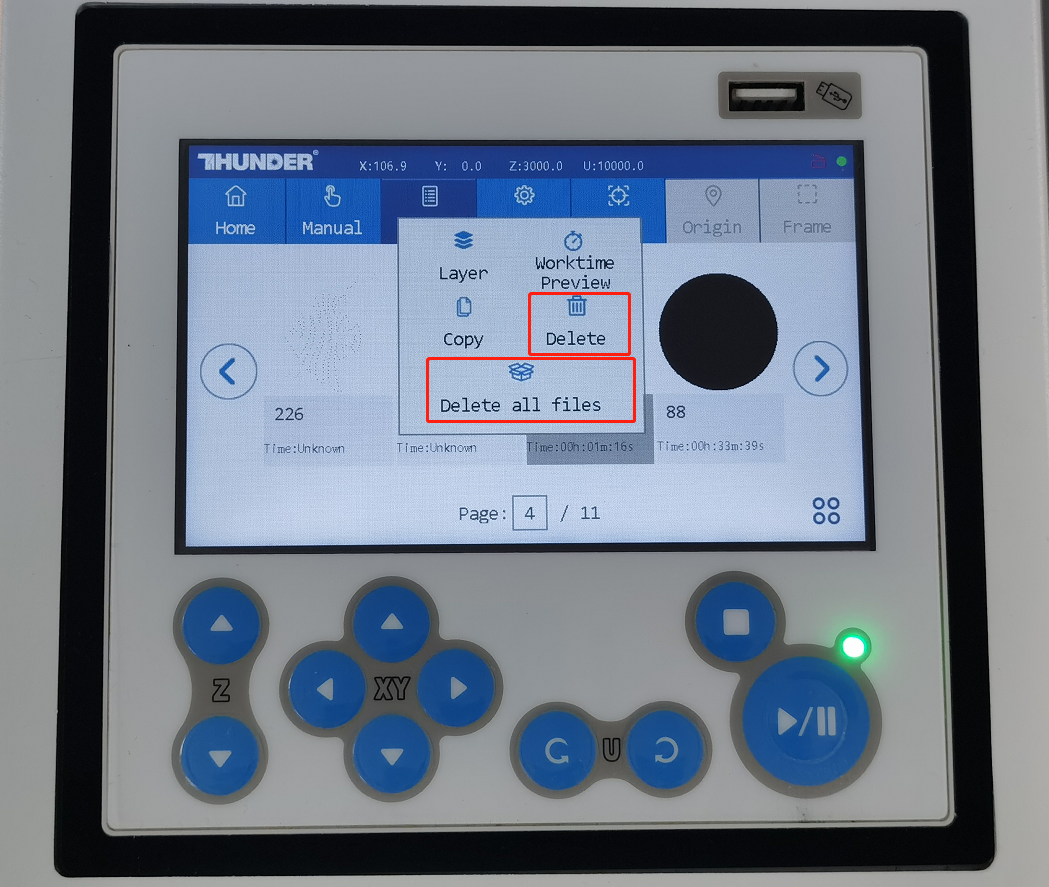

On the Touch pannel
File>>Select your file>>
>>Delete or Delete all files

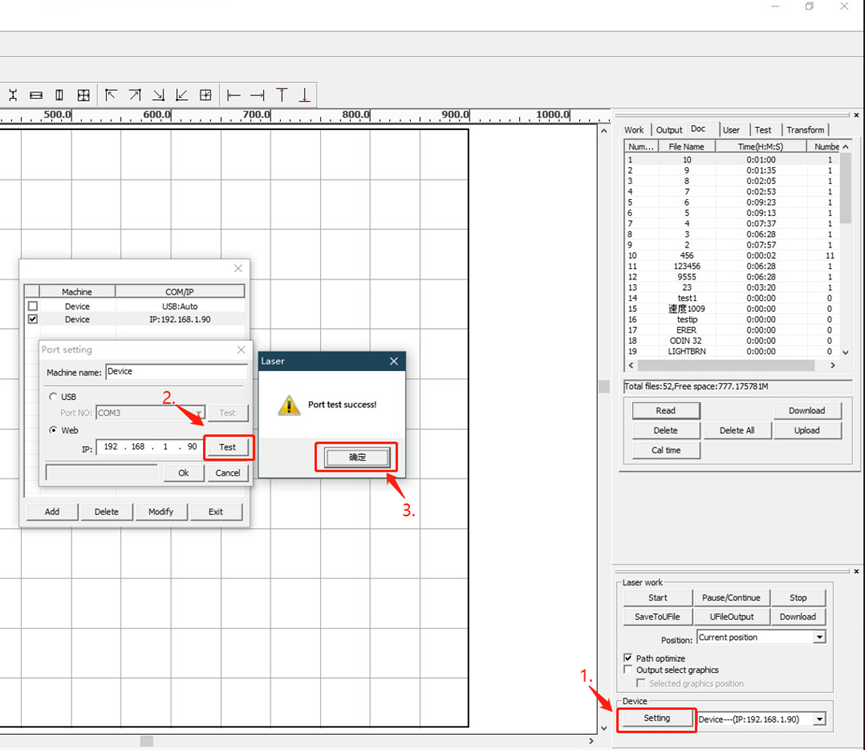

On the RDWorks
Ensure that the laser machine is
successfully connected to RDWorks.

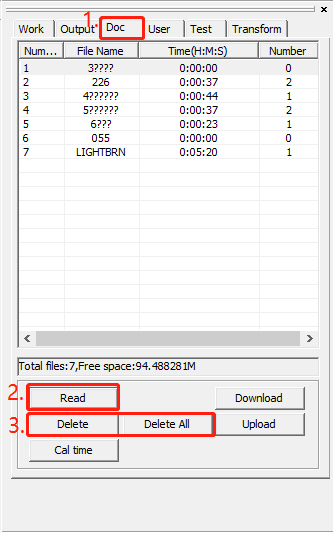

Doc >> Read >> Delete or Delete All

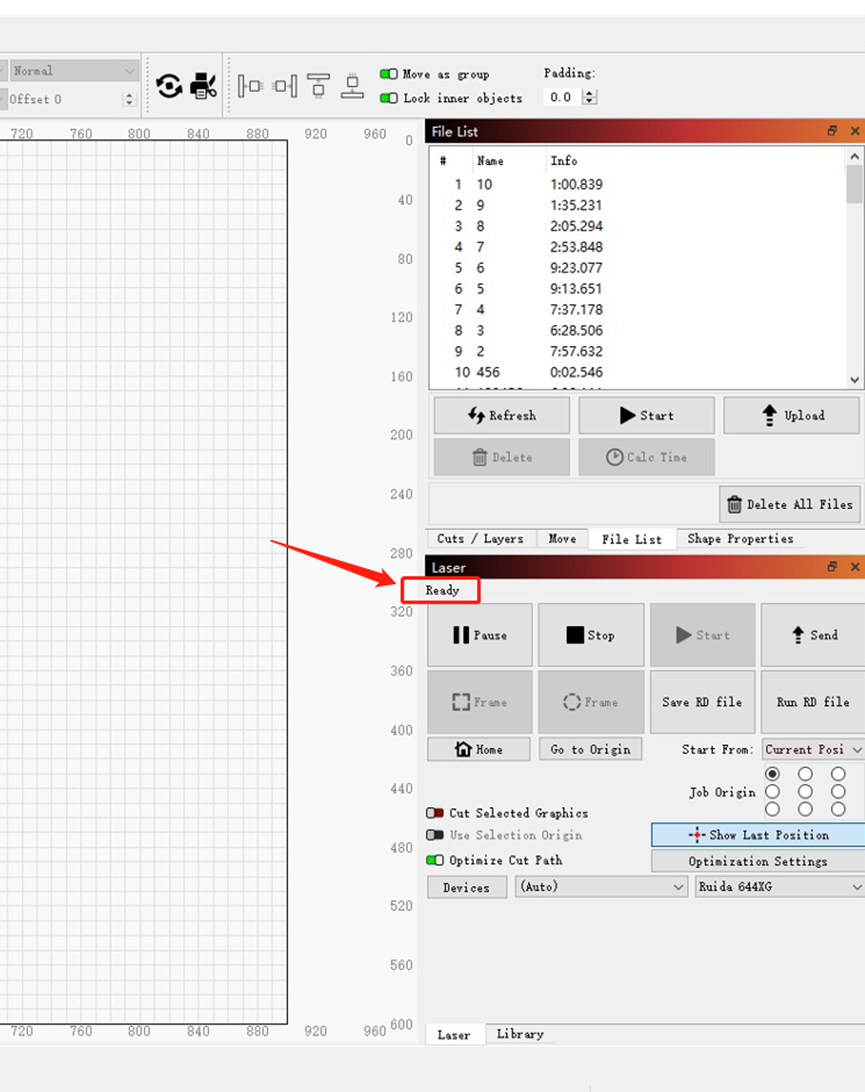

On the Lightburn
Ensure that the laser machine is successfully
connected to Lightburn.

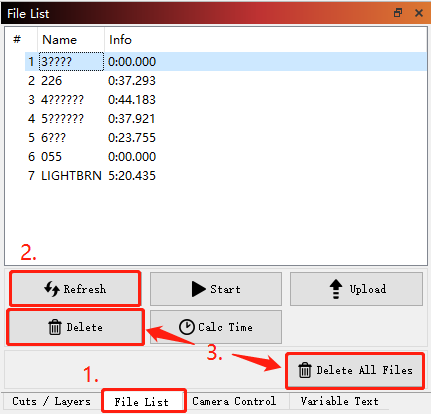

File List >> Refresh >> Delete or Delete All Files
END.
