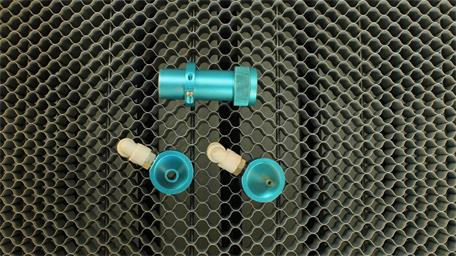

Reasons: 1. The needed focus is lost Wrong focus length For standard laser head(2" lens), the focus length is 6mm, 4 inch laser head, the focus length is 10mm. TYPE DOT SIZE FOCAL DISTANCE FUNCTION STANDARD 2" 0.0039″(0.099mm) 4.5mm~6.5mm Cutting ...

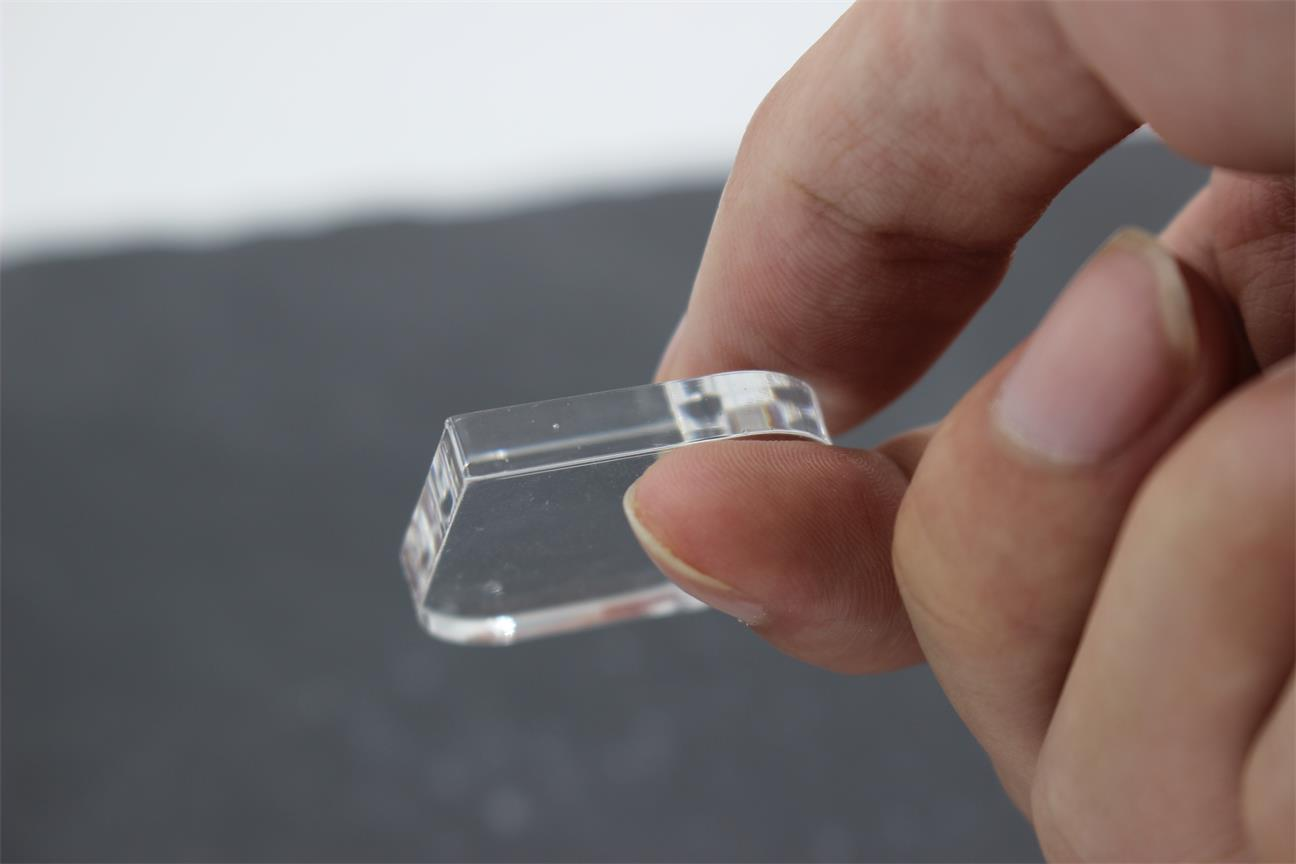

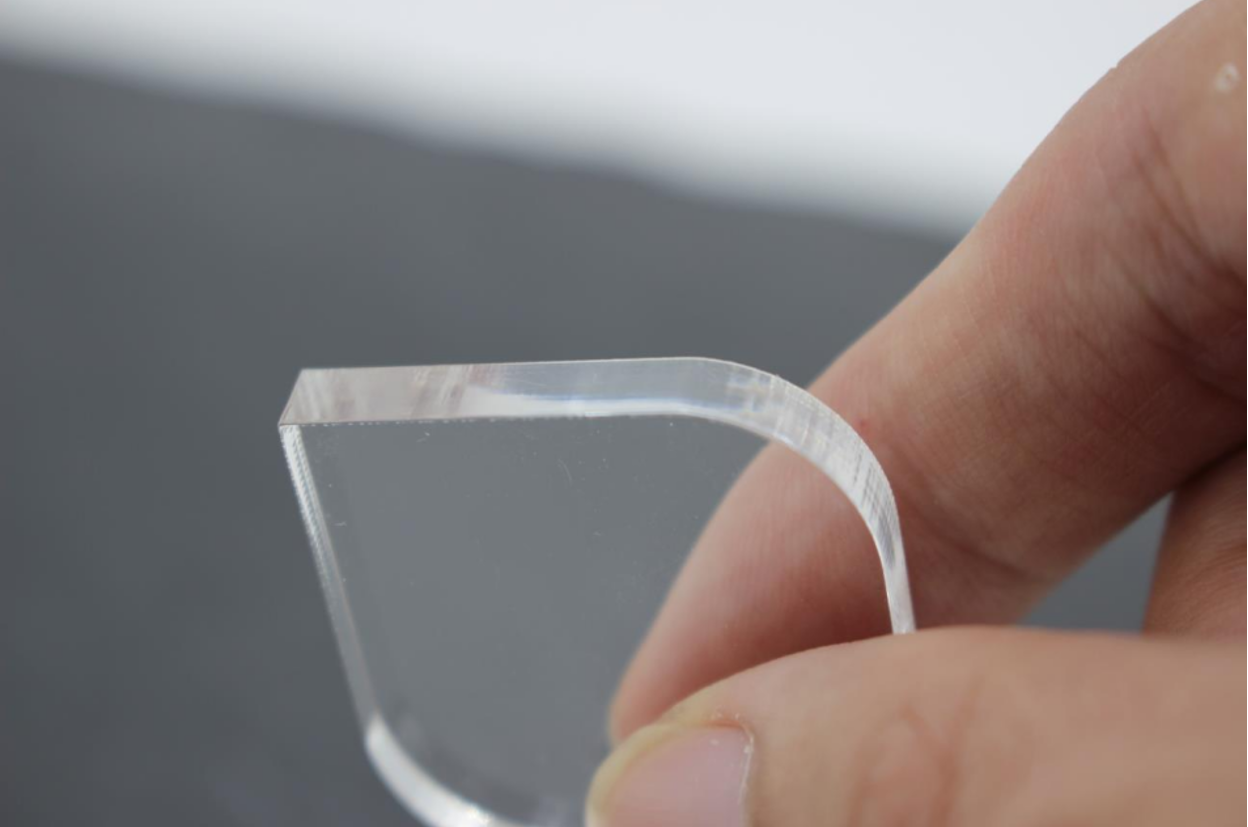

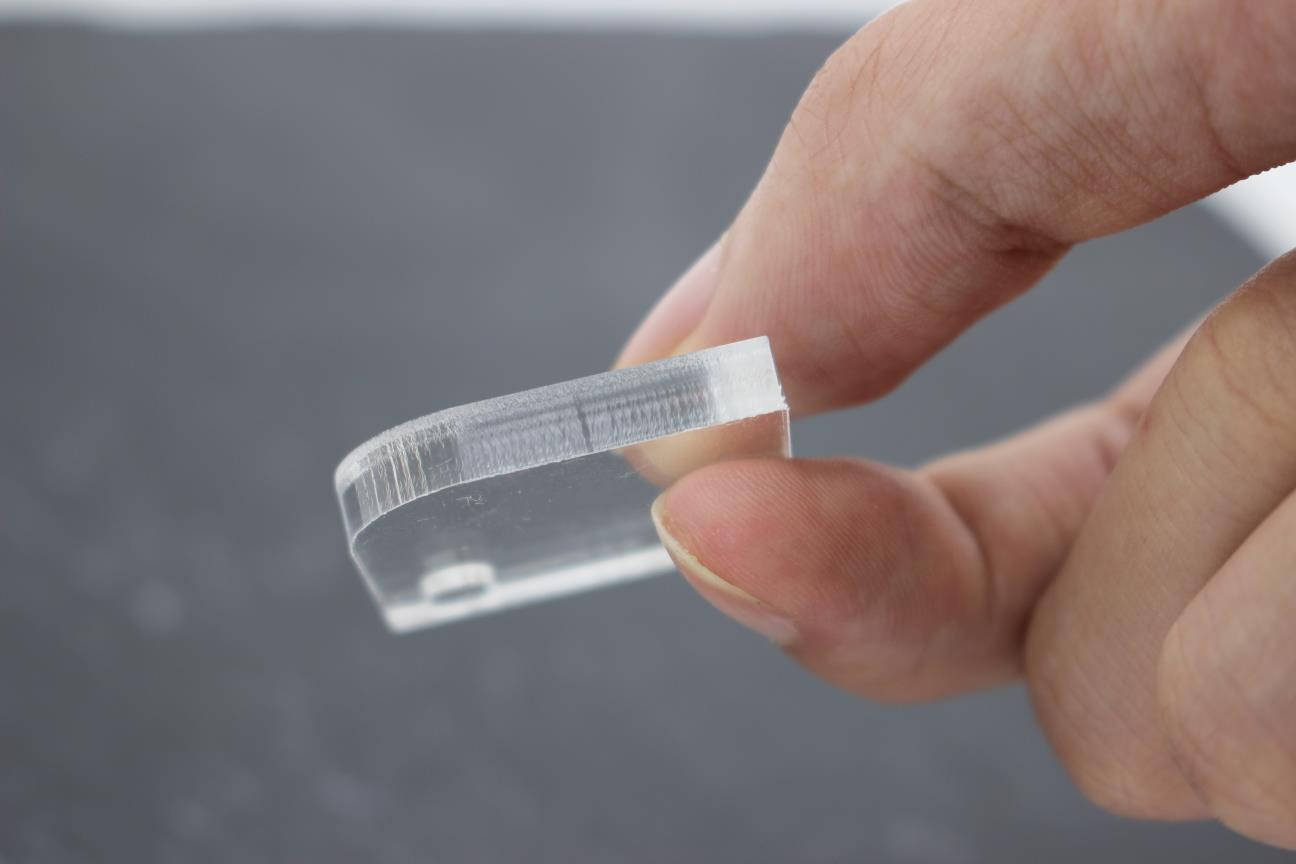

Please find a piece of 6mm acrylic (50*50mm),which used for testing the power of laser tube.You should have one in your toolbox. If you don't have acrylic, you can cut wood, then tell us the thickness. Like below. Files: cut a 15*15mm circle ; ...
Reason: "Enable rotate engrave" is enabled. I’d like to cut a Rectangle at 30x30mm, however, it become 30×60.2 in simulation and in laser. Solution: Please make sure “Enable rotate engrave” is not ticked. End
Reason: Wrong pulse setting of X/Y axis motors Solution: 1. Please draw a 100x100mm square using the cut mode and send to your laser cutter and cut the square. 2. Let’s say the actual size of the square measured is 98x95mm 3. In RDWorks, go File(F)>> ...
X-axis belt replacement and adjustment Tools needed M3 Screwdriver Plier 5.5mm wrench New belt A pair of scissors Masking tape Disassemble Turn off the machine and unplug the power cord. Remove the upper front door with keys that came with the ...
