How to choose software after RDV controller update
RDWorks for different RDV controller
| Software | Controller |
RDWorksV8.01.62 and latest version RDVision V2.00.18 | RDV6442G-LY-B AND RDV6442G-LY-1G |
A software installation package is in U-disk that came with the machine. If you got the wrong package, contact us :tech@thunderlaser.com
Where the U-disk is :
Where to installation package in U-disk :
About when we started to update this, more info here:Sep-2022-ccd-controller-memory-upgrade-to-1g-6-11-2022

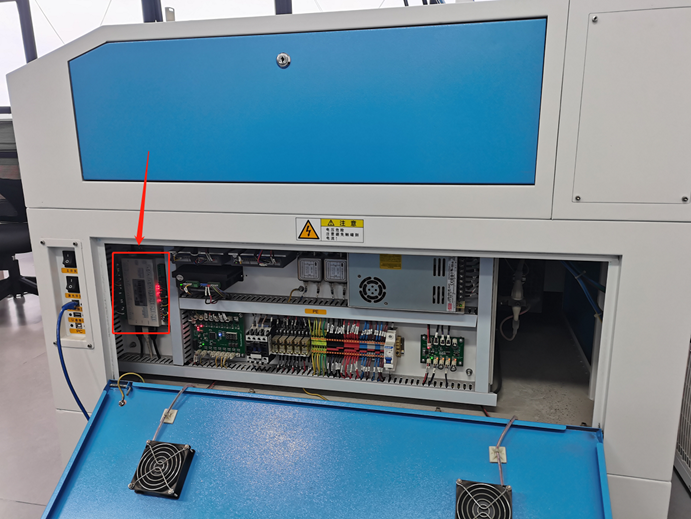

Where the controller is

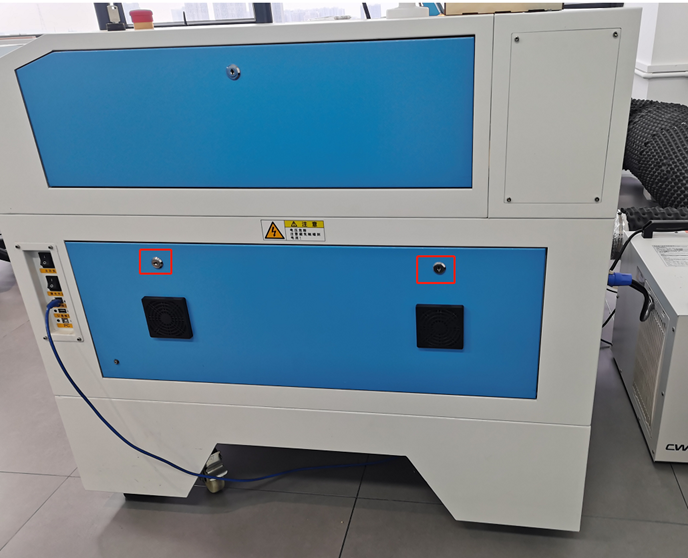

Open the lower right door with the black key first.

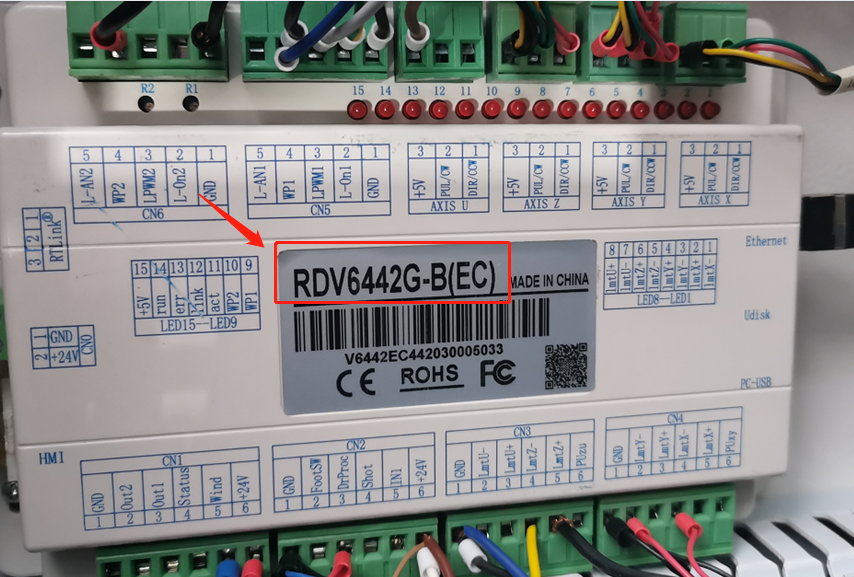

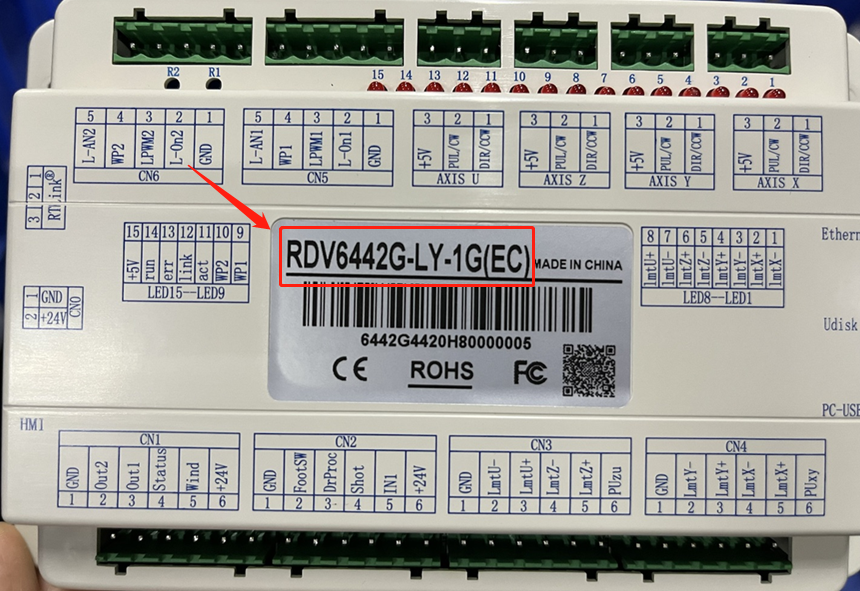

The left one is controller, a label on it.
Confirming the RDWorks Version
The same approach applies to RDVision and RDCMarkVision.
Check the name of installation package
Or in RDWorks, Help >> About RDCAM
Download RDVision V2.00.18 software from here:https://www.thunderlaser.com/download/RDworks/RDVisionSetUp2.00.18.rar
END
