How to choose software after controller update
RDWorks for different controller
| Software | Controller |
| RDWorksV8.01.60 and older version | RDC6442G-LY-B |
| RDWorksV8.01.62 and latest version | RDC6442G-LY-B AND RDC6442G-LY-1G |
A software installation package is in U-disk that came with the machine. If you got the wrong package, contact us :tech@thunderlaser.com

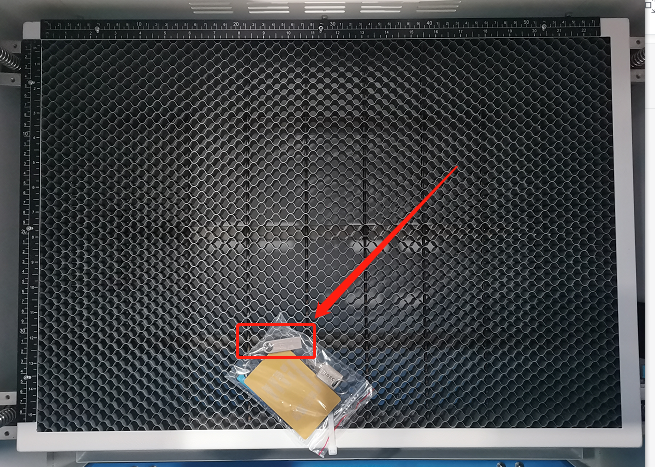

Where the U-disk is :

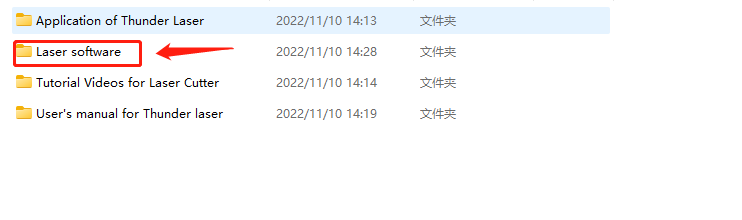

Where to installation package in U-disk :
About when we started to update this, more info here: Oct-2022-controller-memory-upgrade-to-1g

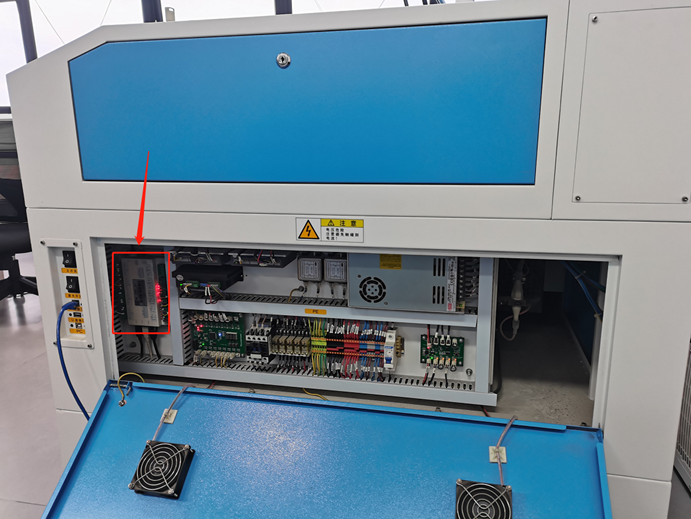

Where the controller is
Open the lower right door with the black key first.

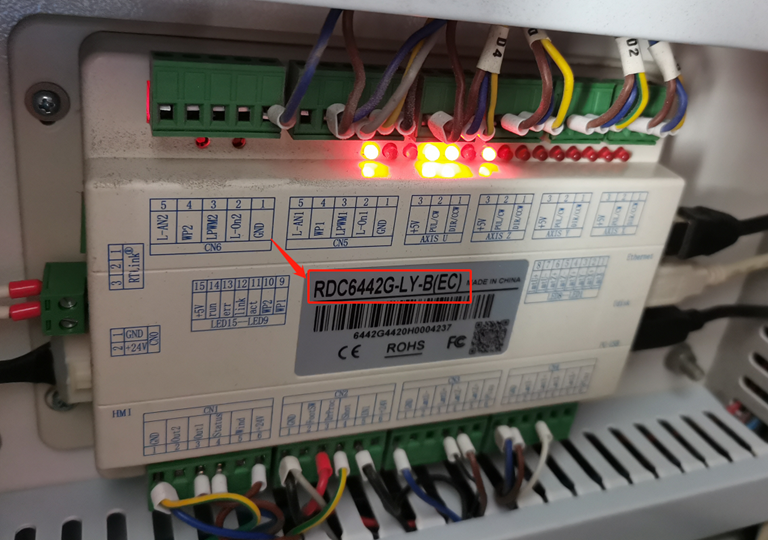

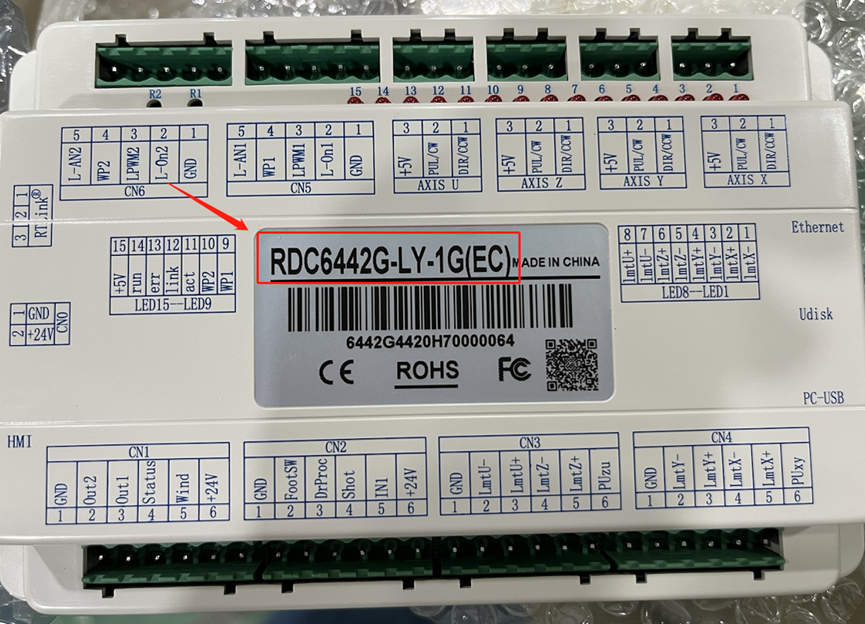

The left one is controller, a label on it.
Confirming the RDWorks Version
Check the name of installation package

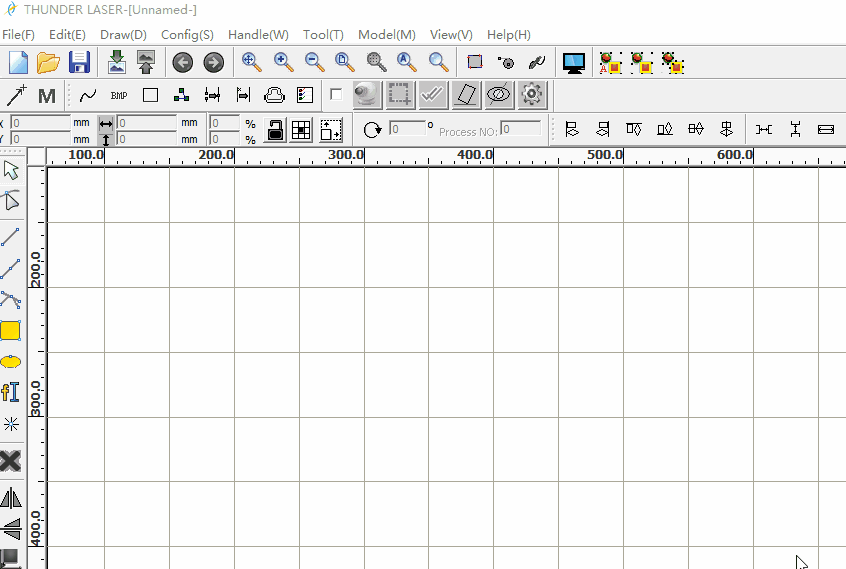

Or in RDWorks, Help >> About RDCAM
