How to Change the Name of the Titan Movable Camera
Preface
If the Camera cannot communicate with the machine after power-on, you can use the camera preview function to check whether the camera is recognized correctly. If the camera name is incorrect, follow the instructions below to change the camera name.
The software used in this procedure does not have an English interface. Please pay close attention to the Chinese text on the buttons and menus. Follow the red boxes highlighted in the screenshots to make sure the correct options are selected.Camera Types, Naming Standards, and Applicable Models
Hampo Cameras
The following camera types are currently equipped with Hampo-brand cameras:
Camera Type | Standard Camera Name | Applicable Machine Models | Installation Position |
Movable Camera | Camera-Movable | Titan Series (standard); Nova Pro (optional in the future) | Next to the laser head |
Single Camera for Lid-Closed Operation (Fisheye Lens) | Camera | Bolt, Bolt Plus, Bolt Plus 24, Bolt Pro 36, Titan 27, Titan 35 | Inside the machine enclosure |
Left Camera for Lid-Closed Operation (Dual Fisheye Lenses) | Camera-Left | Titan 51, Bolt Pro 32 | Inside the machine enclosure |
Right Camera for Lid-Closed Operation (Dual Fisheye Lenses) | Camera-Right | Titan 51, Bolt Pro 32 | Inside the machine enclosure |
Single Camera for Lid-Open Operation (Standard Lens) | Camera | Nova Plus 24, Nova Plus 35 | Inside the machine enclosure |
Kingcent Cameras
The following camera types are currently equipped with Kingcent-brand cameras:
Camera Type | Standard Camera Name | Applicable Machine Models | Installation Position |
Single Camera for Lid-Open Operation (Standard Lens) | CameraLeft | Nova Plus 51, Nova Plus 63 | Inside the machine enclosure |
Single Camera for Lid-Open Operation (Standard Lens) | Camera | Titan 51 | Inside the machine enclosure |
Important Notes
- When programming a Kingcent camera, the camera name is automatically changed:
- For Nova Plus 51/63, the camera name will automatically become CameraLeft.
- For Titan 51, since it doesn't need to change the camera orientation, the camera name remains "Camera".
- Some large-format machines continue to use Kingcent lenses because the Hampo standard lens provides lower accuracy when used with LightBurn for lid-open camera applications.
- Kingcent cameras are not compatible with macOS. Therefore, some customers using Mac computers may report that the camera function does not work.
- The camera name may not strictly follow the naming standards above according to different batches. The important requirement is that multiple cameras installed on the same machine must have different names.
- If multiple cameras on the same machine have the same name, it may affect camera recognition and camera functions. In this case, rename the cameras so that each camera has a unique name.
For the Titan Movable Camera: The standard values for both iProduct and DeviceName should be Camera-Movable.
Complete Guide for Hampo Camera Renaming:
Step 1: Connect the Movable Camera to Your Computer

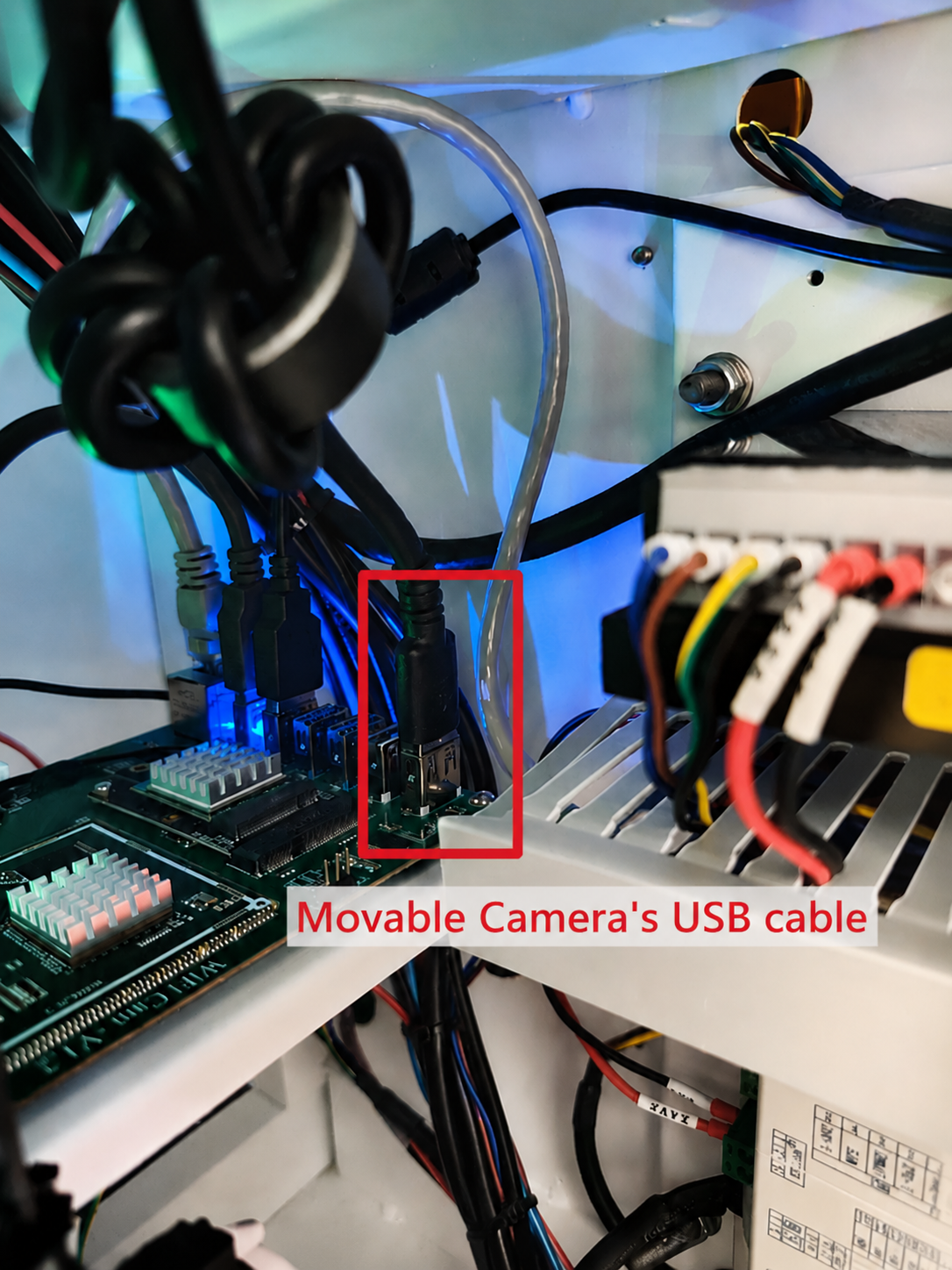

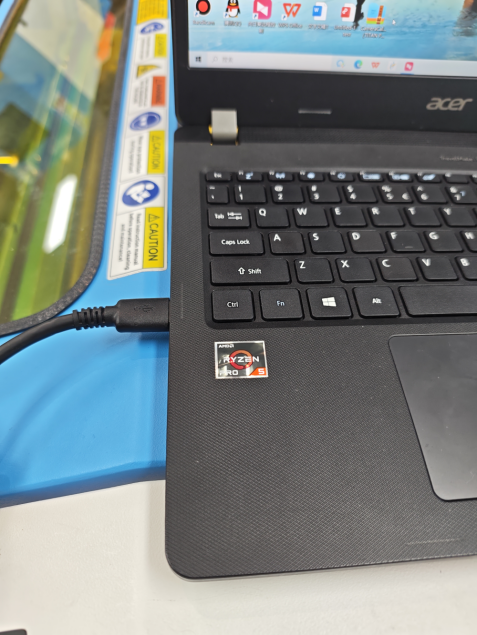

Disconnect the Movable Camera's USB cable from the USB expansion board or Wi-Fi board, and connect it directly to a USB port on your computer.
You may need an extension cable if the original cable is not long enough.
Step 2: Check Whether the Camera Is Detected

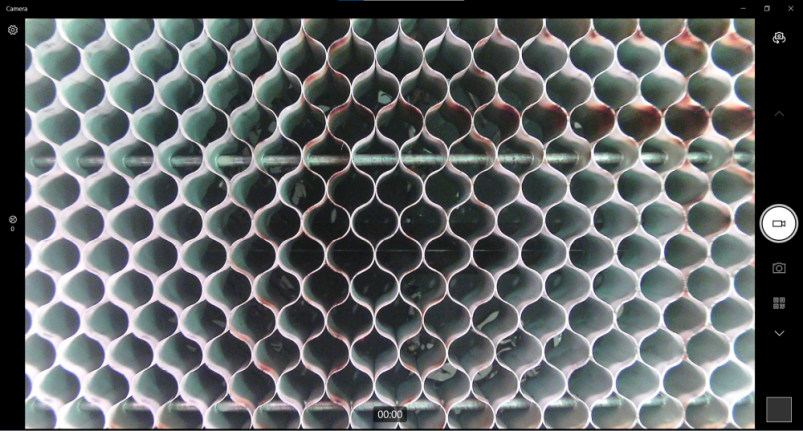

Open the built-in camera application on your computer and check whether the Movable Camera is detected successfully.
Step 3: Export the Camera Parameters
Open the folder below and locate CommonBurnerAP v1.0.1.6. Double-click CommonBurnerAP.exe to launch the software.
Software for Changing the Movable Camera Name

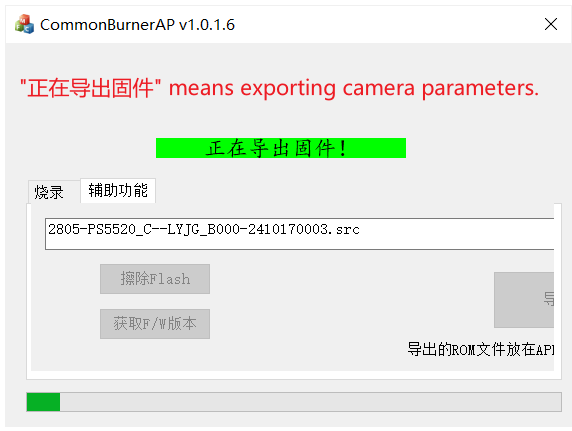

In the software, select 辅助功能 > 导出 to export the camera parameters.

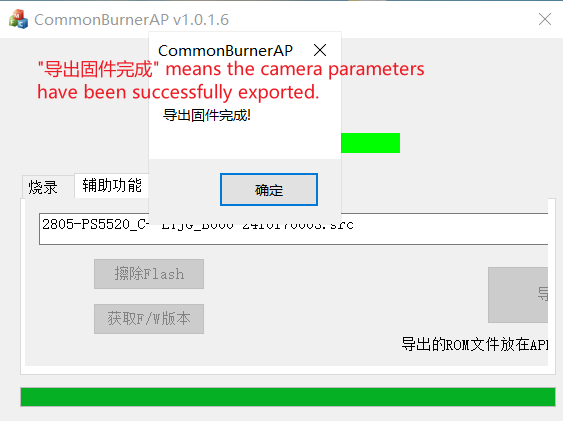

When the “Firmware export complete!” message appears, a .src camera parameter file will be generated in the CommonBurnerAP v1.0.1.6 folder.
Step 4: Change the Camera Name
Open the ParamTableSetBurnerAP-win folder and double-click ParamTableSetBurnerAP.exe to launch the software.

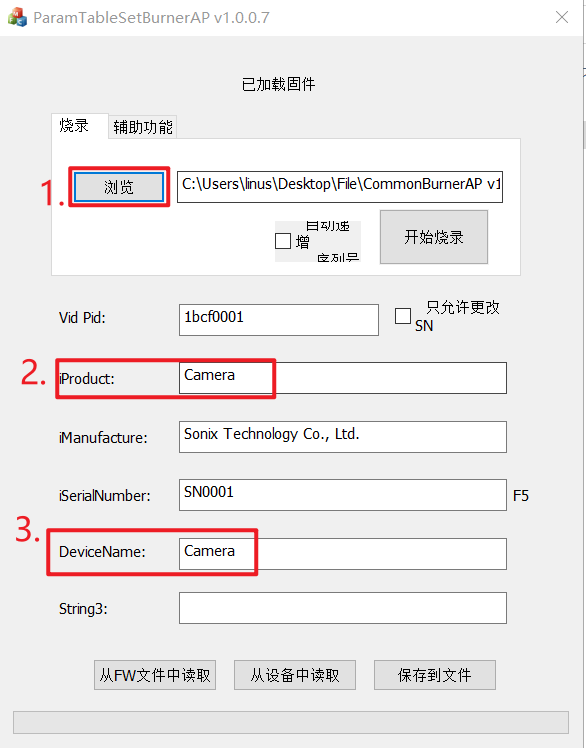

- Click 浏览 to import the .src file exported in Step 3.

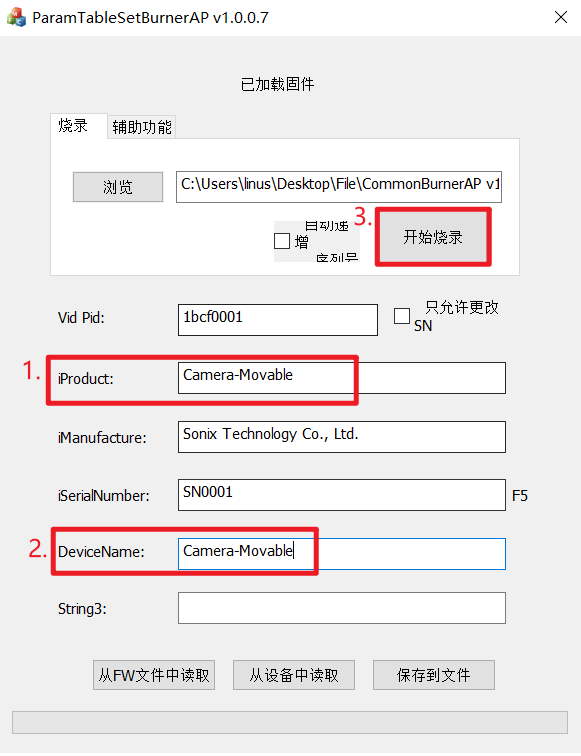

- Locate the iProduct and DeviceName parameters.
- Change the values of both parameters to: Camera-Movable
- Click 开始烧录 to write the updated parameters to the camera.

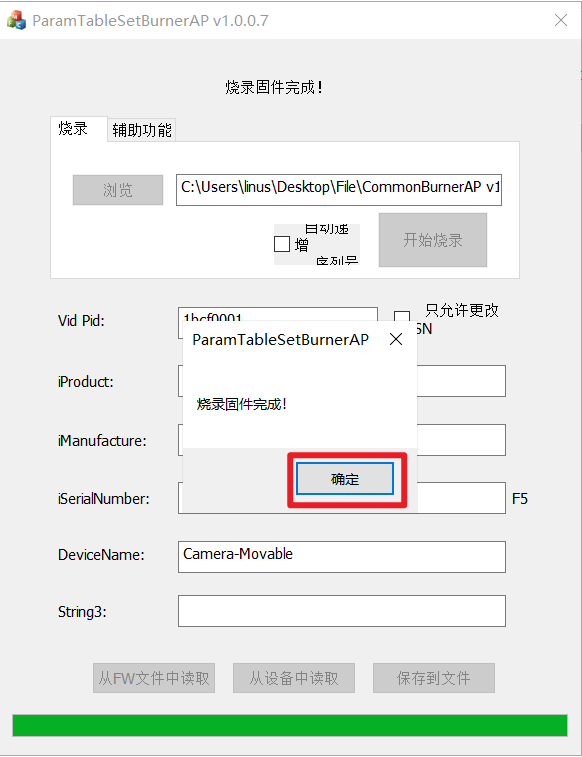

When the “烧录固件完成！” message appears, the Movable Camera name has been changed successfully.
Click 确定 and close the software.
Step 5: Reconnect the Camera and Verify the Name
Disconnect the Movable Camera's USB cable from the computer and reconnect it to the USB expansion board or Wi-Fi board inside the machine.
Then open LaserMaker and establish communication with the machine.

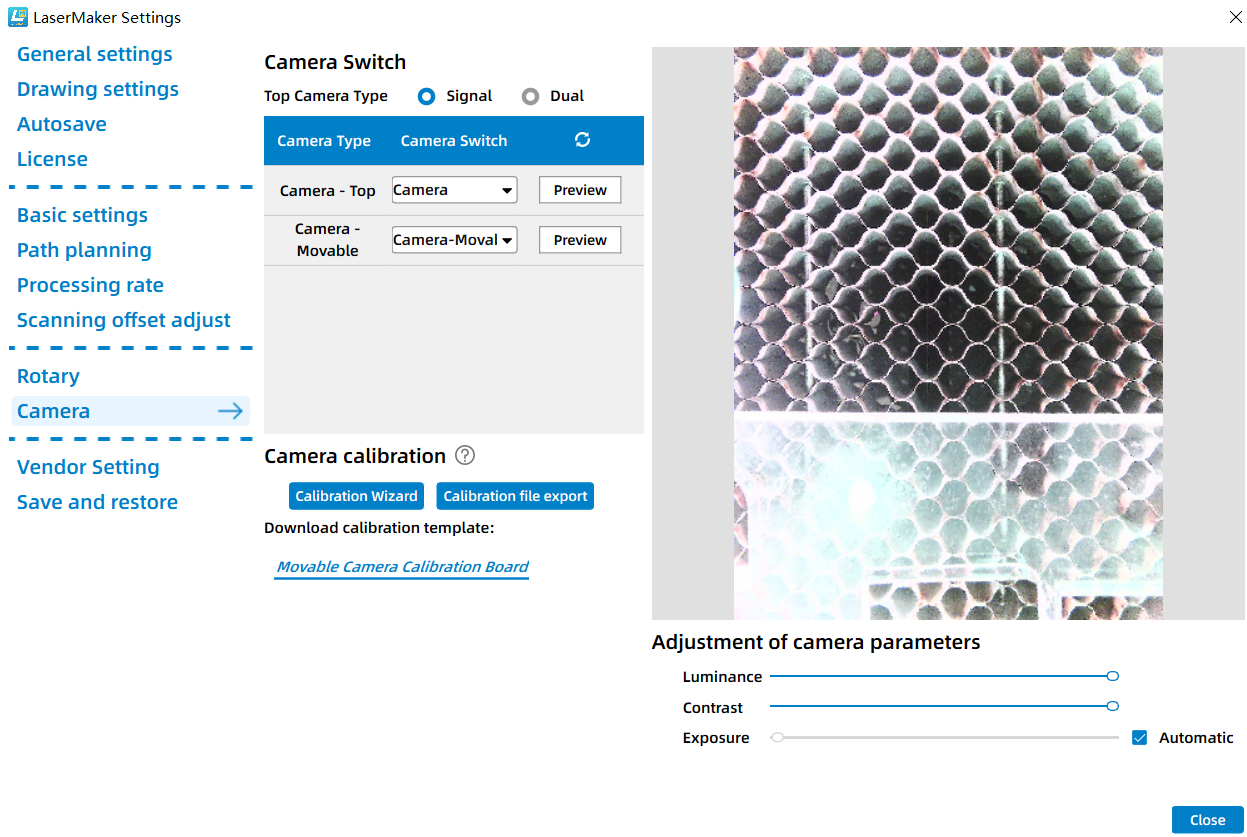

After communication is successfully established, go to: Settings > Camera
Check whether the Movable Camera is now recognized correctly.
Still need help?
For specific technical questions or help requests, please open a Ticket with picture or video, so our Support team can assist you ASAP.
For the information provided in the ticket, please refer to this link：
Help Tech Support Troubleshoot Faster
End.
