How to adjust and replace the motor?

How to adjust and replace the motor?

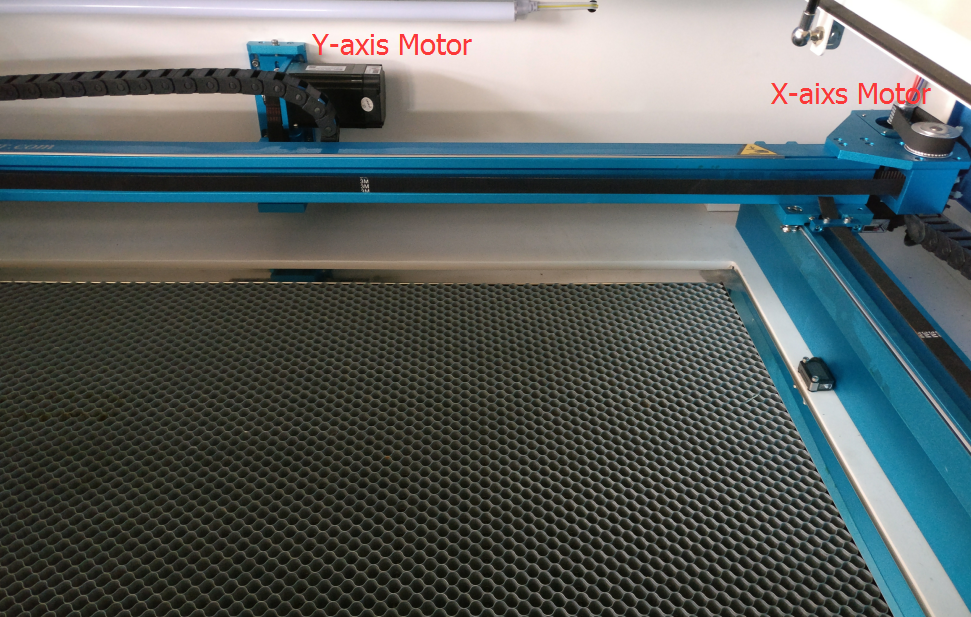

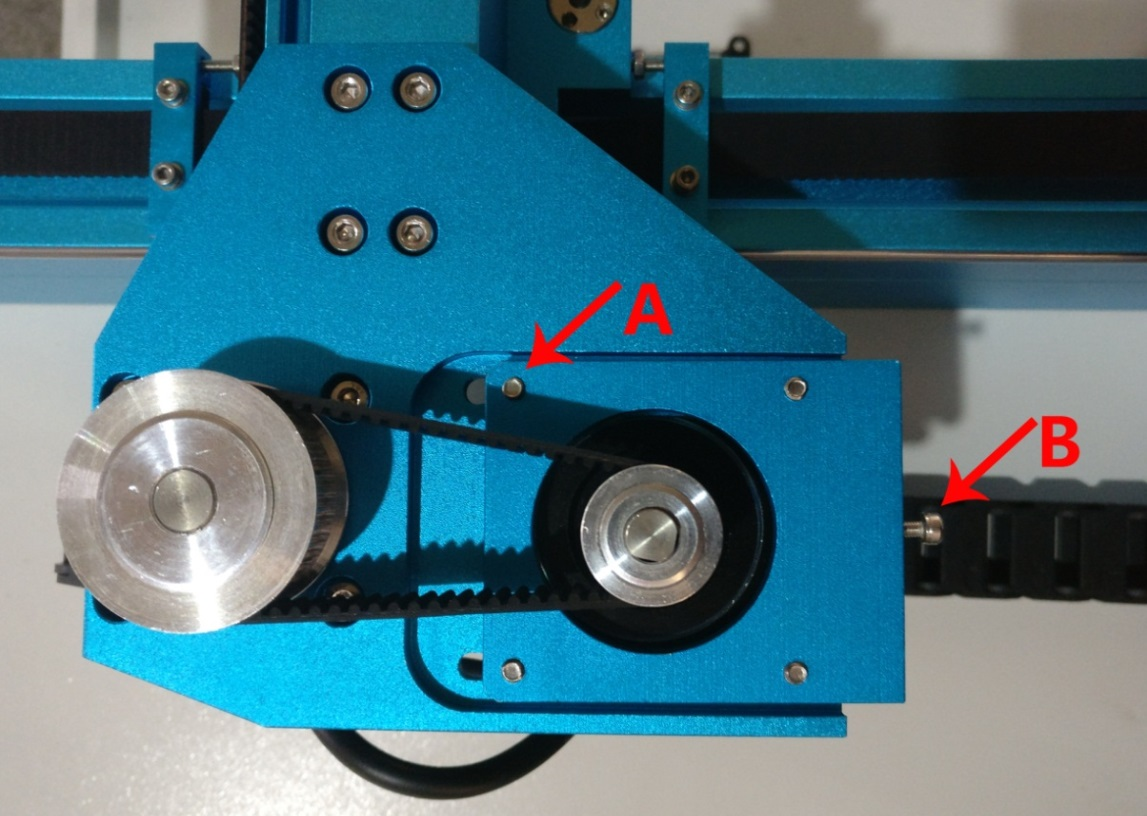

 X-axis Motor


1. Firstly, disconnect the machine from its power source.


Screw A: There are four screws A, for fixing the X motor;

Screw B: It’s for adjusting the belt tension, please loosen the four screws A before adjust belt.



2. Click the link below for instructions video:


X motor disassembly


X motor reassembly

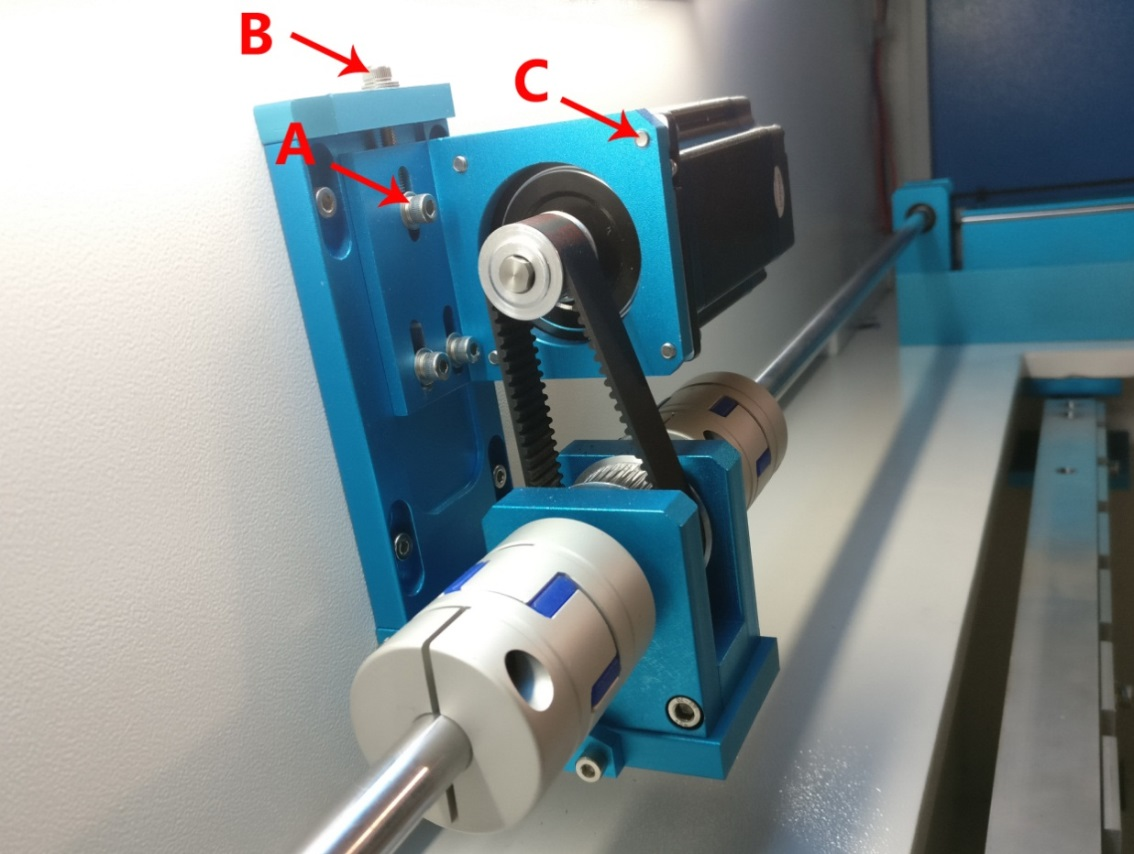

Y-axis Motor

​


1. Firstly, disconnect the machine from its power source.

Screw A: There are three screws A.

Screw B: It’s for adjusting the belt tension, please loosen the three screws A before adjust belt.

Screw C: There are four screws C, for fixing the Y Motor.





2. Click the link below for instruction video:

Y motor disassembly


Y motor reassembly




End.
