How do I replace the drive shaft module?

How do I replace the drive shaft module?

Firstly, disconnect the machine from its power source


Disassembly procedure:



Toole needed:

 M3/M4/M5 Allen Wrench


Tips: Loosen in anticlockwise, tighten in clockwise.

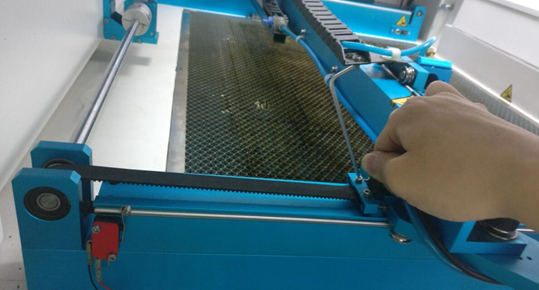

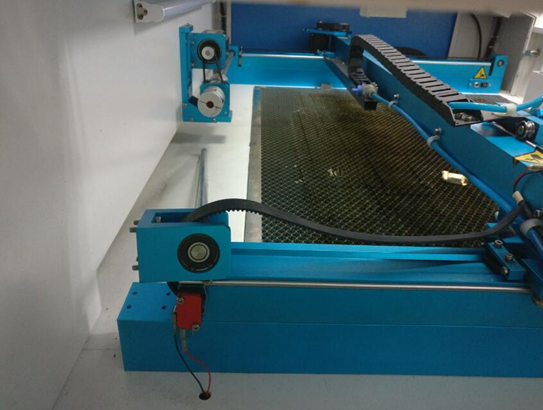

1. Loosen two upper screws on the buckle then take out the belt;

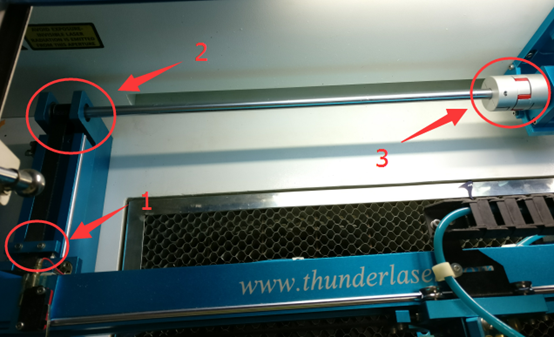

2. Unscrew and remove four screws from the blue base;

3. Unfix two screws on coupling

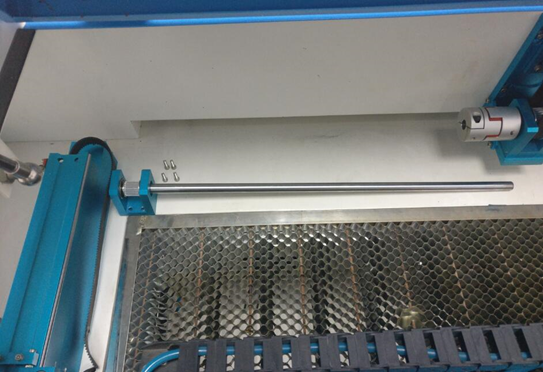

After that, please remove this drive shaft, like below.


Reassembly procedure:

Tips: put four screws and the belt into the blue base firstly, like below.



1. Insert the shaft into coupling then fix the blue base with four screws;

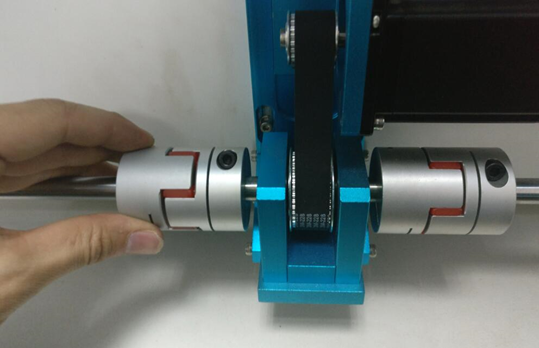

2. Slide the coupling to proper position as the right sides shown, then fix it.



3. fix the belt, like below.



This video is for reference:


End.
