Ethernet cable connection-RDWorks

How to connect with a Ethernet cable

Connect the laser cutter system to desktop or laptop via an Ethernet cable.

1. Configure computer

Go to Start >> Control Panel >> Network and Sharing Center, configure the connection for local

connection, like below.

In the Properties window select Use the following IP Address: Set the address to 192.168.1.30

and the subnet Mask to 255.255.255.0, like below.

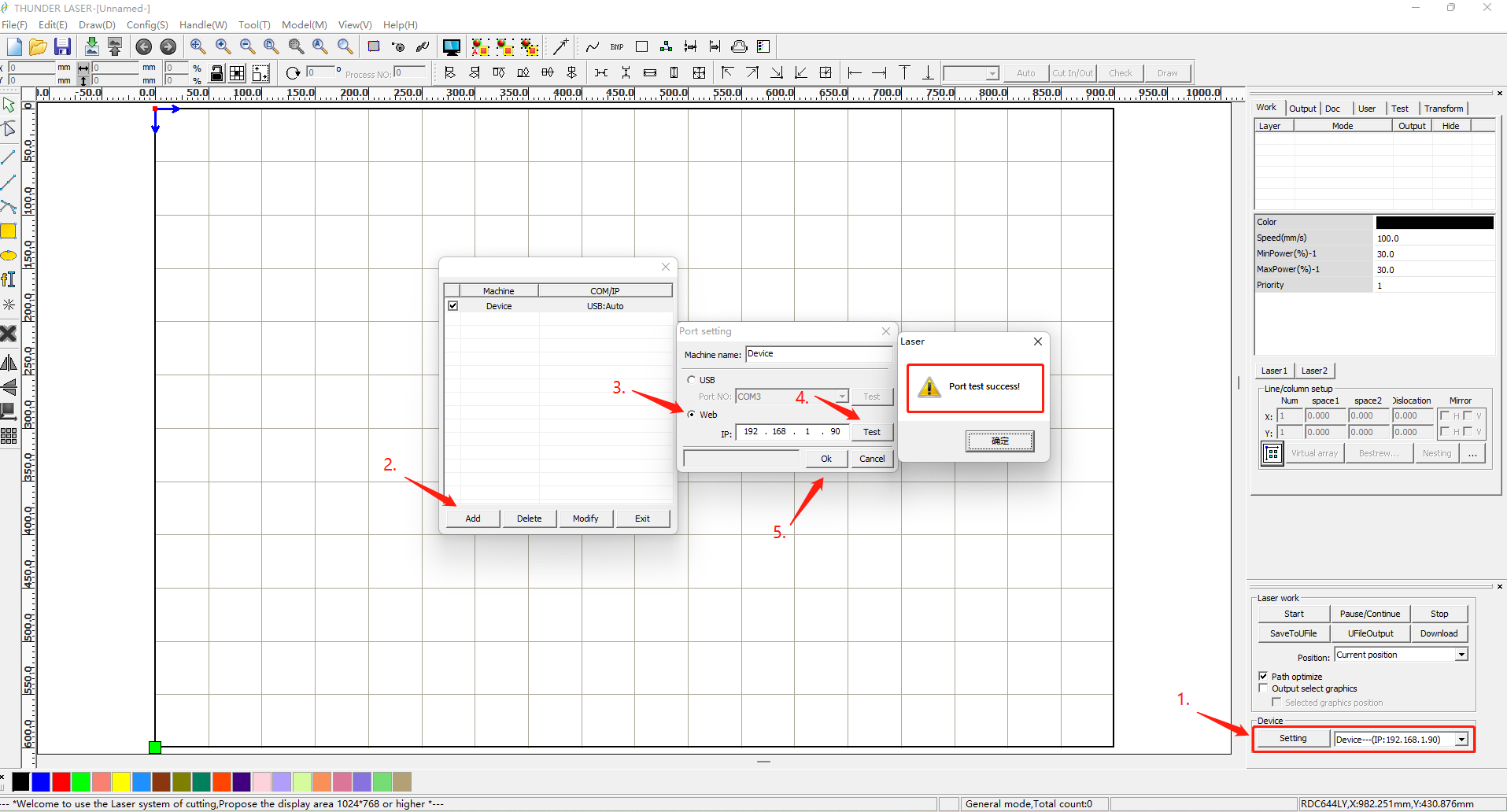

2. Configure laser cutter software Add and select the Web port.

Click below link to see instruction video:

How to connect the laser machine via Ethernet cable



END.
