Bolt Single Blowing Channel Description

Bolt Single Blowing Channel Description

Preface:

1.Since Thunder Bolt doesn't have a dual air assist, there is no high volume air or low volume air, only the difference of whether or not it uses air assist.
2.When using the blowing air, the volume air can be adjusted by twisting this screw.
Clockwise to reduce the air volume, counterclockwise to increase the air volume.

How to select air assist in software

RDWorks:

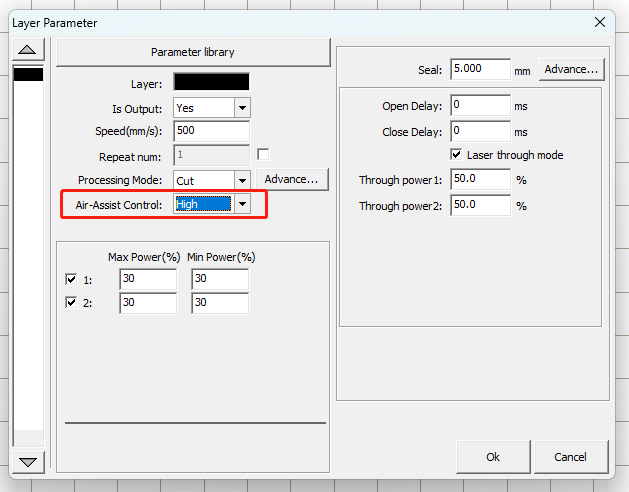

The Air-Assist Control select High that means this layer uses air assist.


The Air-Assist Control select Low that means this layer doesn't use air assist.

Lightburn:

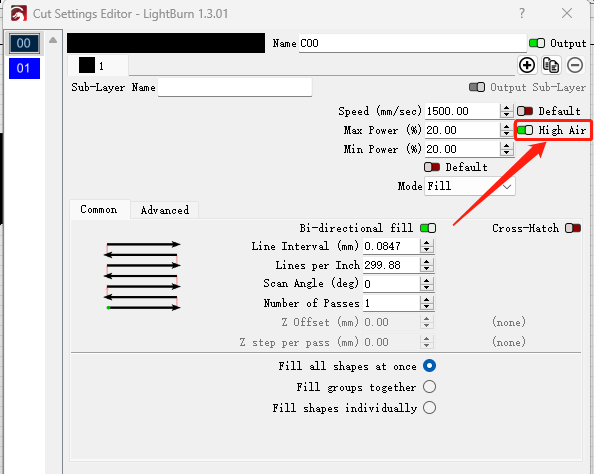

Selecting High Air that means this layer uses air assist

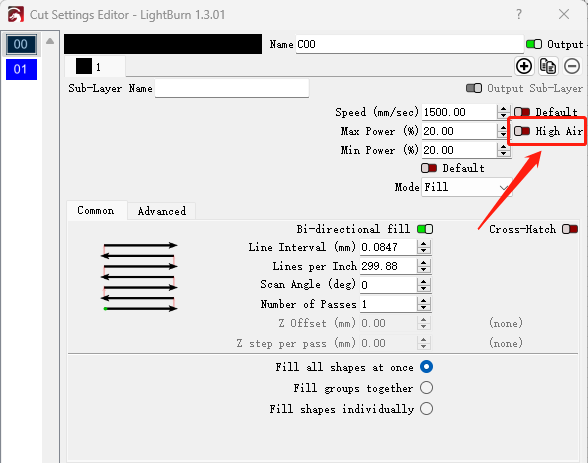

No selecting High Air that means this layer doesn't use air assist.




END
