Bolt Series Tool Bag Included Parts

PS: Items in the toolbag may be different, the article and video are just for reference.

NO.	Physical photos	Descriptions	Applications	PS

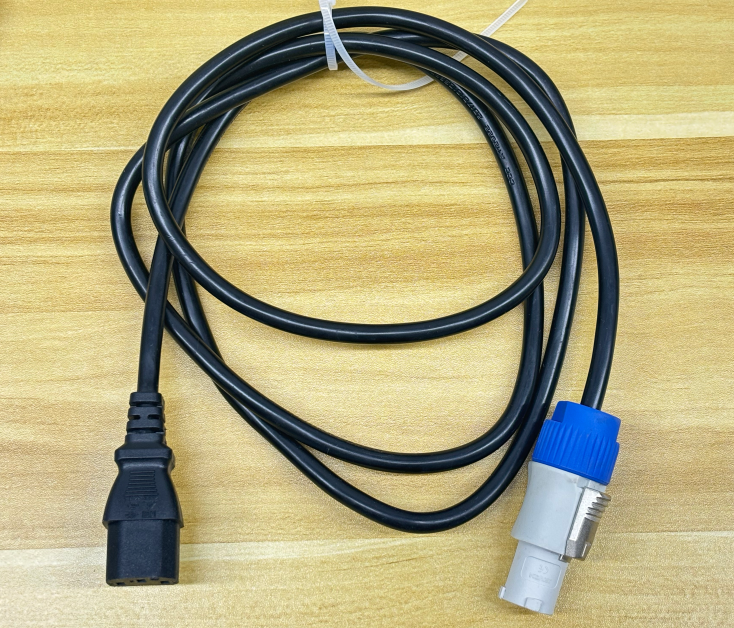

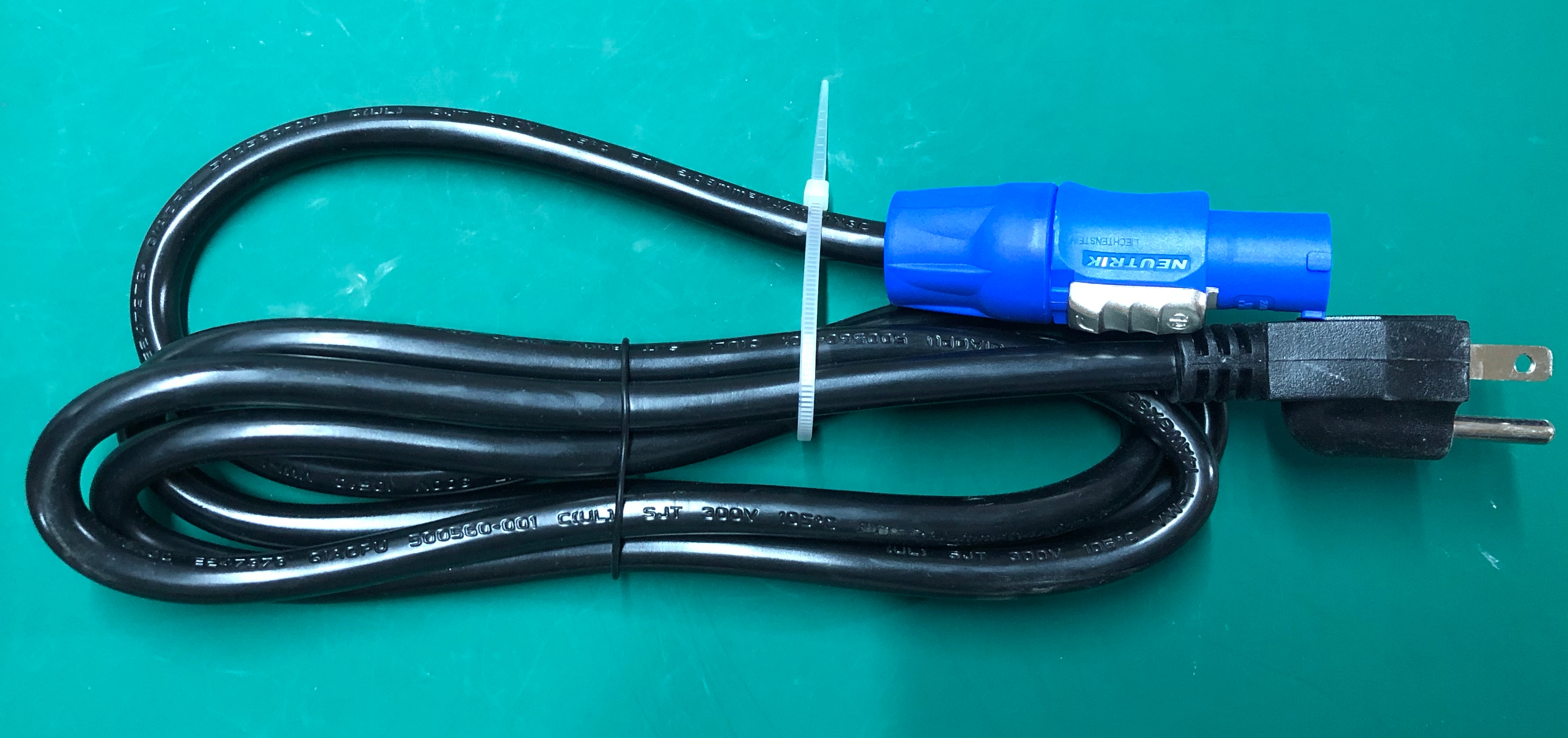

1		Main Power Cord	Power the machine

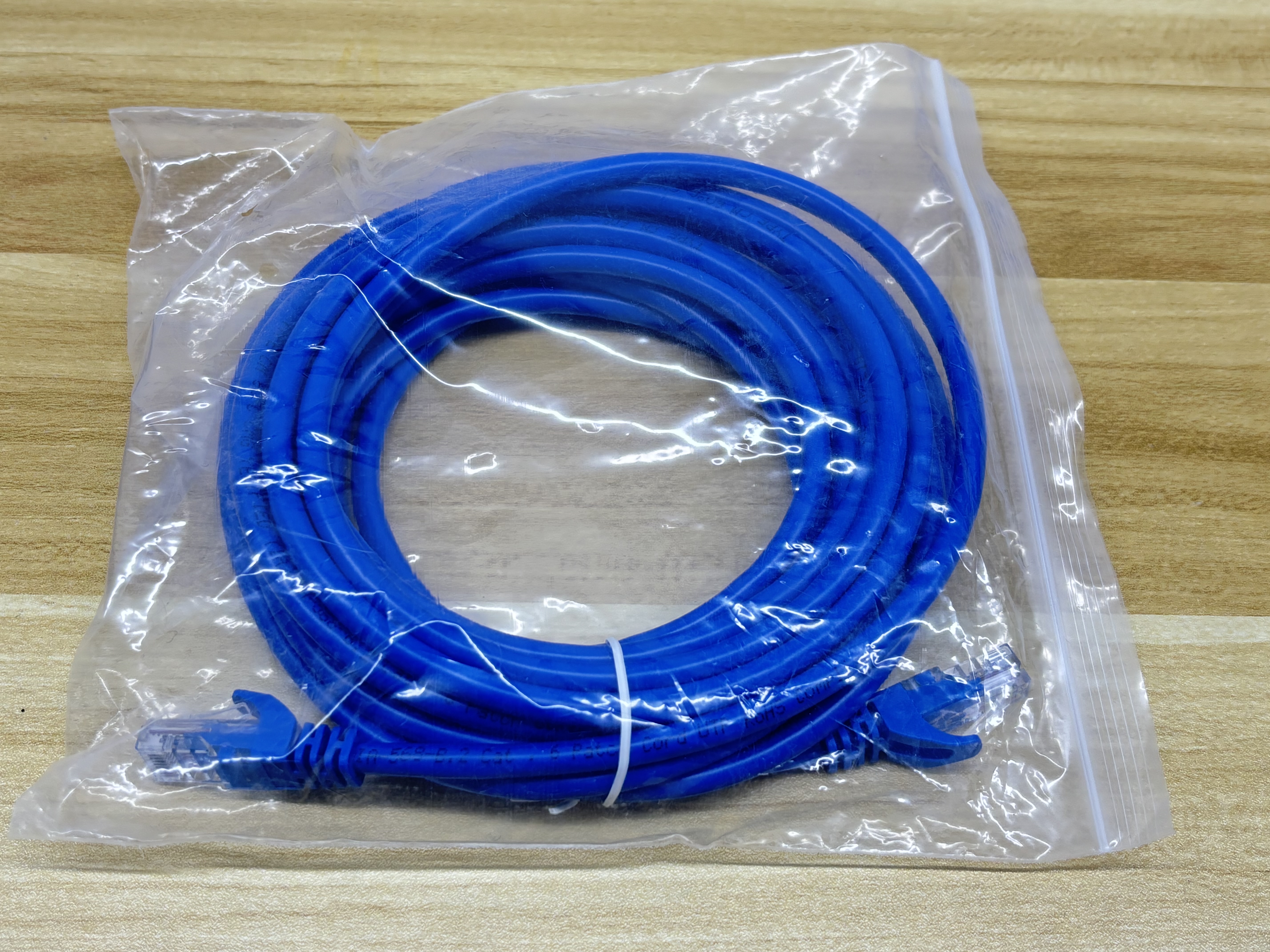

2		Internet Cable	Connecting the software and machine

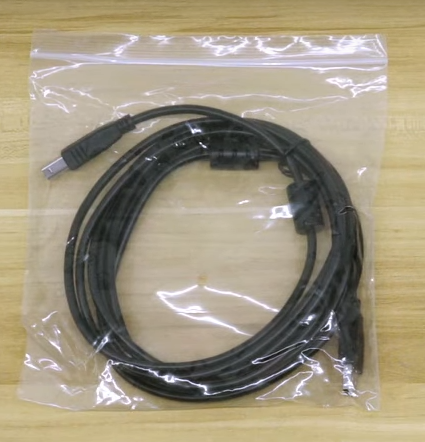

3		PC Cable	Connecting the software and machine

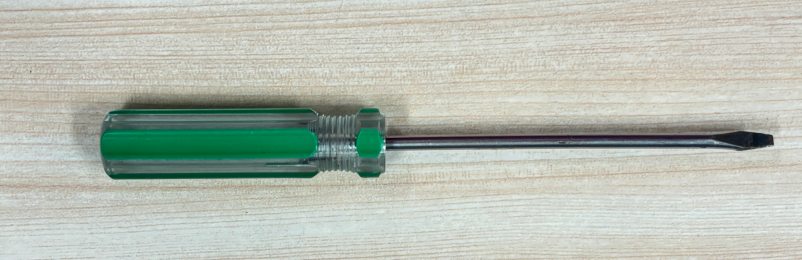

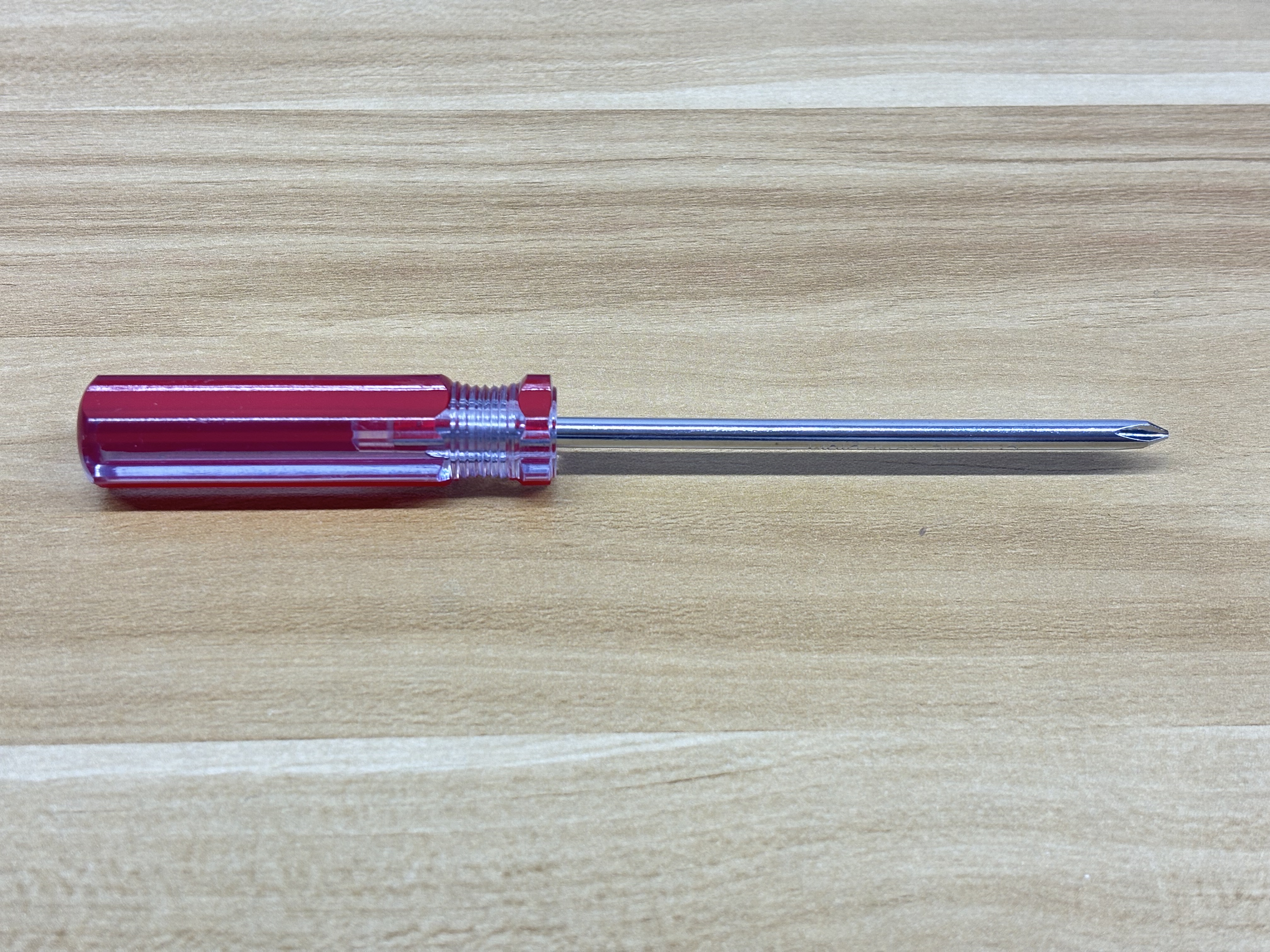

4		Phillips Head Screwdriver	Maintenance tool
5		Phillips Head Screwdriver	Maintenance tool	Only for Bolt Pro 22&32

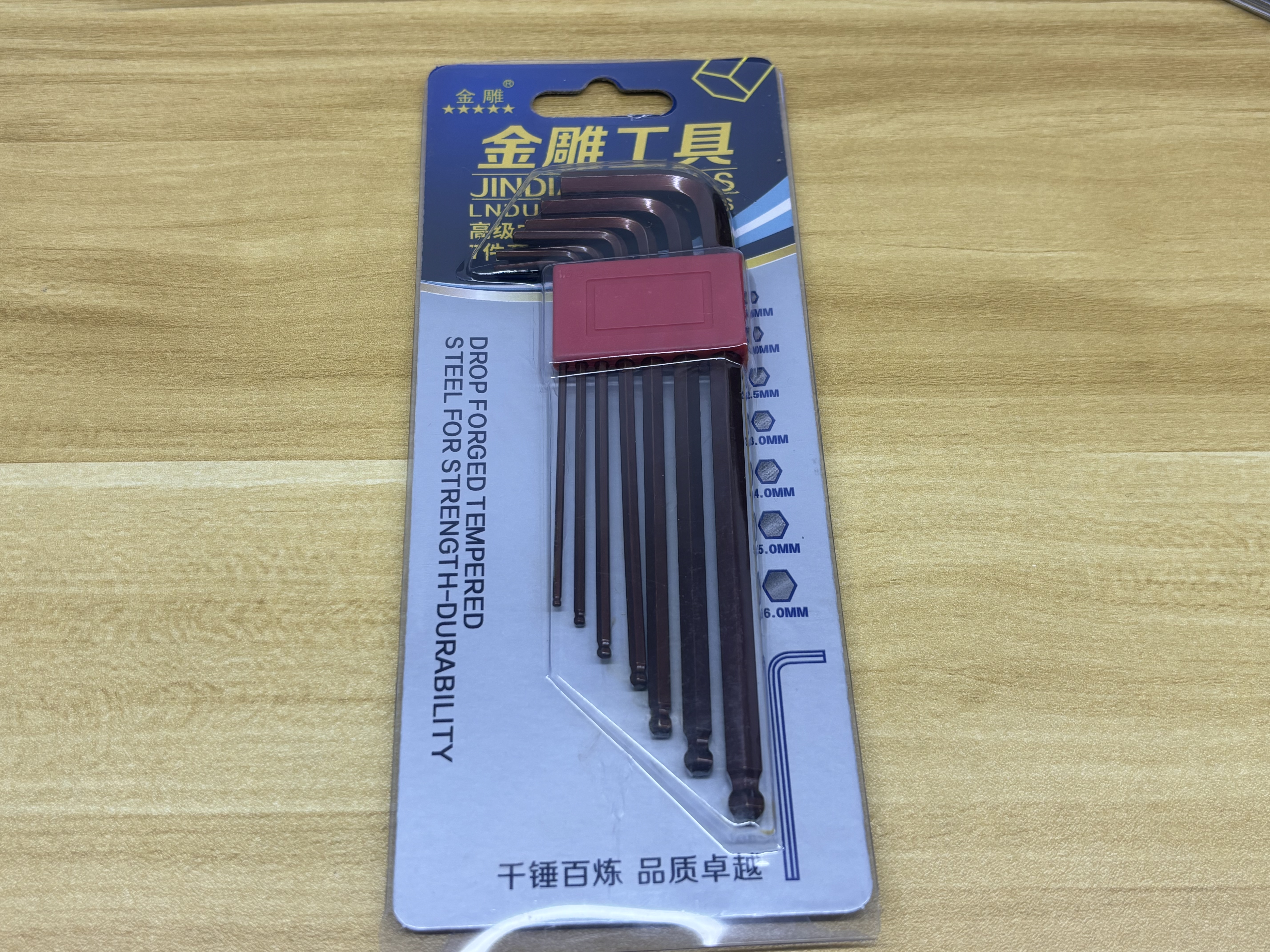

6		Allen Wrench Set	Maintenance tool	Only for Bolt & Bolt Plus

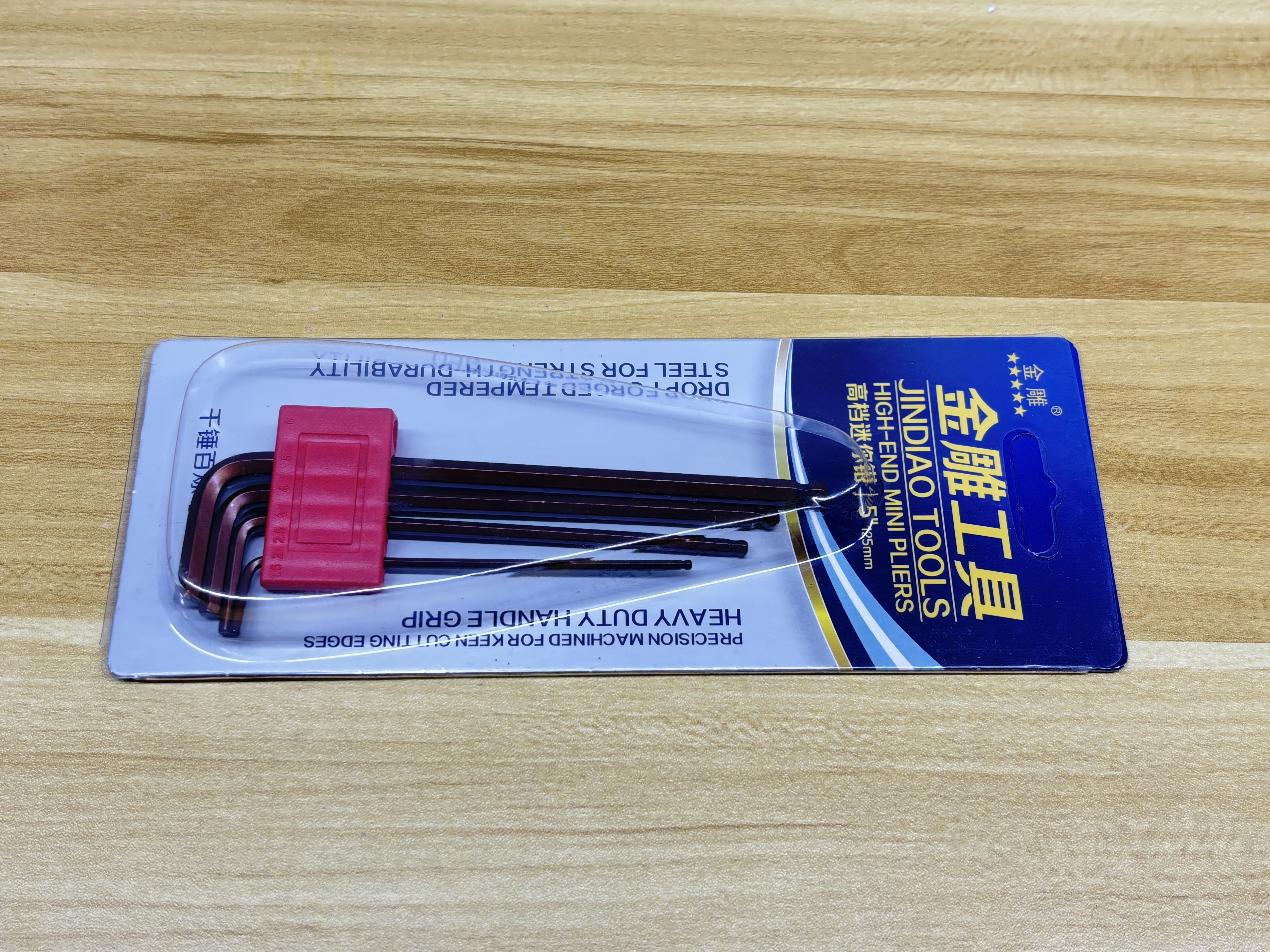

7		Allen Wrench Set	Maintenance tool	Only for Bolt Pro 22&32

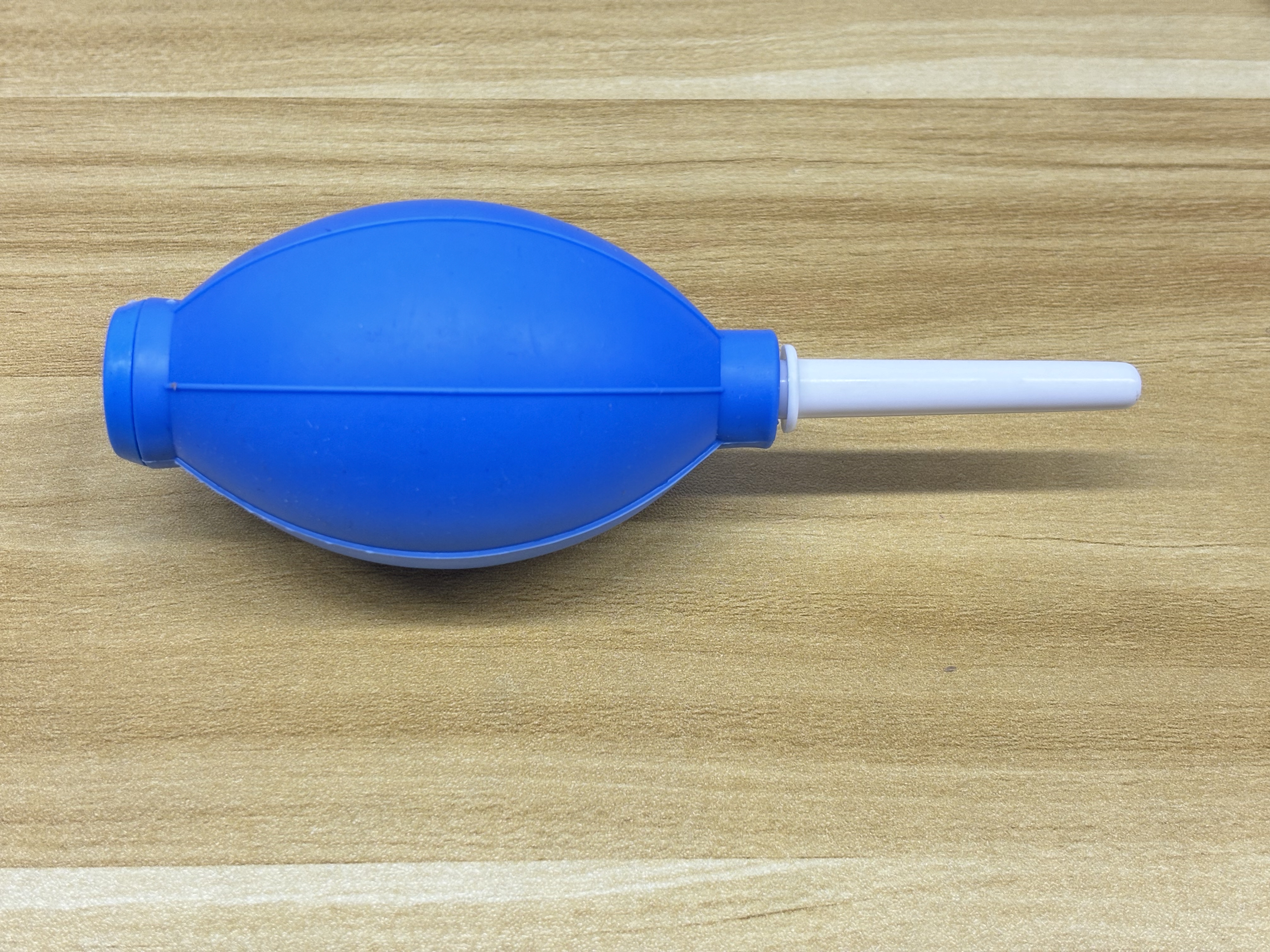

8		Air Blowing Ball	Remove dust from the surface of the lens

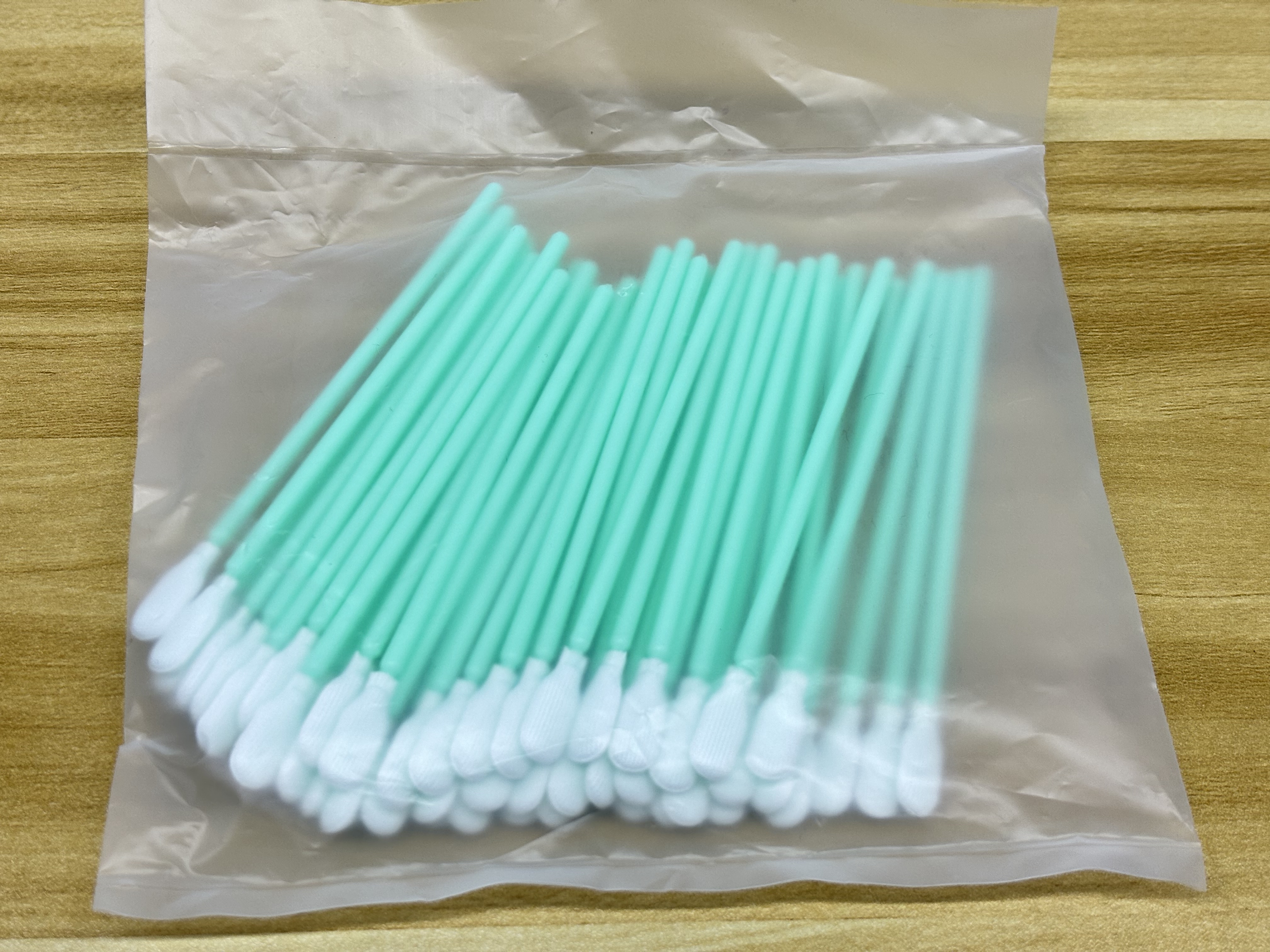

9		Q-tips	Clean lens

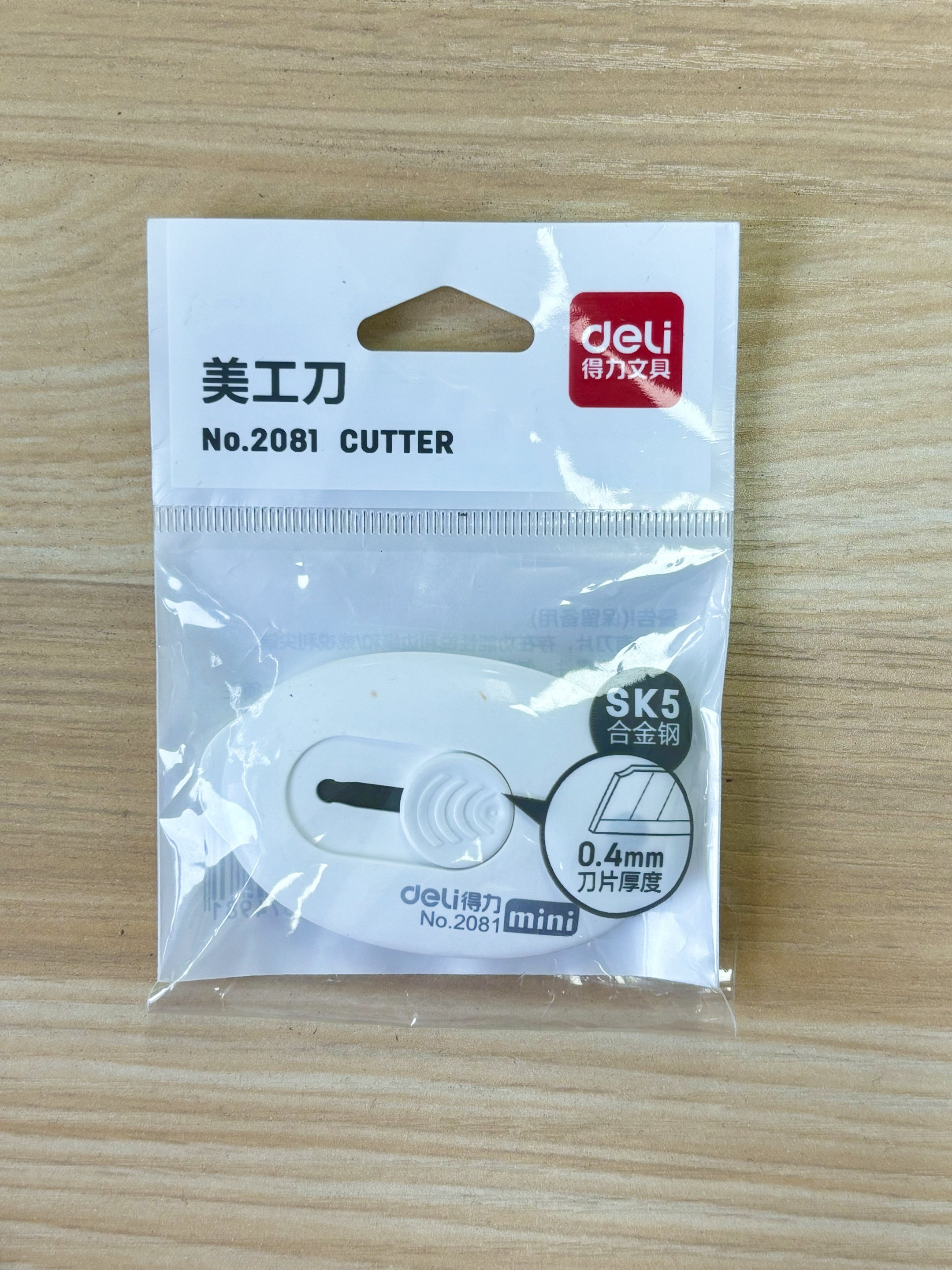

10		Cutter		Only for Bolt Pro 22&32

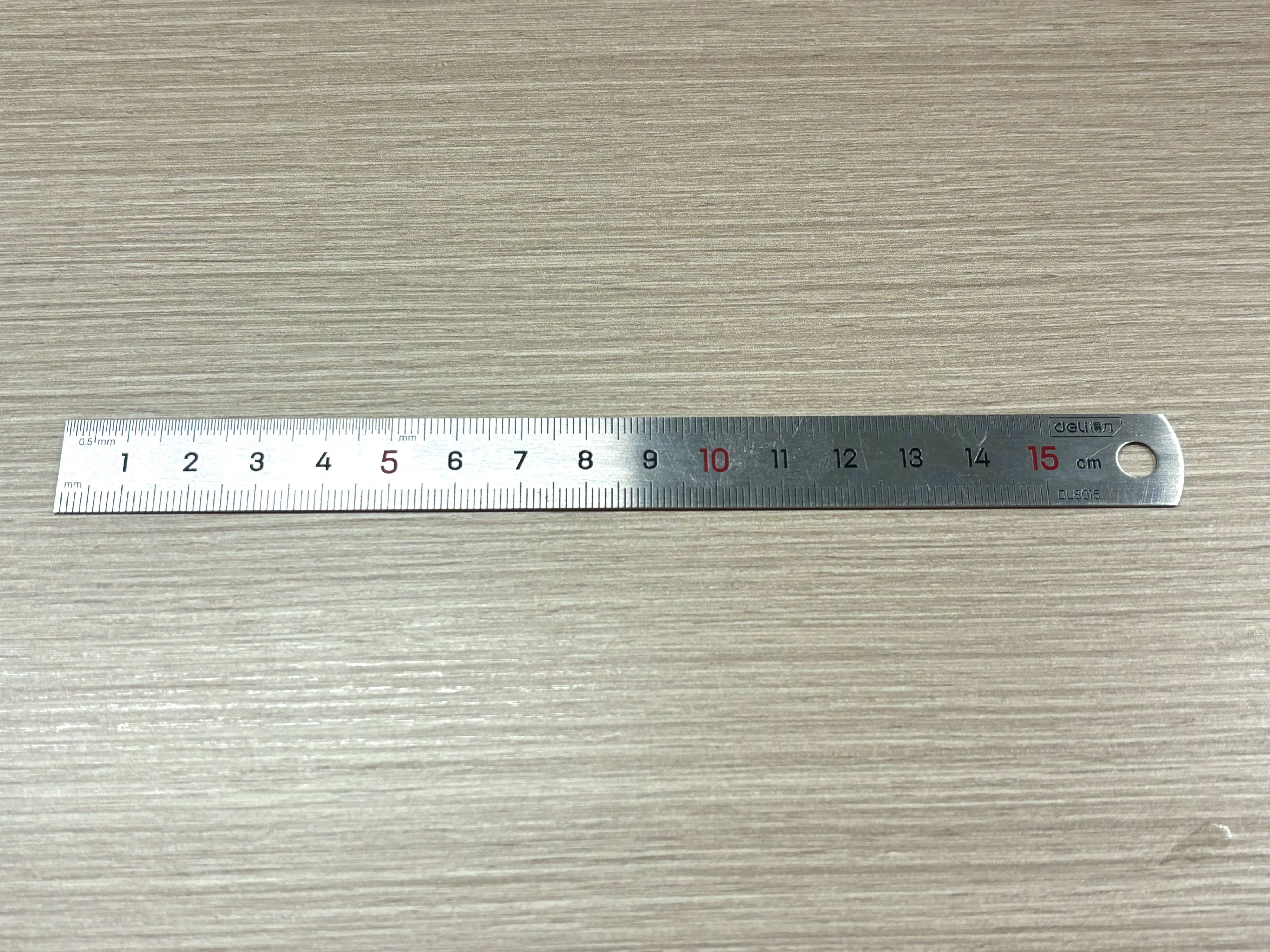

11		Ruler		Only for Bolt Pro 22&32

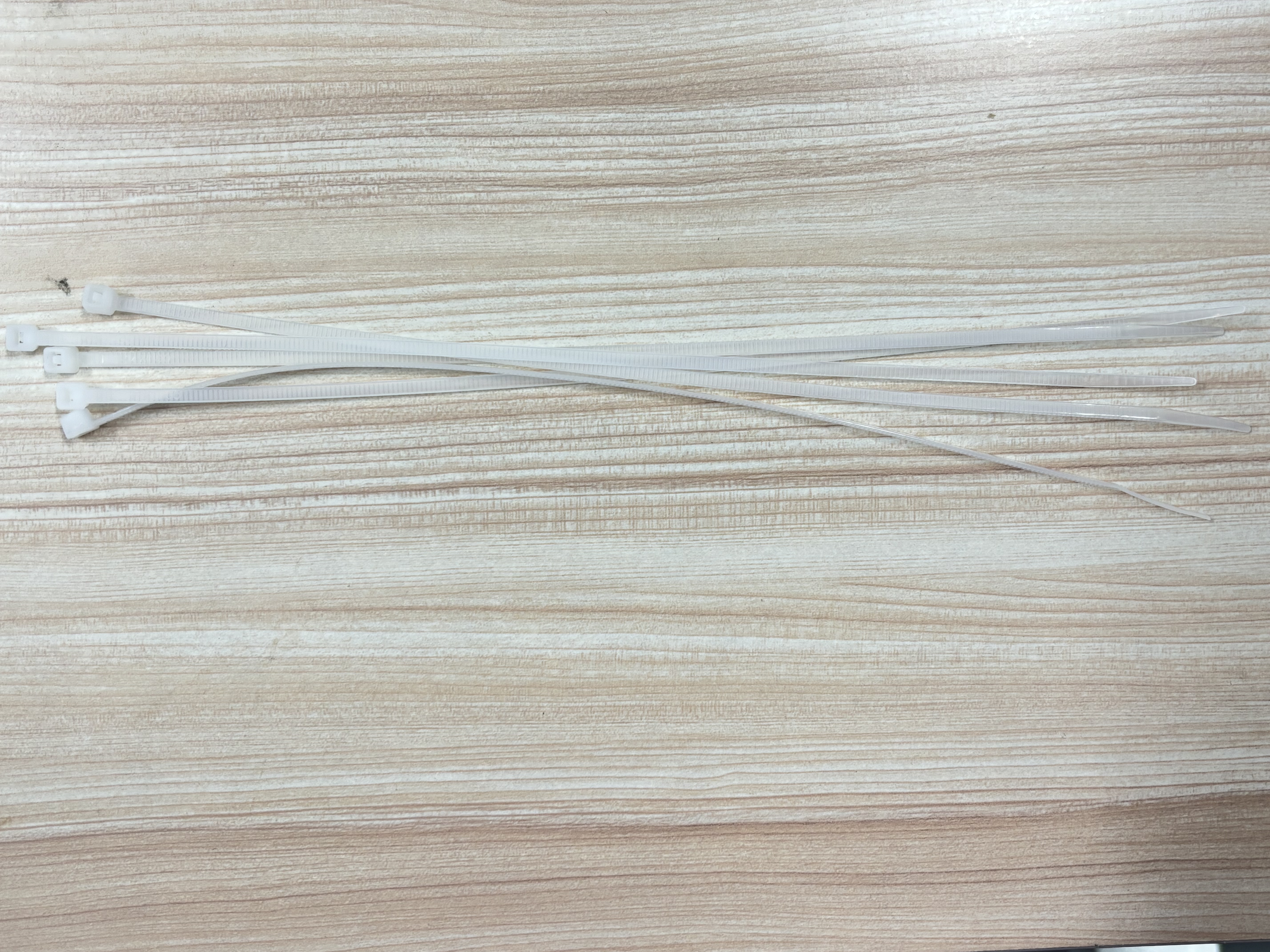

12		Zip tie		Only for Bolt Pro 22&32

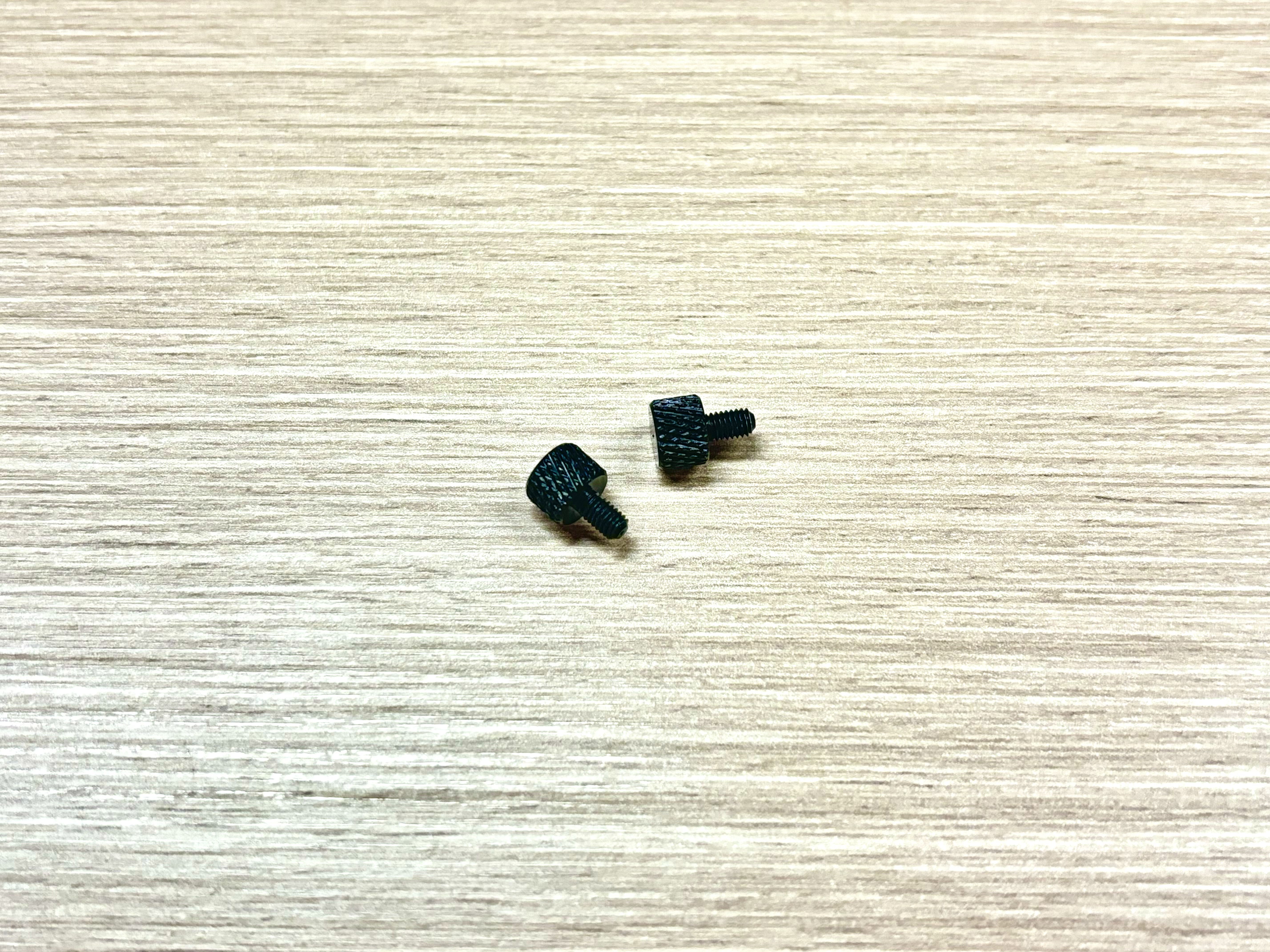

13		Thumb Screw	Fixed Lens Cover Screws (Backup）	Only for Bolt Pro 22&32

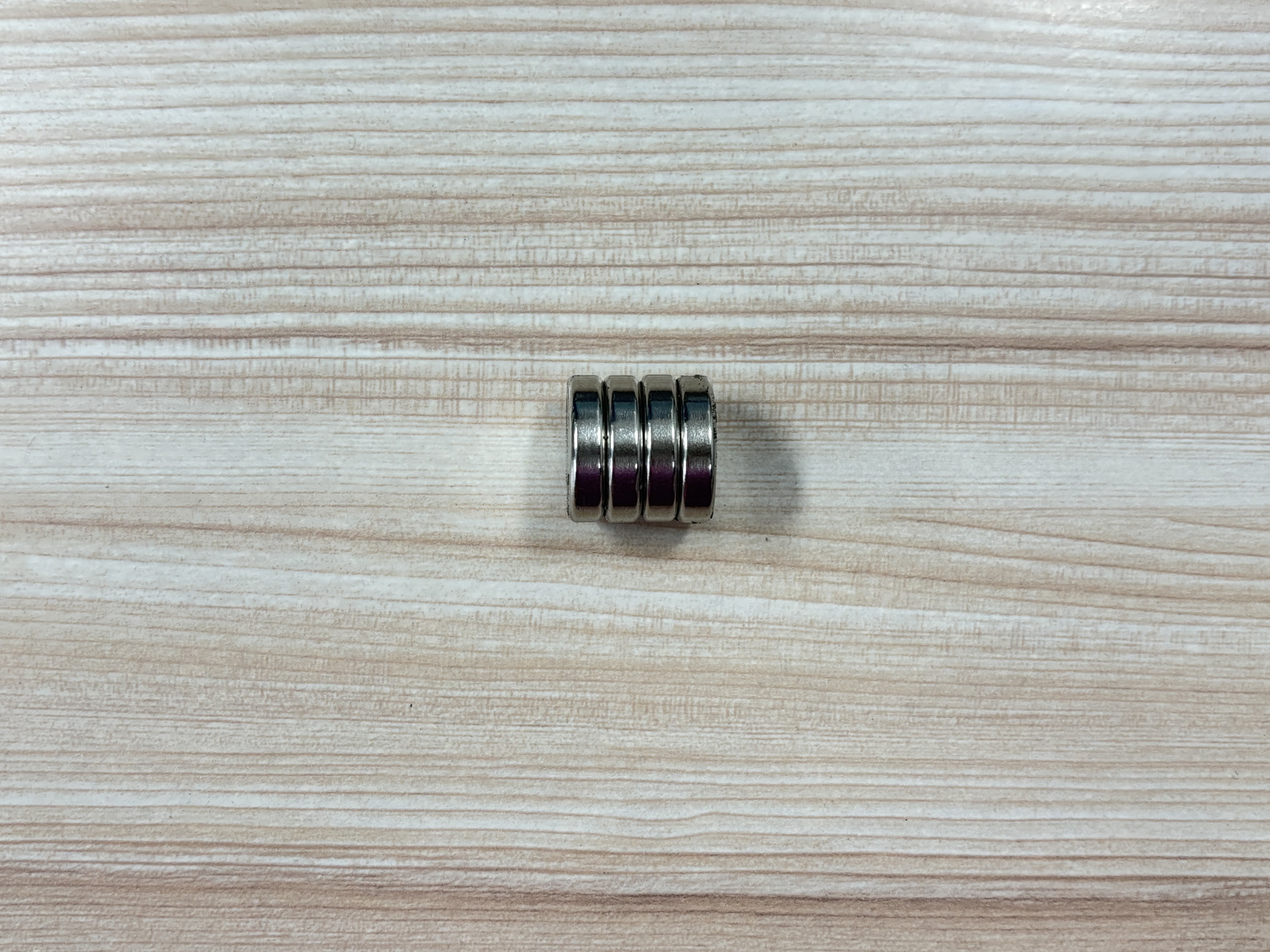

14		Magnet	Fixed machining material	Only for Bolt Pro 22&32

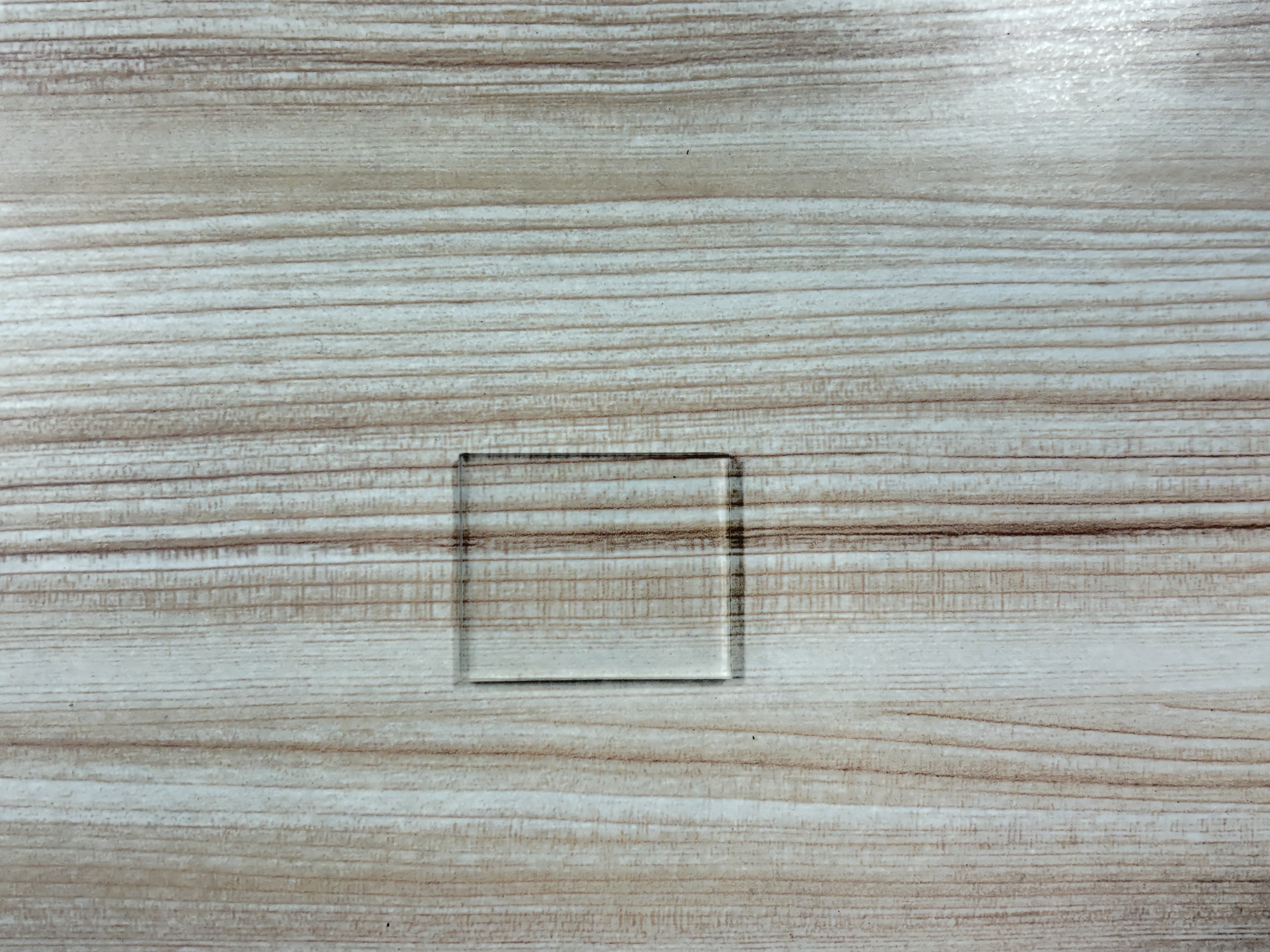

15		Acrylic Sheet		Only for Bolt Pro 22&32

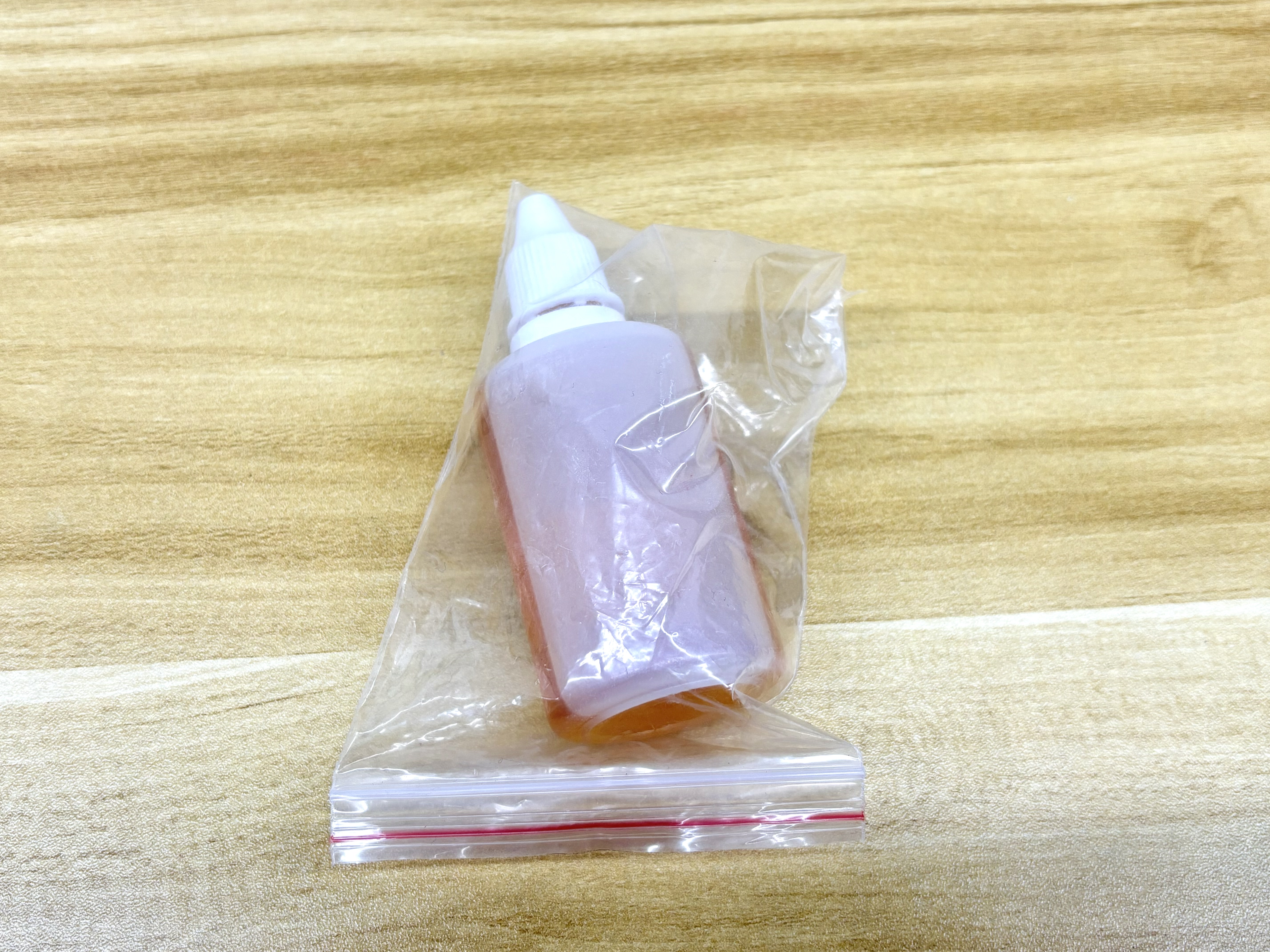

16		Lubricating Oil		Only for Bolt Pro 22&32

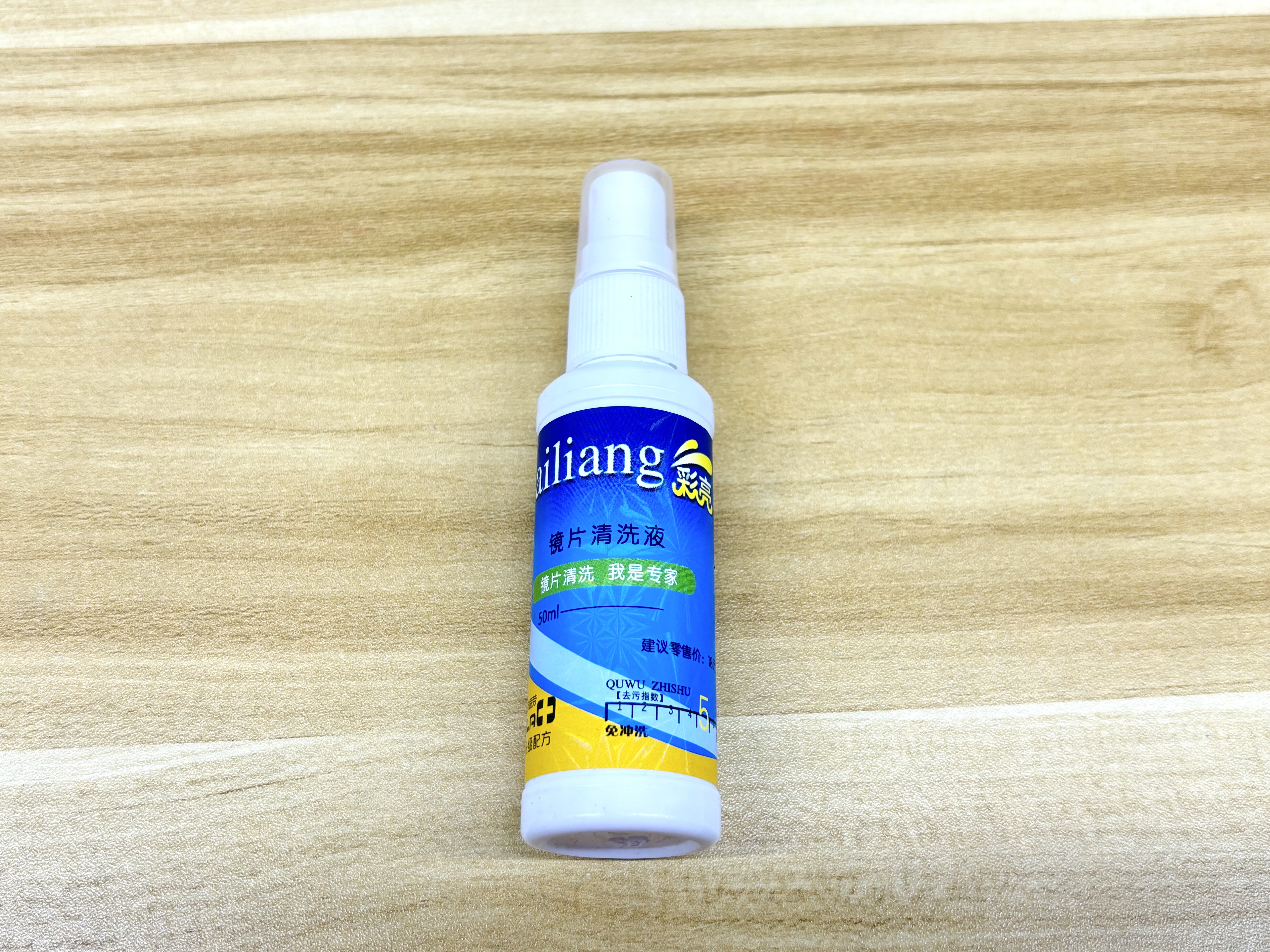

17		Lens Cleaner	Clean lens	Only for Bolt Pro 22&32

Still need help?

For specific technical questions or help requests, please open a Ticket with a picture or video, so our Support team can assist you ASAP.

For the information provided in the ticket, please refer to this link：

Help Tech Support Troubleshoot Faster

End.
