This is a listing of pictures of the control panel in the Aurora 20w MOPA from May 2022

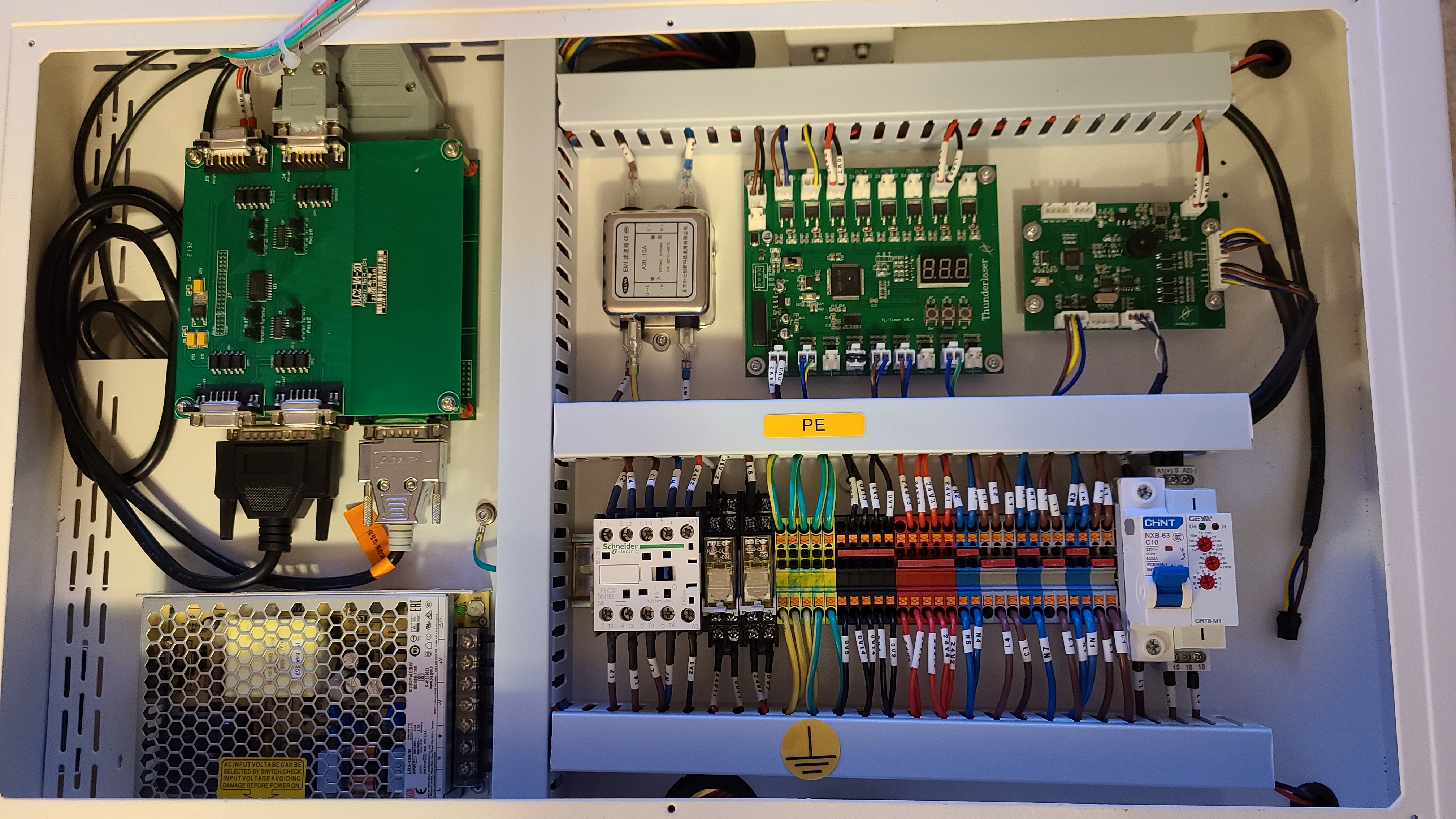

Main Control Panel (Located on top, must remove cover with fans and stack light)

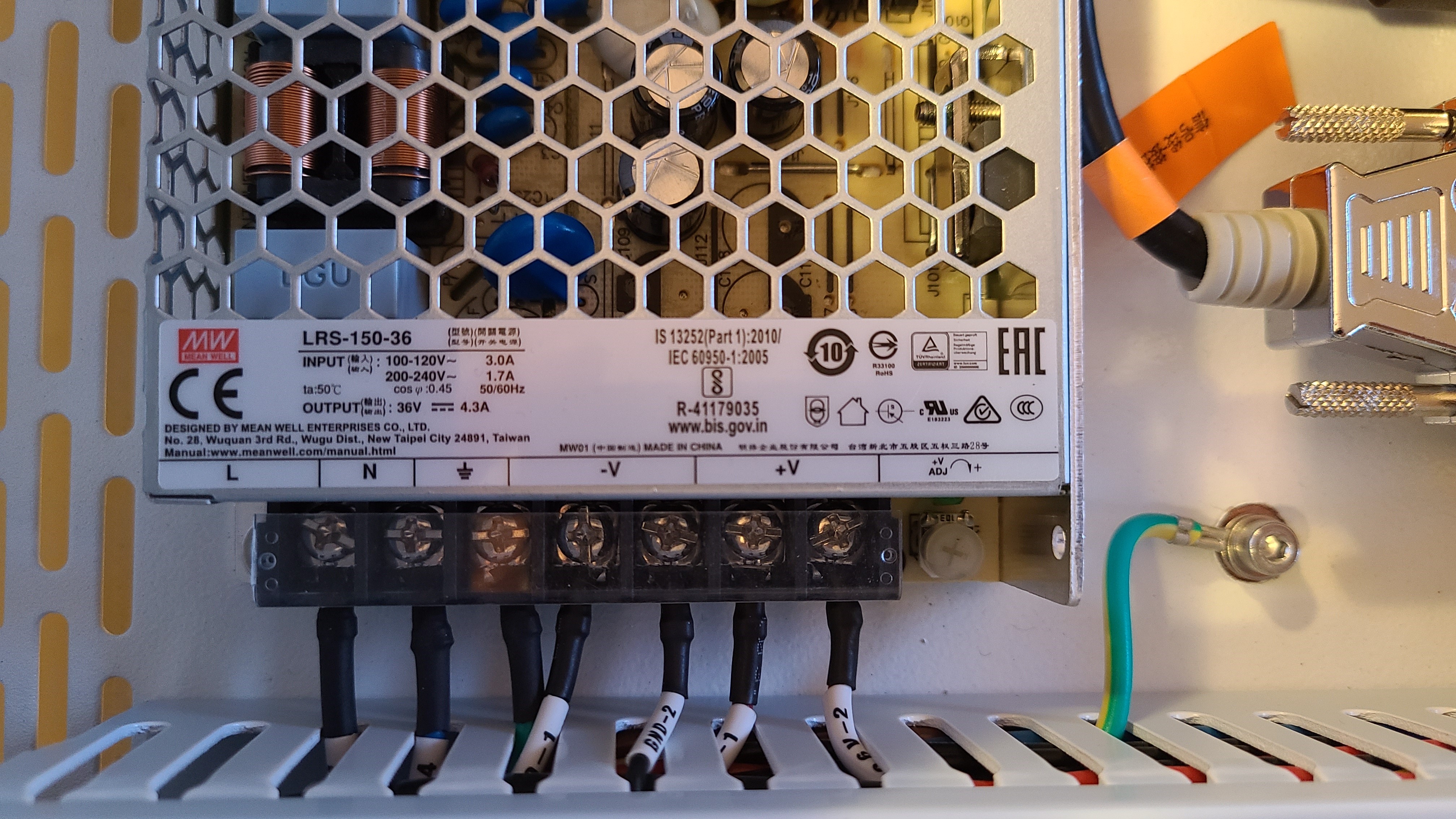

Motor Driver 36V Power Supply:

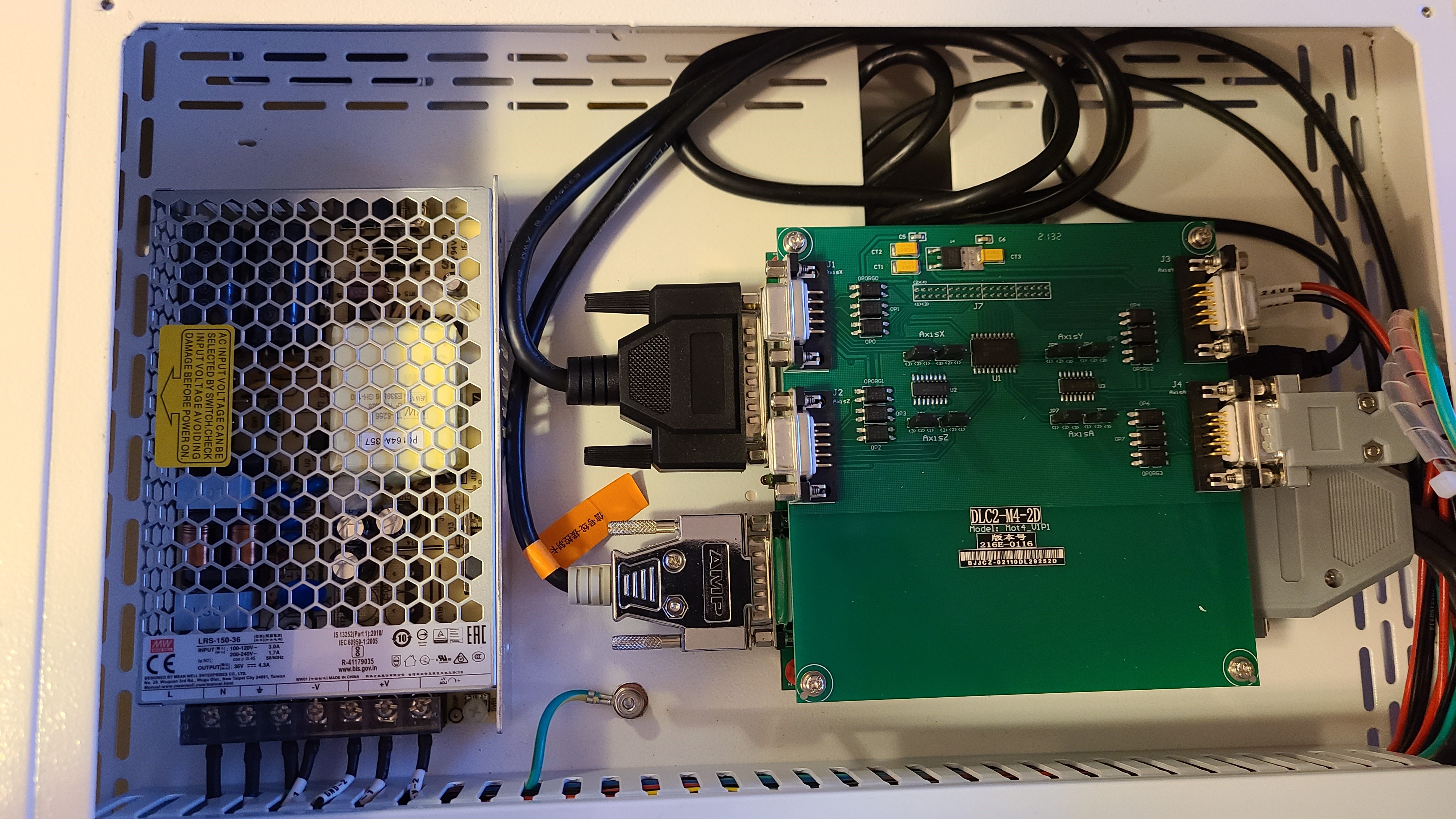

EZcad3 control board and Motor Driver 36V Power Supply

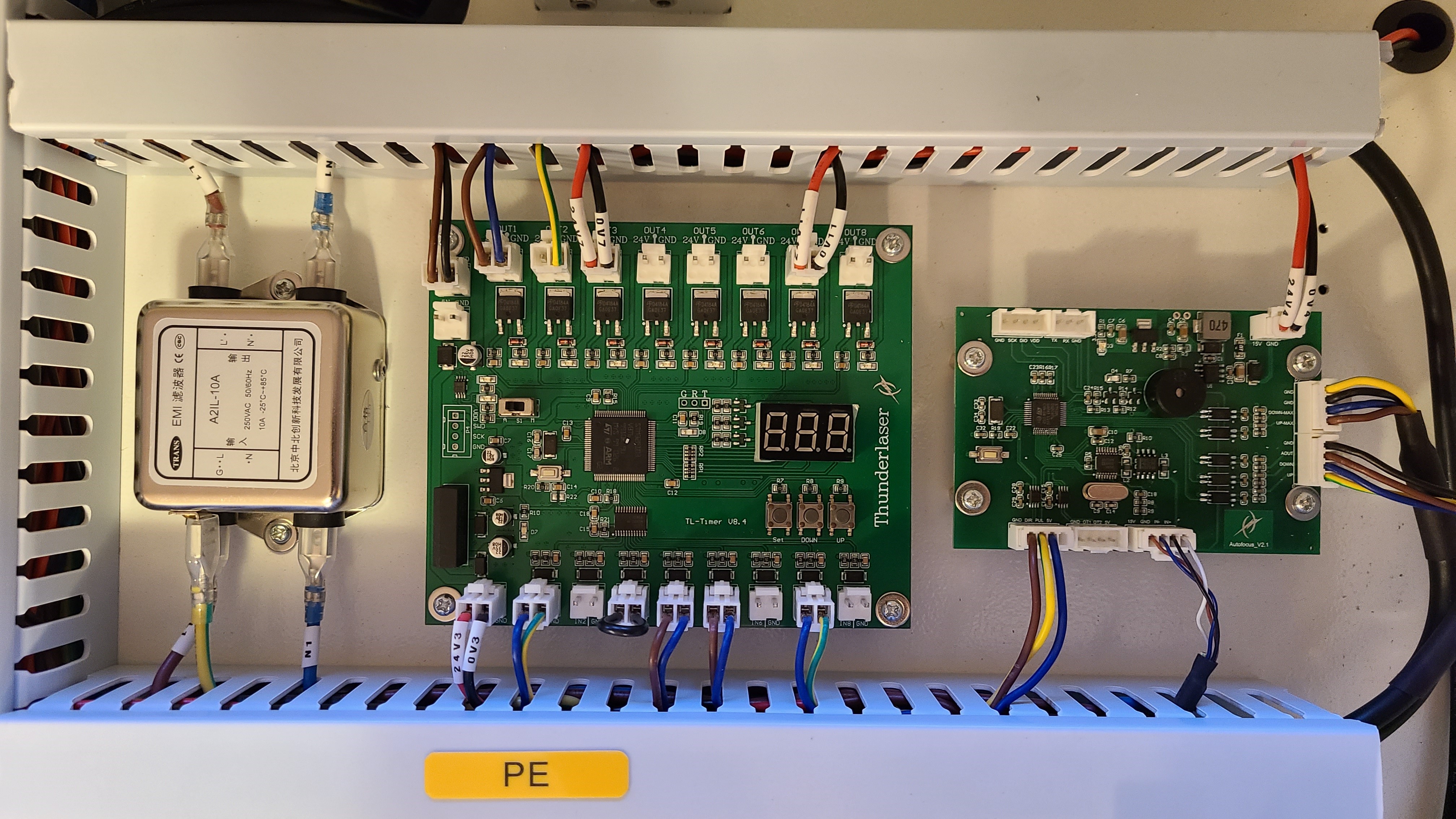

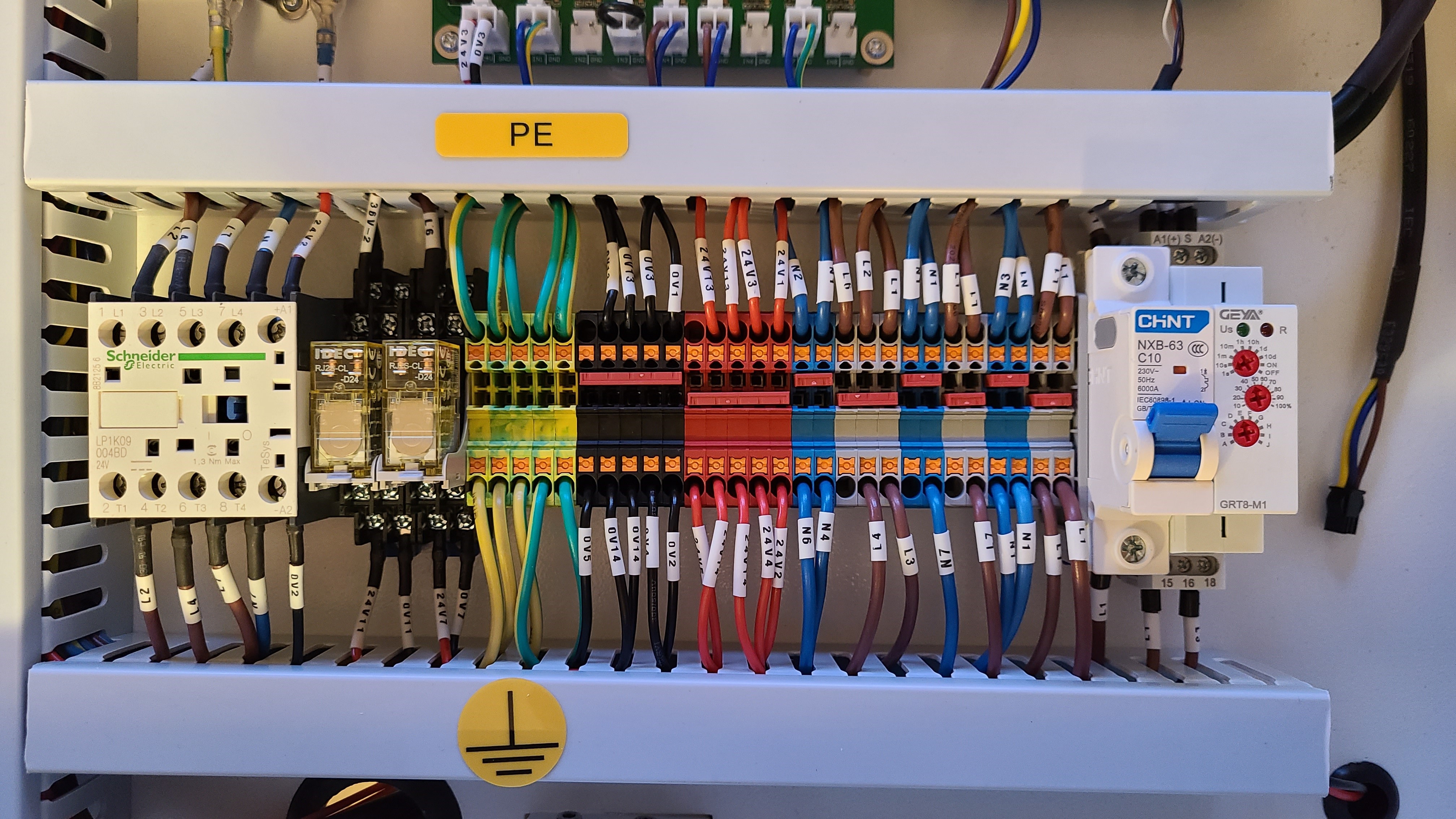

Control Components:



Controls Components:

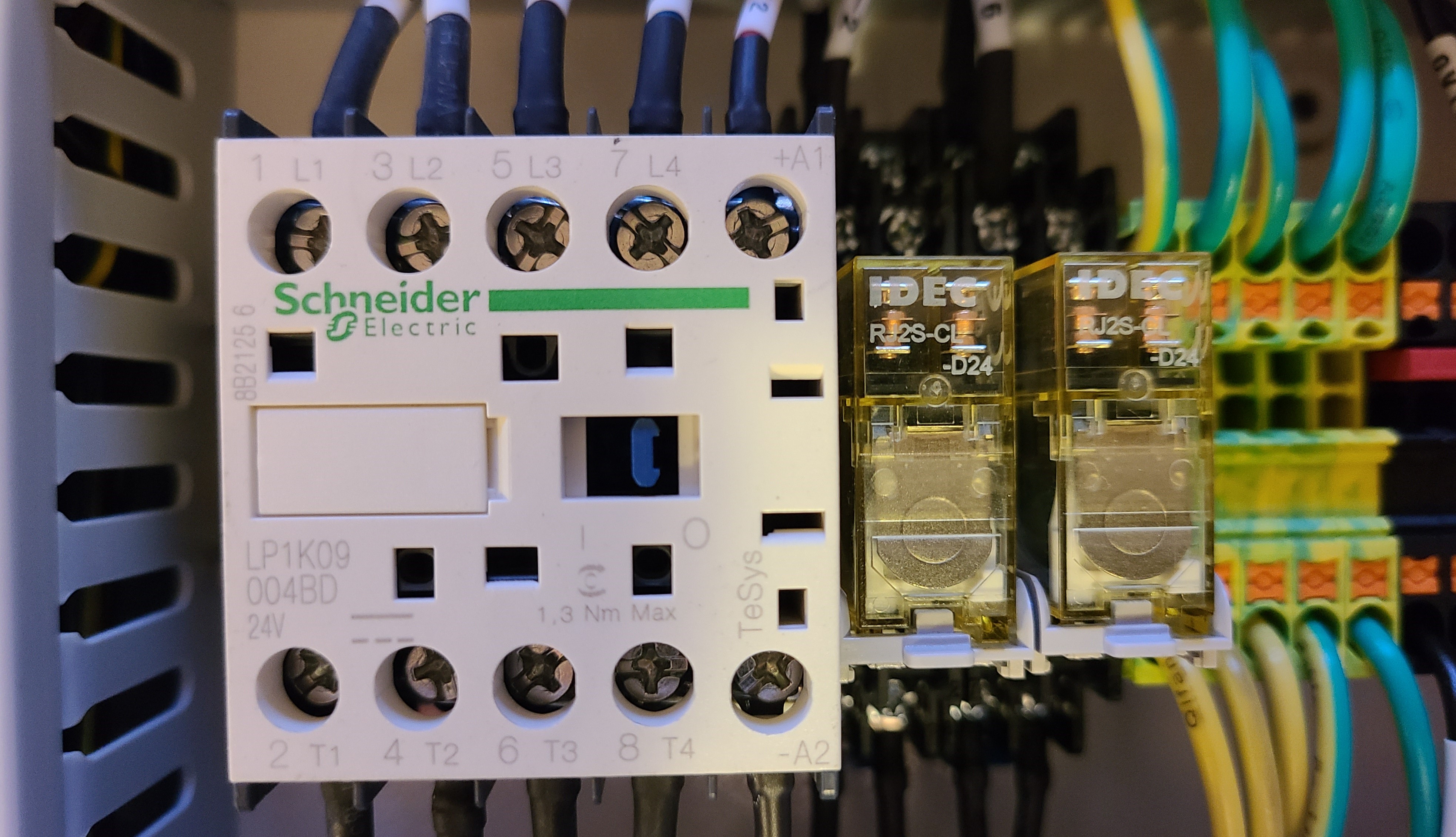

Main Contactor:


JPT 20w Mopa Source (On Right Side):

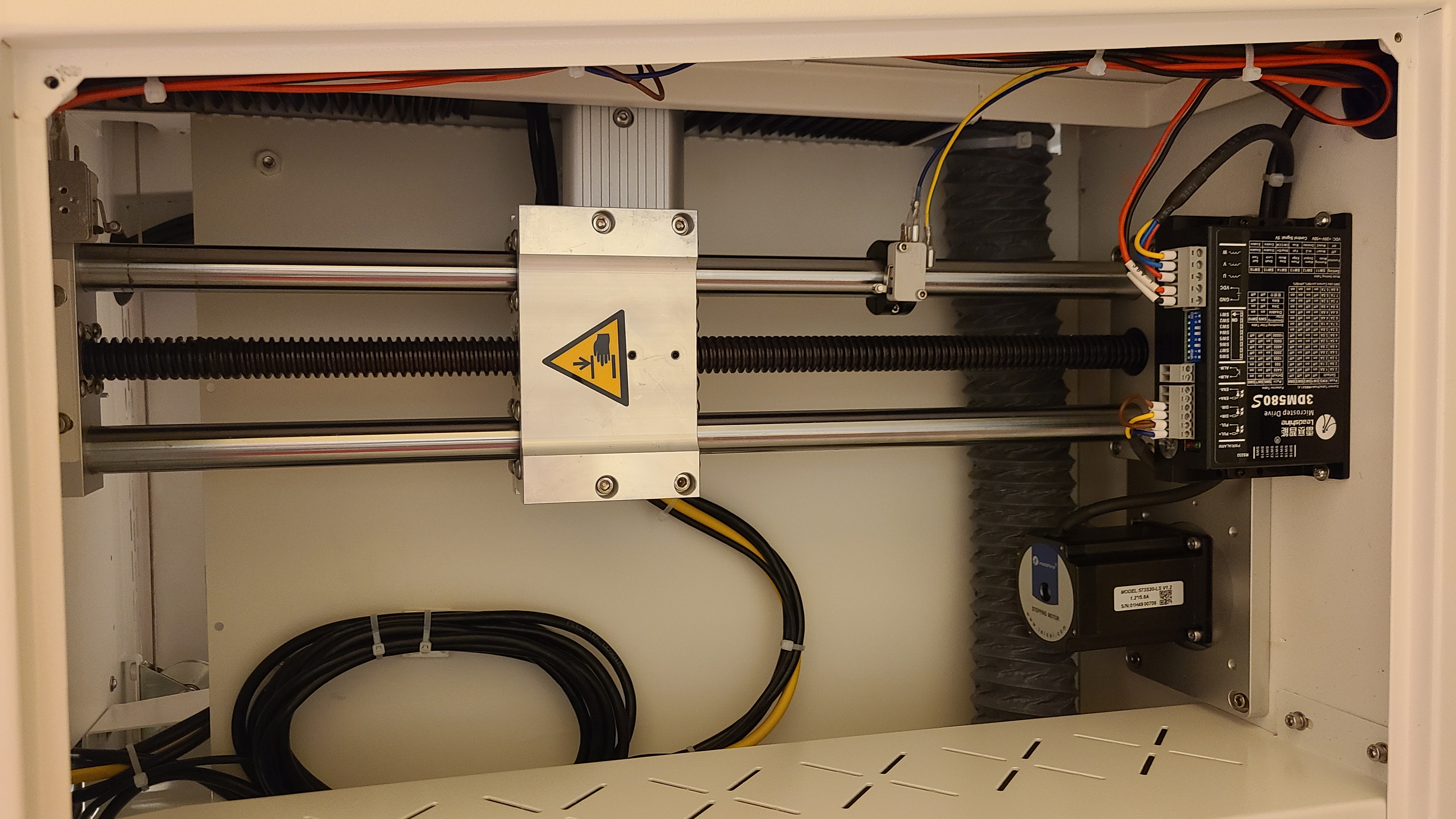

Z Driver (On Left Side)



Access to Lower Tray Components:
(remove the screws on the left and right, they are ~30mm long screws)

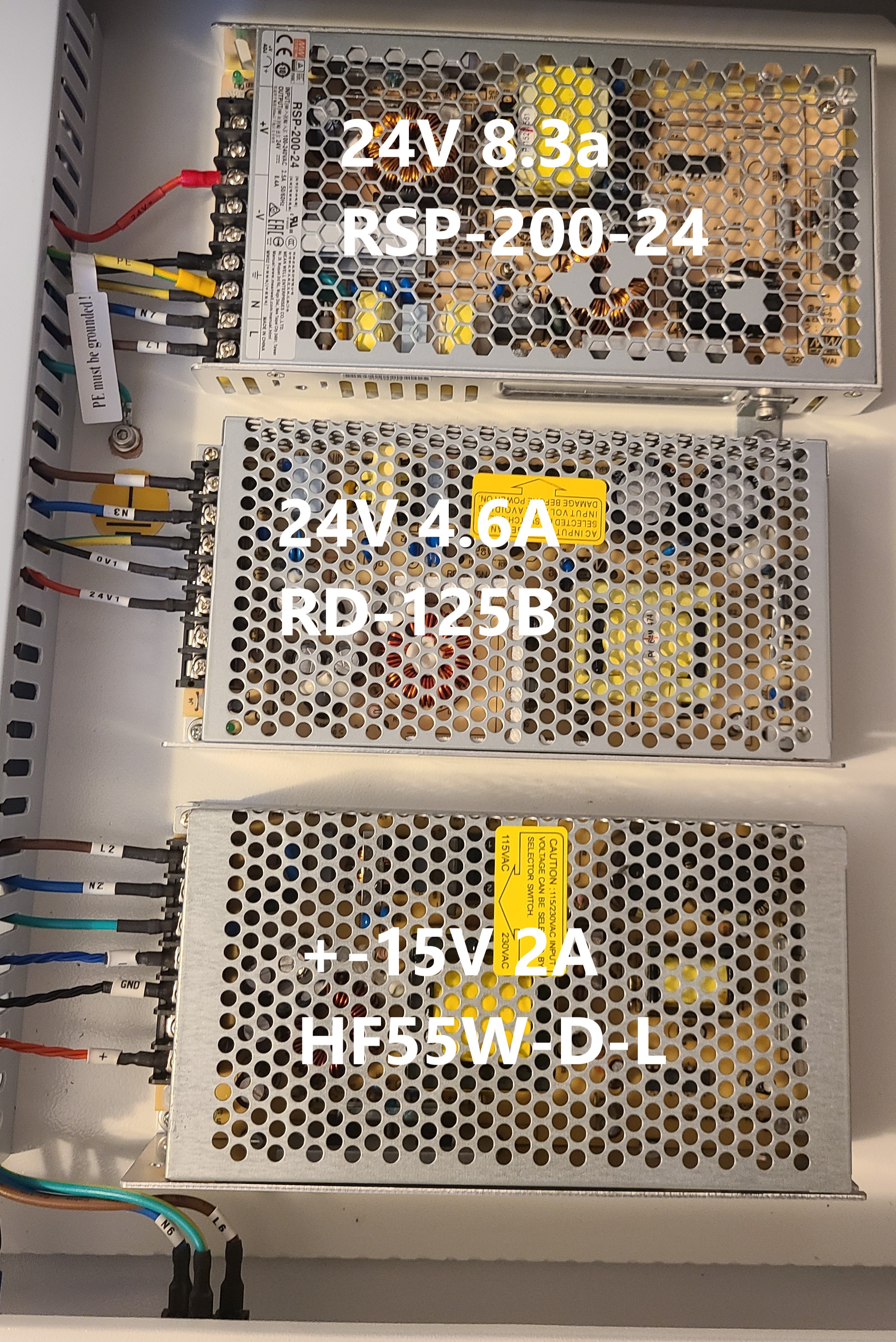

Power Supplies in the tray:

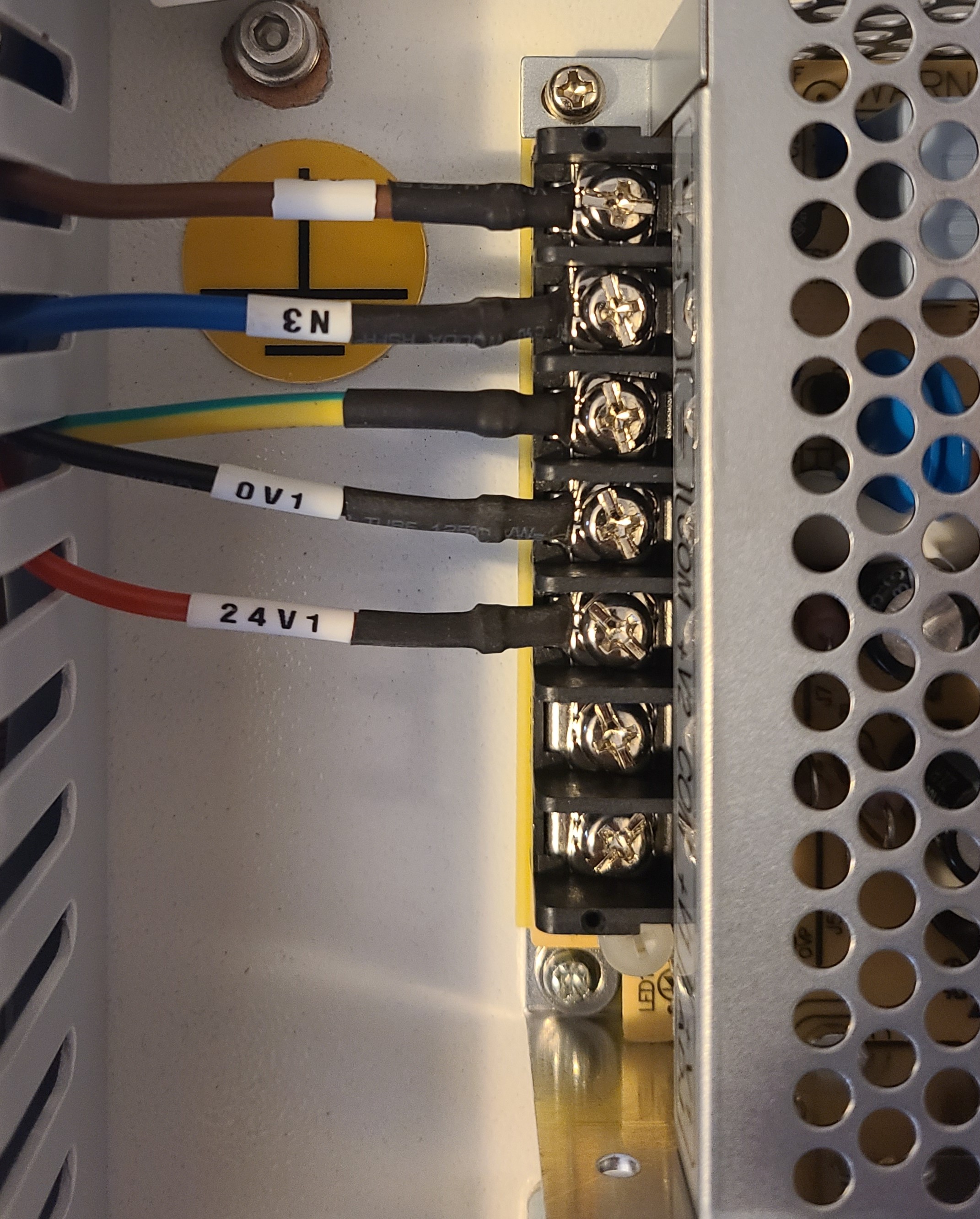

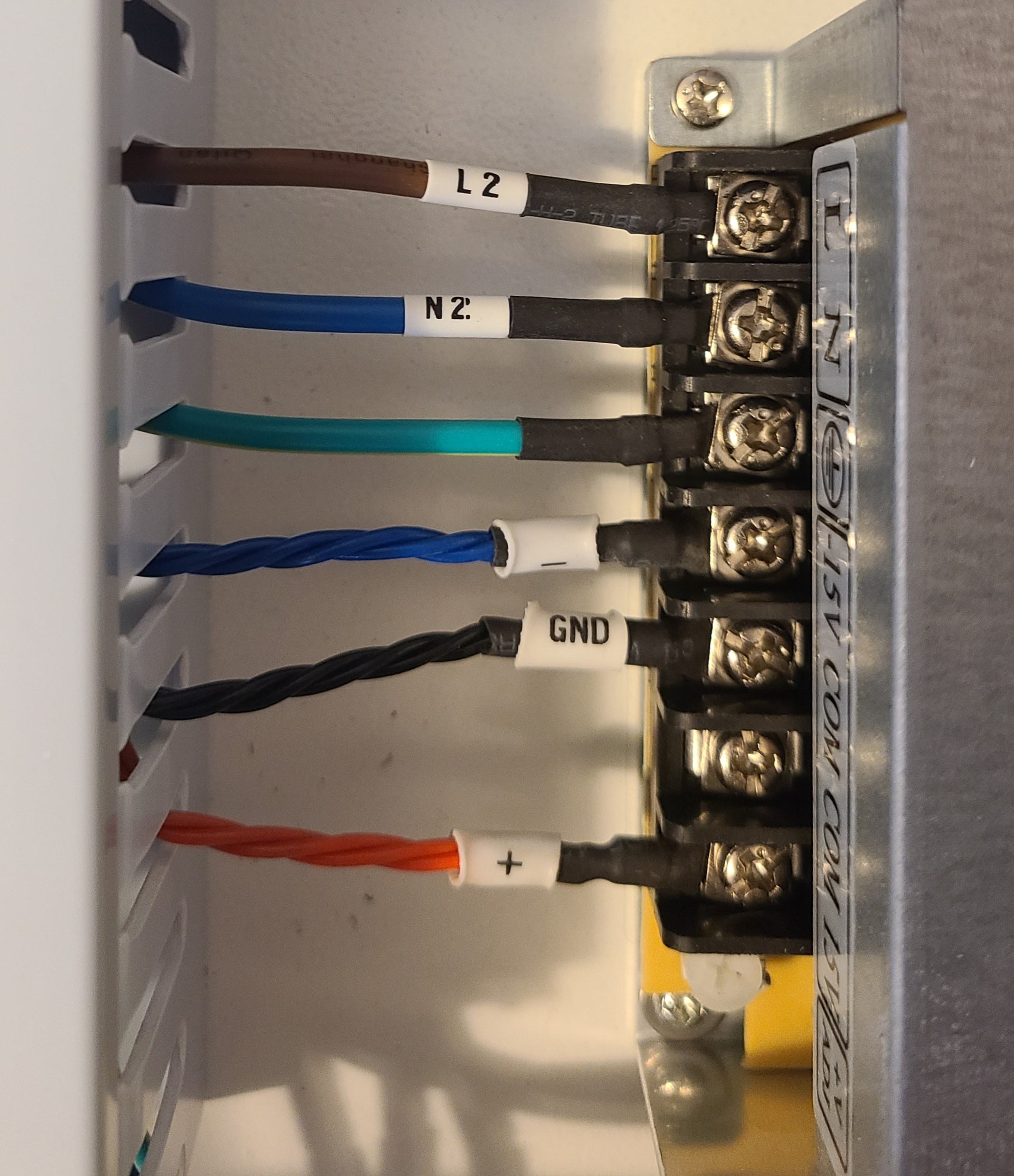

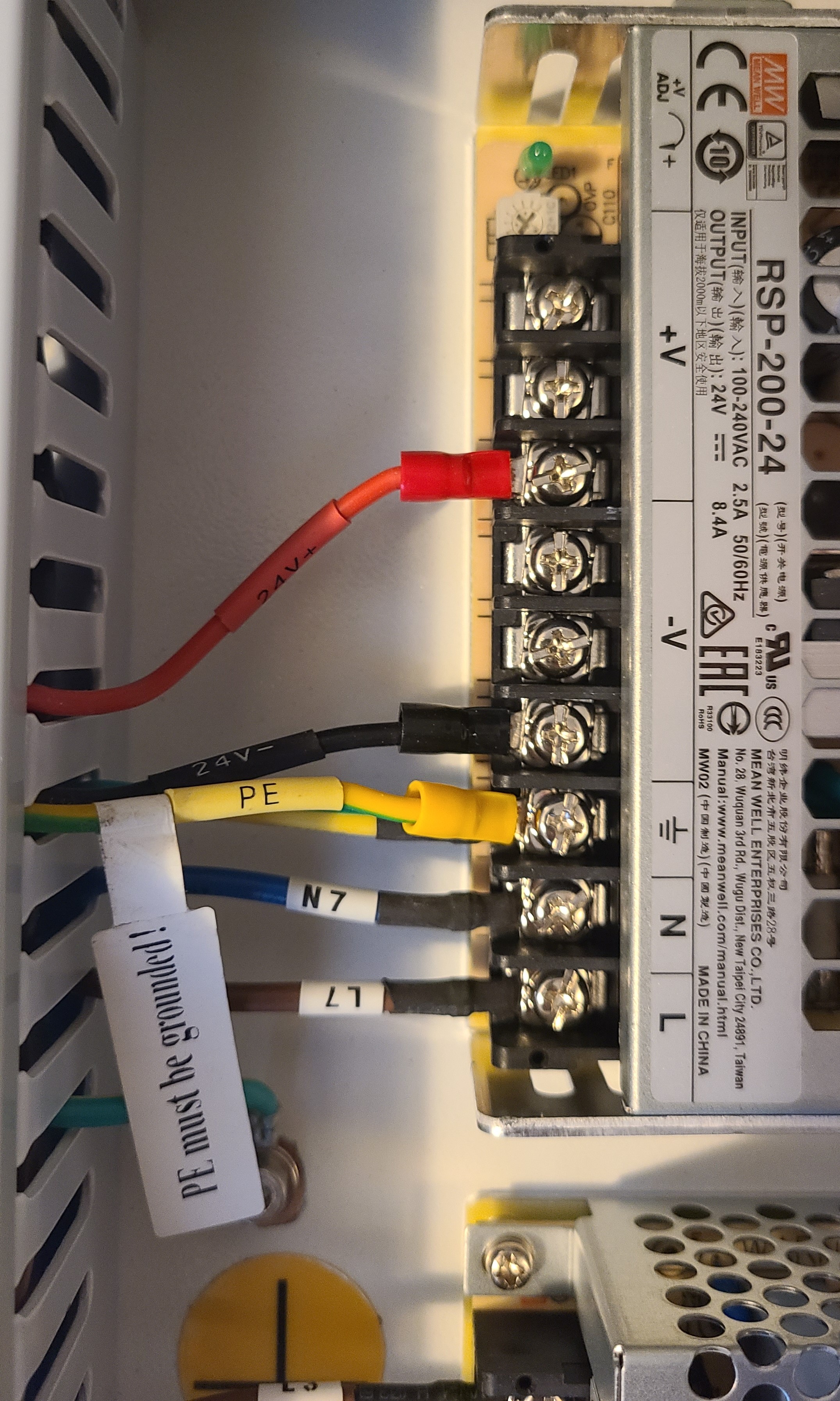

Wiring Closeups:
RSP-200-24


RD-125B

HF55W-D-L
