Alarm message of LCD panel-Frame X/Y Slop over

Alarm message of LCD panel-Frame X/Y Slop over

Problem description:

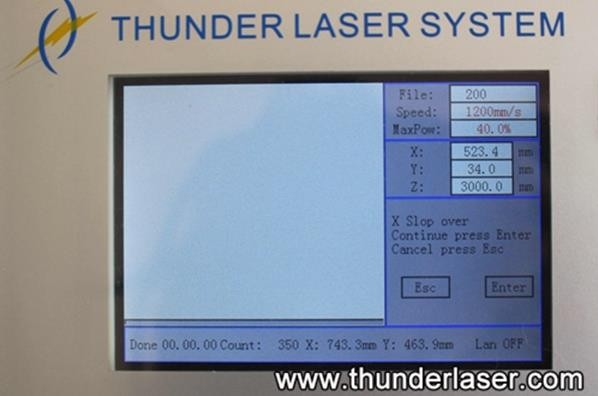

LCD panel shows the following information:


Reason:

1.The size of the graphic is larger than the working area of the machine

Solution:

If your laser cutter's working area is 600×400mm, but you want to cut a graphic which larger than 600×400mm, this warn appears. Since the laser is not able to work beyond its working.


2.Incorrect starting point

Solution:

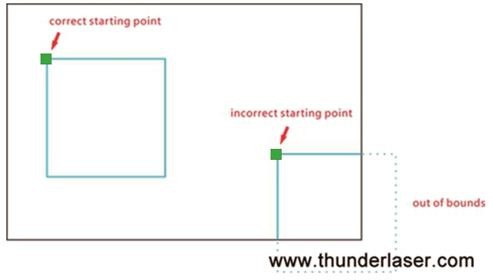

If you set an incorrect starting point, the graphic might be out of bounds. Please set a correct starting point to resolve this problem, like below.


End
